Toyota YARIS Front Drive Shaft — Figure 4302

Toyota YARIS EPC diagram 4302, Front Drive Shaft, with 2 images and 28 PNC and OE references.

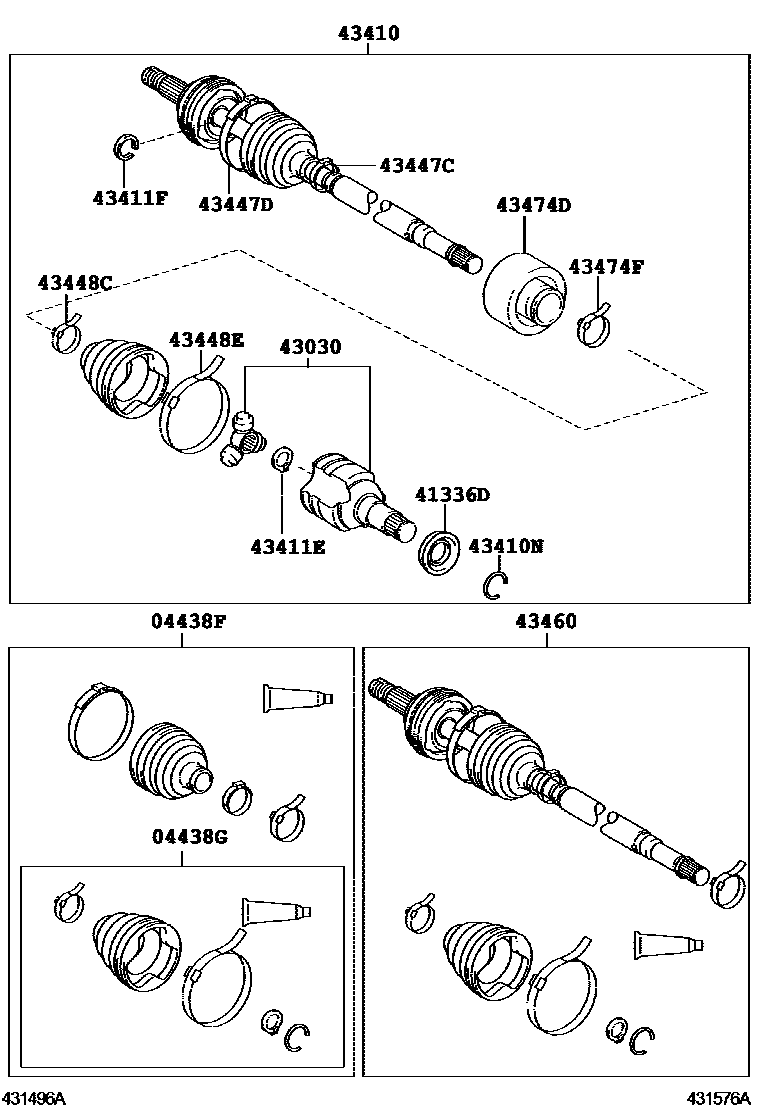

Toyota YARIS Front Drive Shaft EPC diagram — 431576A
Front Drive Shaft — 431576A (200601 – 999999)

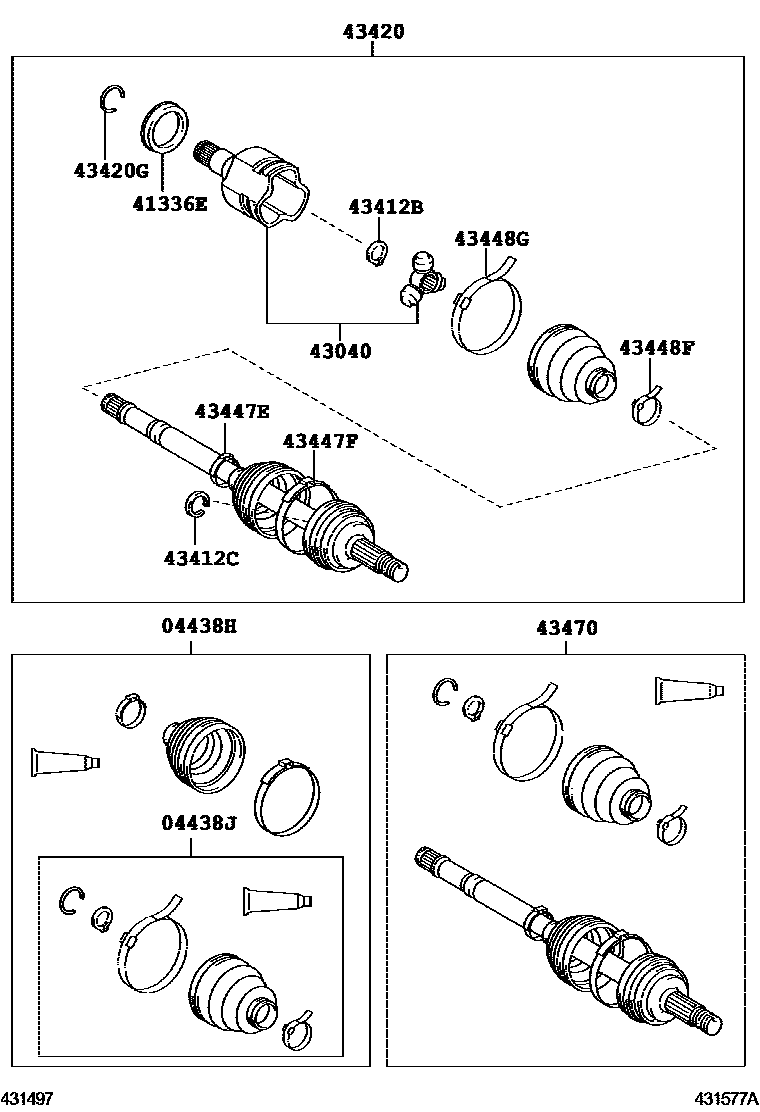

Toyota YARIS Front Drive Shaft EPC diagram — 431577A
Front Drive Shaft — 431577A (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-0D140 · 04427-0D170 · 04427-0D171
04438GRight front drive shaft inner universal joint dust boot assembly04437-0D260 · 04438-0D180 · 04438-0D190
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-0D130 · 04428-0D160 · 04428-0D161
04438JLeft front drive shaft inner universal joint dust boot assembly04437-0D260 · 04438-0D180 · 04438-0D190
41336DRight front driveshaft dust cover41336-0D040 · 41336-0D060
41336ELeft front driveshaft dust cover41336-0D040 · 41336-0D060
43030Right front drive shaft inner universal joint assembly43030-0D020 · 43030-0D030
43040Left front drive shaft inner universal joint assembly43030-0D020 · 43030-0D030
43410Right front driveshaft assembly43410-0D190 · 43410-0D230
43410NHole snap ring (for right front driveshaft)43425-0D130 · 43425-0D160
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-0D120 · 43425-0D150
43411FOuter shaft snap ring (for right front axle inner drive shaft)43425-0D140 · 43425-0D170
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-0D120 · 43425-0D150
43412COuter shaft snap ring (for left front axle inner drive shaft)43425-0D140 · 43425-0D170
43420Left front drive shaft assembly43420-0D190 · 43420-0D200
43420GHole snap ring (for left front driveshaft)43425-0D130 · 43425-0D160
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-0D330 · 42345-0D380
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-0D340 · 42345-0D390
43447EClamp (for left front axle outer universal joint dust cover)42345-0D330 · 42345-0D380
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-0D340 · 42345-0D390
43448CClamp (for the universal joint dust cover inside the right front axle)42345-0D310 · 42345-0D360 · 42345-0DA40
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-0D300 · 42345-0D350 · 42345-0DA30
43448FClamp (for left front axle inner universal joint dust cover)42345-0D310 · 42345-0D360 · 42345-0DA40
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-0D300 · 42345-0D350 · 42345-0DA30
43460Right front outer drive universal joint shaft assembly43460-09Q60 · 43460-09S30 · 43460-09S31
43470Left front outer drive universal joint shaft assembly43470-09R30 · 43470-09U70 · 43470-09U71
43474DRight front driveshaft shock absorber43474-0D070 · 43474-0D080
43474FClamp (for right front driveshaft shock absorber)42345-0D320 · 42345-0D370
