Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 4 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

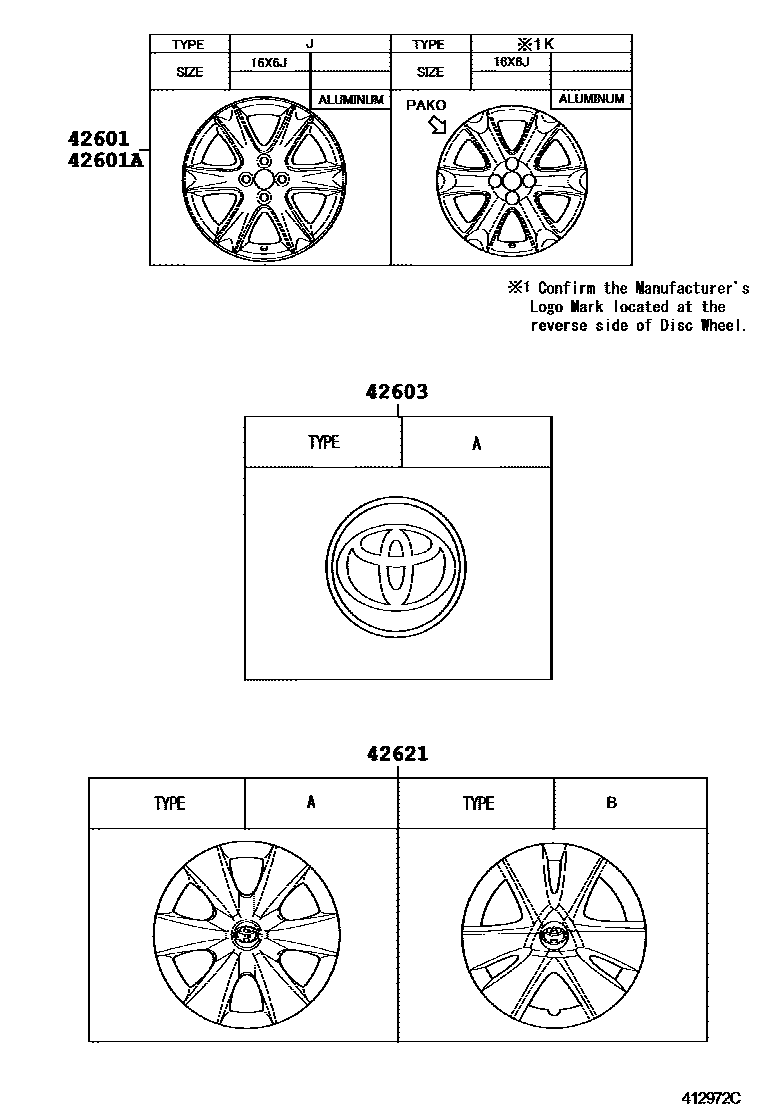

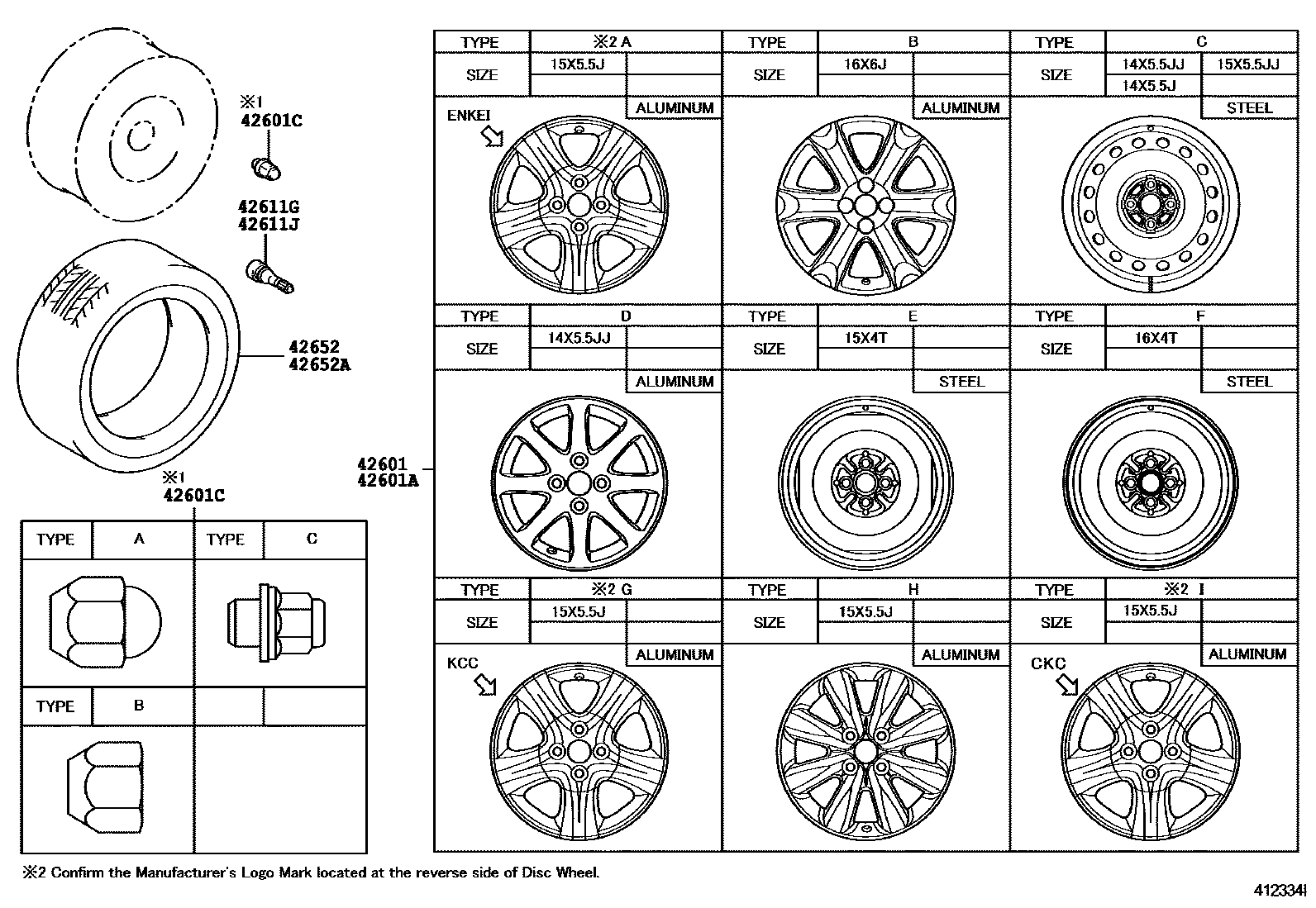

| 42601 | spoke wheel | 42611-0D250 · 42611-0D260 · 42611-0D320 · 42611-0D321 · 42611-0D330 · 42611-0D340 · 42611-0D360 · 42611-0D370 · 42611-0D380 · 42611-0D381 · 42611-0D470 · 42611-0D660 · 42611-0D670 · 42611-0DA80 · 42611-52492 · 42611-52493 · 42611-52500 |
| 42601A | Spoke wheel (for spare tire) | 42611-02280 · 42611-02690 · 42611-0D110 · 42611-0D111 · 42611-0D320 · 42611-0D321 · 42611-0D330 · 42611-0D380 · 42611-0D381 · 42611-0D470 · 42611-52500 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-02130 · 42603-0D070 · 42603-0D090 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90083-45001 · 90942-05009 |
| 42621 | wheel cover | 42602-52260 · 42602-52320 |
| 42652 | tires | 42652-0D540 · 42652-0D560 · 42652-0D561 · 42652-0D600 · 42652-0D620 · 42652-0D640 · 42652-0D660 · 42652-0D850 |
| 42652A | Tire (for Spare Wheel) | 42652-02890 · 42652-0D160 · 42652-0D170 · 42652-0D560 · 42652-0D561 · 42652-0D600 · 42652-0D690 · 42652-0D700 · 42652-0D850 |
