Toyota YARIS Shift Lever & Retainer — Figure 3312

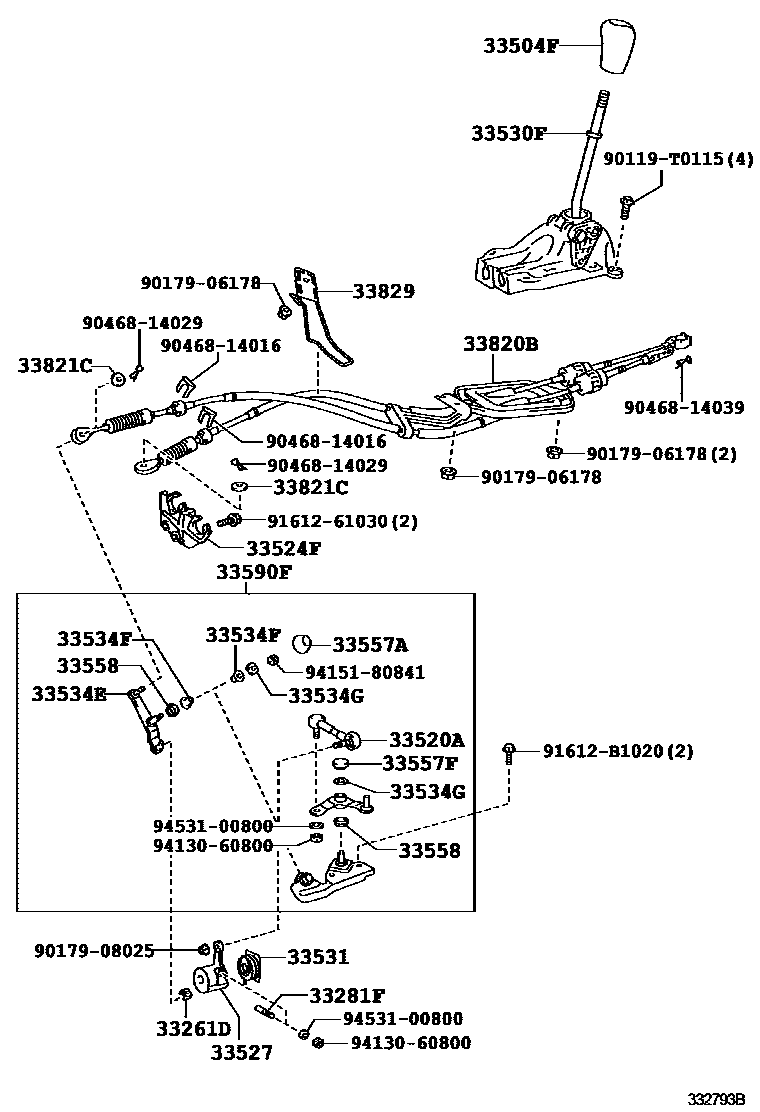

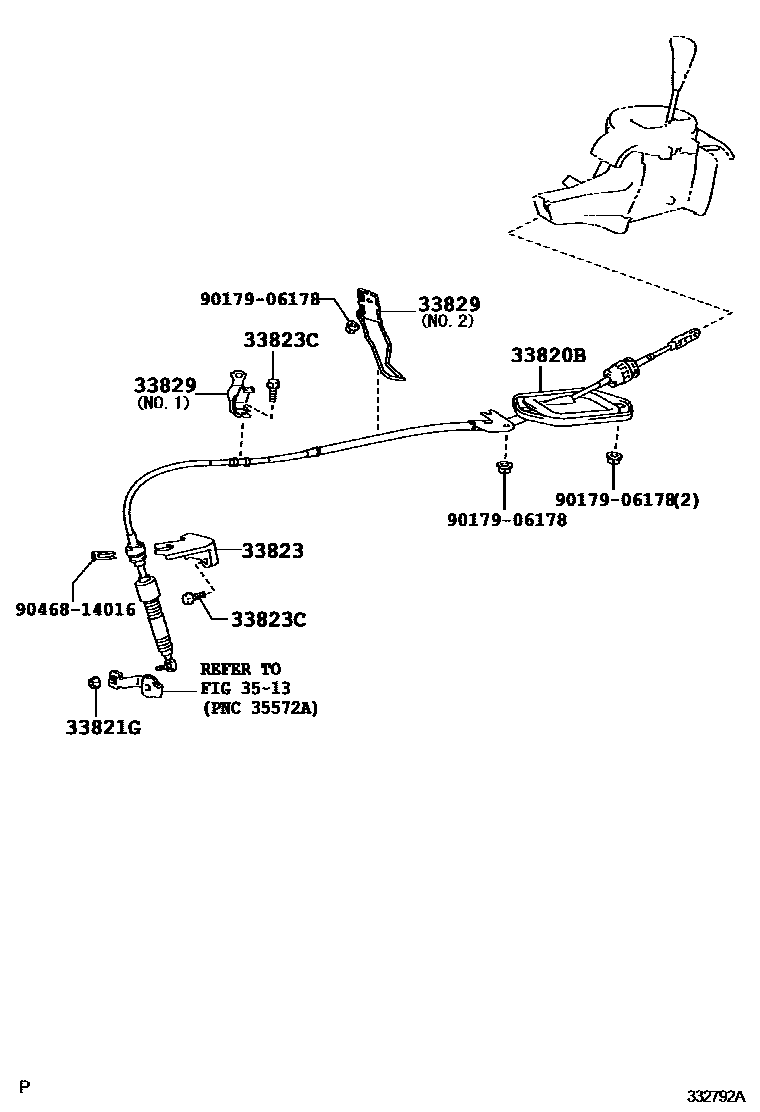

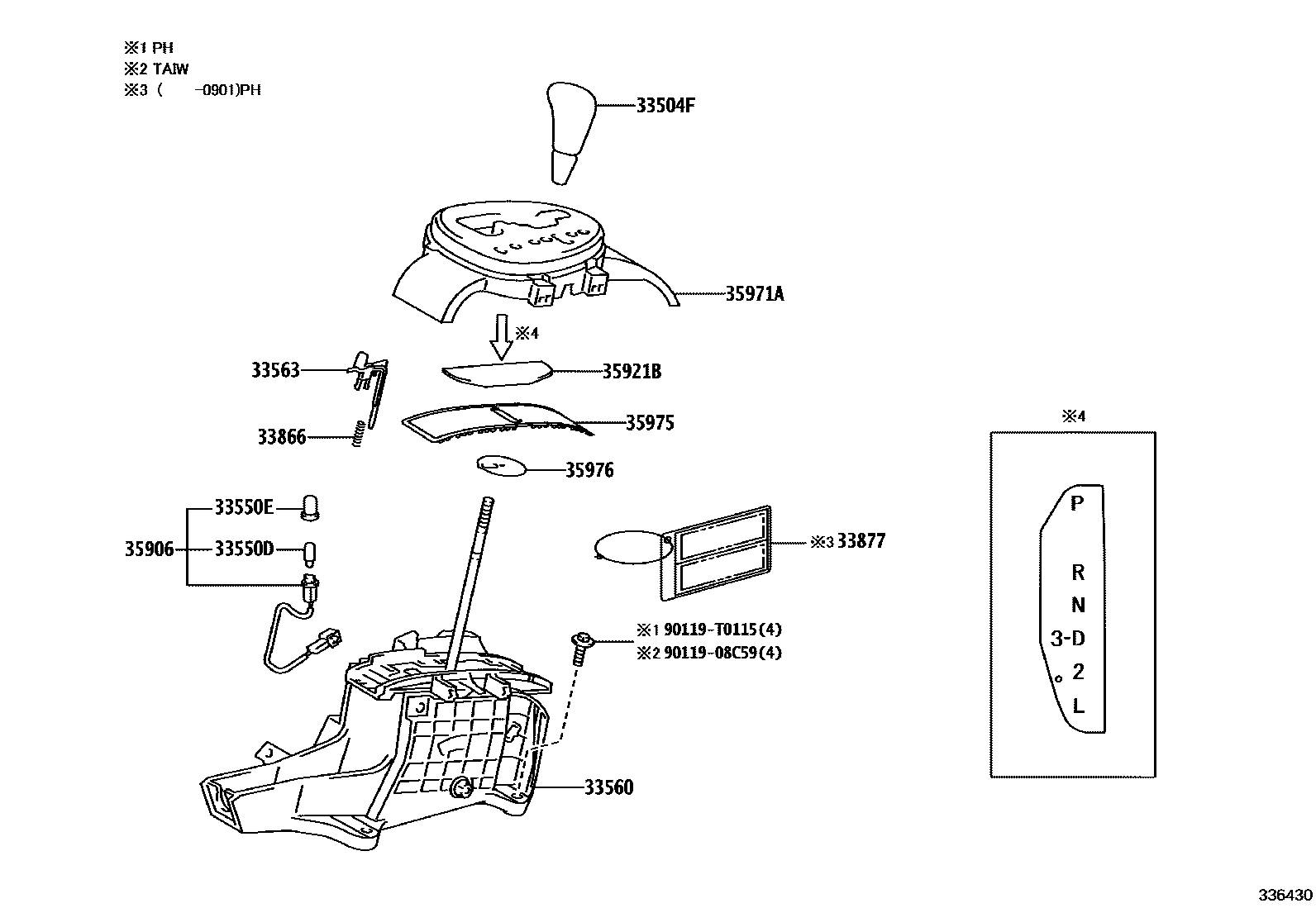

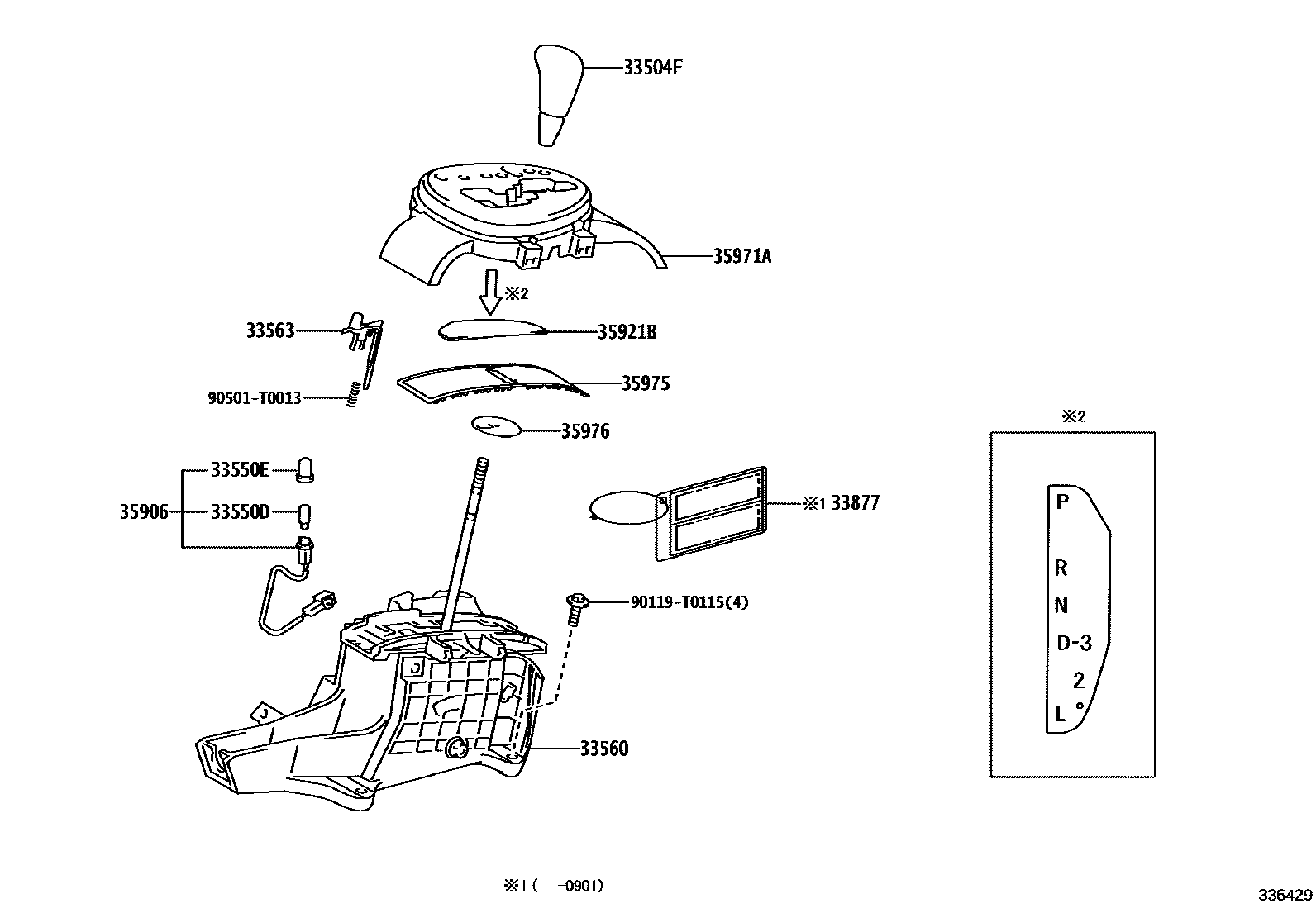

Toyota YARIS EPC diagram 3312, Shift Lever & Retainer, with 4 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33261D | Bushing (for shift lever) | 33557-33010 |
| 33281F | Shift lever locking pin (for floor shift) | 33281-16020 |
| 33520A | Floor type shift control shaft assembly | 33520-52050 |
| 33524F | Lever housing bracket (for floor shift) | 33524-0D070 · 33524-52050 |
| 33527 | Gear shift lever (for floor shift) | 33527-52011 |
| 33530F | Shift lever assembly (for floor shift) | 33530-0D051 · 33530-52110 |
| 33531 | Dust boot (for shift lever) | 33531-17010 |
| 33534E | No. 2 gear selection right-angle lever | 33534-52020 |
| 33534F | Bushing (for No. 2 gear selector right-angle lever) | 90386-12022 |
| 33534G | Flat washer (for No. 2 gear selector right-angle lever) | 90201-08028 |
| 33550D | position indicator light bulb | 35955-74010 |
| 33550E | position indicator cover | 35956-52010 · 35956-52020 |
| 33557A | No. 1 gear selection right-angle lever dust cover | 33557-32010 |
| 33557F | Control right-angle lever dust cover (for floor-mounted shifting) | 33557-20010 |
| 33558 | No. 2 gear selection right-angle lever dust cover | 33558-10030 |
| 33560 | Shift lock control unit assembly | 33560-0D040 · 33560-0D041 · 33560-0D050 · 33560-0D051 · 33560-0D060 · 33560-52220 |
| 33563 | Shift lock release button | 33563-0D030 · 33563-52090 |
| 33590F | Gear selection right-angle lever assembly (for floor shift) | 33590-52030 |
| 33820B | Transmission control cable assembly | 33820-0D140 · 33820-0D150 · 33820-52481 · 33820-52620 |
| 33821C | Flat Washer (for transmission control cable) | 90201-08267 |
| 33821G | Nut (for transmission control cable) | 90080-17130 · 90179-08061 |
| 33823 | No. 1 transmission control cable bracket | 33823-0D010 · 33823-0D020 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-T0029 · 91611-B0816 |
| 33829 | Transmission control cable bracket | 33829-52080 · 33829-52091 · 33829-52092 · 33829-52111 |
| 33866 | Shift lock release spring | 33866-52010 |
| 33877 | Shift lock information label No. 1 | 33877-02010 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-0D030 · 35906-0D040 · 35906-52060 · 35906-52090 |
| 35921B | No. 2 control position indicator board | 35921-0D030 · 35921-52090 |
| 35971A | Position indicator light upper shell | 35971-0D100 · 35971-0D101 · 35971-0D110 · 35971-0D111 · 35971-0D120 · 35971-0D190 · 35971-0D200 · 35971-0D220 · 35971-0D230 · 35971-52220 · 35971-52380 |
| 35975 | Slide cover (for position indicator light) | 35975-0D030 · 35975-0D031 · 35975-52080 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-0D050 · 35976-0D051 · 35976-52080 |
