Toyota YARIS 燃油喷射系统 — Figure 2211

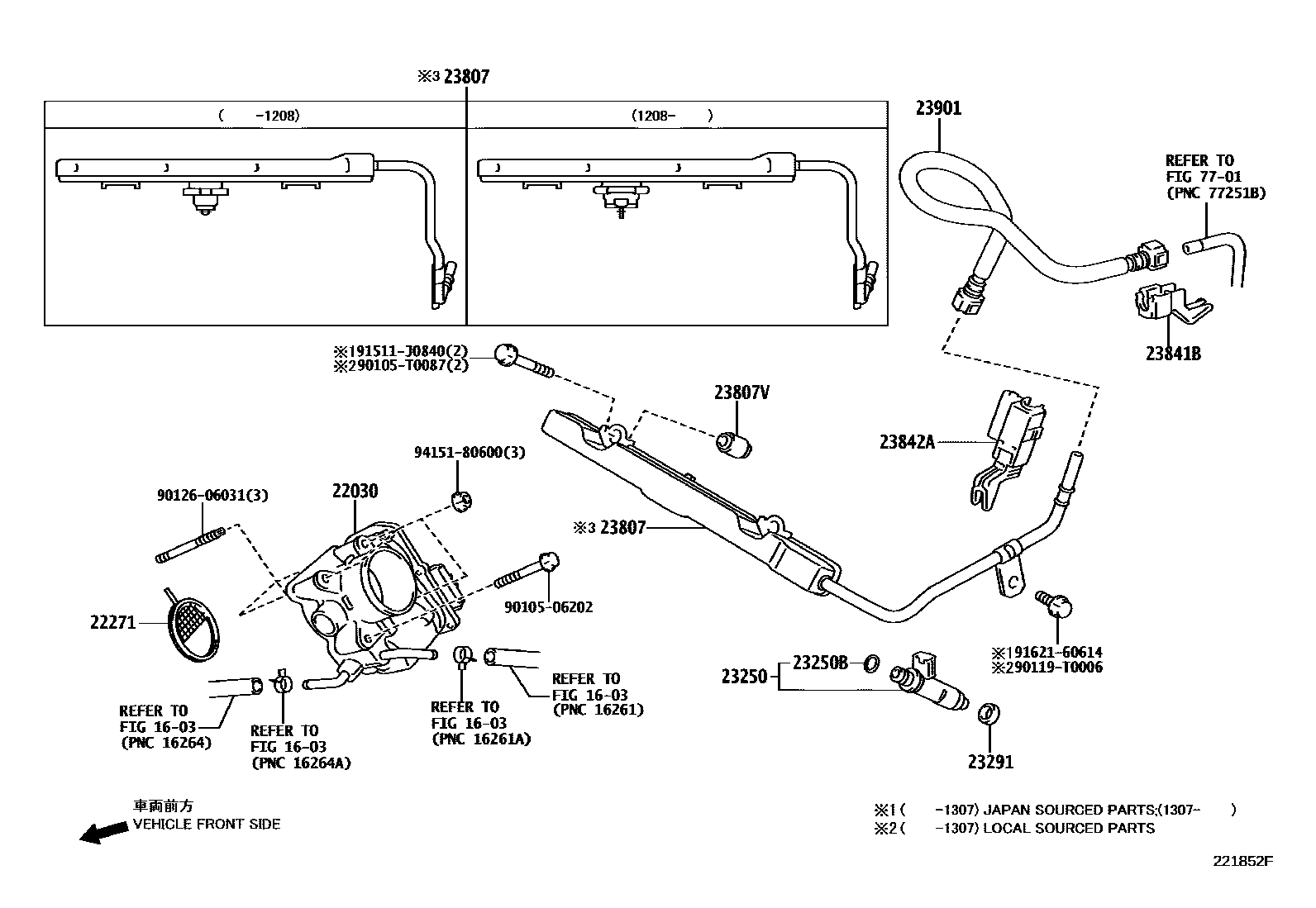

Toyota YARIS EPC diagram 2211, 燃油喷射系统, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-0M010 · 22030-21030 |
| 22271 | Throttle body gasket | 22271-21060 |
| 23250 | Fuel injector assembly | 23209-0M010 · 23209-21040 |
| 23250B | O-ring (for fuel injector) | 90301-07024 · 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-0H020 · 23291-41010 |
| 23807 | Oil pipe sub-assembly | 23807-21050 · 23807-21051 · 23807-21070 · 23807-21090 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-21010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-21050 · 23841-28010 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-21040 · 23841-37090 · 23842-21010 |
| 23901 | Fuel pipe sub-assembly | 23901-0M010 · 23901-21110 |
