Toyota YARIS Alternator — Figure 1903

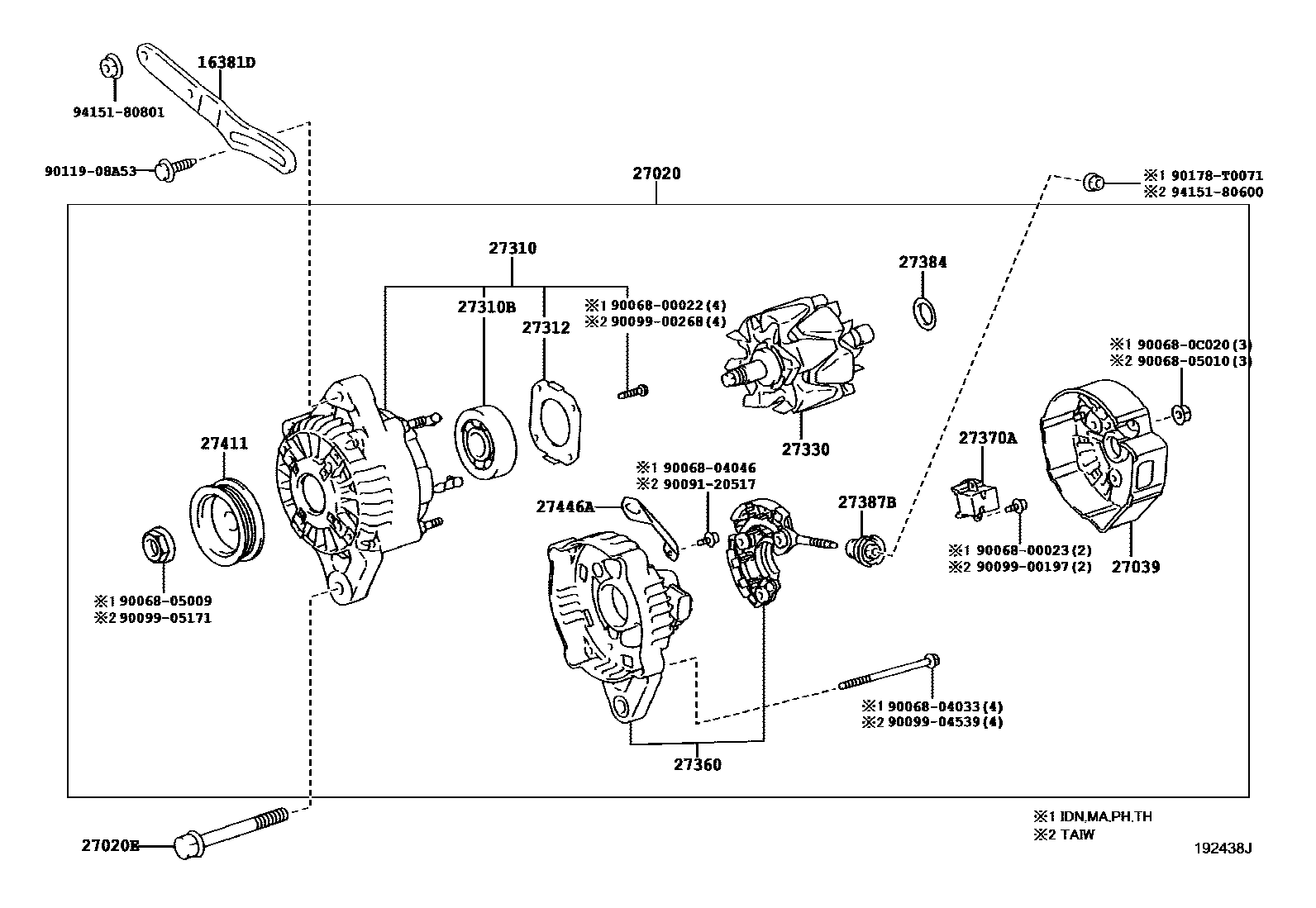

Toyota YARIS EPC diagram 1903, Alternator, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16381D | Fan belt adjustment lever | 16381-0M010 · 16381-0M020 · 16381-21030 |
| 27020 | Alternator Assembly | 27060-0M040 · 27060-0M050 |
| 27020E | Bolts (for generator) | 90105-10075 |
| 27039 | Alternator Rear End Cover | 27039-0C020 · 27039-0H080 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0M040 · 27310-0M050 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10014 · 90068-10029 · 90068-10036 |
| 27312 | Retainer Plate | 27312-0C020 · 27312-0H080 |
| 27330 | Alternator Rotor Assembly | 27330-0H080 · 27330-0M040 |
| 27360 | Alternator Stator Coil Assembly | 27360-0M040 · 27360-0M050 |
| 27370A | Alternator Brush Holder Assembly | 27370-0M040 · 27370-31220 |
| 27384 | Washer | 27384-0C020 · 27384-0H080 · 27384-16380 |
| 27387B | Generator terminal insulation pad | 27387-0C020 · 27387-0H080 |
| 27411 | Alternator Pulley | 27411-0M040 · 27411-0M050 |
| 27446A | card holder | 27446-0M040 · 27446-0M050 |
