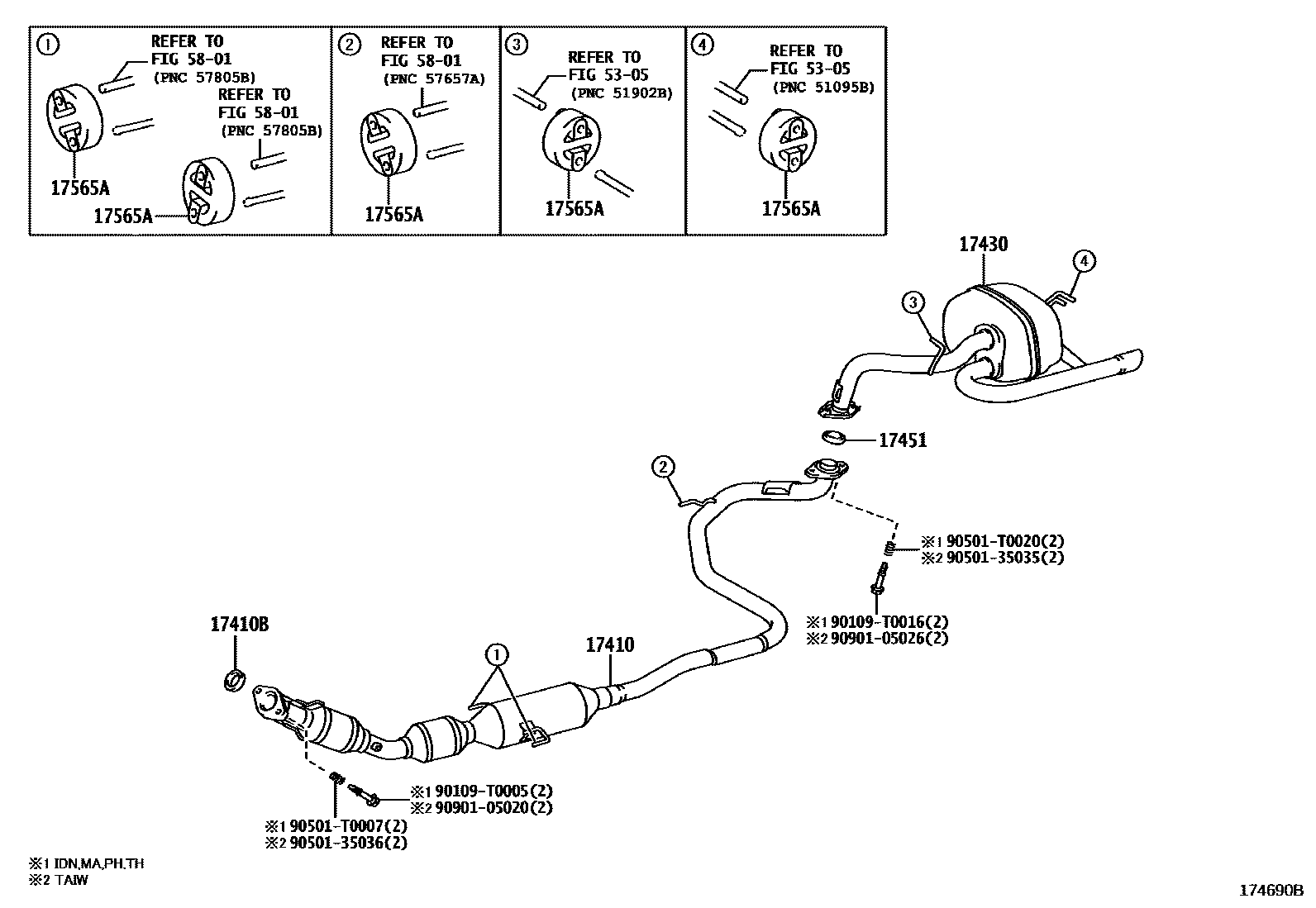

Toyota YARIS Exhaust Pipe — Figure 1702
Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-0M040 · 17410-0M050 · 17410-0M290 |
| 17410B | Exhaust pipe gasket | 17451-0M020 · 17451-21070 |
| 17430 | Exhaust tailpipe assembly | 17430-0M030 · 17430-0M031 · 17430-0M032 · 17430-0M050 · 17430-0M051 · 17430-0M130 · 17430-21551 |
| 17451 | Exhaust pipe gasket | 17451-0M030 · 17451-0M031 · 17451-0M032 · 17451-23040 · 17451-23041 · 17451-23042 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0M020 · 17565-40010 · 17565-47010 |
