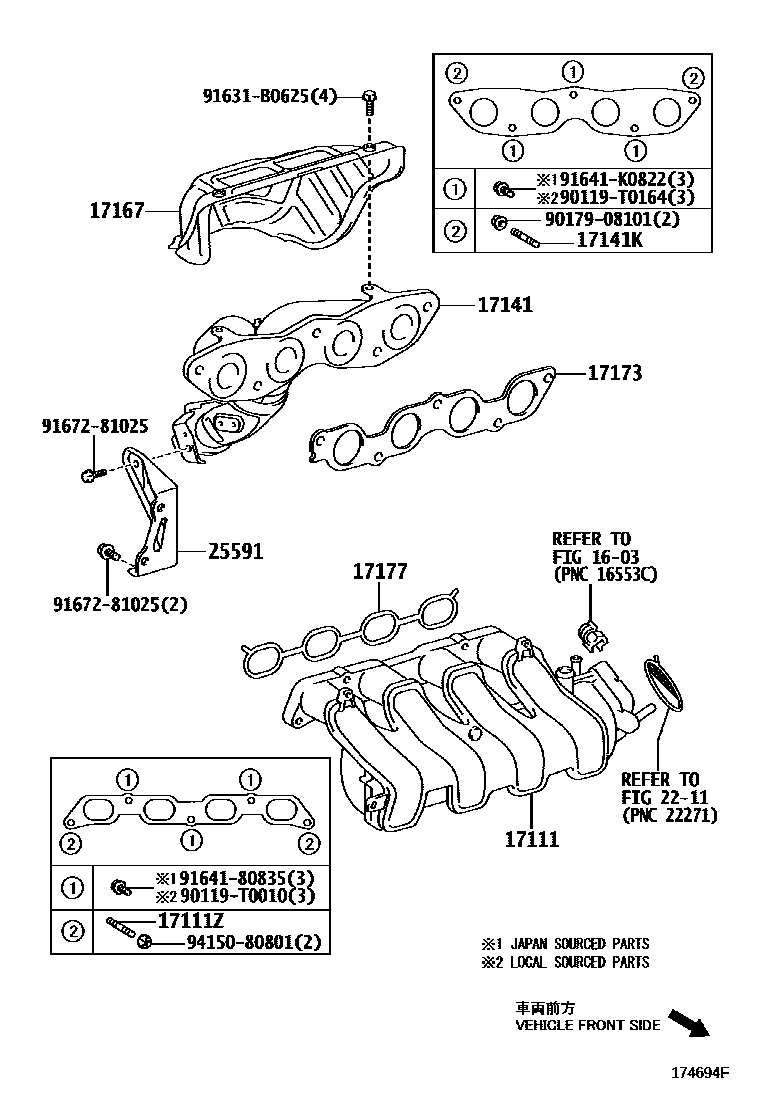

Toyota YARIS Manifold — Figure 1701
Toyota YARIS EPC diagram 1701, Manifold, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-0M030 · 17101-21080 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08026 · 90126-T0003 |
| 17141 | exhaust manifold | 17141-0M020 · 17141-21130 · 17141-21210 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-08037 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0M020 · 17167-21110 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0M010 · 17173-21020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-21020 · 17177-21030 |
| 25591 | Manifold bracket | 25591-0M020 · 25591-0M030 · 25591-21060 |
