Toyota YARIS Engine Oil Pump — Figure 1501

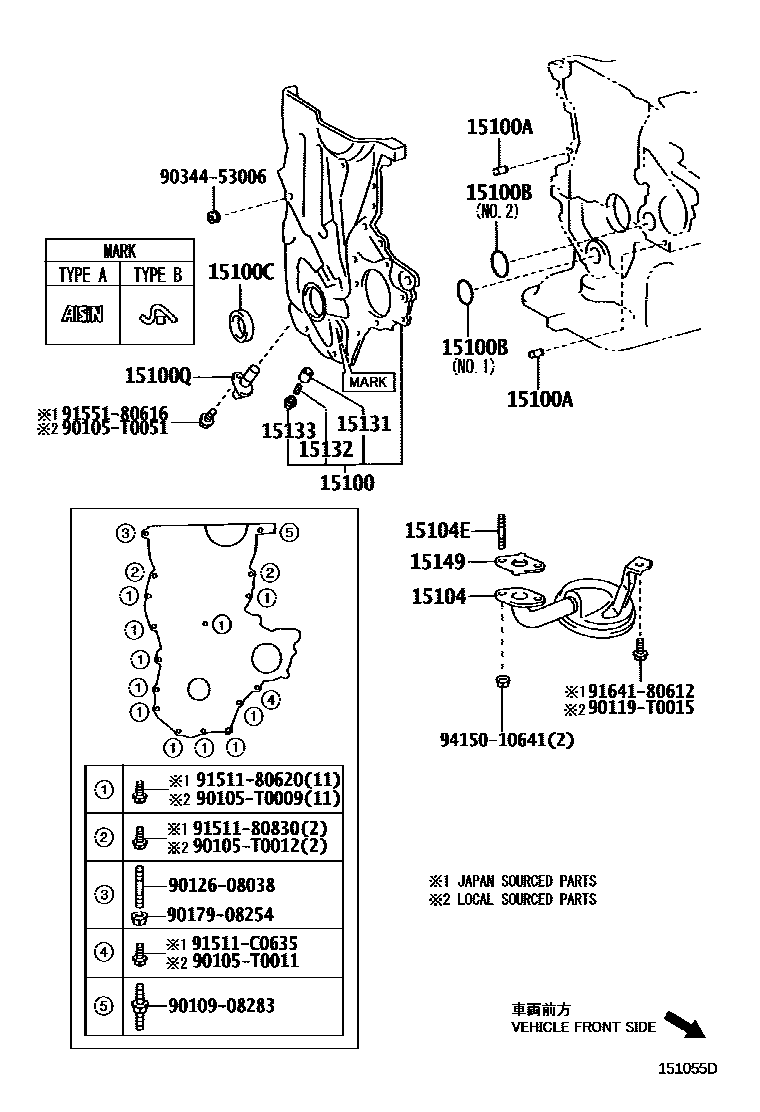

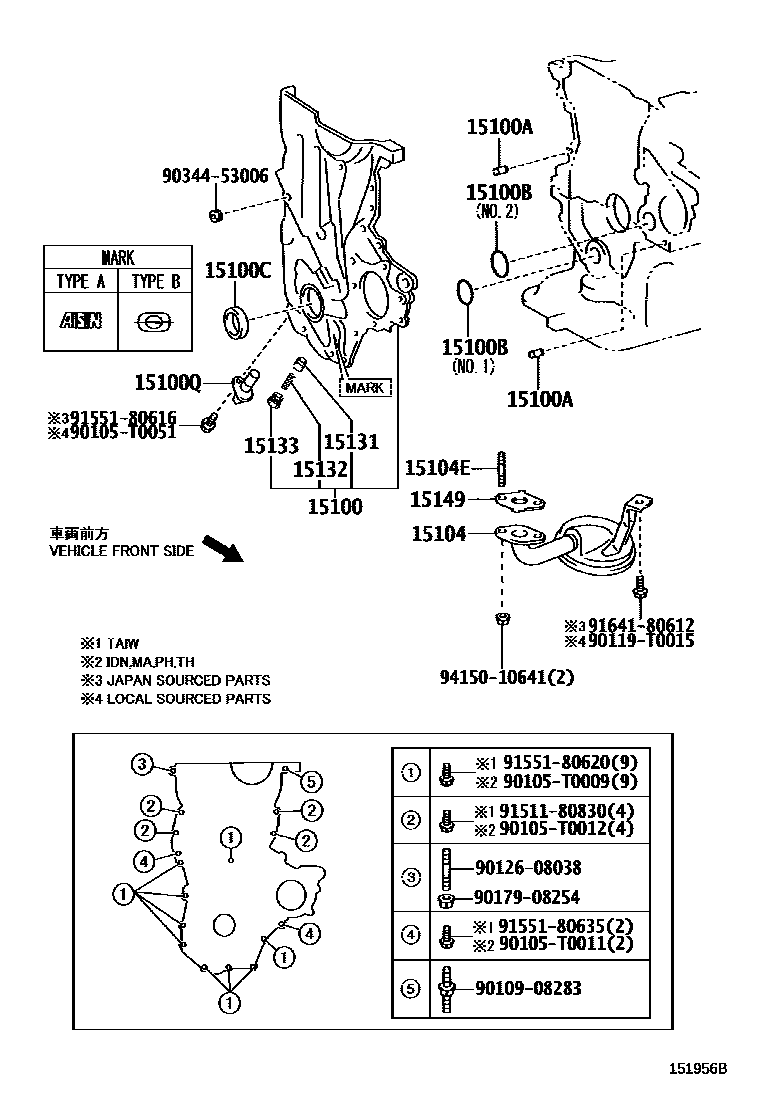

Toyota YARIS EPC diagram 1501, Engine Oil Pump, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-0M010 · 15100-0M011 · 15100-0M020 · 15100-0M021 · 15100-21040 · 15100-21042 · 15100-21043 |
| 15100A | Ring pin (for oil pump assembly) | 90253-08003 |
| 15100B | O-ring (for oil pump) | 90301-31012 · 90301-42006 · 90301-T0040 · 90301-T0042 |
| 15100C | Seals (for oil pump) | 90080-31088 · 90311-25021 · 90311-25032 · 90311-T0055 |
| 15100Q | crankshaft position sensor | 90919-05045 · 90919-05081 · 90919-05087 |
| 15104 | Oil filter sub-assembly | 15104-0M020 · 15104-0M030 · 15104-21021 · 15104-21022 |
| 15104E | Stud bolts (for oil filter) | 90126-06021 |
| 15131 | Oil pump pressure reducing valve | 15131-21020 |
| 15132 | Oil pump pressure reducing valve spring | 15132-0M010 · 15132-0M020 · 15132-21020 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-0M020 · 15133-21020 · 15133-21030 |
| 15149 | Oil filter flange gasket | 16258-0M010 · 16258-21030 |
