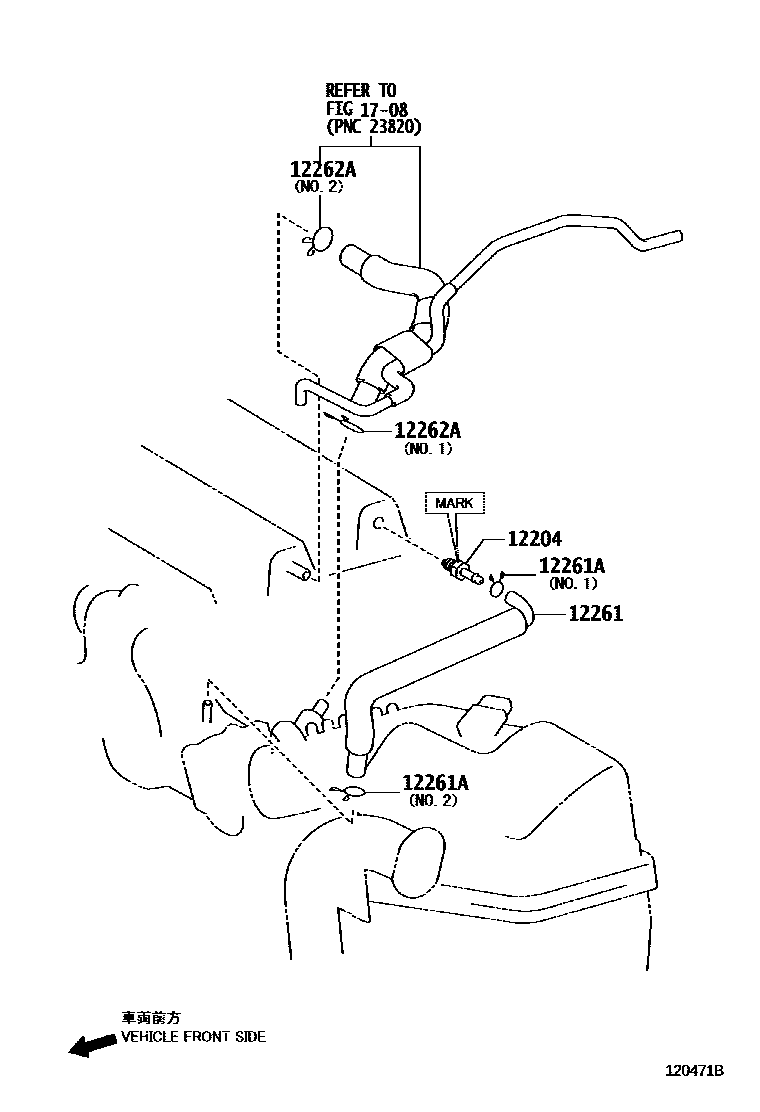

Toyota YARIS Ventilation Hose — Figure 1201
Toyota YARIS EPC diagram 1201, Ventilation Hose, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12204 | Ventilation valve sub-assembly | 12204-21011 · 12204-21012 · 12204-21013 |
| 12261 | Ventilation Hose | 12261-0M010 · 12261-21030 |
| 12261A | Clip or clip (for vent hose) | 90467-15120 · 90467-24038 |
| 12262A | Clamp (for vent hose No. 2) | 90466-T0027 · 90467-21004 · 90467-21152 |
