Toyota YARIS Engine Mounting — Figure 1107

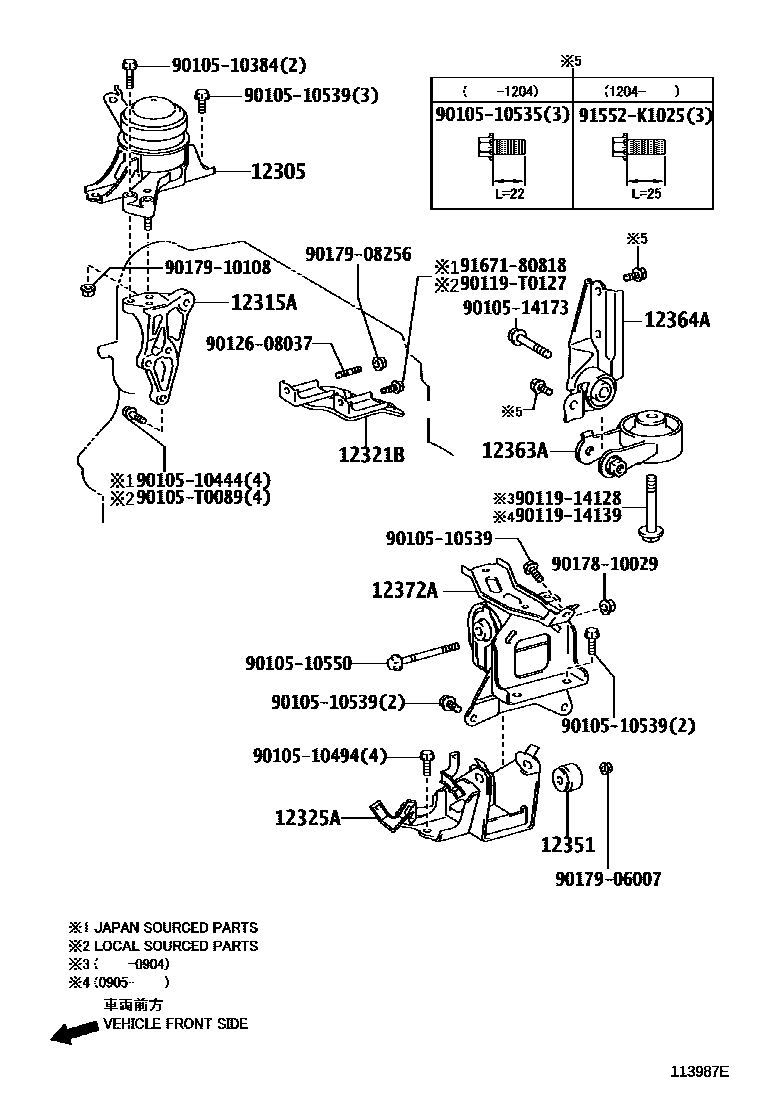

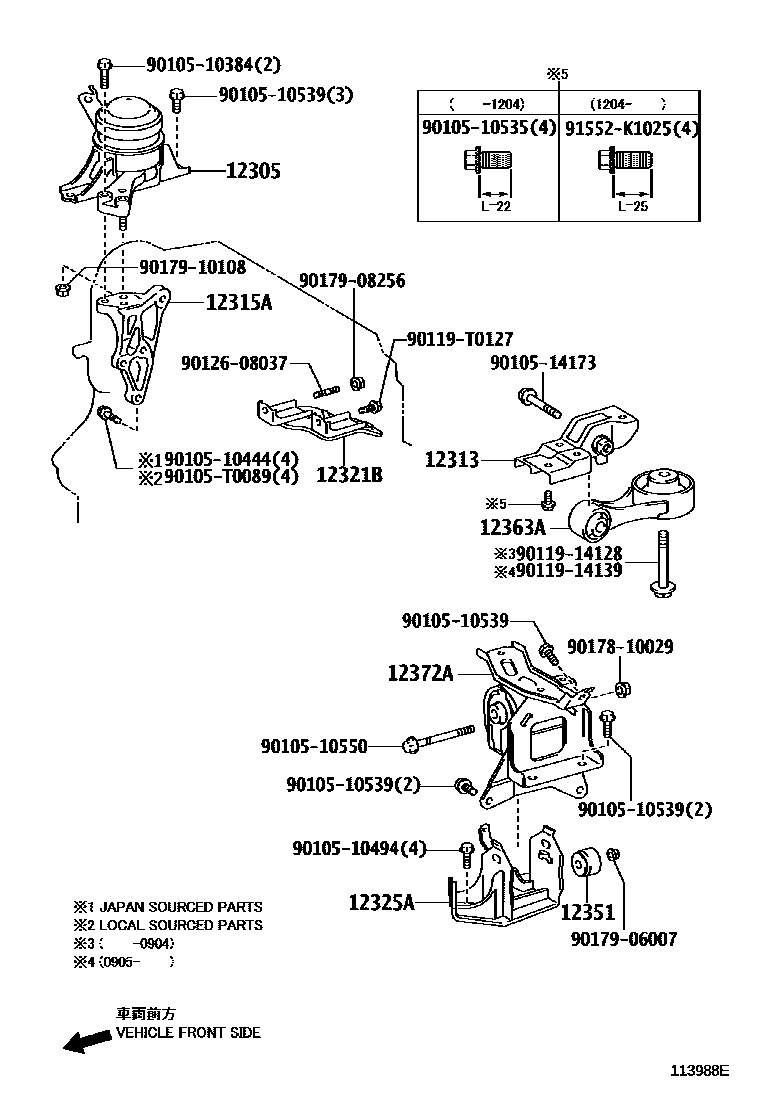

Toyota YARIS EPC diagram 1107, Engine Mounting, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12305 | Engine right side mounting vibration isolation pad sub-assembly | 12305-21330 · 12305-21331 · 12305-21340 · 12305-21341 |
| 12313 | Engine mount control bracket (for transversely mounted engines) | 12313-0M010 |
| 12315A | Engine right side mounting bracket (for transversely mounted engine) | 12315-0M011 · 12315-0M012 · 12315-0M013 · 12315-0M031 · 12315-0M032 |
| 12321B | Drive shaft heat insulation pad sub-assembly | 43409-0D010 · 43409-0D020 · 43409-52020 |
| 12325A | Engine left side mounting bracket (for transversely mounted engine) | 12325-0M060 · 12325-0M070 · 12325-0M080 |
