Toyota YARIS Cylinder Block — Figure 1105

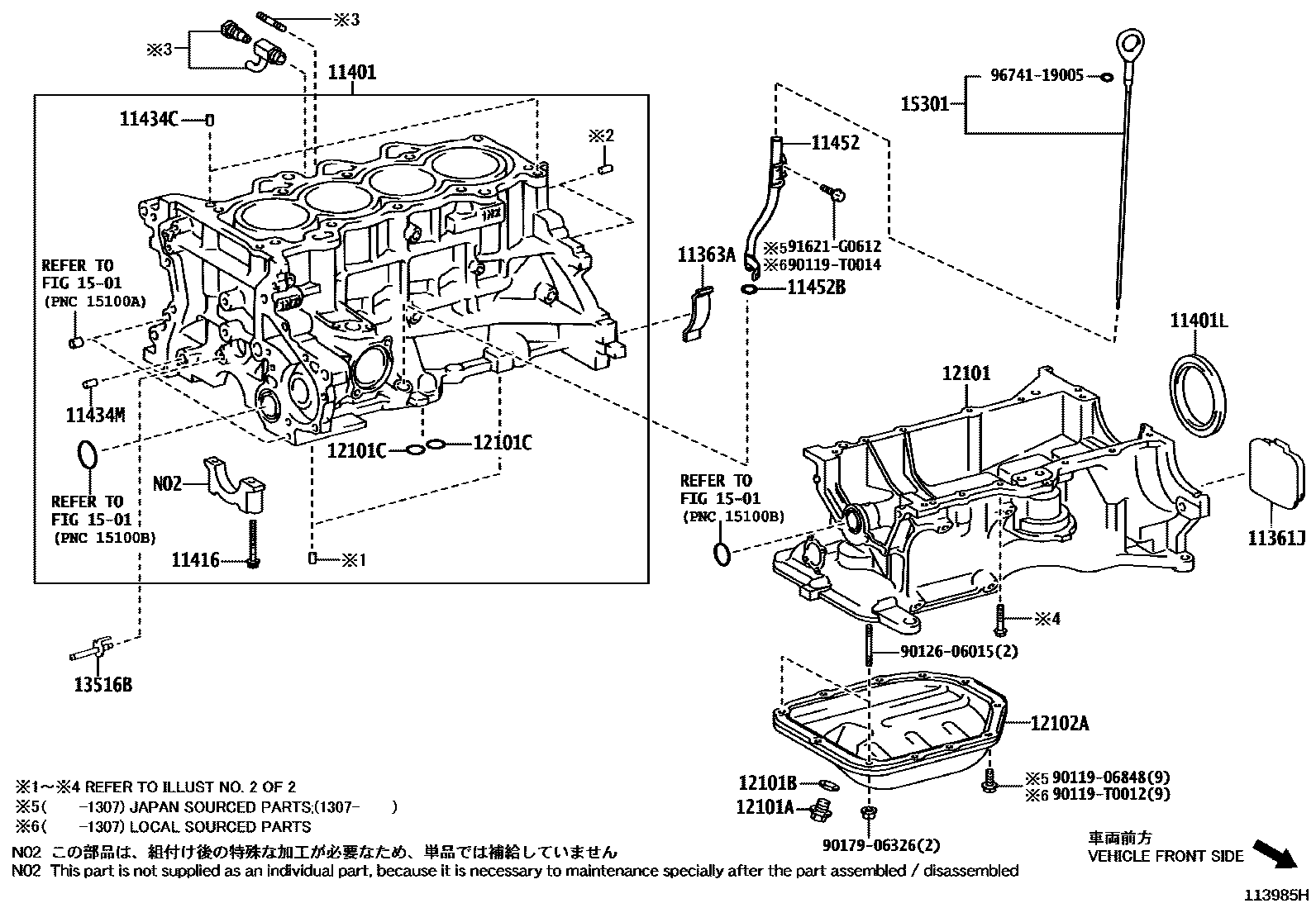

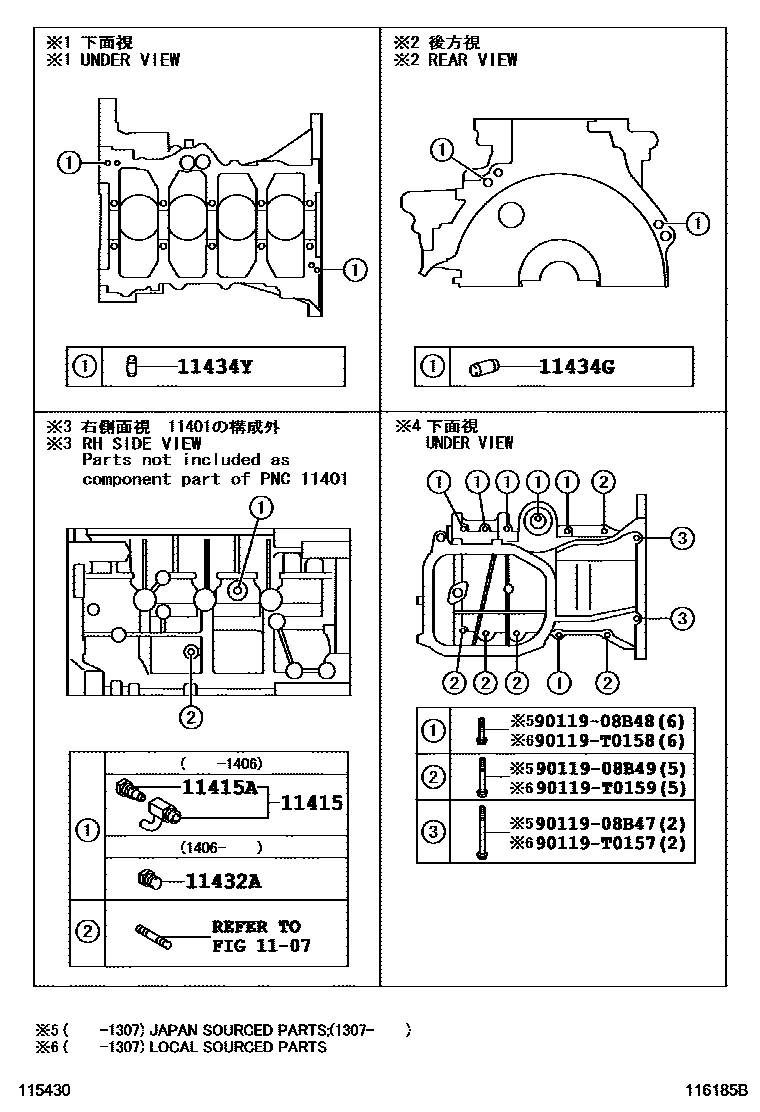

Toyota YARIS EPC diagram 1105, Cylinder Block, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-21011 |
| 11363A | Flywheel housing side cover | 11363-21010 |
| 11401 | Cylinder block sub-assembly | 11401-29855 · 11401-29856 · 11401-29858 |
| 11401L | SEAL, ENGINE REAR OIL | 90080-31087 · 90311-75016 · 90311-75019 · 90311-T0033 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09107 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02125 |
| 11432A | No. 1 headed tapered thread plug | 90345-52001 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 · 90250-T0007 |
| 11434G | Direct sales (for end plates) | 90250-10113 · 90250-T0018 |
| 11434M | Direct pin (for chain tensioner) | 90250-10030 · 90250-T0019 |
| 11434Y | Direct sales (for oil pan) | 90250-08120 · 90250-T0007 |
| 11452 | Engine oil level gauge guide | 11452-0M010 · 11452-0M020 · 11452-21030 |
| 11452B | O-ring (for oil level gauge guide) | 90301-T0025 · 96721-19010 |
| 12101 | Oil pan sub-assembly | 12111-0M010 · 12111-21033 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12101C | O-ring (for oil pan) | 90301-T0041 · 96722-24020 |
| 12102A | No. 2 oil pan sub-assembly | 12102-0M010 · 12102-21010 |
| 13516B | oil nozzle | 13516-21010 · 13516-21011 |
| 15301 | Engine oil level scoring assembly | 15301-0M010 · 15301-21030 · 15301-21040 · 15301-21060 |
