Toyota YARIS Short Block Assembly — Figure 1102

Toyota YARIS EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

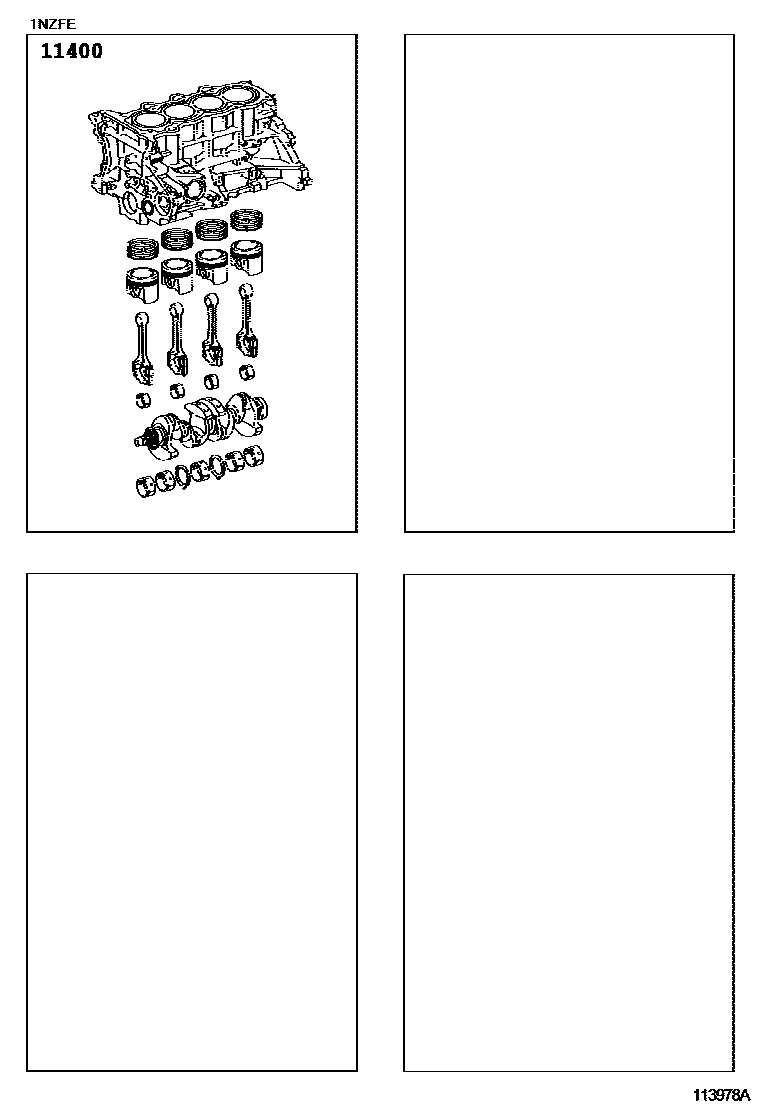

Toyota YARIS Short Block Assembly EPC diagram — 113978A
Short Block Assembly — 113978A (200601 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-0M030 · 11400-0M040 · 11400-0M041
