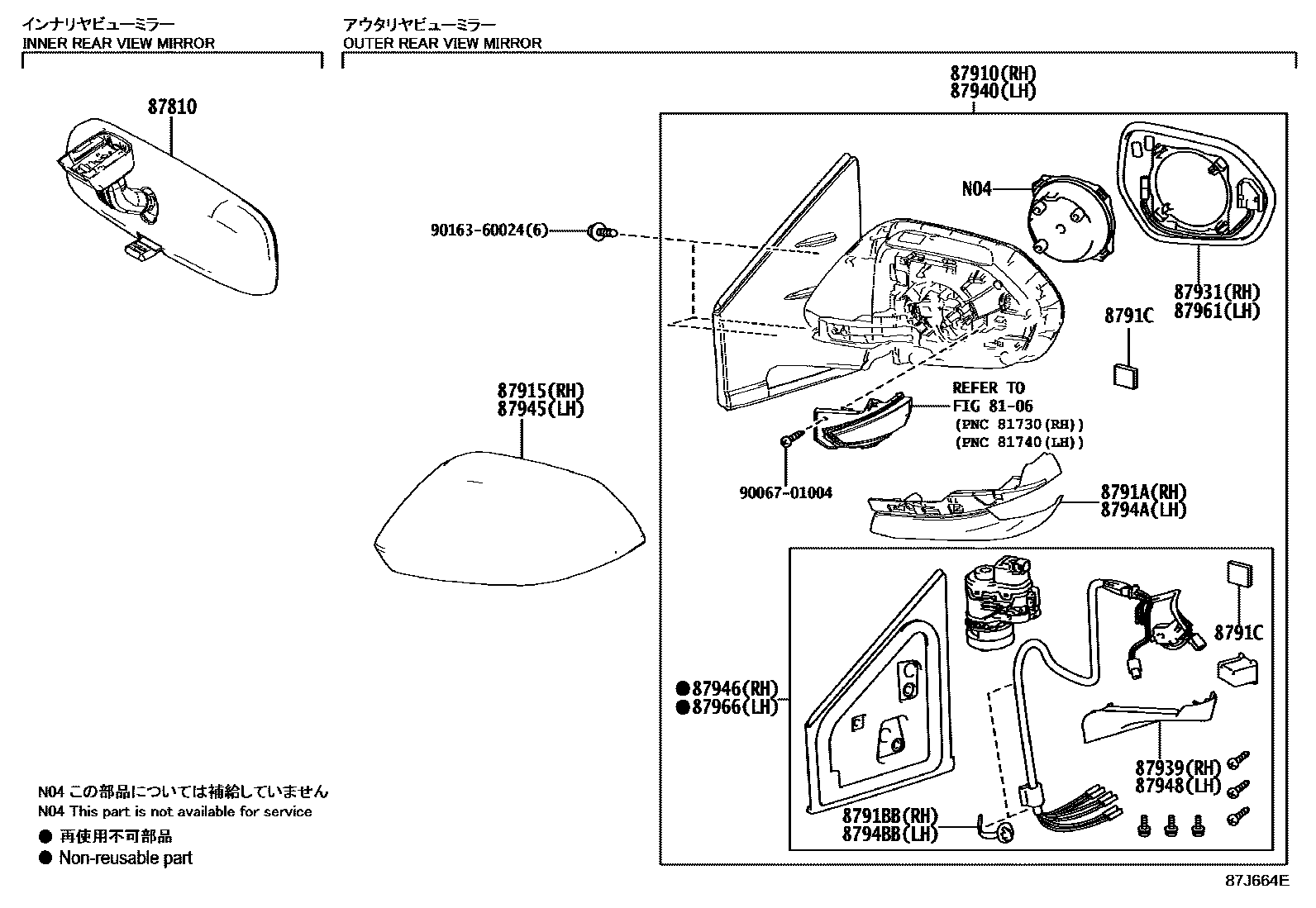

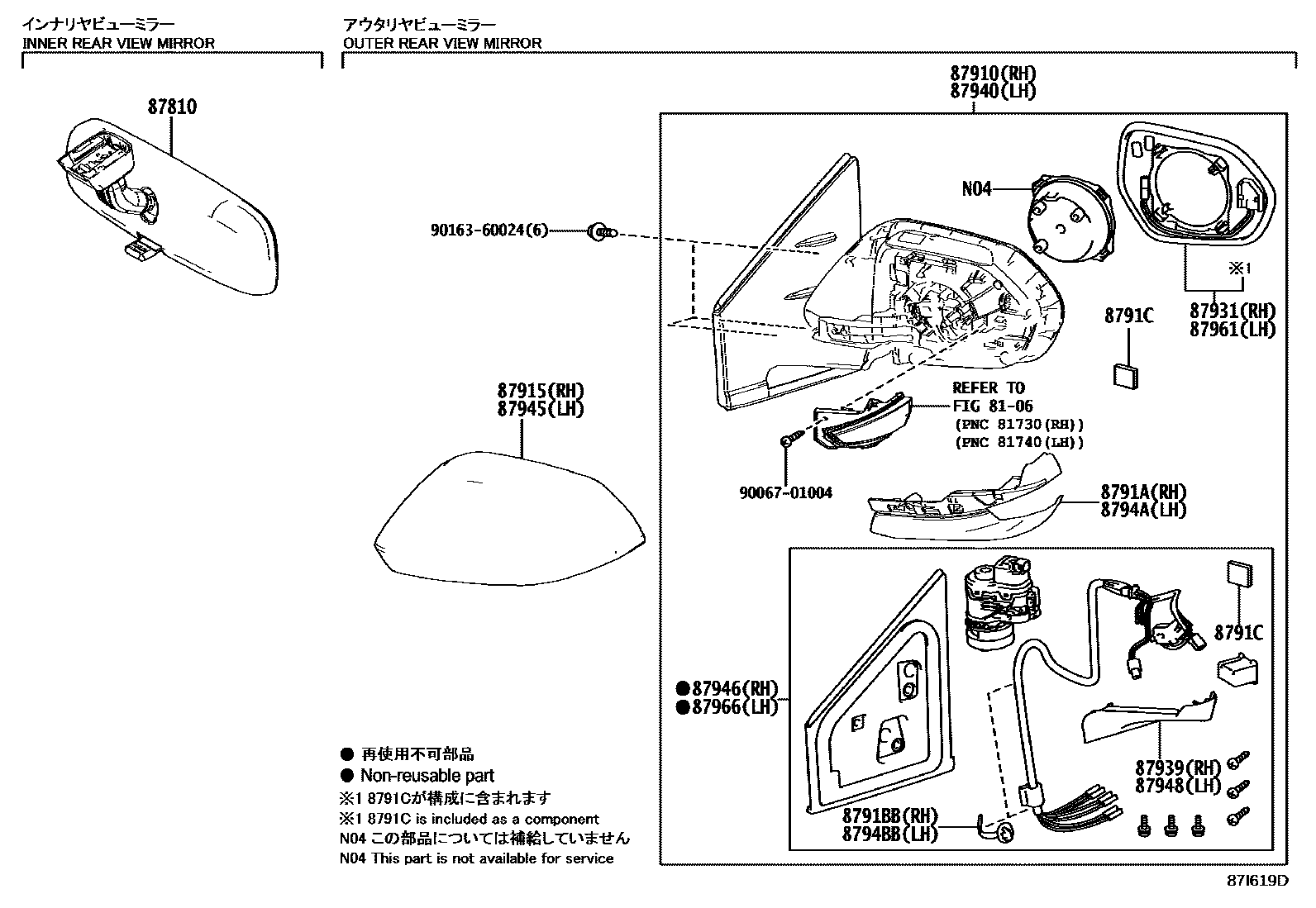

Toyota YARIS 后视镜 — Figure 8701
Toyota YARIS EPC diagram 8701, 后视镜, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-28140 |
| 87910 | Right exterior rearview mirror assembly | 87910-K0070 · 87910-K0310 |
| 8791A | Right exterior rearview mirror cover No. 2 | 8791A-K0310 |
| 8791BB | Right exterior rearview mirror stay | 8791B-K0310 |
| 8791C | Exterior mirror seals | 8791C-K0310 |
| 87931 | Right exterior rearview mirror | 87931-K0070 · 87931-K0310 |
| 87939 | Right exterior rearview mirror hole cover | 87939-K0310 |
| 87940 | Left exterior rearview mirror assembly | 87940-K0070 · 87940-K0370 |
| 87946 | Right exterior rearview mirror retractor | 87946-K0070 · 87946-K0310 |
| 87948 | Left exterior rearview mirror hole cover | 87948-K0370 |
| 8794A | No. 2 left exterior rearview mirror cap | 8794A-K0370 |
| 8794BB | Left exterior rearview mirror stay | 8791B-K0310 |
| 87961 | Left exterior rearview mirror | 87961-K0070 · 87961-K0370 |
| 87966 | Left exterior rearview mirror retractor | 87966-K0070 · 87966-K0370 |
