Toyota YARIS 预碰撞安全系统 — Figure 8617

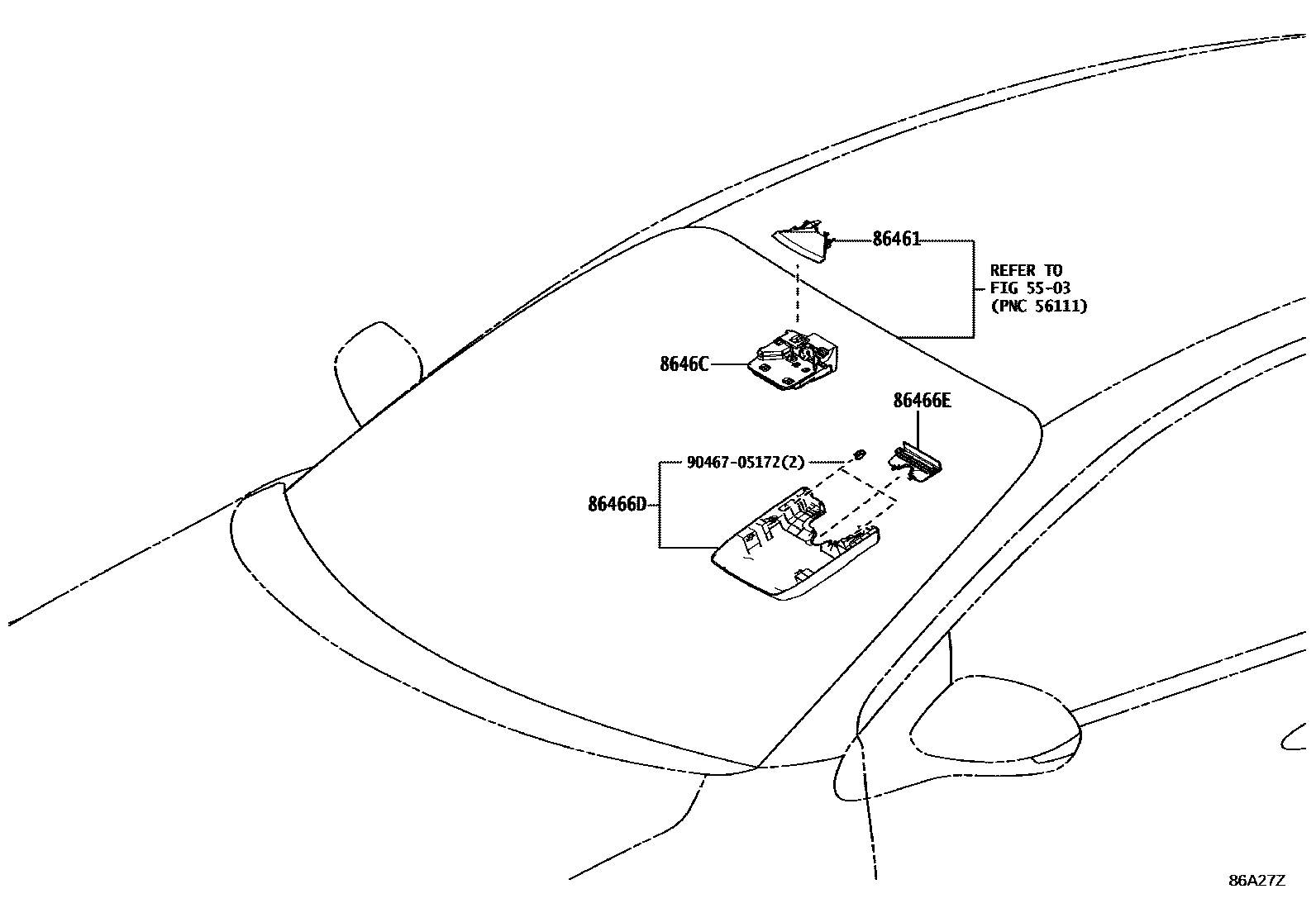

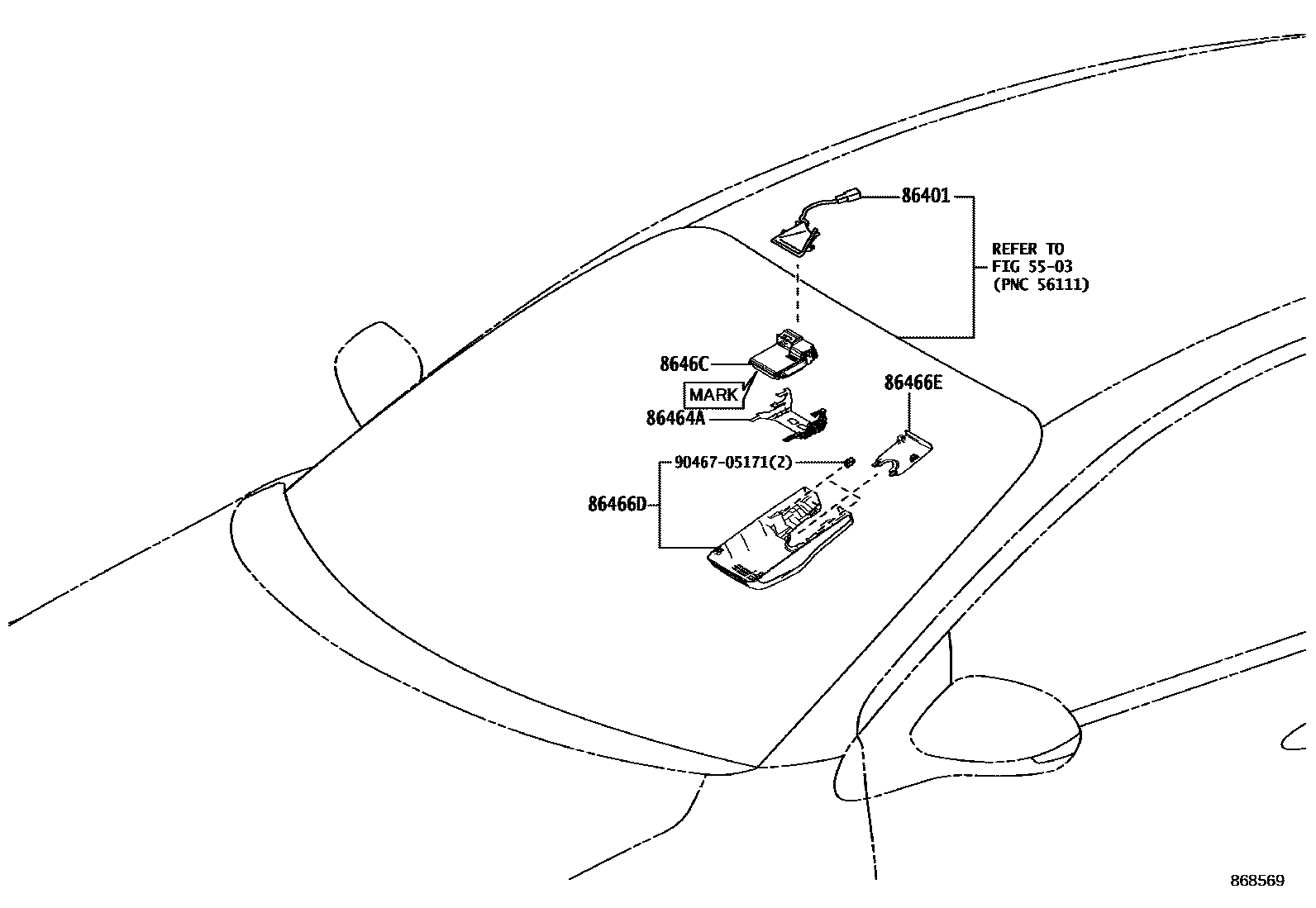

Toyota YARIS EPC diagram 8617, 预碰撞安全系统, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86401 | Front identification hood sub-assembly with heater | 86401-K0010 |
| 86461 | front identification cover | 86461-52070 |
| 86464A | Front identification lock | 86464-K0010 |
| 86466D | Front identification cover No. 1 | 86466-52190 · 86466-K0010 |
| 86466E | Front identification cover No. 2 | 86466-K0020 · 86467-52070 |
| 8646C | front recognition camera | 8646C-52030 · 8646C-52080 · 8646C-52250 · 8646C-K0010 |
