Toyota YARIS 喇叭 — Figure 8611

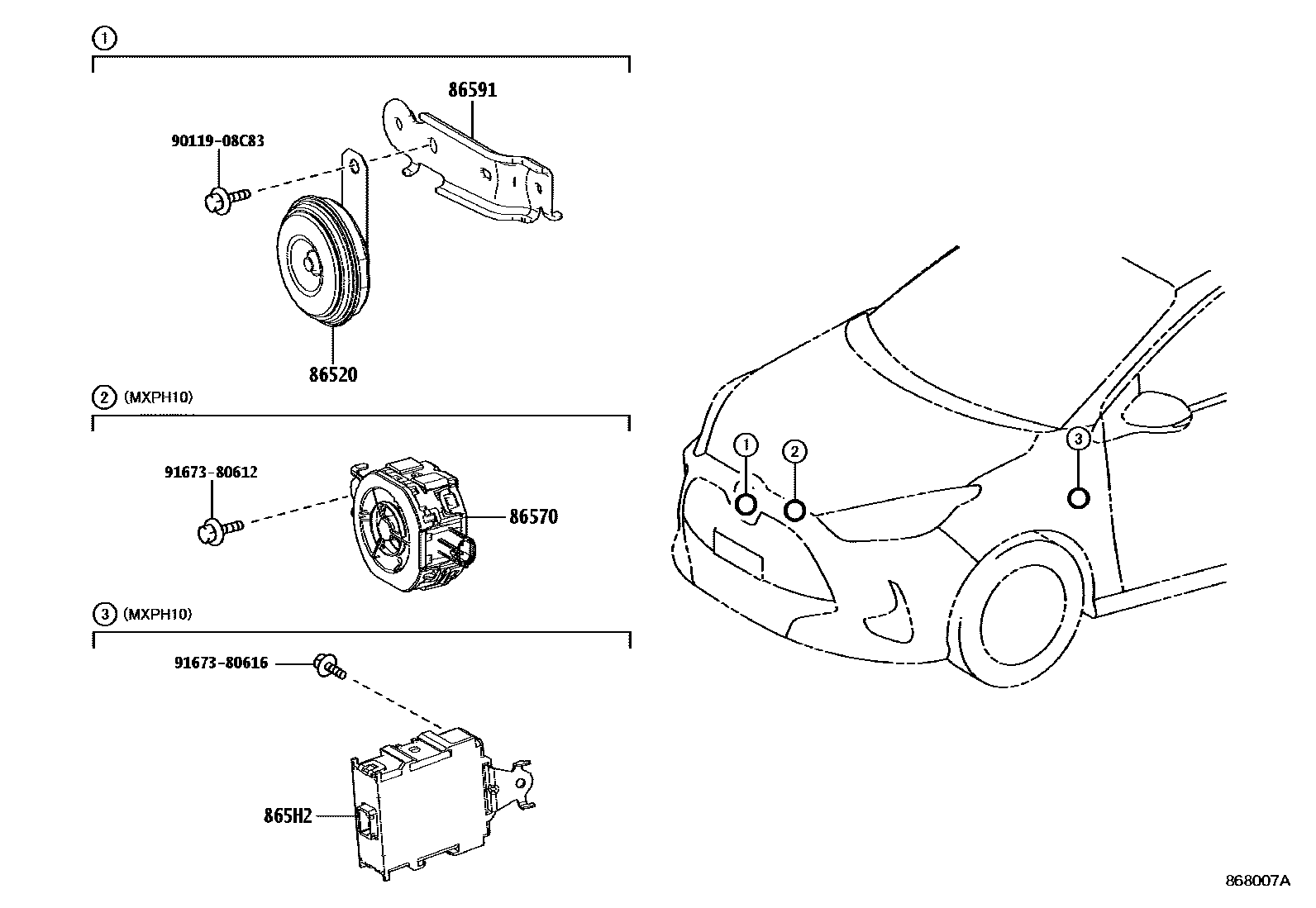

Toyota YARIS EPC diagram 8611, 喇叭, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86520 | Subwoofer assembly | 86520-52230 · 86520-52250 · 86520-68010 |
| 86570 | Vehicle intrusion speaker assembly | 86570-K0010 |
| 86591 | speaker bracket | 86591-52090 · 86591-K0010 |
| 865H2 | CONTROLEUR, HAUT-PARLEUR | 865H2-52020 |
