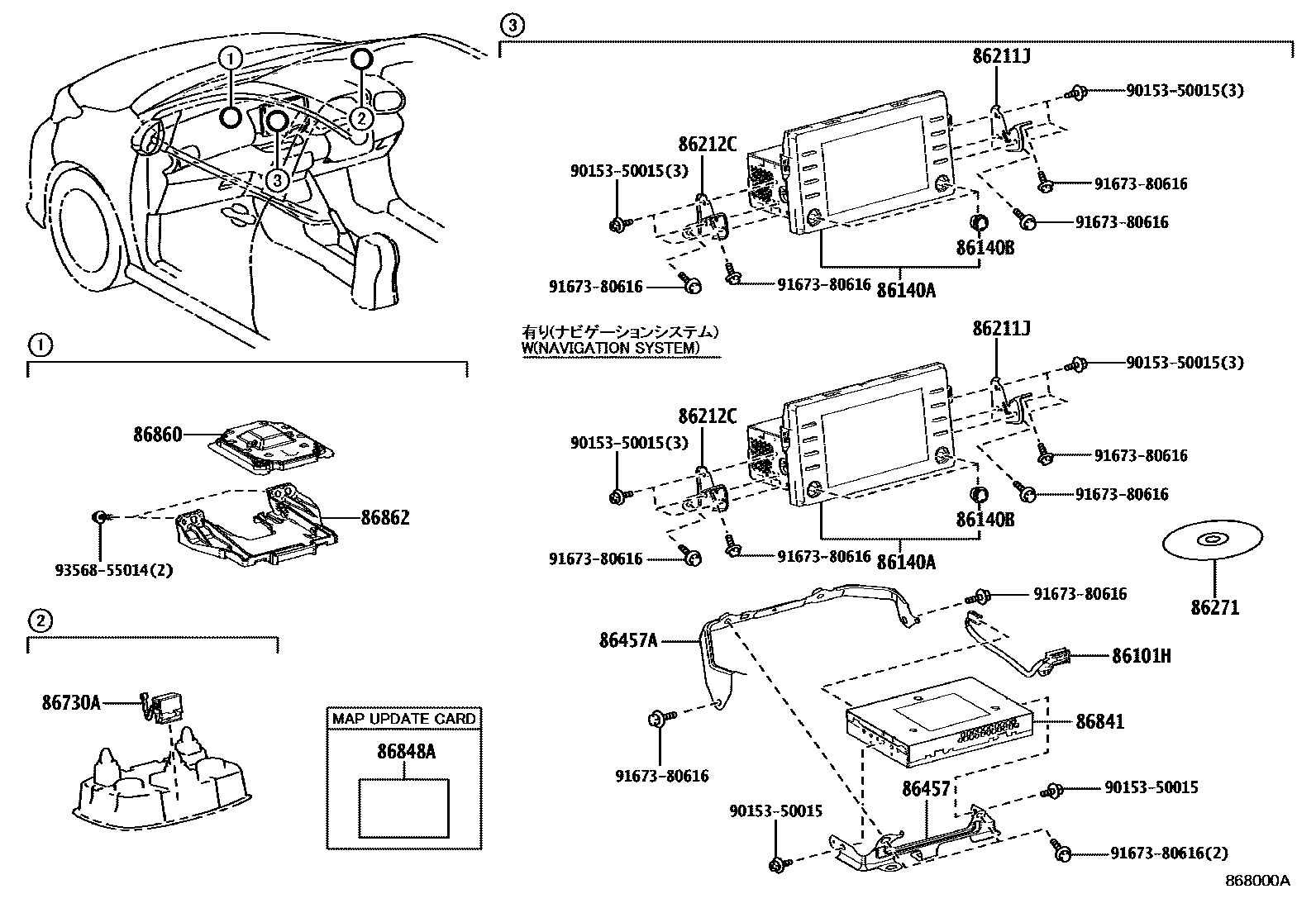

Toyota YARIS 导航和前监视器显示屏 — Figure 8603
Toyota YARIS EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101H | Antenna wire sub-assembly | 86101-52J50 |
| 86140A | Radio and display receiver assembly | 86100-52390 · 86140-52B60 · 86140-K0030 · 86140-K0250 |
| 86140B | Radio and display receiver switch button | 90010-22128 · 90010-23060 · 90010-23064 |
| 86211J | No. 1 radio bracket | 86211-52440 · 86211-K0010 |
| 86212C | No. 2 radio bracket | 86212-52440 · 86212-K0010 |
| 86271 | CD | 86807-11042 · 86807-11043 · 86807-11044 · 86807-11045 · 86807-11046 |
| 86457 | Multimedia module bracket No. 1 | 86457-K0010 |
| 86457A | Multimedia module bracket No. 2 | 86457-K0110 |
| 86730A | Telephone amplifier assembly | 86730-16010 · 86730-75010 |
| 86841 | Navigation ECU | 86800-52020 · 86800-52021 · 86800-52022 · 86800-52023 · 86800-52024 |
| 86848A | Map serial number update card | 86848-33040 · 86848-78030 |
| 86860 | Navigation antenna assembly | 86880-42010 · 86880-52020 |
| 86862 | Navigation antenna bracket | 86862-K0010 |
