Toyota YARIS HEV 逆变器 — Figure 8431

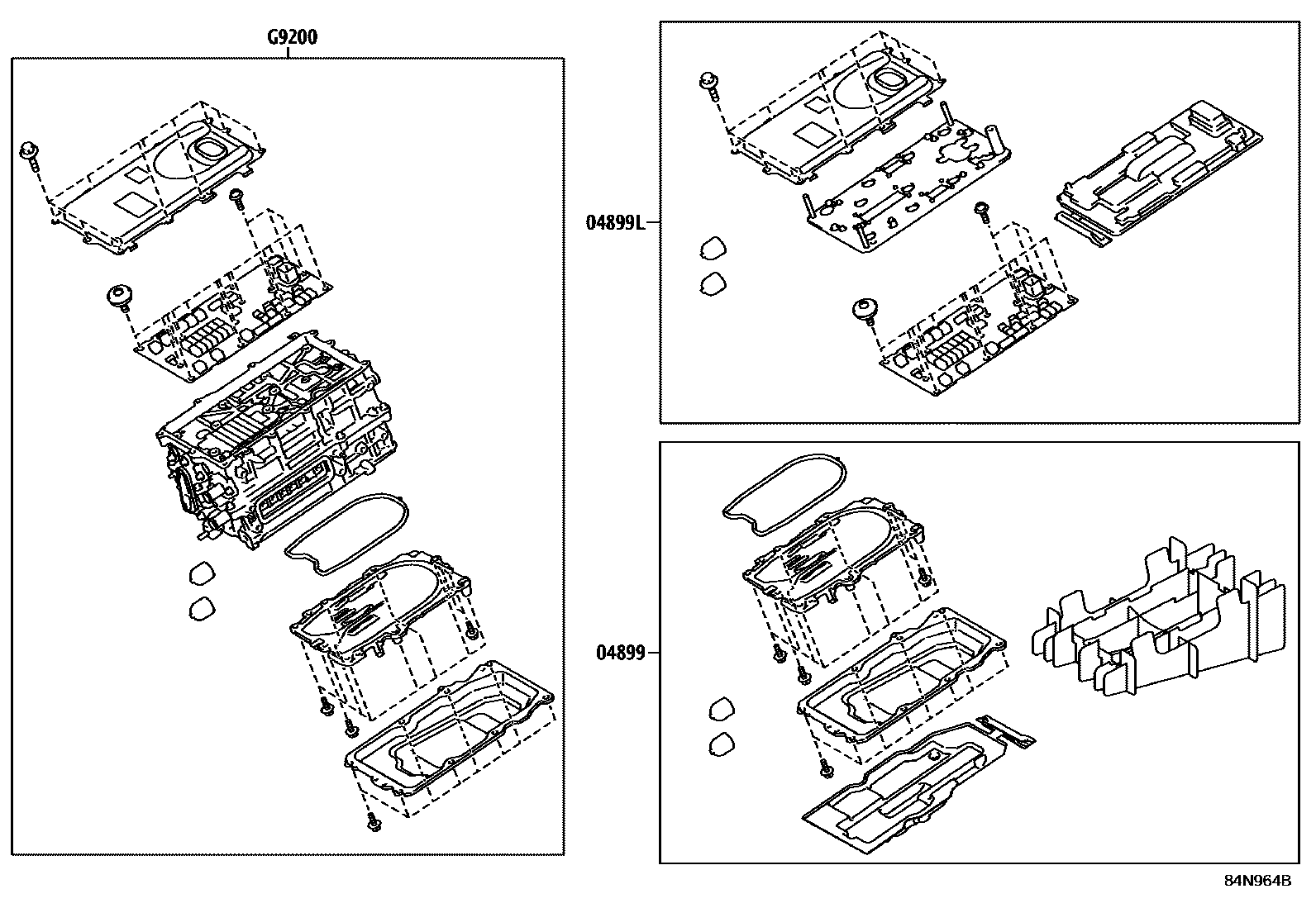

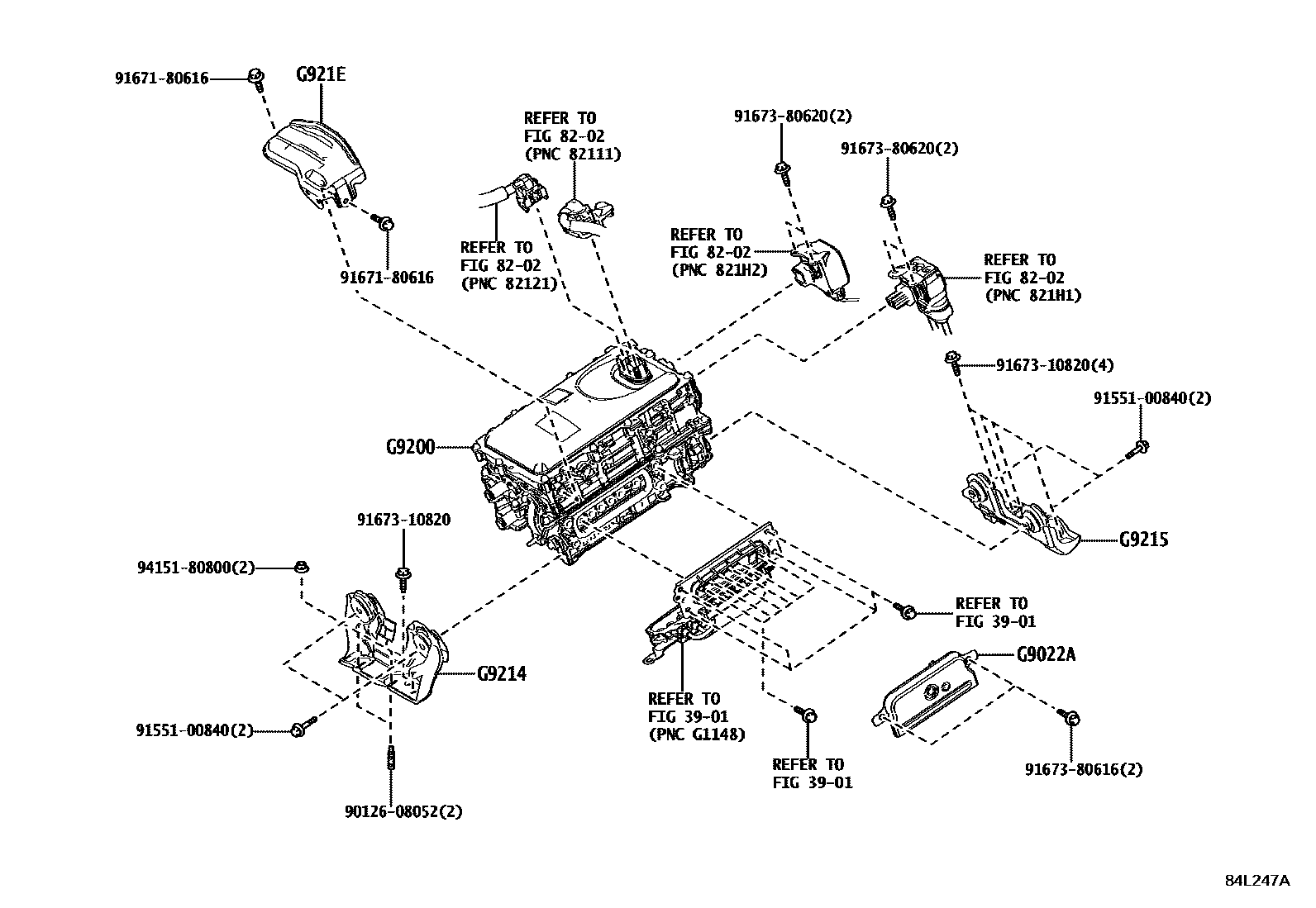

Toyota YARIS EPC diagram 8431, HEV 逆变器, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04899 | HV converter components | 04899-K0030 |
| 04899L | Motor generator control ECU component | 04899-52180 · 04899-52181 · 04899-K0010 · 04899-K0011 |
| G9022A | Inverter upper cover sub-assembly | G9022-47050 |
| G9200 | Inverter assembly with converter | G9200-K9010 · G9200-K9011 · G92A0-52190 · G92A0-52191 |
| G9214 | No. 1 inverter bracket | G9214-K0010 |
| G9215 | No. 2 inverter bracket | G9215-K0010 |
| G921E | Inverter protection device | G921E-K0010 |
