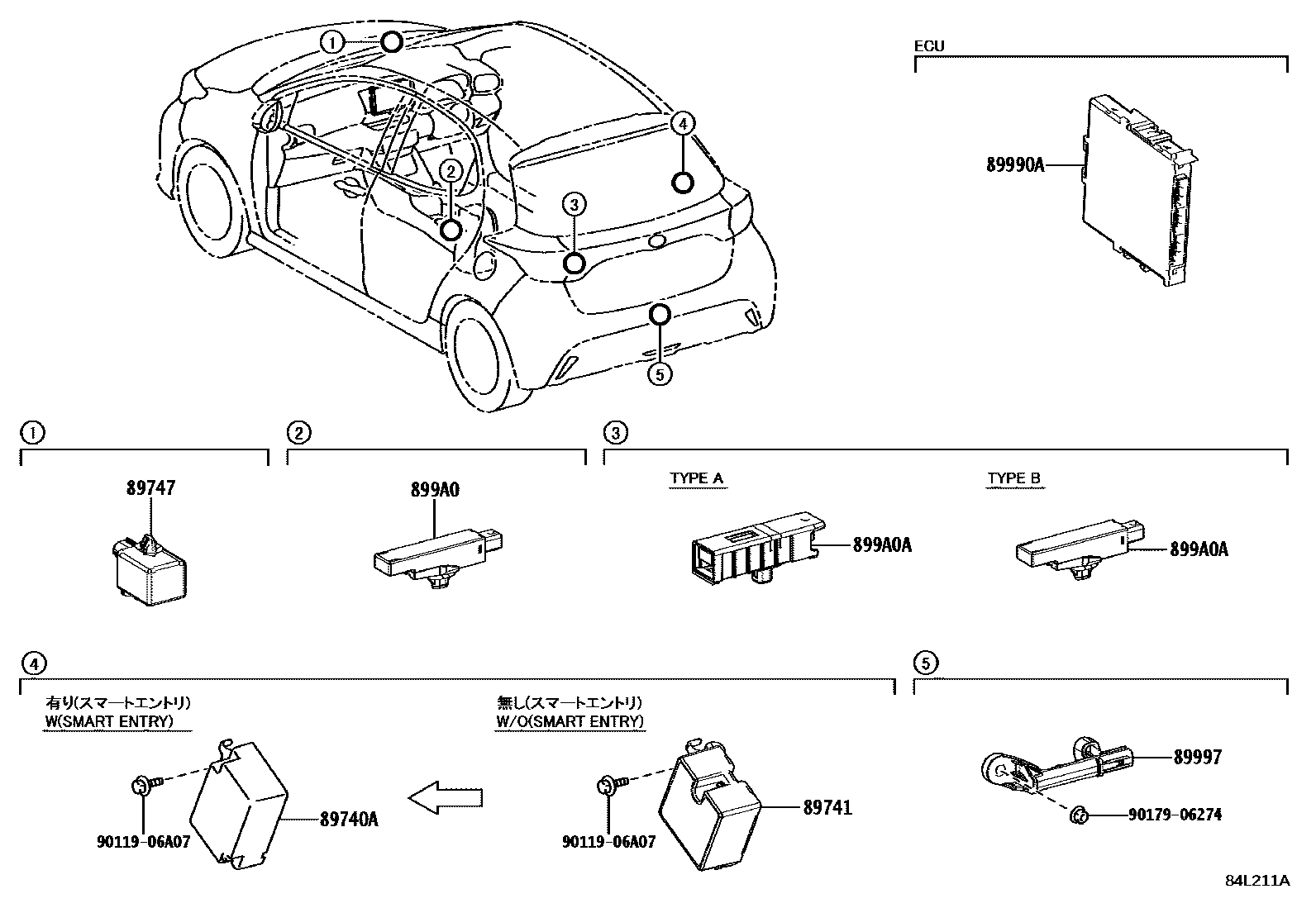

Toyota YARIS 遥控门锁 — Figure 8420
Toyota YARIS EPC diagram 8420, 遥控门锁, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89740A | Smart door control receiver assembly | 89740-K0010 |
| 89741 | door control receiver | 89741-K0010 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-52150 · 899H0-52160 · 899H0-52270 · 899H0-52280 · 899H0-K0011 · 899H0-K0021 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12080 · 899A0-K0040 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12080 · 899A0-12090 |
