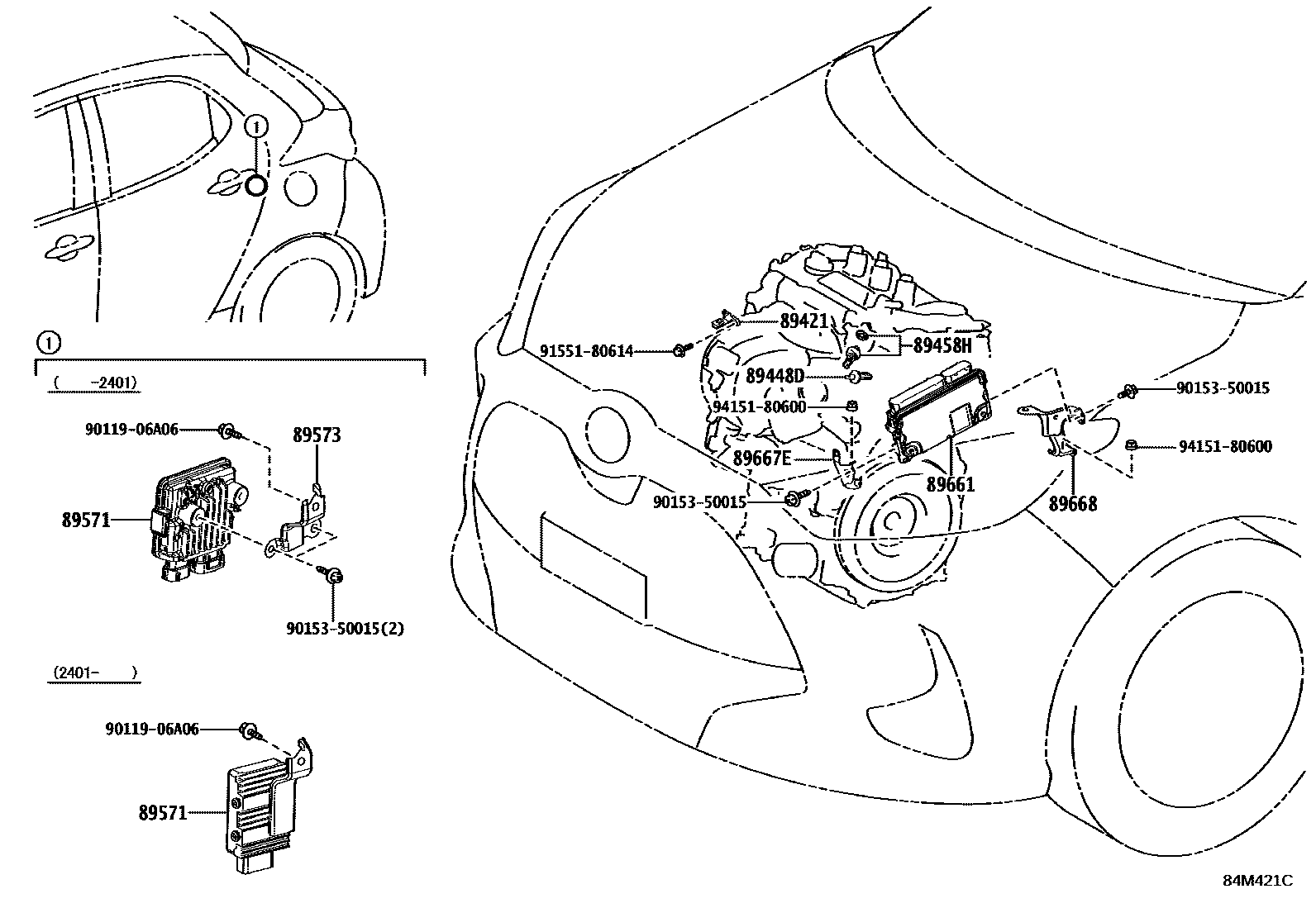

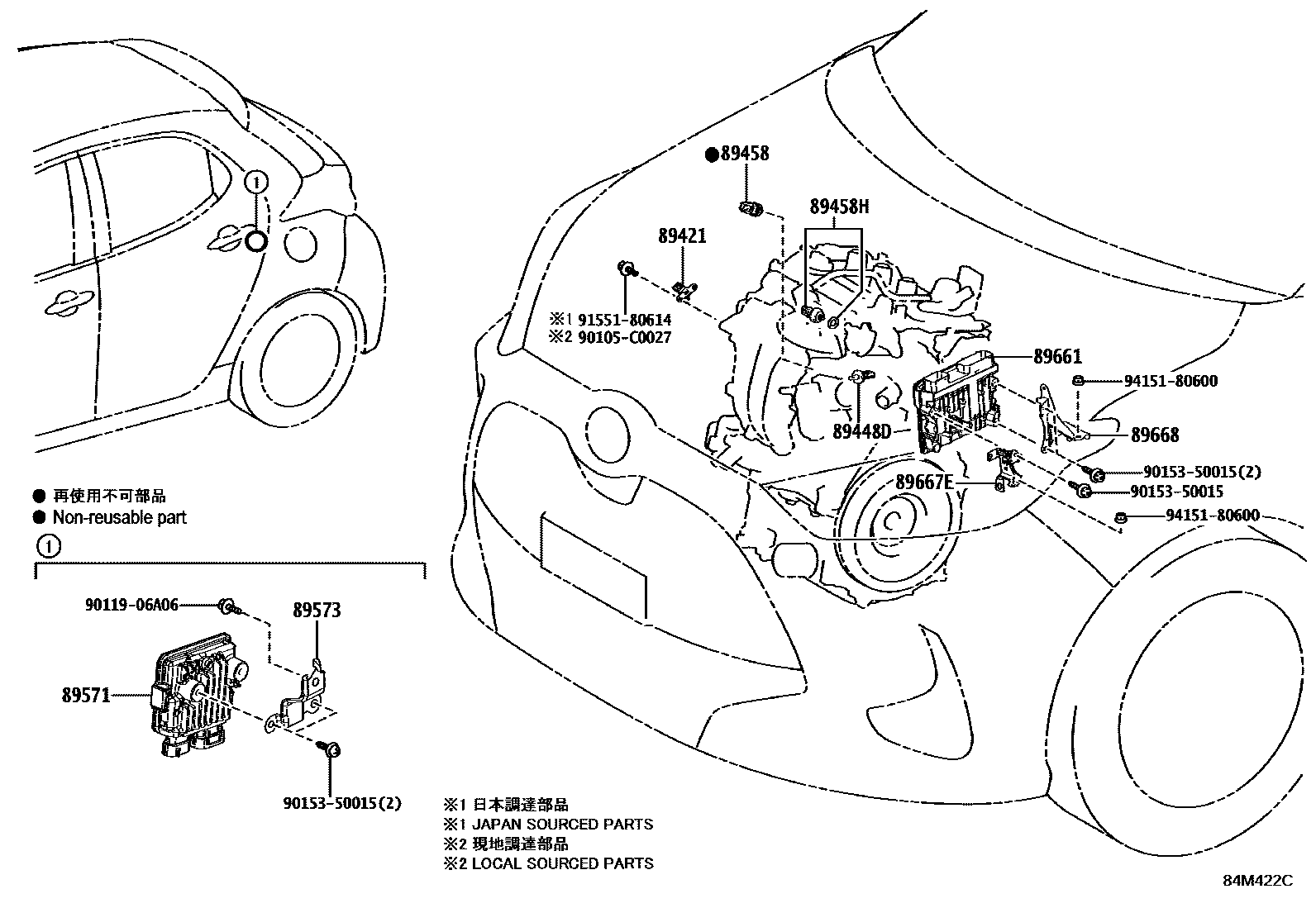

Toyota YARIS 电子燃油喷射系统 — Figure 8404
Toyota YARIS EPC diagram 8404, 电子燃油喷射系统, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-33010 |
| 89448D | Oil pressure and sensors | 89448-33010 |
| 89458 | fuel pressure sensor | 89458-33030 |
| 89458H | No. 2 fuel pressure sensor | 89458-33041 · 89458-33042 |
| 89571 | Fuel pump control ECU | 89570-52070 · 89571-10010 · 89571-K0010 |
| 89573 | Fuel pump control ECU bracket | 89573-K0010 |
| 89661 | Engine control ECU | 89661-5CE50 · 89661-5CE51 · 89661-5CE52 · 89661-5CJ60 · 89661-5CK00 · 89661-K0490 · 89661-K0491 · 89661-K0492 · 89661-K0550 · 89661-K0560 · 89661-K0561 · 89661-K0562 |
| 89667E | No. 1 engine control ECU bracket | 89667-K0010 · 89667-K0020 |
| 89668 | No. 2 engine control ECU bracket | 89668-52430 · 89668-K0020 |
