Toyota YARIS 仪表 — Figure 8301
Toyota YARIS EPC diagram 8301, 仪表, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

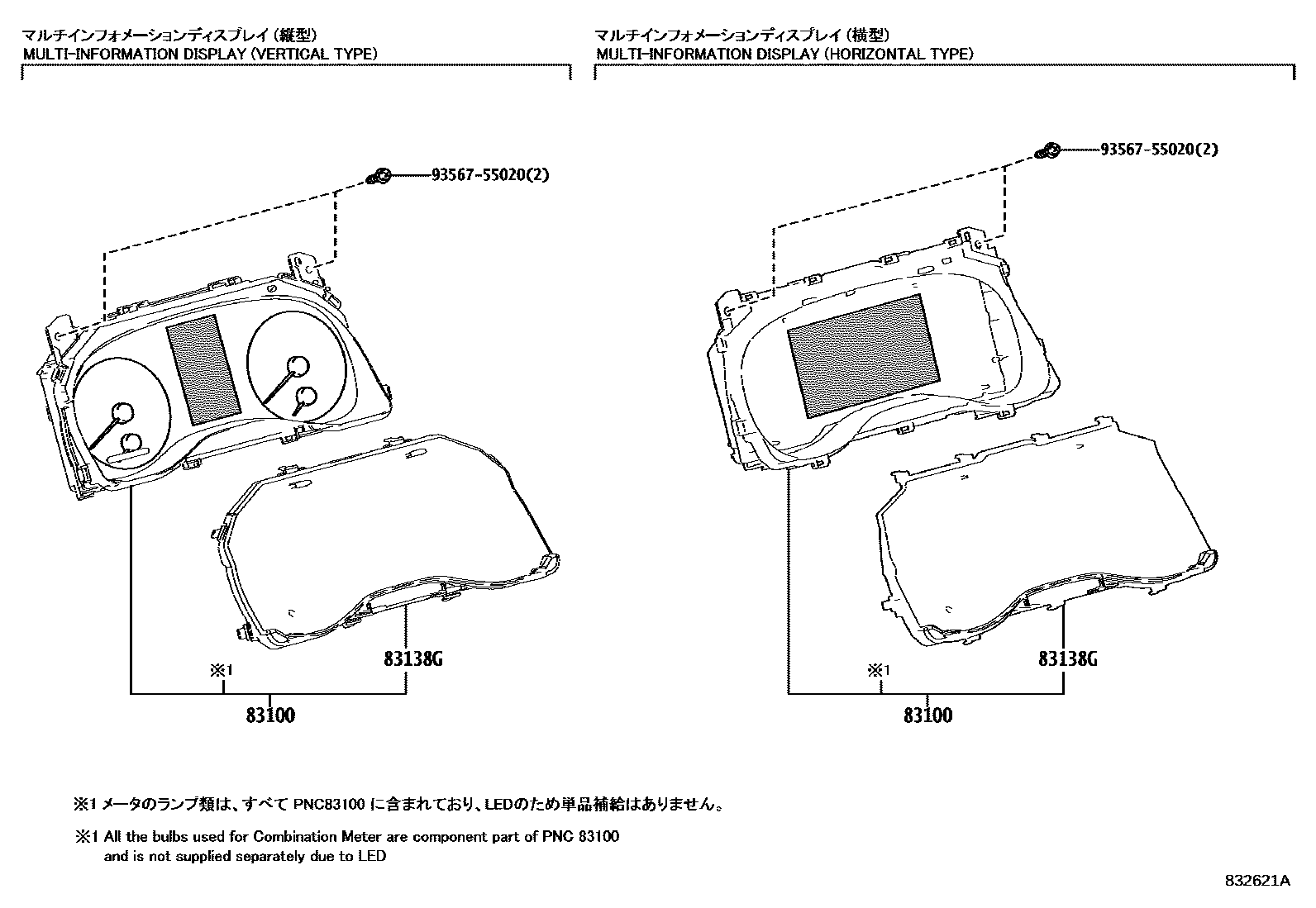

| 83100 | Combined instrument assembly | 83800-5D400 · 83800-5D410 · 83800-5D450 · 83800-5D460 · 83800-5D800 · 83800-5D801 · 83800-5D802 · 83800-5D830 · 83800-5D831 · 83800-5D840 · 83800-5D841 · 83800-5D842 · 83800-5D860 · 83800-5D861 · 83800-K0020 · 83800-K0021 · 83800-K0030 · 83800-K0031 · 83800-K0040 · 83800-K0041 · 83800-K0050 · 83800-K0051 |

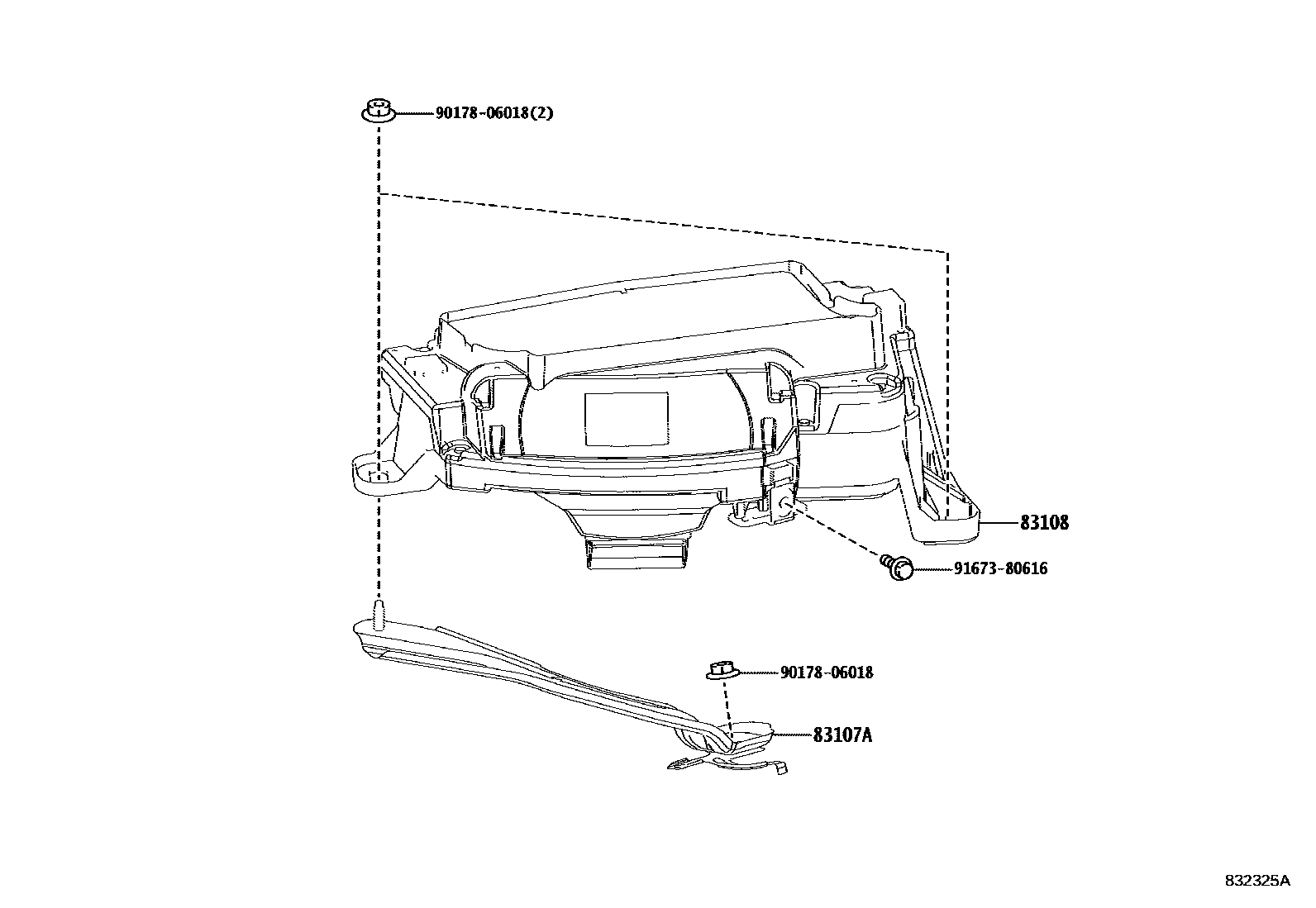

| 83107A | No. 1 instrument bracket sub-assembly | 83107-K0021 |
| 83108 | Instrument rearview mirror sub-assembly | 83108-52060 · 83108-52061 · 83108-K0050 |

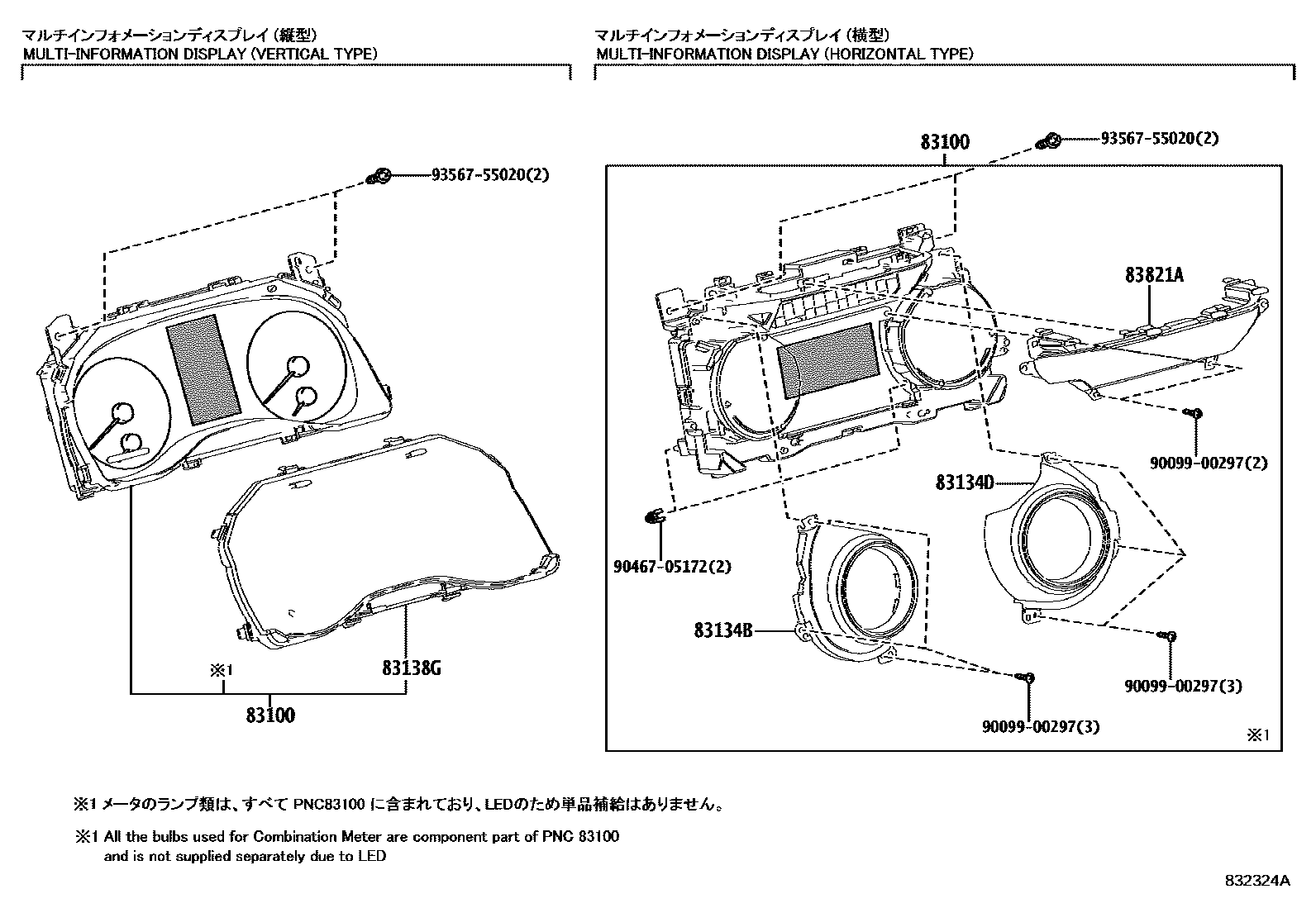

| 83134B | Combination instrument cover No. 2 | 83822-K0030 |
| 83134D | Combination instrument cover No. 3 | 83823-K0030 |
| 83138G | Instrument cluster glass | 83852-5D790 · 83852-5D840 · 83852-K0020 |
| 83821A | Combination instrument cover No. 1 | 83821-K0030 |
