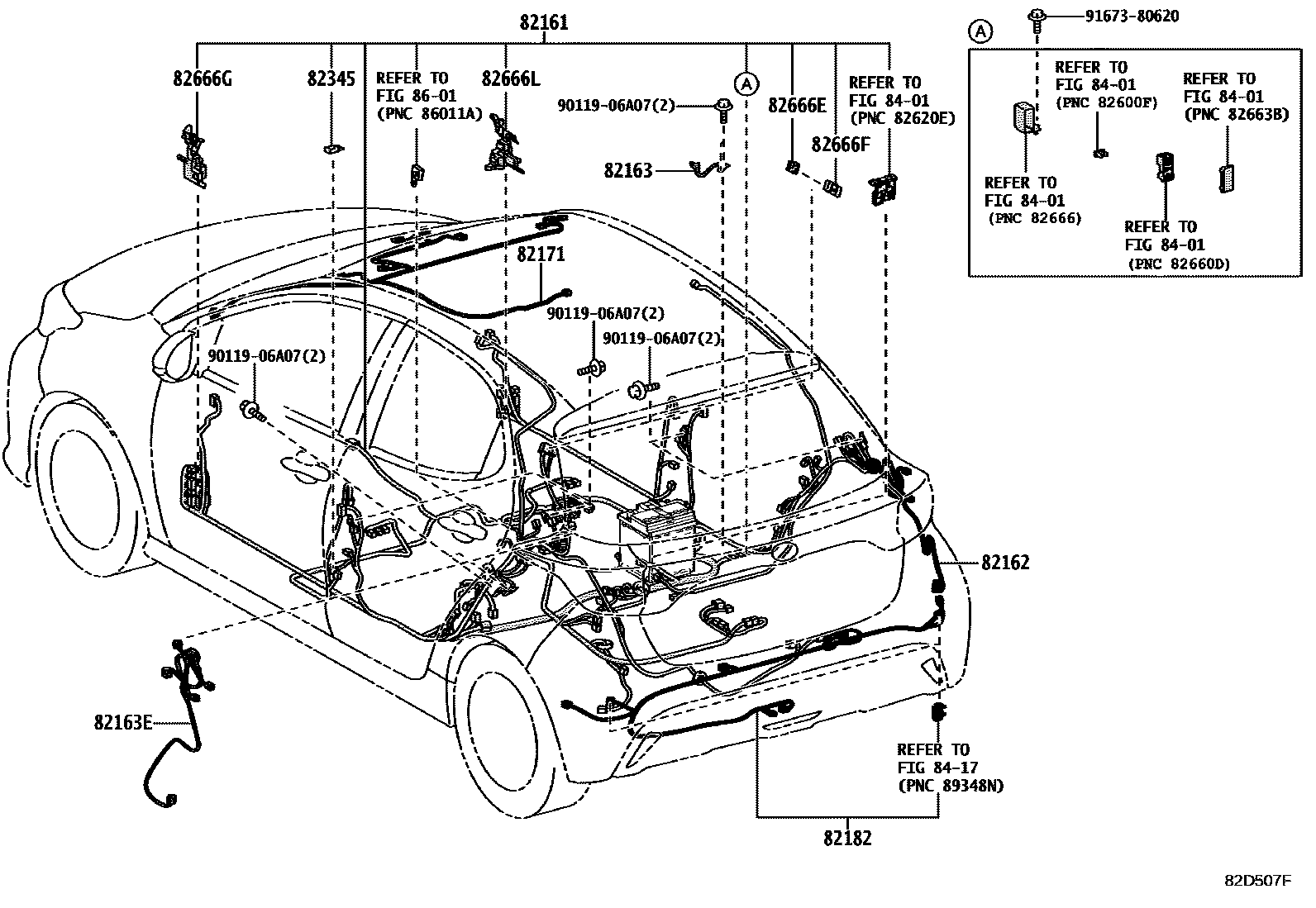

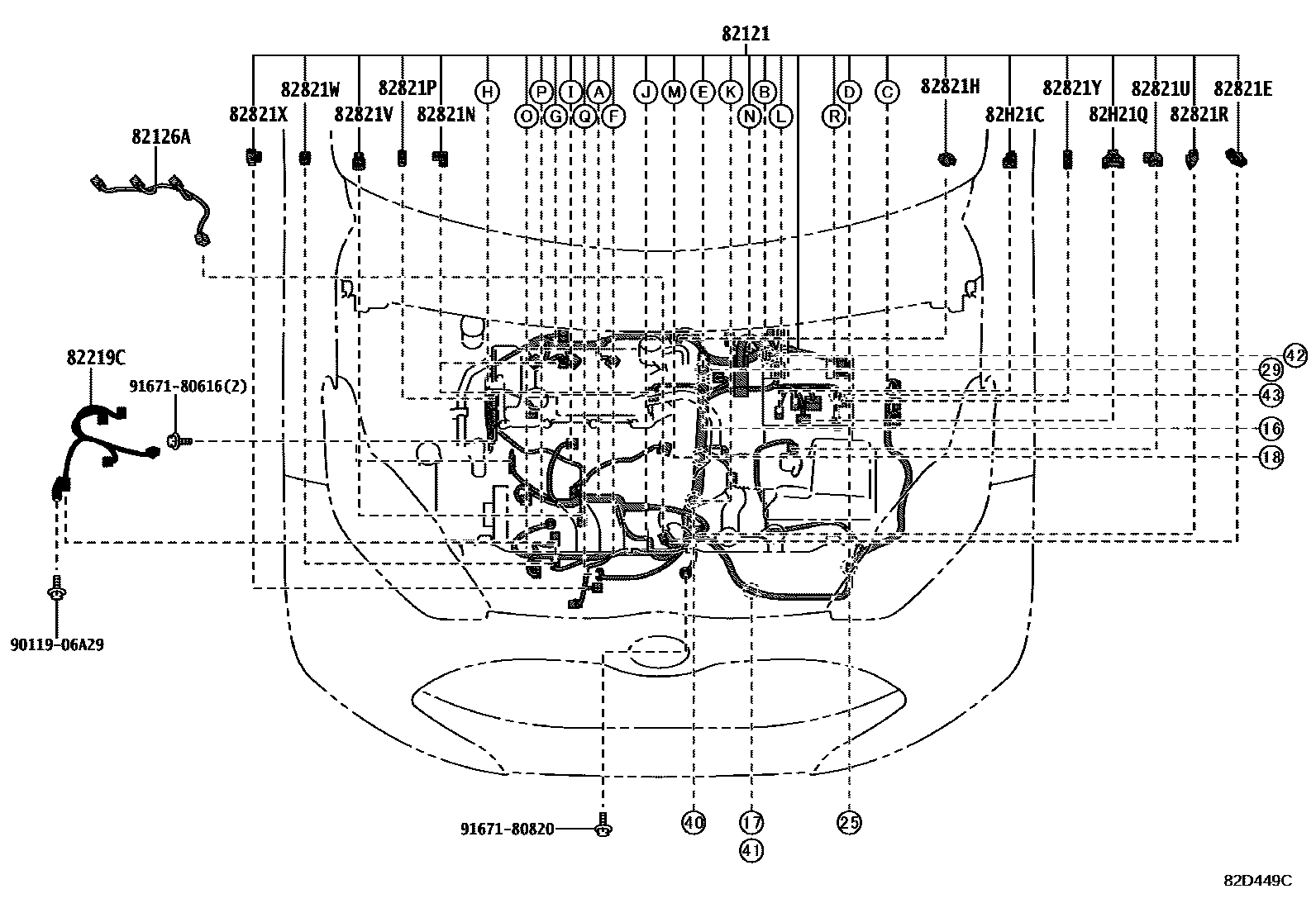

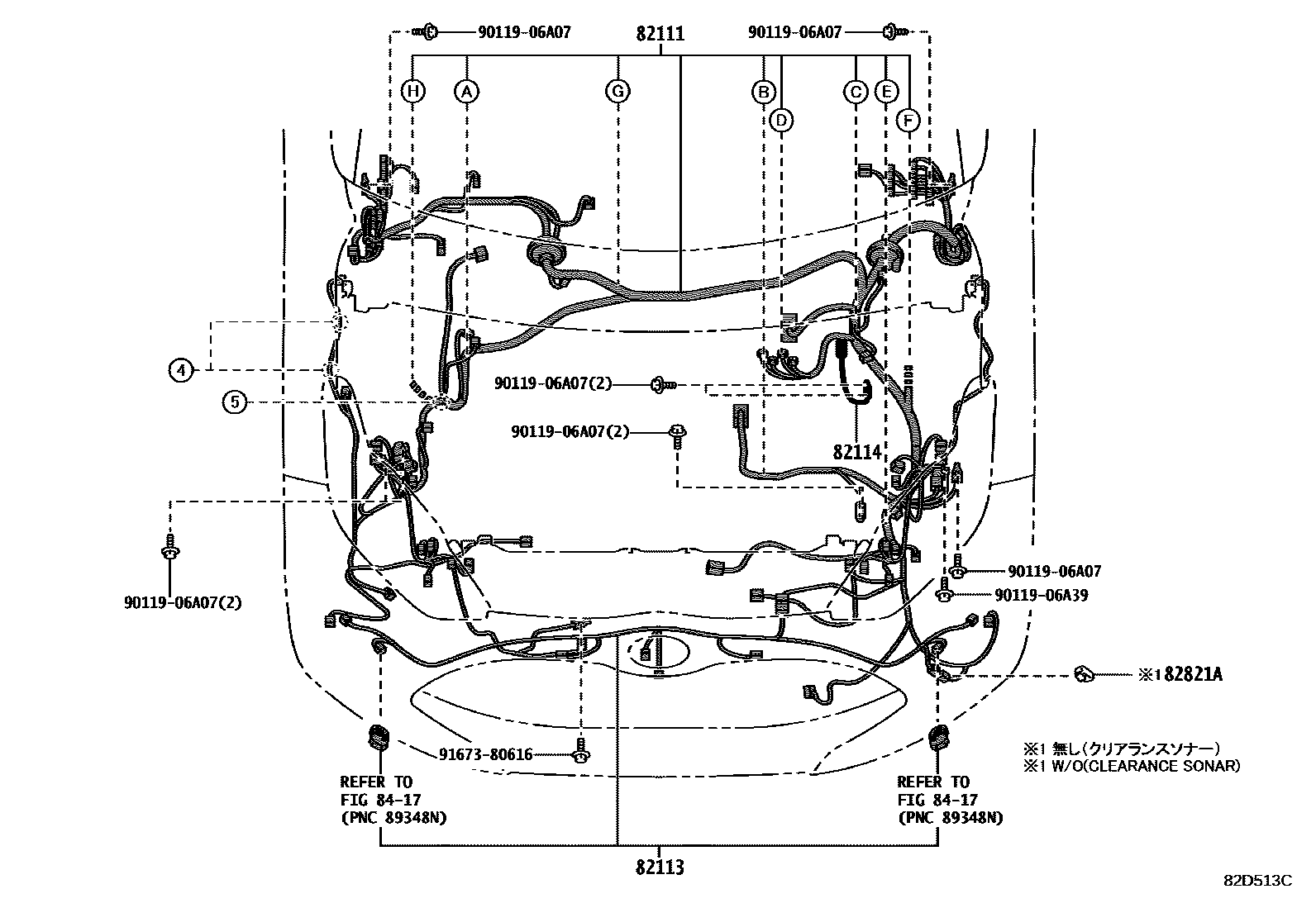

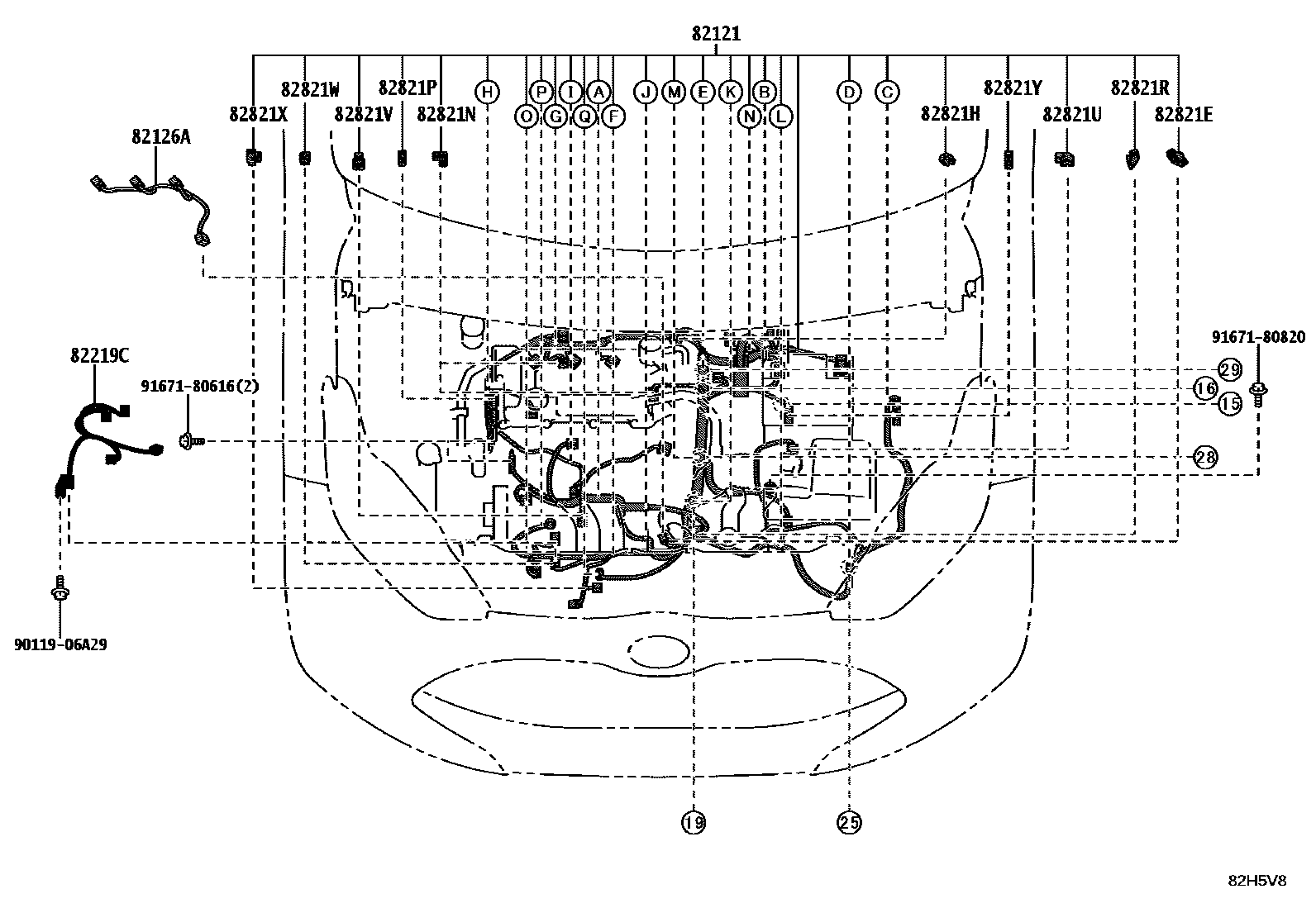

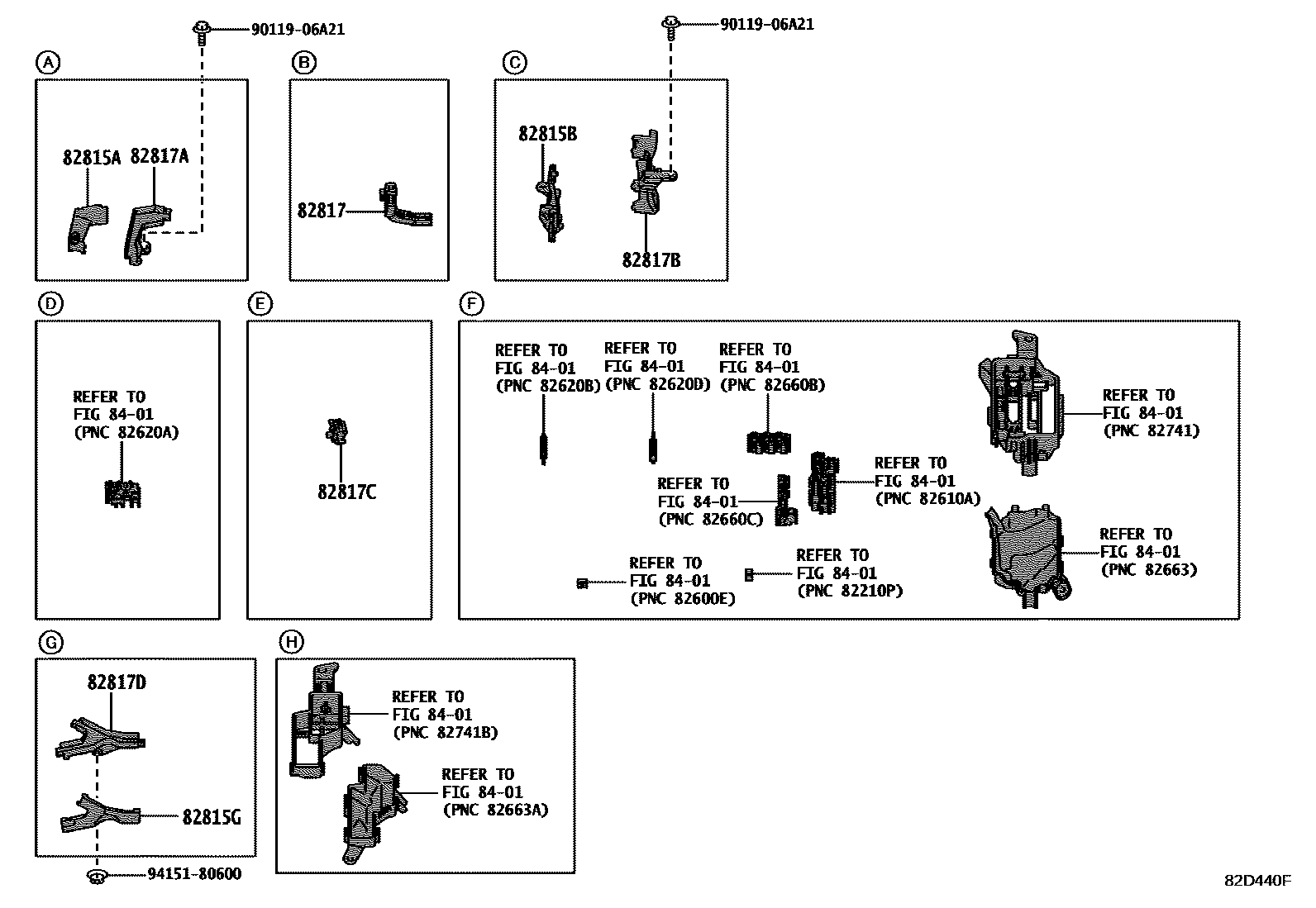

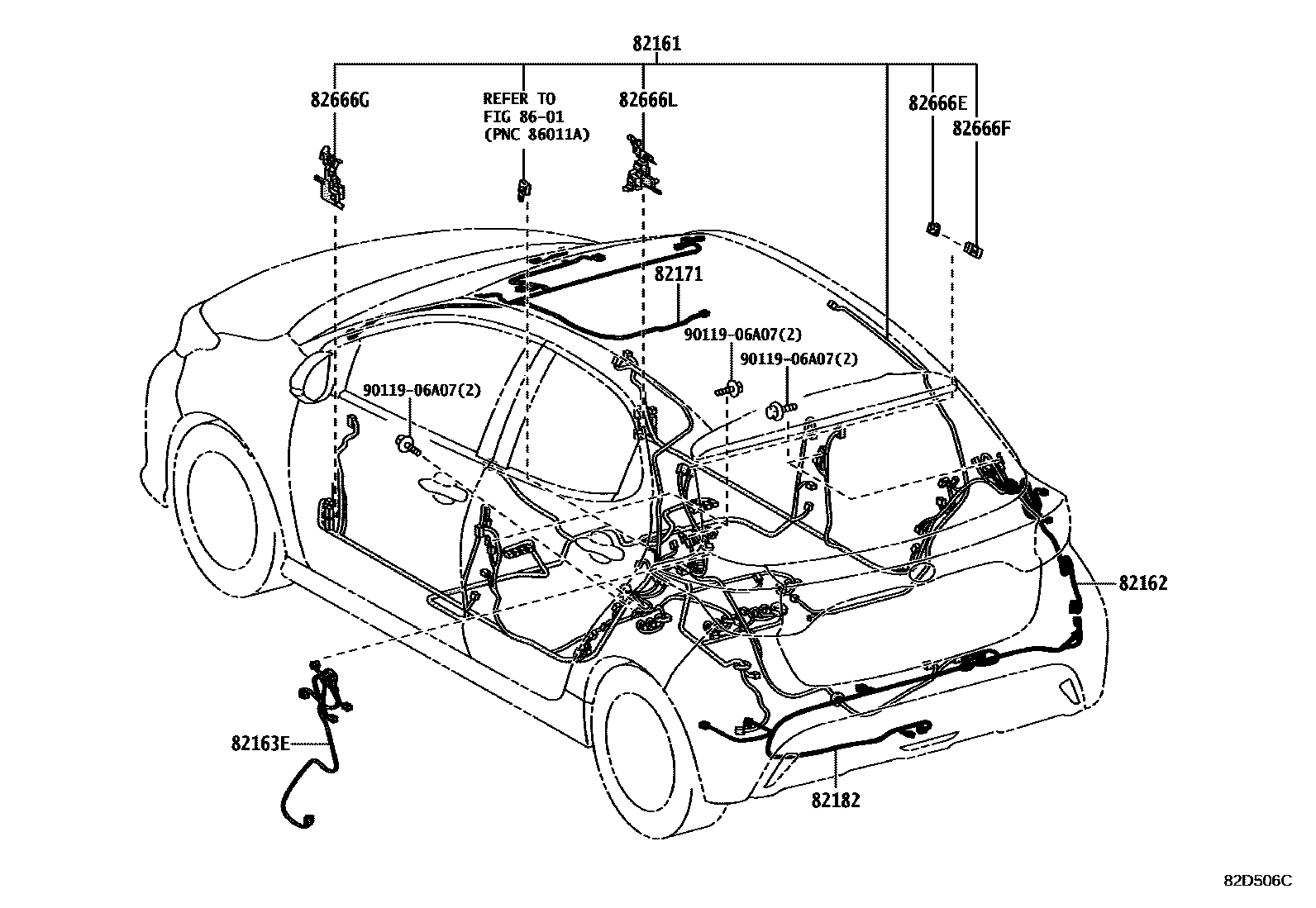

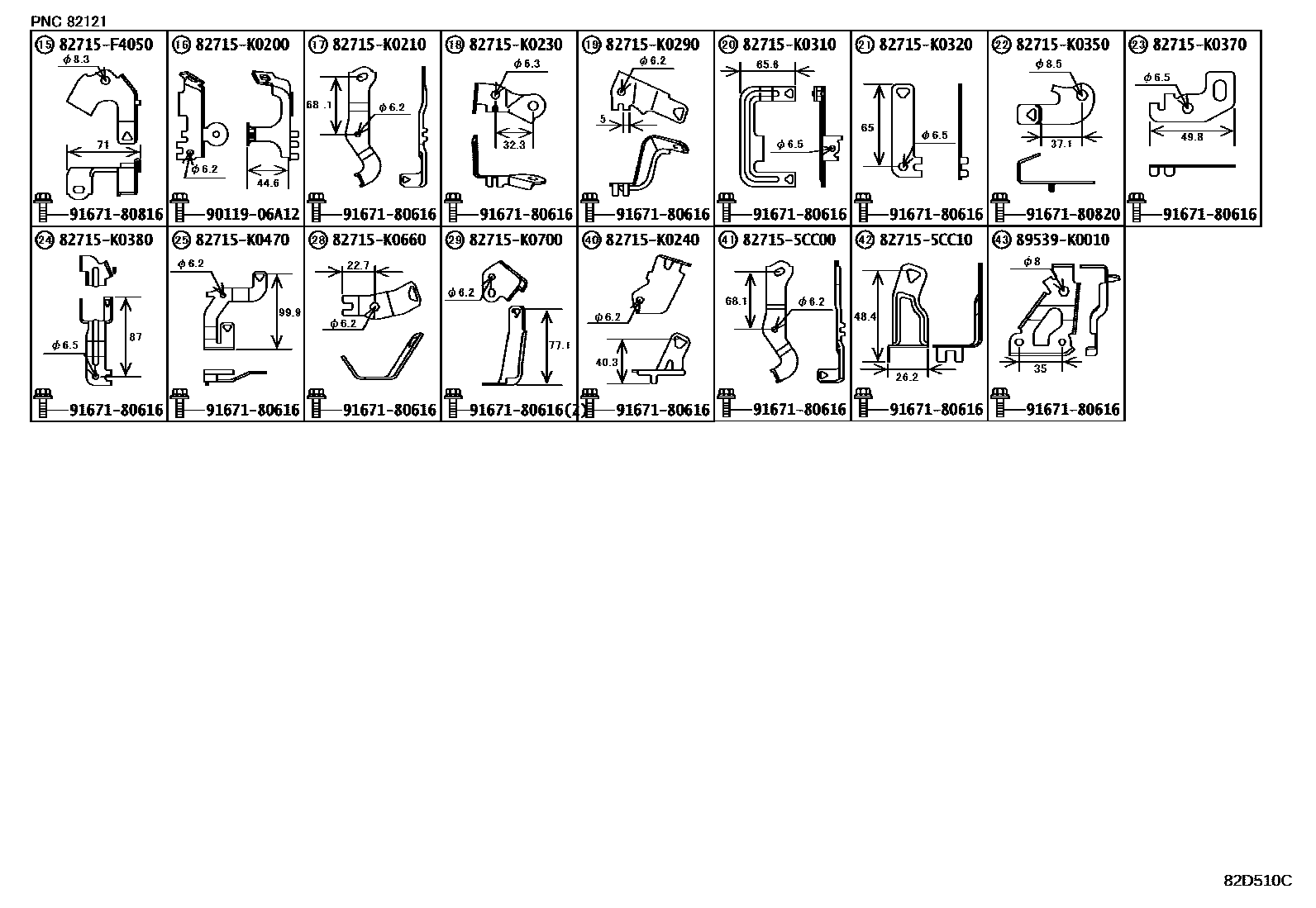

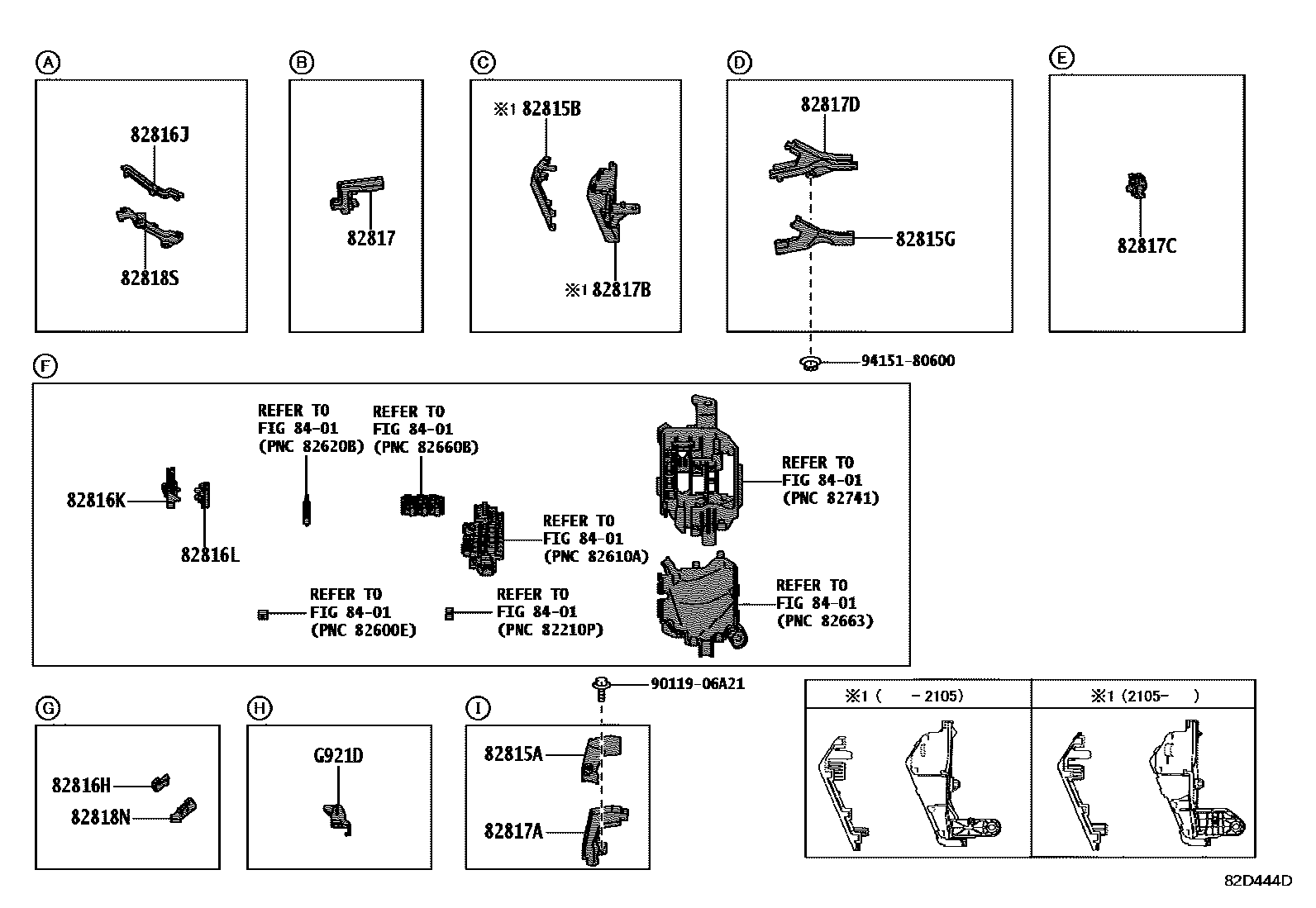

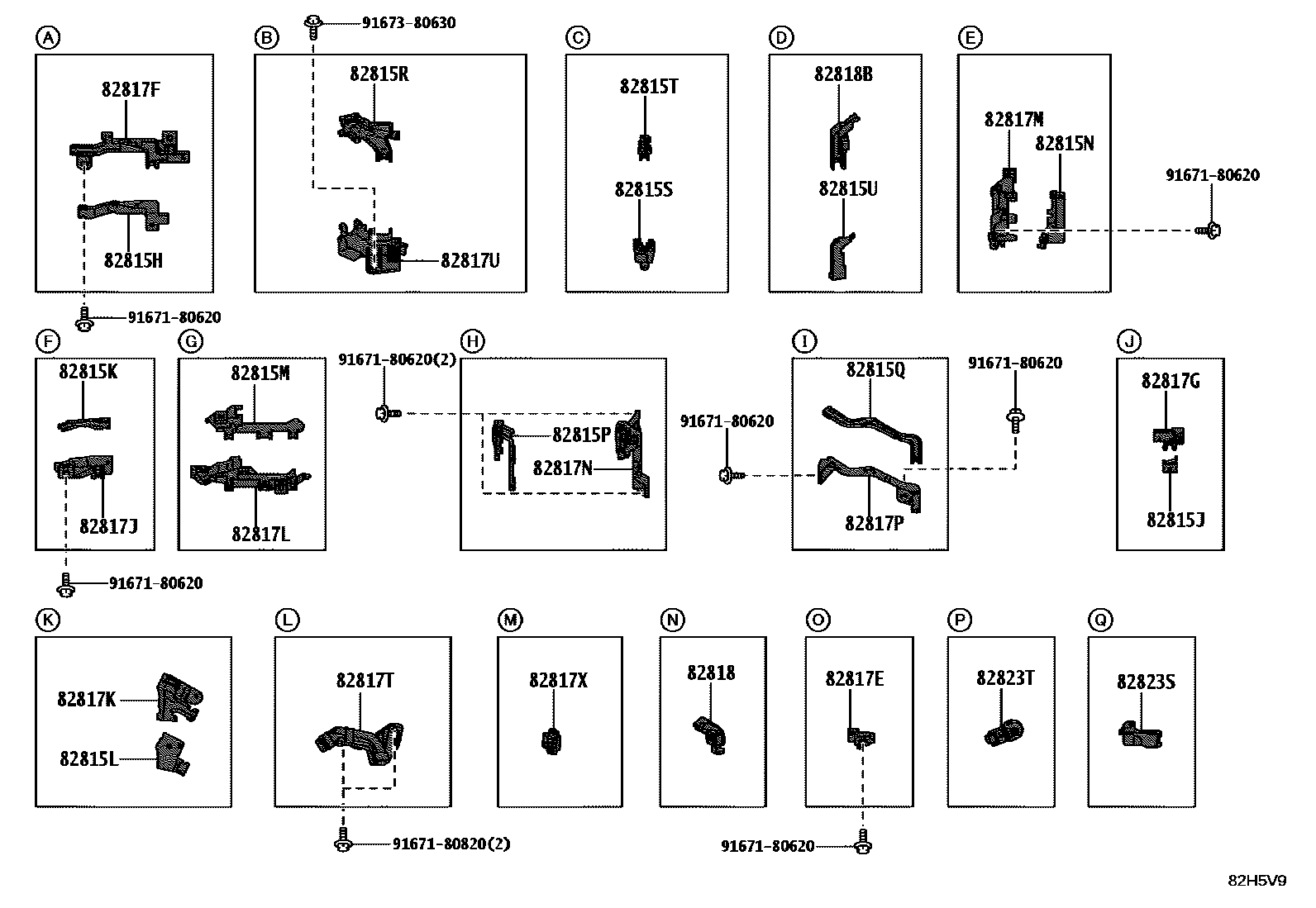

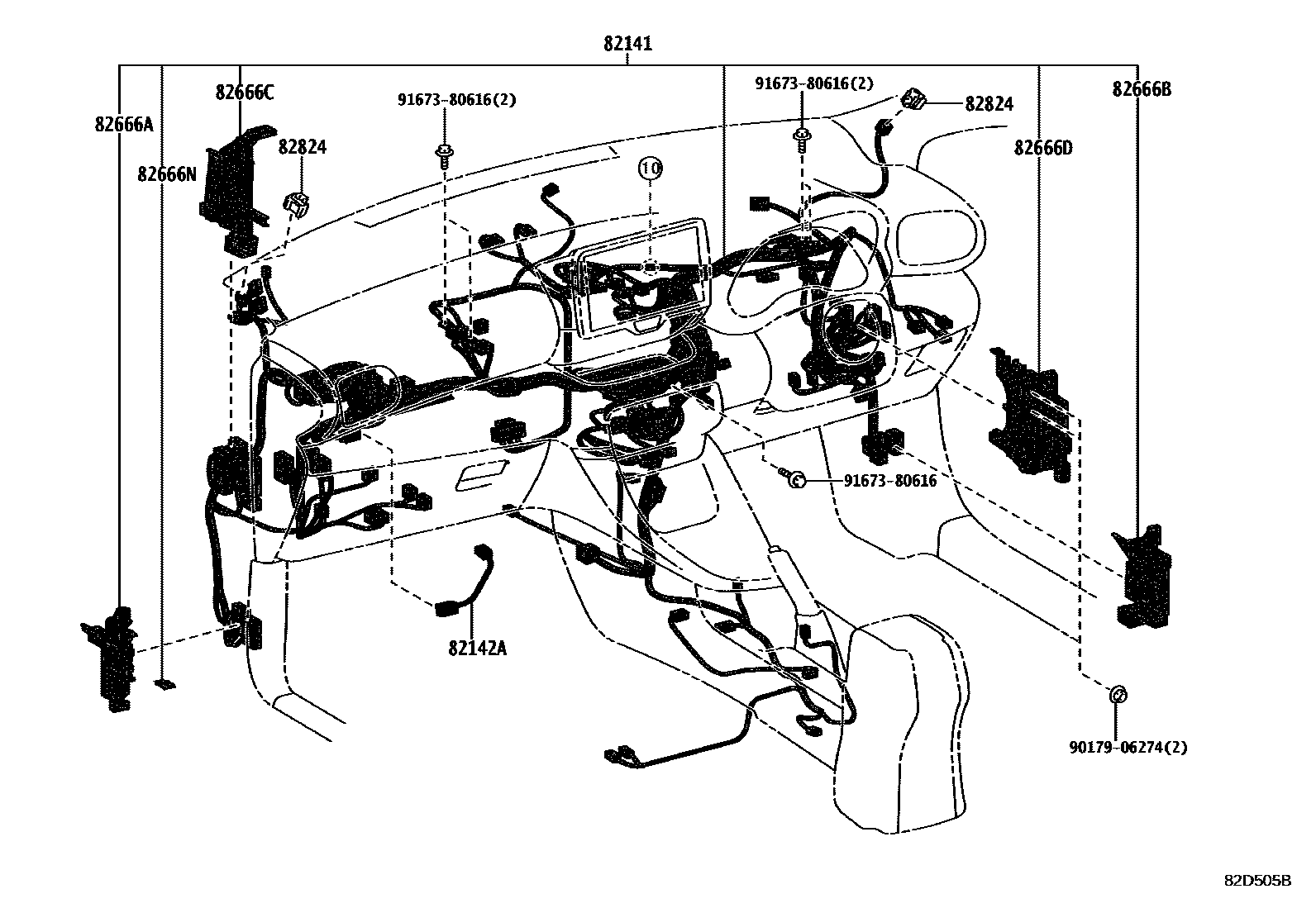

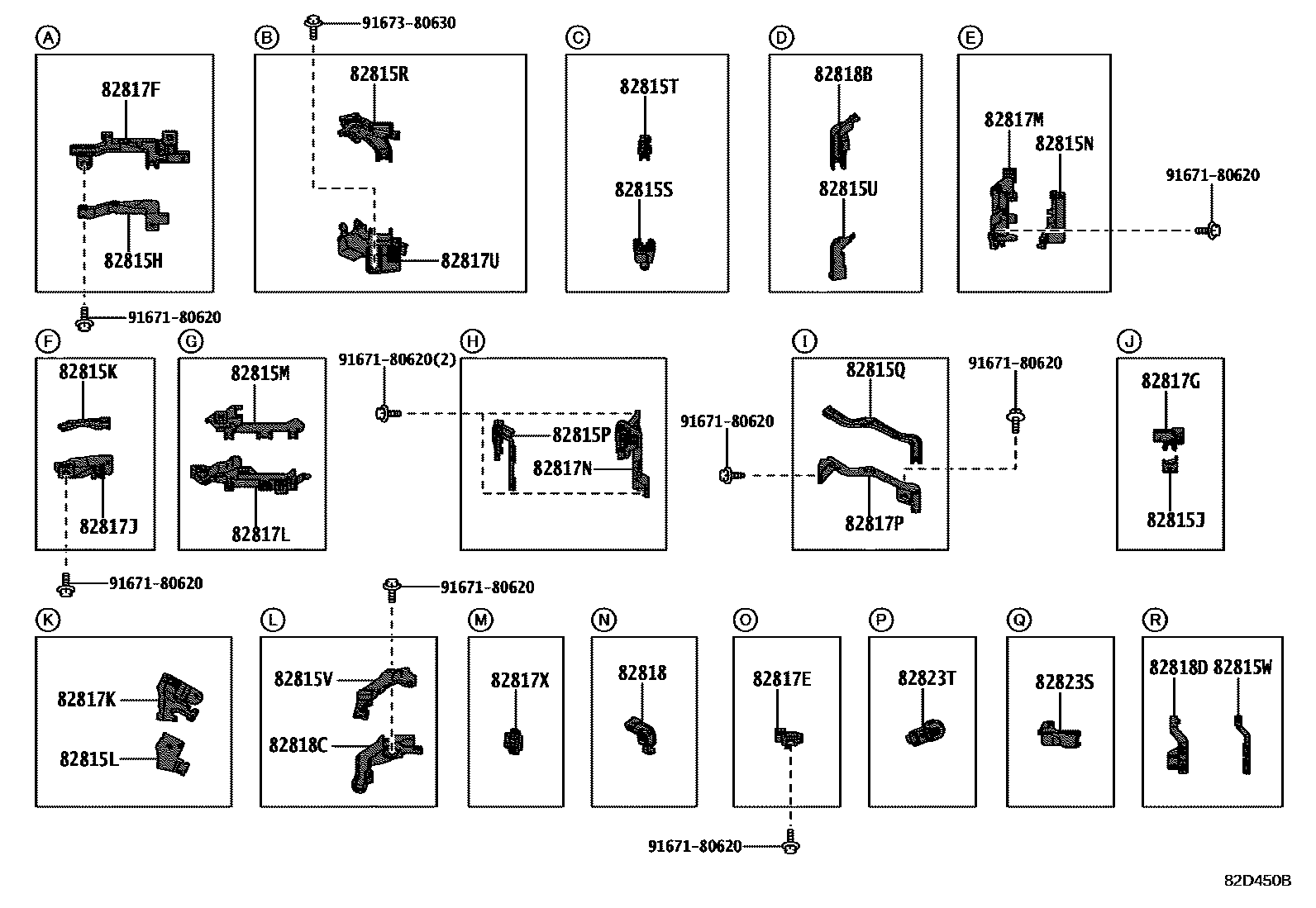

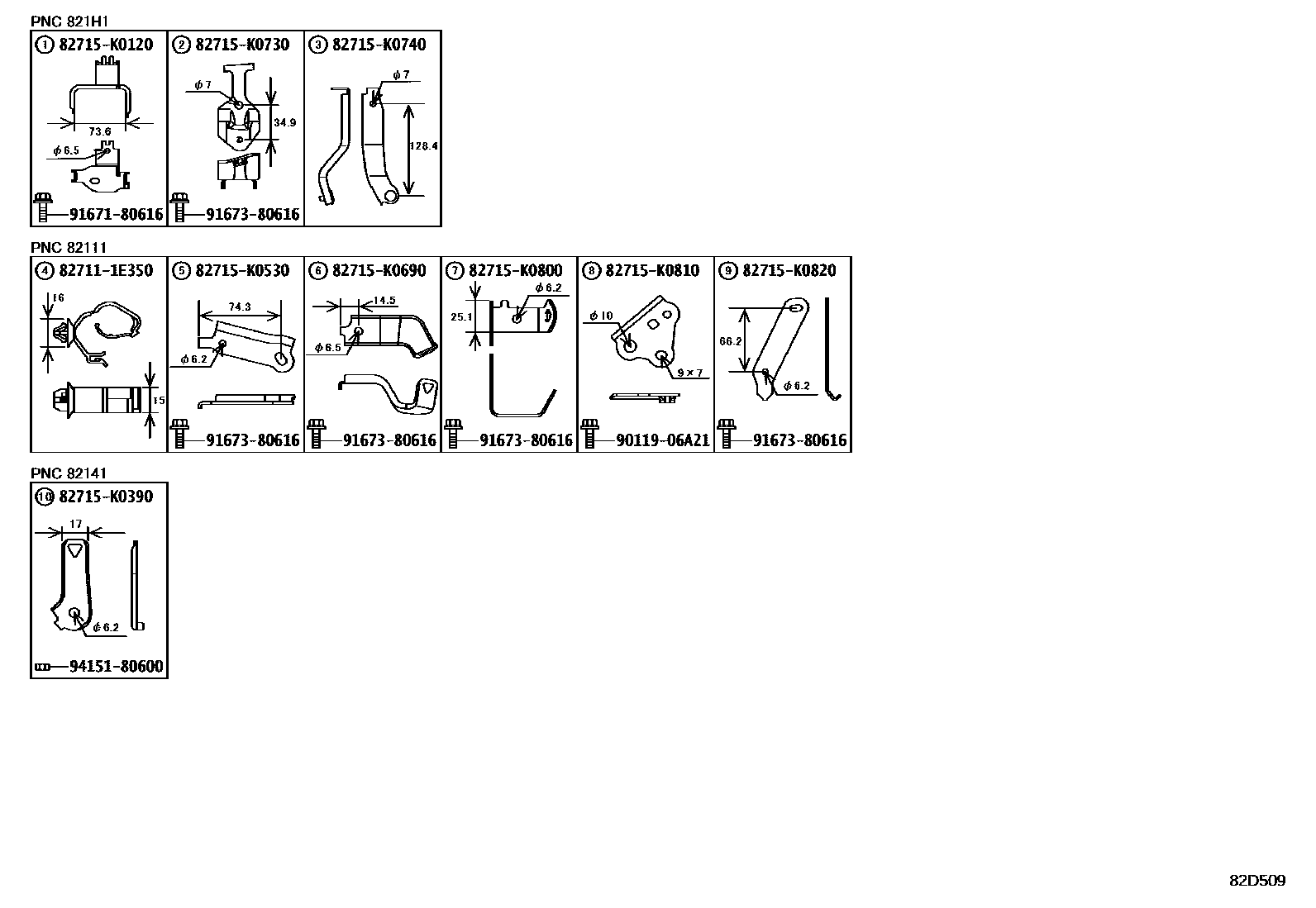

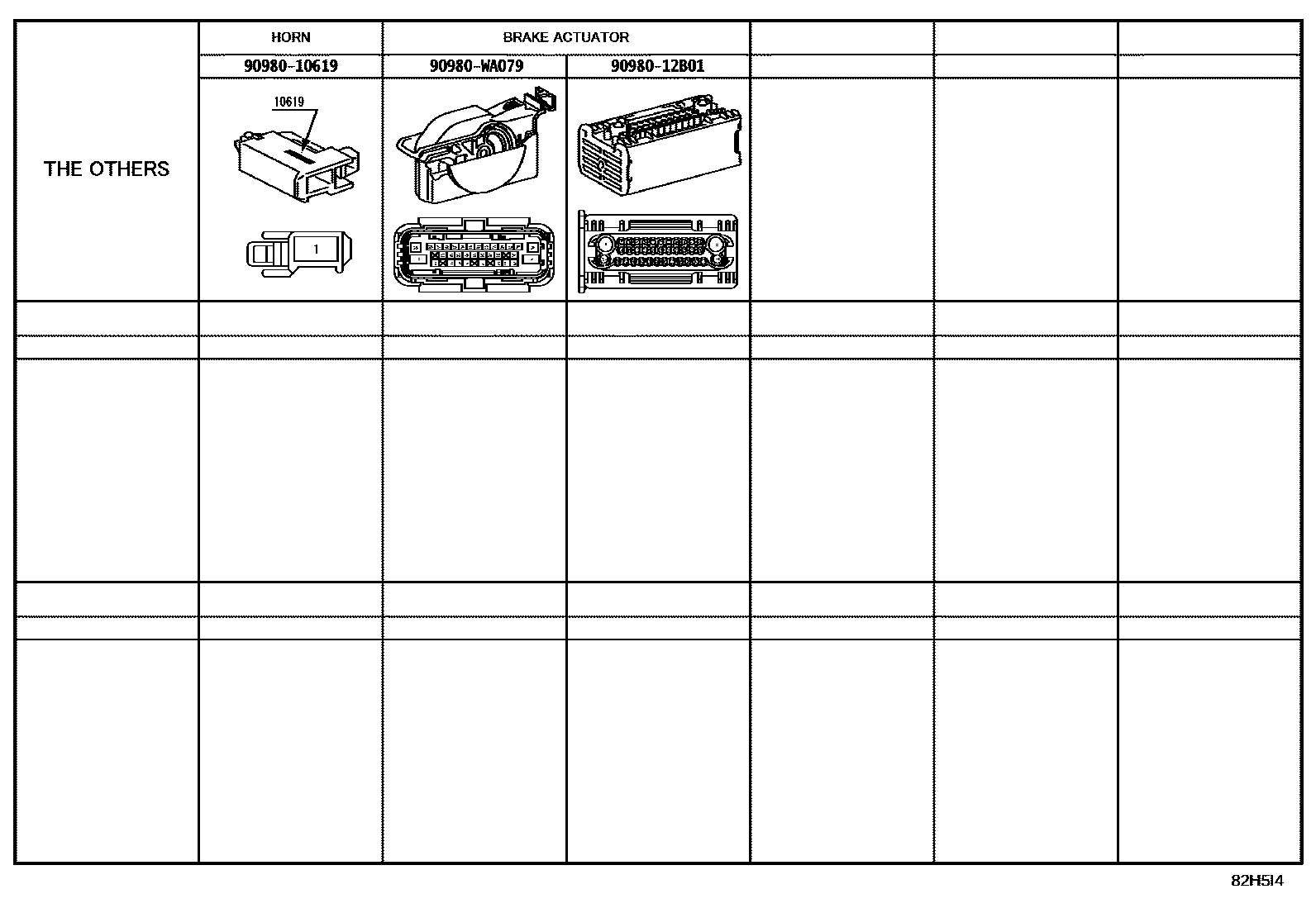

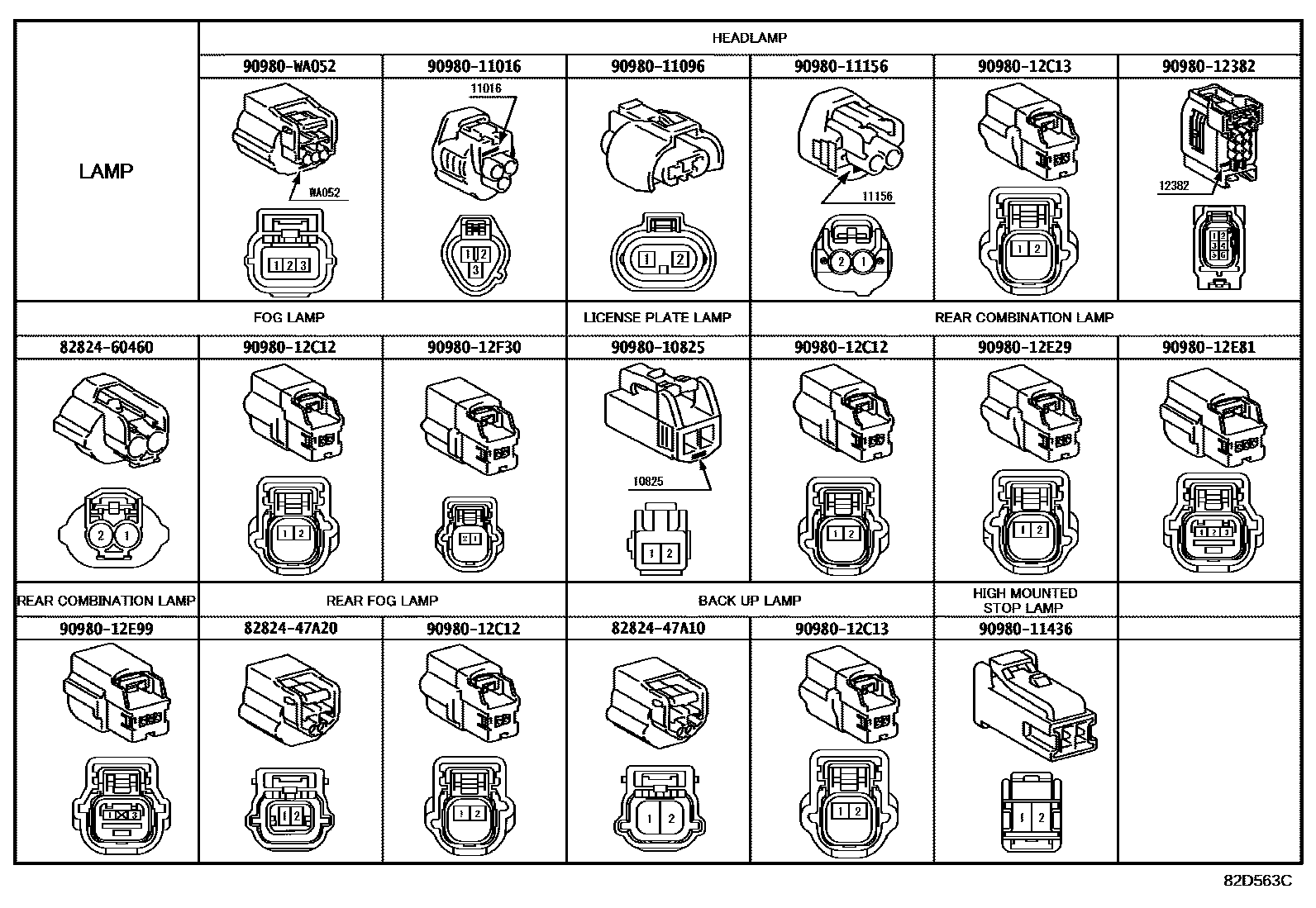

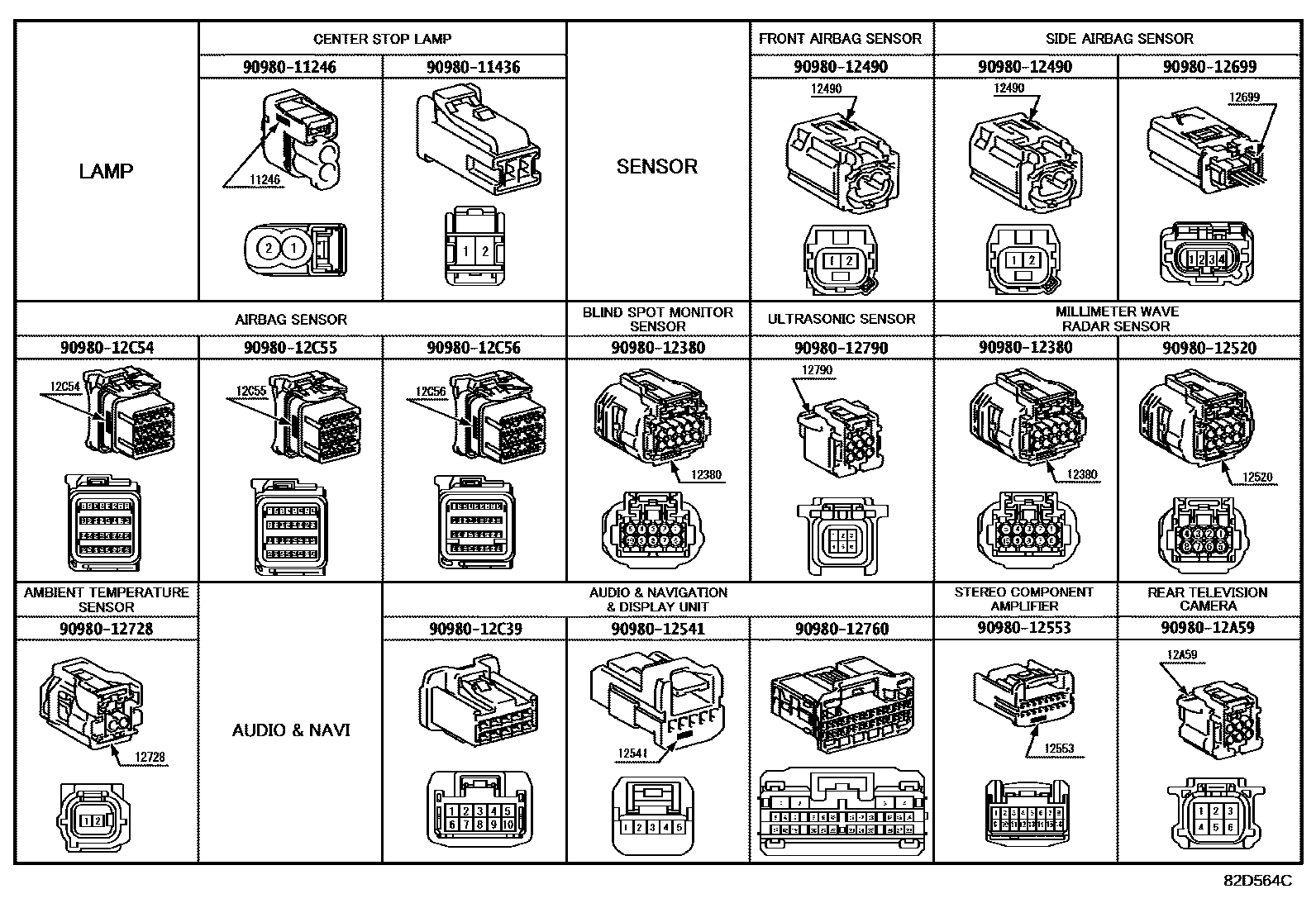

Toyota YARIS 线束和卡夹 — Figure 8202
Toyota YARIS EPC diagram 8202, 线束和卡夹, with 20 images and 125 PNC and OE references.
PNC and OE references

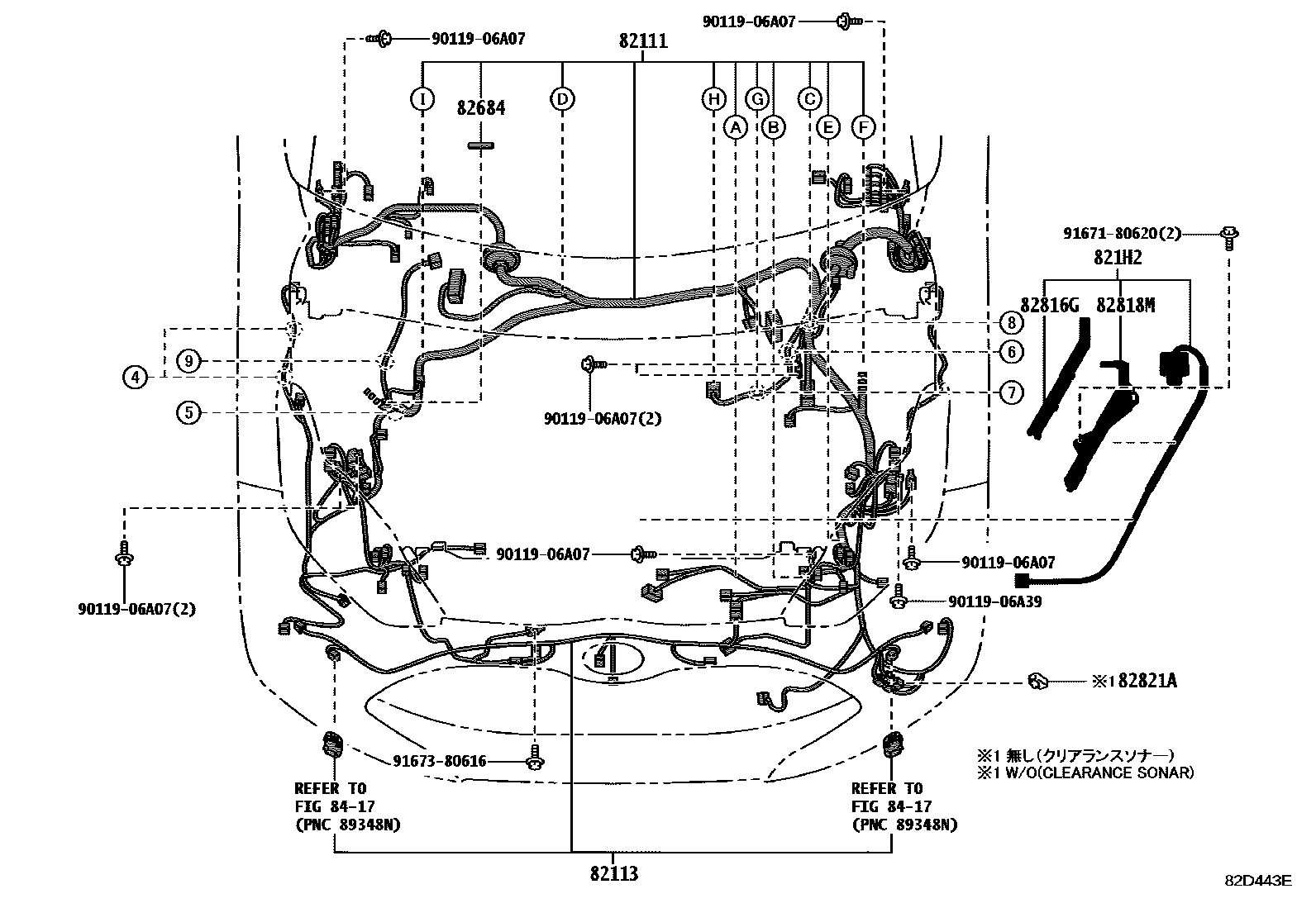

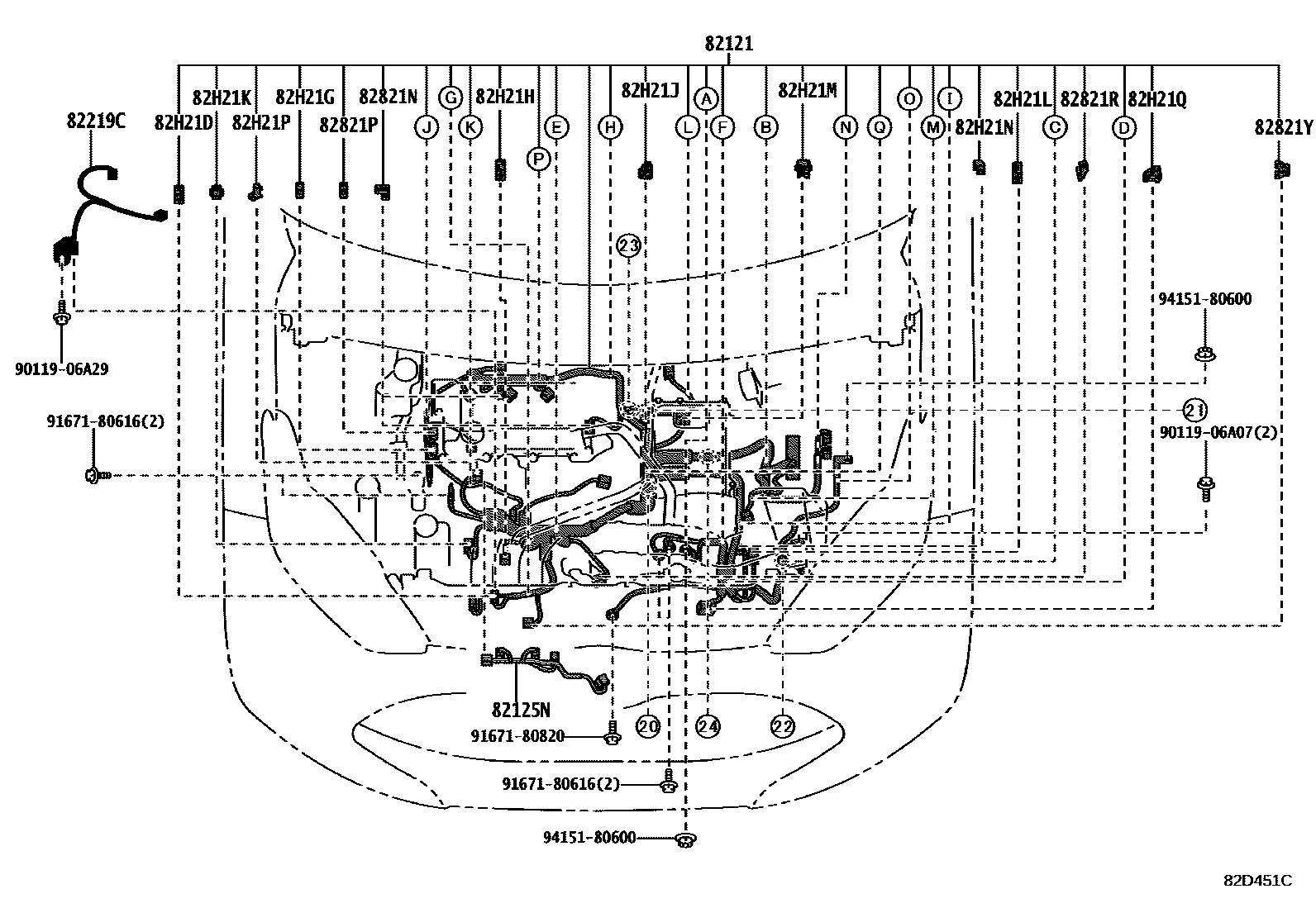

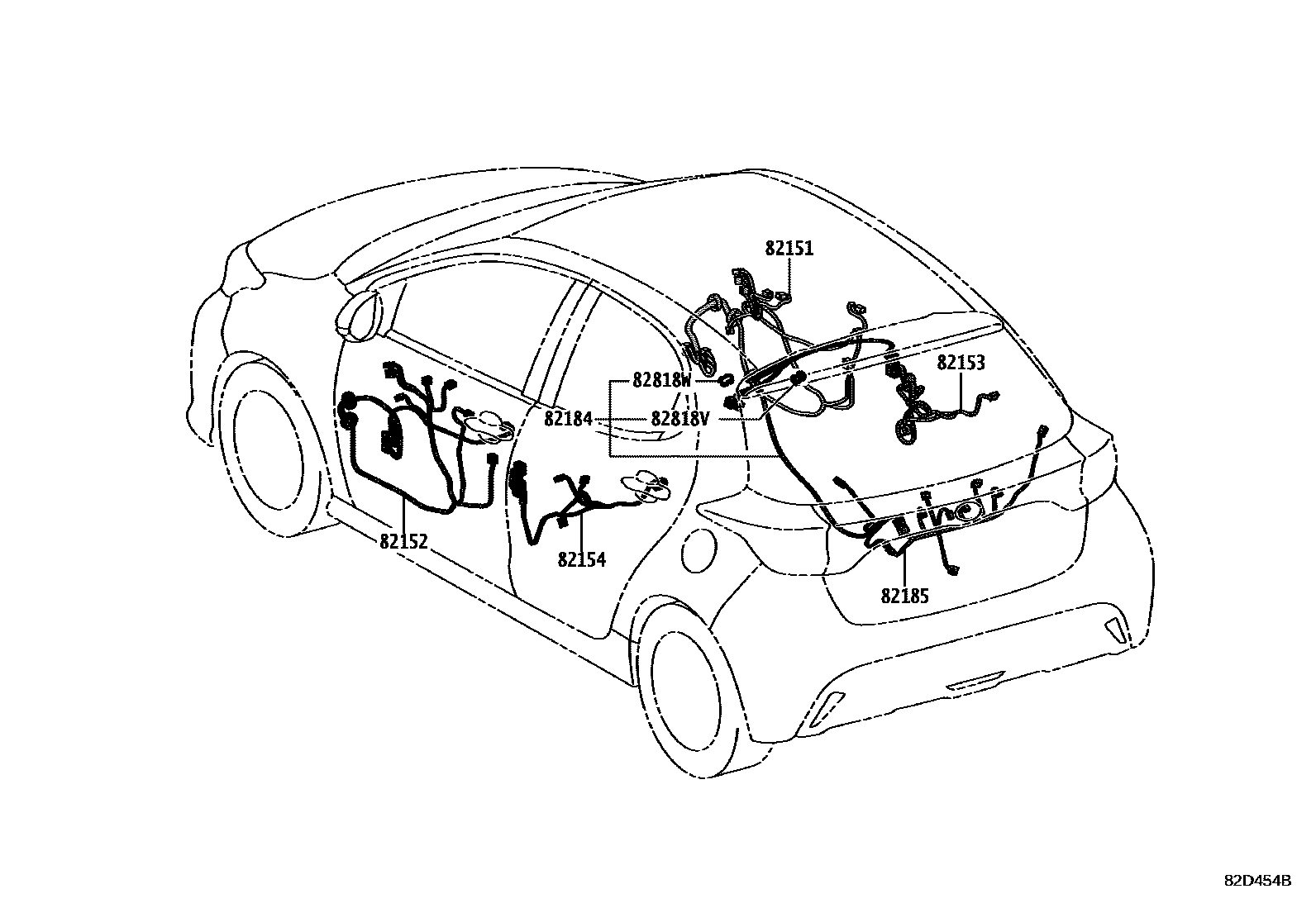

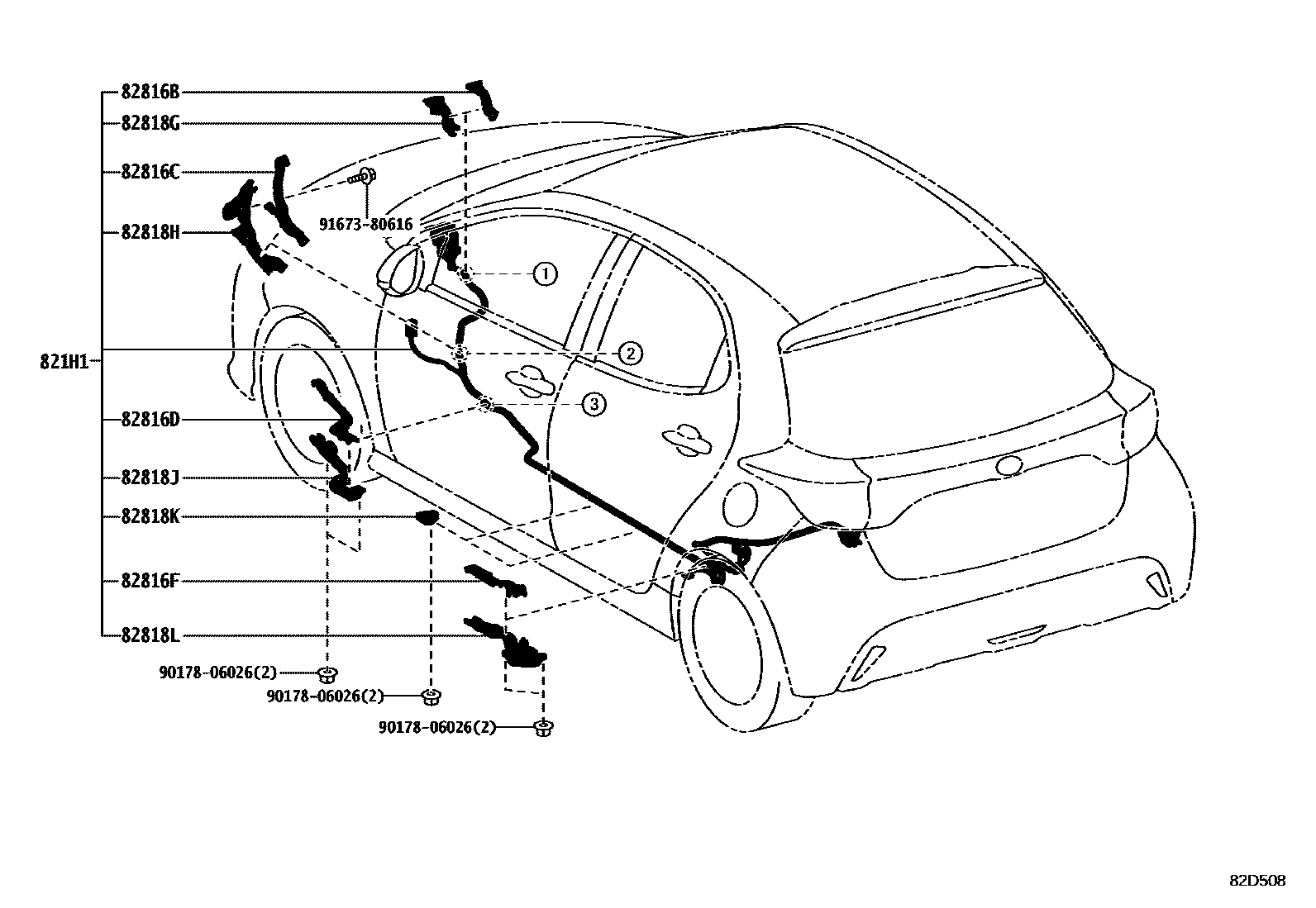

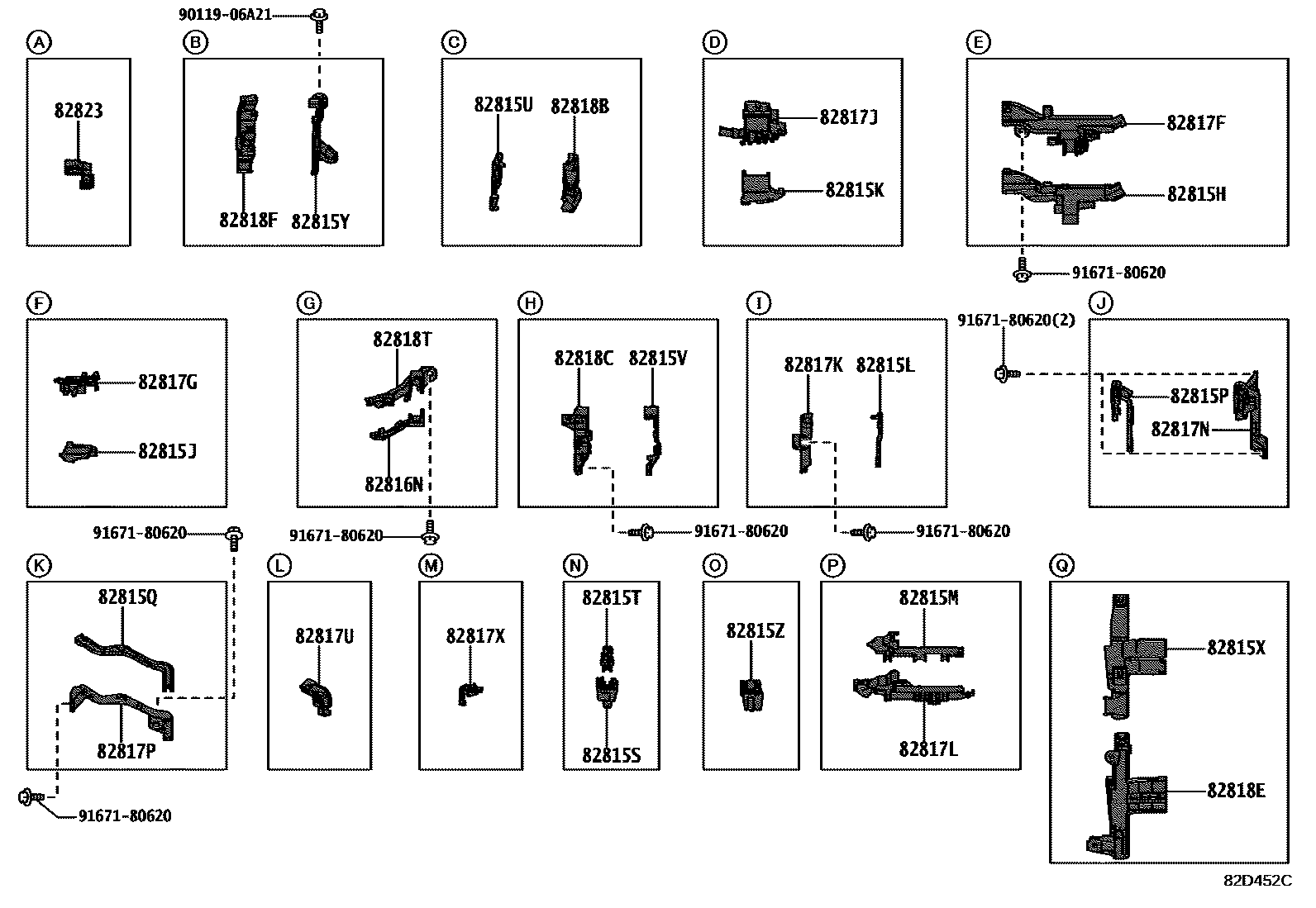

| PNC | Part name | OE numbers |
|---|---|---|
| 82111 | Engine room main wiring harness | 82111-K0620 · 82111-K0640 · 82111-K0641 · 82111-K0G00 · 82111-K0G01 · 82111-K0G10 · 82111-K0G11 · 82111-K0G12 · 82111-K0G20 · 82111-K0G21 · 82111-K0G22 · 82115-5C630 · 82115-5C640 · 82115-5C650 · 82115-5C651 · 82115-5C660 · 82115-5C661 |
| 82113 | Engine room wiring harness No. 3 | 82113-52310 · 82113-52330 · 82113-K0020 · 82113-K0080 |
| 82114 | Engine room wiring harness No. 4 | 82114-52060 |
| 82121 | Engine wiring harness | 82121-52W70 · 82121-52X00 · 82121-K0150 · 82121-K0230 · 82121-K0231 · 82121-K0250 · 82121-K0400 |
| 82125N | Engine No. 5 wiring harness | 82125-52190 · 82125-K0060 |
| 82126A | No. 6 engine wiring harness | 82126-K0040 |
| 82141 | Dashboard wiring harness | 82141-K0570 · 82141-K0571 · 82141-K0610 · 82141-K0611 · 82141-K0612 · 82141-K0622 · 82141-K0632 · 82141-K0640 · 82141-K0641 · 82141-K0642 · 82141-K0650 · 82141-K0651 · 82141-K0652 · 82141-K0660 · 82141-K0661 · 82141-K0662 · 82145-5DZ80 · 82146-5C050 · 82146-5C060 · 82146-5C061 · 82146-5C080 · 82146-5C081 · 82146-5C090 · 82146-5C091 |
| 82142A | Instrument panel wiring harness No. 2 | 82140-K0010 |
| 82151 | Right front door wiring harness | 82151-5CJ60 · 82151-5CJ80 · 82151-5CJ90 · 82151-K0190 · 82151-K0191 · 82151-K0192 · 82151-K0600 · 82151-K0610 · 82151-K0620 |
| 82152 | Left front door wiring harness | 82152-5CJ90 · 82152-5CJ91 · 82152-5CK10 · 82152-5CK20 · 82152-K0180 · 82152-K0181 · 82152-K0182 · 82152-K0600 · 82152-K0610 · 82152-K0620 |
| 82153 | Rear door wiring harness No. 1 | 82153-K0090 · 82153-K0100 |
| 82154 | Rear door wiring harness No. 2 | 82154-K0090 · 82154-K0100 |
| 82161 | floor wiring harness | 82161-K0E80 · 82161-K0E81 · 82161-K0E82 · 82161-K0F00 · 82161-K0F01 · 82161-K0F02 · 82161-K0F60 · 82161-K0F61 · 82161-K0F62 · 82161-K0F80 · 82161-K0F81 · 82161-K0F82 · 82199-5DG00 · 82199-5DG10 · 82199-5DG20 · 82199-5DG21 · 82199-5DG30 |
| 82162 | Floor wiring harness No. 2 | 82165-K0010 · 82165-K0020 · 82165-K0030 · 82165-K0040 |
| 82163 | Floor wiring harness No. 3 | 82163-K0040 |
| 82163E | No. 4 floor wiring harness | 82167-K0010 · 82167-K0020 · 82167-K0030 · 82167-K0040 |
| 82171 | Roof No. 1 wiring harness | 82171-52J70 · 82171-K0080 · 82171-K0081 |
| 82182 | Luggage No. 2 wiring harness | 82182-K0070 · 82182-K0071 · 82182-K0240 · 82182-K0241 |
| 82184 | Rear door No. 1 wiring harness | 82184-52K70 · 82184-K0140 |
| 82185 | Rear door wiring harness No. 2 | 82185-52R80 · 82185-K0220 · 82185-K0230 |
| 821H1 | Underfloor wiring harness | 821H1-K0030 |
| 821H2 | HV air conditioner wiring harness | 821H2-K0030 |
| 82219C | sensor harness | 82219-K0050 · 82219-K0060 |
| 82345 | diode | 82345-32010 |
| 82666A | Connector holder No. 2 | 82666-K0100 |
| 82666B | No. 3 connector holder | 82666-K0110 |
| 82666C | No. 4 connector holder | 82666-K0120 |
| 82666D | No. 5 connector holder | 82666-K0140 |
| 82666E | No. 6 connector holder | 82666-21040 |
| 82666F | No. 7 connector holder | 82666-60220 |
| 82666G | No. 8 connector holder | 82666-K0070 |
| 82666L | No. 9 connector holder | 82666-K0080 |
| 82666N | No. 10 connector holder | 82666-52400 |
| 82684 | ETIQUETTE, COUPURE ELECTRICITE HAUTE TENSION | 82684-48010 |
| 82815A | Wiring harness protector cover | 82815-K0530 |
| 82815B | Wiring harness protector cover | 82815-52A90 · 82815-K0520 · 82815-K0740 |
| 82815G | No. 5 wire harness protector cover | 82815-52740 |
| 82815H | No. 6 wire harness protector cover | 82815-K0050 · 82815-K0120 |
| 82815J | No. 7 wire harness protector cover | 82815-K0060 · 82815-K0130 |
| 82815K | No. 8 wire harness protector cover | 82815-K0040 · 82815-K0140 |
| 82815L | No. 9 wire harness protector cover | 82815-K0090 · 82815-K0150 |
| 82815M | No. 10 wire harness protector cover | 82815-K0160 · 82815-K0770 |
| 82815N | No. 11 wire harness protector cover | 82815-K0170 |
| 82815P | No. 12 wire harness protector cover | 82815-K0180 |
| 82815Q | No. 13 wire harness protector cover | 82815-K0190 |
| 82815R | No. 14 wire harness protector cover | 82815-K0260 |
| 82815S | No. 15 wire harness protector cover | 82815-K0370 |
| 82815T | No. 16 wire harness protector cover | 82815-K0380 |
| 82815U | No. 17 wire harness protector cover | 82815-K0030 · 82815-K0390 |
| 82815V | No. 1 wire harness protector cover | 82815-K0080 · 82815-K0200 |
| 82815W | No. 2 wire harness protector cover | 82815-K0210 |
| 82815X | No. 3 wire harness protector cover | 82815-K0010 |
| 82815Y | No. 4 wire harness protector cover | 82815-K0020 |
| 82815Z | No. 18 wire harness protector cover | 82815-K0400 |
| 82816B | No. 1 wire harness protector cover | 82815-K0320 |
| 82816C | No. 2 wire harness protector cover | 82815-K0330 |
| 82816D | No. 3 wire harness protector cover | 82815-K0340 |
| 82816F | No. 4 wire harness protector cover | 82815-K0350 |
| 82816G | No. 5 wire harness protector cover | 82815-K0100 |
| 82816H | No. 6 wire harness protector cover | 82815-K0750 |
| 82816J | No. 7 wire harness protector cover | 82815-K0430 |
| 82816K | No. 8 wire harness protector cover | 82815-K0720 |
| 82816L | No. 9 wire harness protector cover | 82815-K0730 |
| 82816N | No. 11 wire harness protector cover | 82815-K0070 |
| 82817 | No. 1 wire harness protection device | 82817-K0560 · 82817-K0700 |
| 82817A | No. 2 wire harness protection device | 82817-K0750 |
| 82817B | No. 3 wire harness protection device | 82817-52S80 · 82817-K0740 · 82817-K0A50 |
| 82817C | No. 4 wire harness protection device | 82817-K0A70 |
| 82817D | No. 5 wire harness protection device | 82817-52N70 |
| 82817E | No. 6 wire harness protection device | 82817-52L30 |
| 82817F | No. 7 wire harness protection device | 82817-K0160 · 82817-K0220 |
| 82817G | No. 8 wire harness protection device | 82817-K0170 · 82817-K0230 |
| 82817J | No. 9 wire harness protection device | 82817-K0150 · 82817-K0240 |
| 82817K | No. 10 wire harness protection device | 82817-K0200 · 82817-K0250 |
| 82817L | No. 11 wire harness protection device | 82817-K0260 · 82817-K0A80 |
| 82817M | No. 12 wire harness protection device | 82817-K0270 |
| 82817N | No. 13 wire harness protection device | 82817-52T30 · 82817-K0280 |
| 82817P | No. 14 wire harness protection device | 82817-K0290 |
| 82817T | No. 15 wire harness protection device | 82817-K0320 |
| 82817U | No. 16 wire harness protection device | 82817-K0360 · 82817-K0390 |
| 82817X | No. 17 wire harness protection device | 82817-K0380 · 82817-K0860 |
| 82818 | No. 2 wire harness protection device | 82817-K0390 |
| 82818B | No. 3 wire harness protection device | 82817-K0140 · 82817-K0540 |
| 82818C | No. 4 wire harness protection device | 82817-K0190 · 82817-K0300 |
| 82818D | No. 5 wire harness protection device | 82817-K0310 |
| 82818E | No. 6 wire harness protection device | 82817-K0120 |
| 82818F | No. 7 wire harness protection device | 82817-K0130 |
| 82818G | No. 8 wire harness protection device | 82817-K0480 |
| 82818H | No. 9 wire harness protection device | 82817-K0490 |
| 82818J | No. 10 wire harness protection device | 82817-K0500 |
| 82818K | No. 11 wire harness protection device | 82817-K0510 |
| 82818L | No. 12 wire harness protection device | 82817-K0520 |
| 82818M | No. 13 wire harness protection device | 82817-K0210 |
| 82818N | No. 14 wire harness protection device | 82817-52V00 · 82817-K0A60 |
| 82818S | No. 15 wire harness protection device | 82817-K0580 |
| 82818T | No. 16 wire harness protection device | 82817-K0180 |
| 82818V | No. 18 wire harness protection device | 82817-K2010 |
| 82818W | No. 19 wire harness protection device | 82817-K2020 |
| 82821A | Connector cover | 82821-52410 |
| 82821E | Connector cover | 82821-12760 |
| 82821H | Connector cover | 82821-20510 |
| 82821N | Connector cover | 82821-33590 |
| 82821P | Connector cover | 82821-33610 |
| 82821R | Connector cover | 82821-33620 |
| 82821U | Connector cover | 82821-33690 |
| 82821V | Connector cover | 82821-33780 |
| 82821W | Connector cover | 82821-33860 |
| 82821X | Connector cover | 82821-33A00 |
| 82821Y | Connector cover | 82821-30600 |
| 82823 | No. 1 terminal cover | 82823-K0010 |
| 82823S | starter terminal cover | 82823-K0020 |
| 82823T | Generator terminal cover | 82823-K0030 |
| 82824 | Harness connector | 82824-52310 |
| 82H21C | Connector cover | 82821-33810 |
| 82H21D | Connector cover | 82821-30690 |
| 82H21G | Connector cover | 82821-33650 |
| 82H21H | Connector cover | 82821-33770 |
| 82H21J | Connector cover | 82821-33810 |
| 82H21K | Connector cover | 82821-33830 |
| 82H21L | Connector cover | 82821-47330 · 82821-52390 |
| 82H21M | Connector cover | 82821-47690 |
| 82H21N | Connector cover | 82821-50500 |
| 82H21P | Connector cover | 82821-50510 · 82821-52380 |
| 82H21Q | Connector cover | 82821-33490 |
| G921D | Inverter Connector Cover Protector | G921D-47020 |
