Toyota YARIS Headlamp — Figure 8101

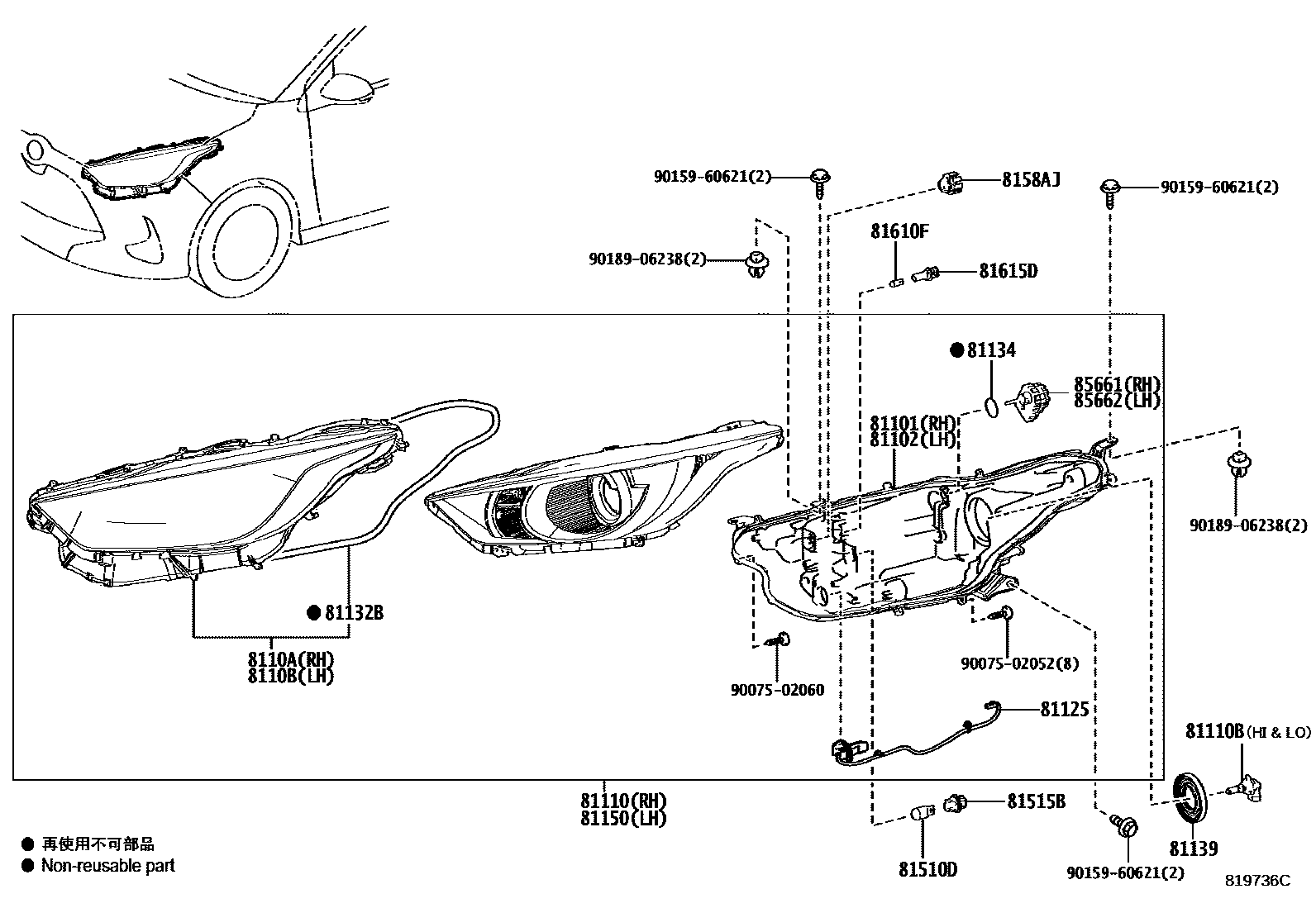

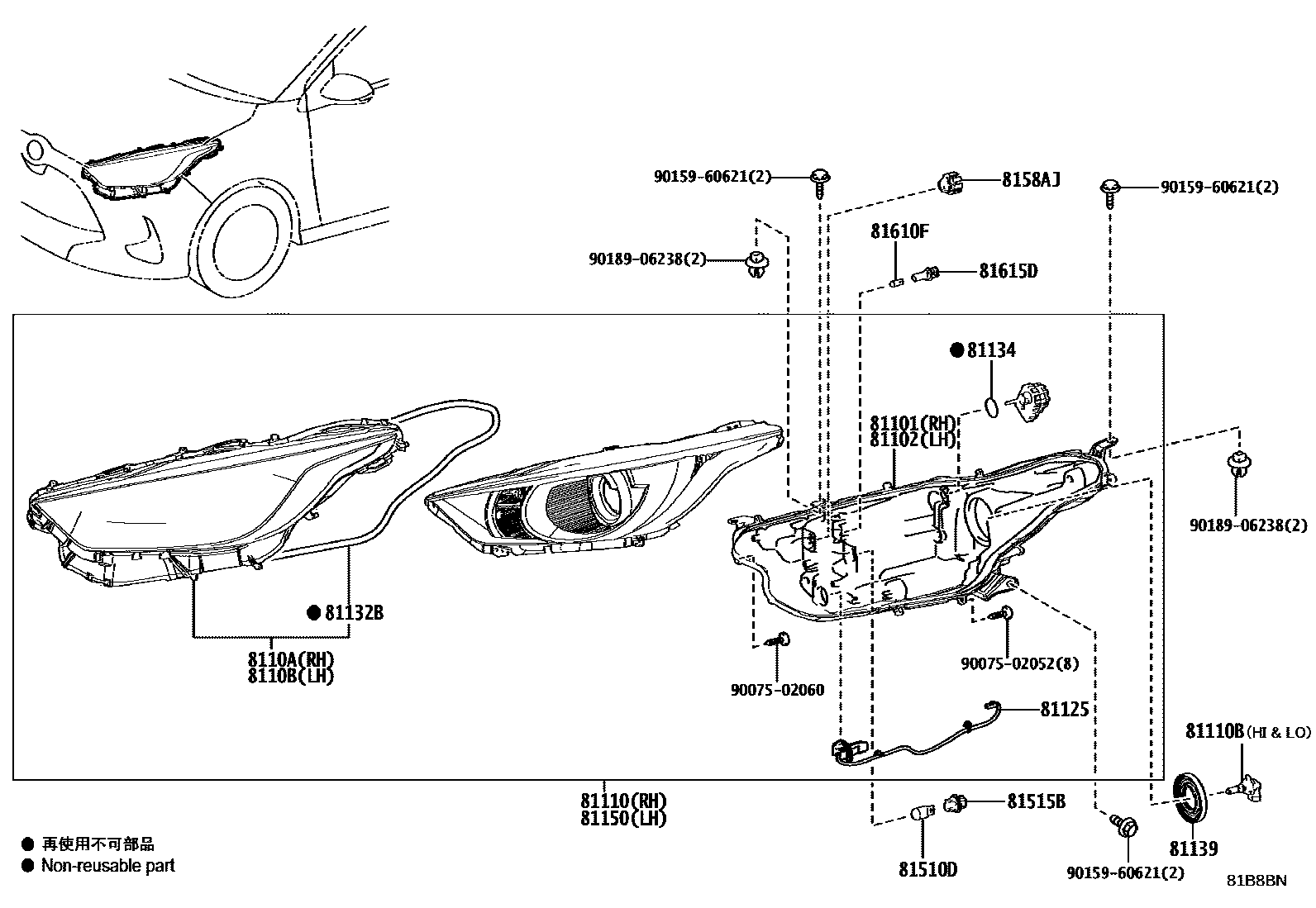

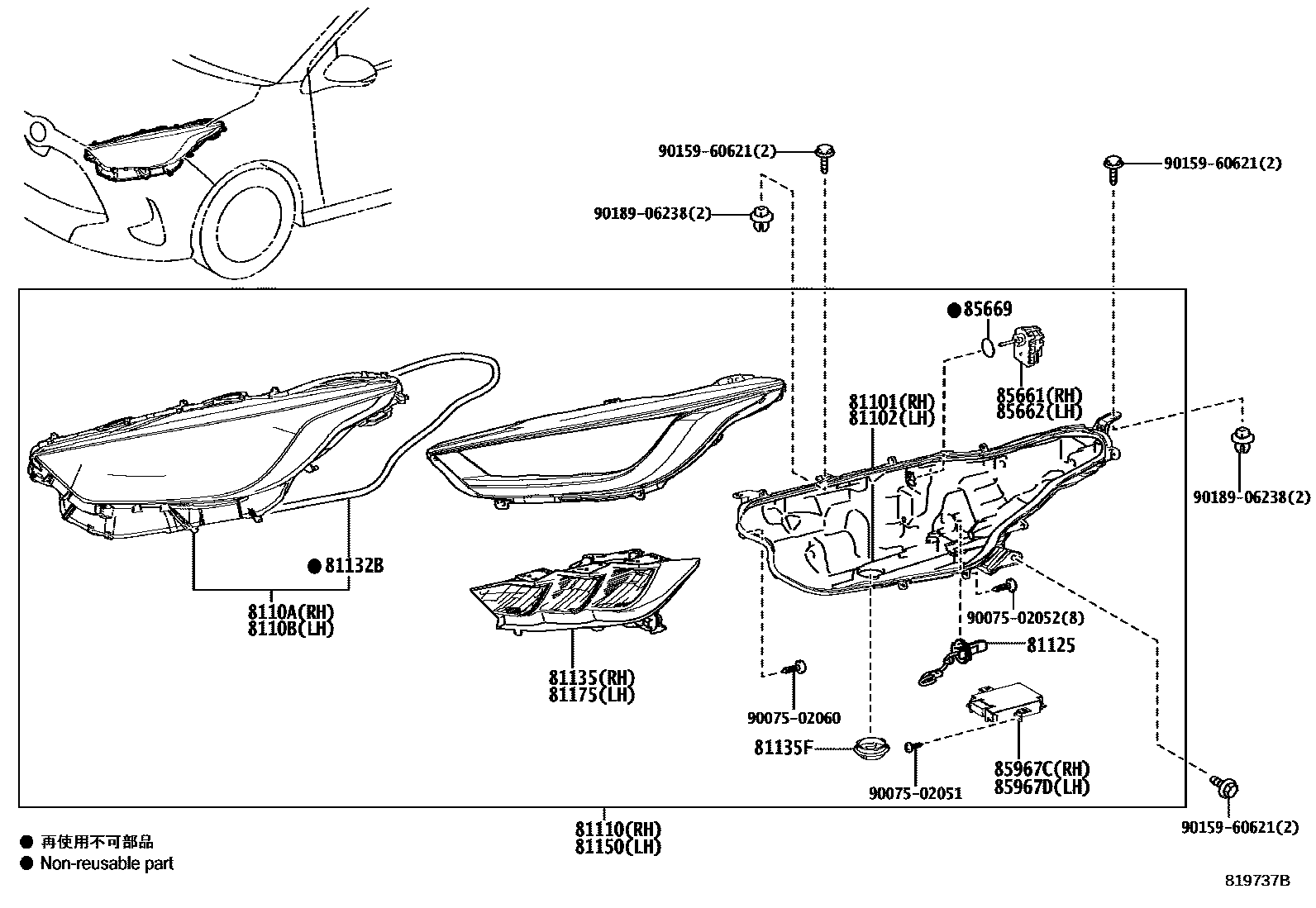

Toyota YARIS EPC diagram 8101, Headlamp, with 3 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81101 | Right headlight housing sub-assembly | 8111B-K0020 · 8111B-K0040 |
| 81102 | Left headlight housing sub-assembly | 8115B-K0020 · 8115B-K0040 |
| 8110A | Right headlight cover sub-assembly | 8110A-K0020 · 8110A-K0040 |
| 8110B | Left headlight cover sub-assembly | 8110B-K0020 · 8110B-K0040 |
| 81110 | Right headlight assembly | 81110-K0040 · 81110-K0041 · 81130-K0020 |
| 81110B | Bulb (for headlight No. 1) | 90981-13091 |
| 81125 | headlight wire | 81125-K0010 · 81125-K0040 |
| 81132B | Headlight cover gasket | 81132-50590 |
| 81134 | headlight gasket | 90075-99120 |
| 81135 | Right headlight assembly assembly | 81130-K0030 |
| 81135F | headlight rear cover | 90075-66016 |
| 81139 | Headlight lamp holder cover | 90075-65006 |
| 81150 | Left headlight assembly | 81150-K0040 · 81150-K0041 · 81170-K0020 |
| 81175 | Left headlight assembly assembly | 81170-K0030 |
| 81510D | Bulb (for front turn signal lamp) | 90981-15021 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 8158AJ | Daytime running LED lights | 8158A-12260 |
| 81610F | Light bulb (for width indicator light) | 90981-11069 |
| 81615D | Width light lamp holder | 90075-60089 |
| 85661 | Right headlight beam height adjustment motor | 85661-12010 |
| 85662 | Left headlight beam height adjustment motor | 85661-12010 |
| 85669 | Headlight beam height adjustment motor base seal | 90075-99120 |
| 85967C | Right LED light control ECU | 8596A-K0020 · 8596A-K0021 |
| 85967D | Left LED light control ECU | 8596A-K0010 · 8596A-K0011 |
