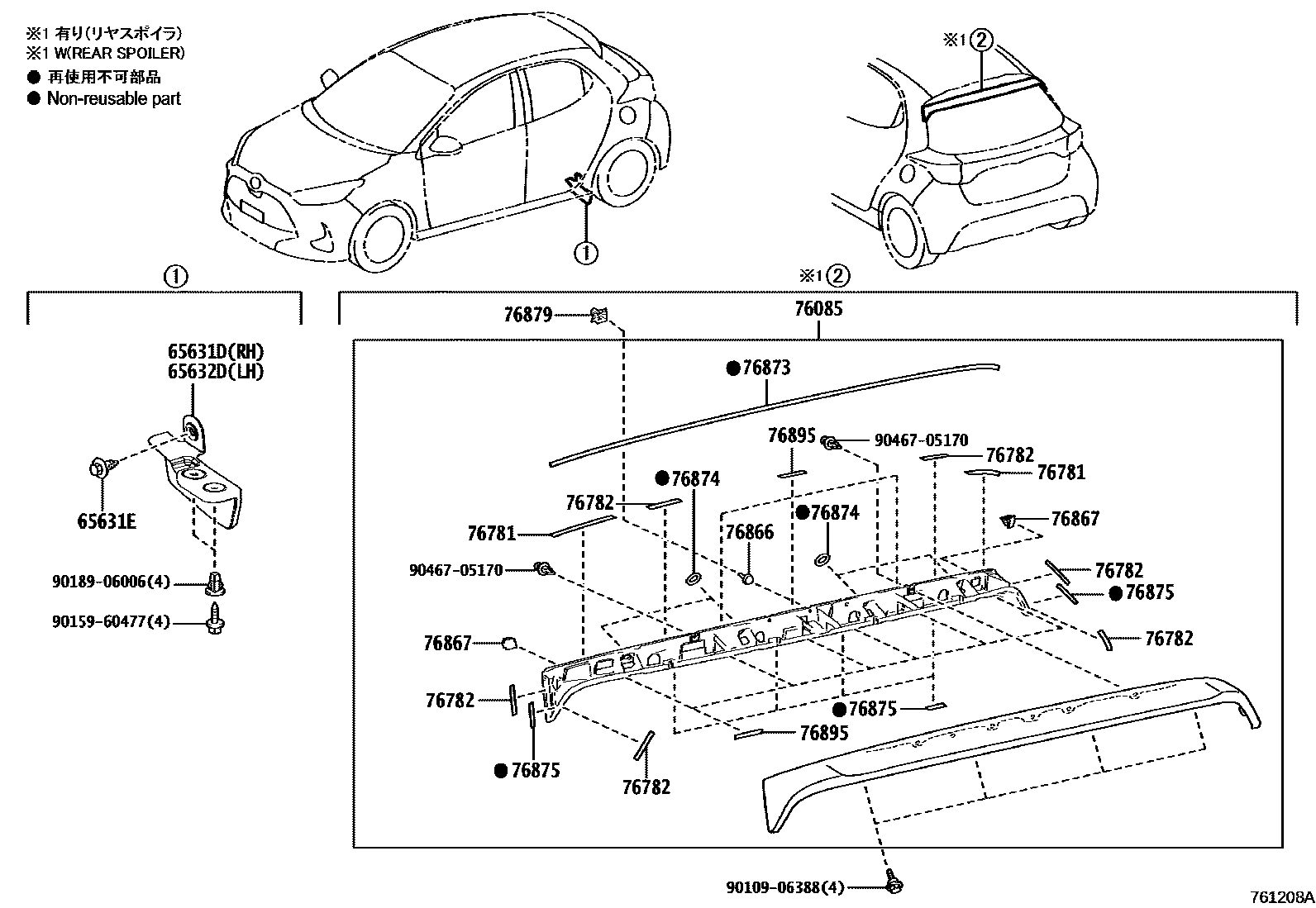

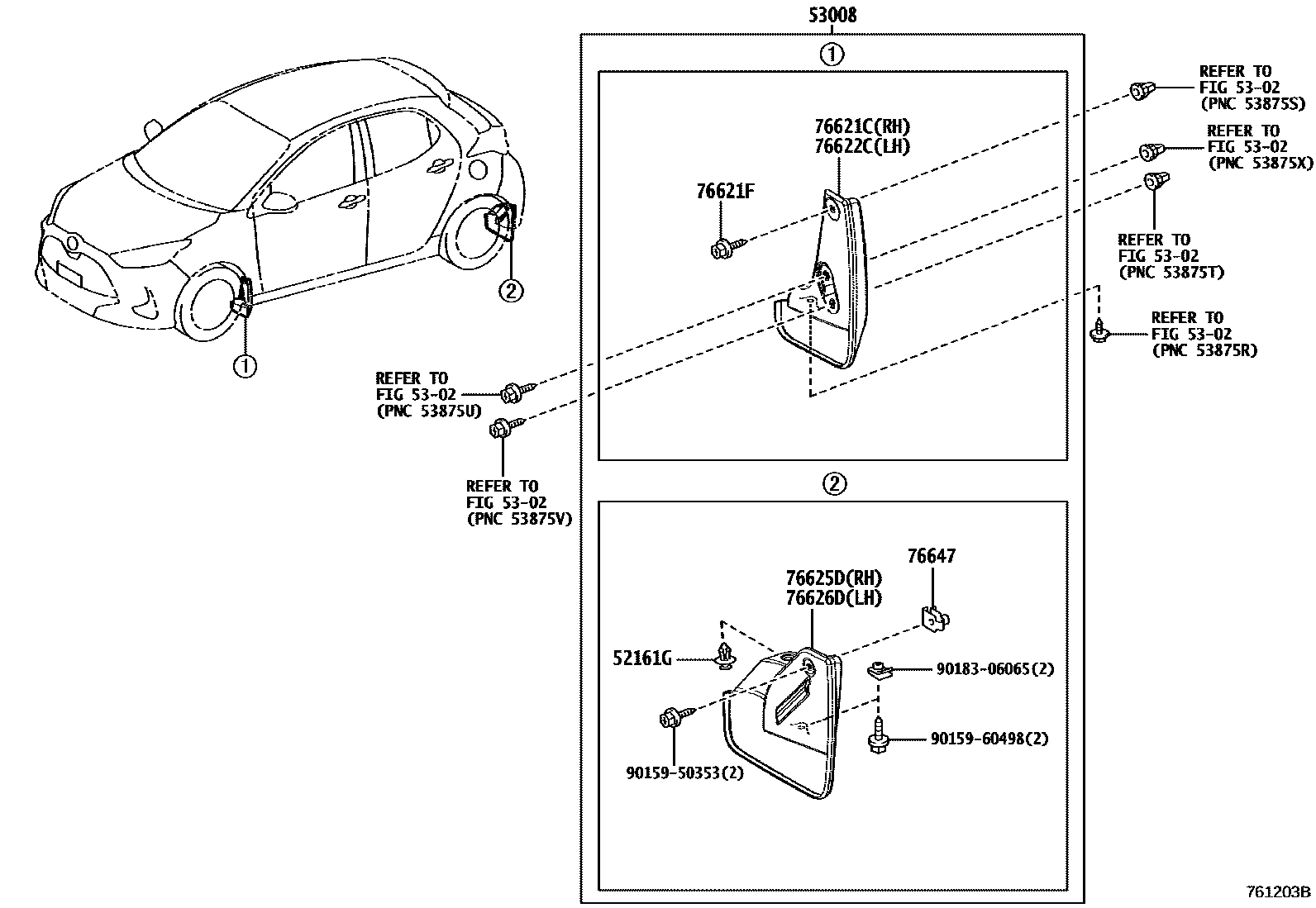

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161G | Rear bumper insert | 52161-16010 |
| 53008 | fender assembly | 53008-K0010 |
| 65631D | Right rear wheel house front panel | 65631-K0010 |
| 65631E | Rear wheel housing plate clip | 75867-30140 · 75867-33050 |
| 65632D | Left rear wheel house front panel | 65632-K0010 |
| 76621C | Right front fender fender | 76621-K0010 |
| 76621F | Screw No. 1 | 90159-60623 |
| 76622C | Left front fender fender | 76622-K0010 |
| 76625D | Right rear side fender | 76625-K0010 |
| 76626D | Left rear side fender | 76626-K0010 |
| 76647 | Rear side panel fender fixings | 76647-52010 |
| 76781 | Right rear upper spoiler tape | 76781-52040 |
| 76782 | Left rear upper spoiler tape | 76782-52040 |
| 76866 | No. 2 rear spoiler fixing piece | 76866-48010 |
| 76867 | Right rear spoiler fixing | 76867-K0010 |
| 76873 | No. 2 rear spoiler protective strip | 76873-52170 |
| 76874 | No. 3 rear spoiler protective strip | 76874-52120 |
| 76875 | No. 4 rear spoiler protective strip | 76875-52100 |
| 76879 | No. 1 rear spoiler clip | 76879-52030 |
| 76895 | No. 5 rear spoiler protective strip | 76895-52040 |
