Toyota YARIS 后防护条 — Figure 7504

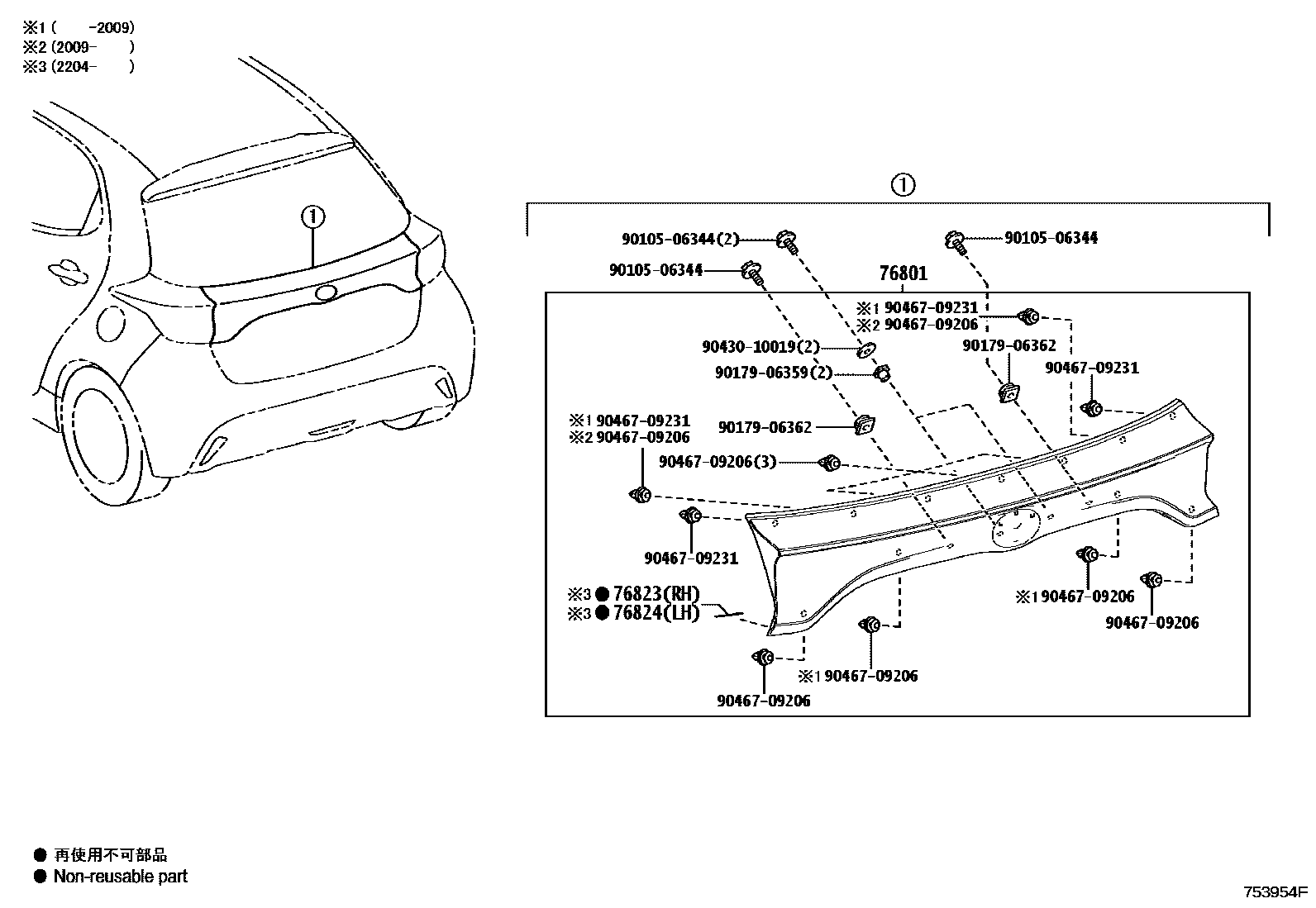

Toyota YARIS EPC diagram 7504, 后防护条, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76801 | Rear door exterior decorative strip sub-assembly | 76801-52630 · 76801-52631 · 76801-52640 · 76801-52641 · 76801-K0010 · 76801-K0120 |
| 76823 | Rear door right side decorative strip protective cover | 76824-42030 |
| 76824 | Rear door left side decorative strip protective cover | 76824-42030 |
