Toyota YARIS 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota YARIS EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 2 images and 6 PNC and OE references.

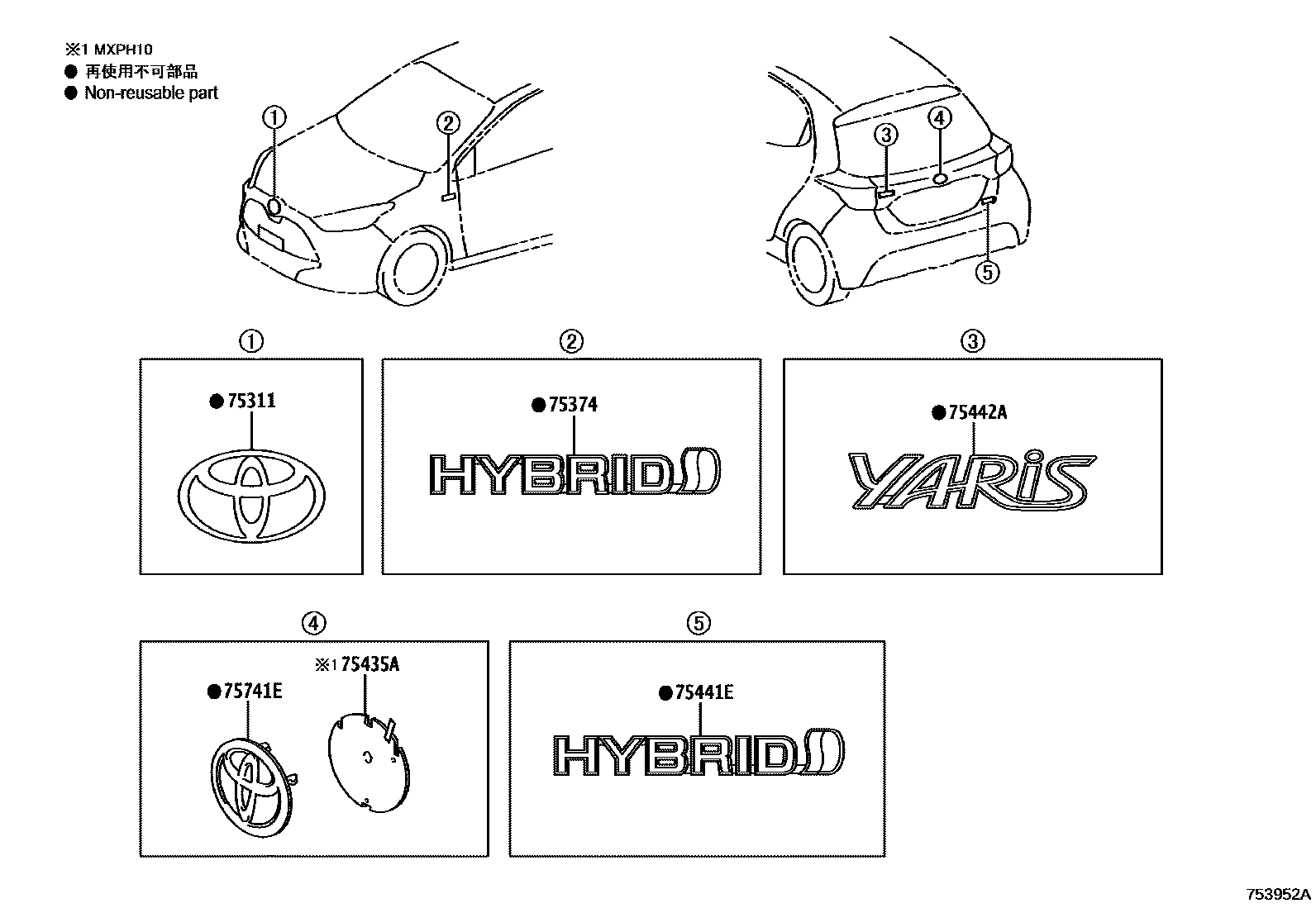

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 753952A
丰田徽标和铭牌(车外和车内) — 753952A (202005 – 202401)

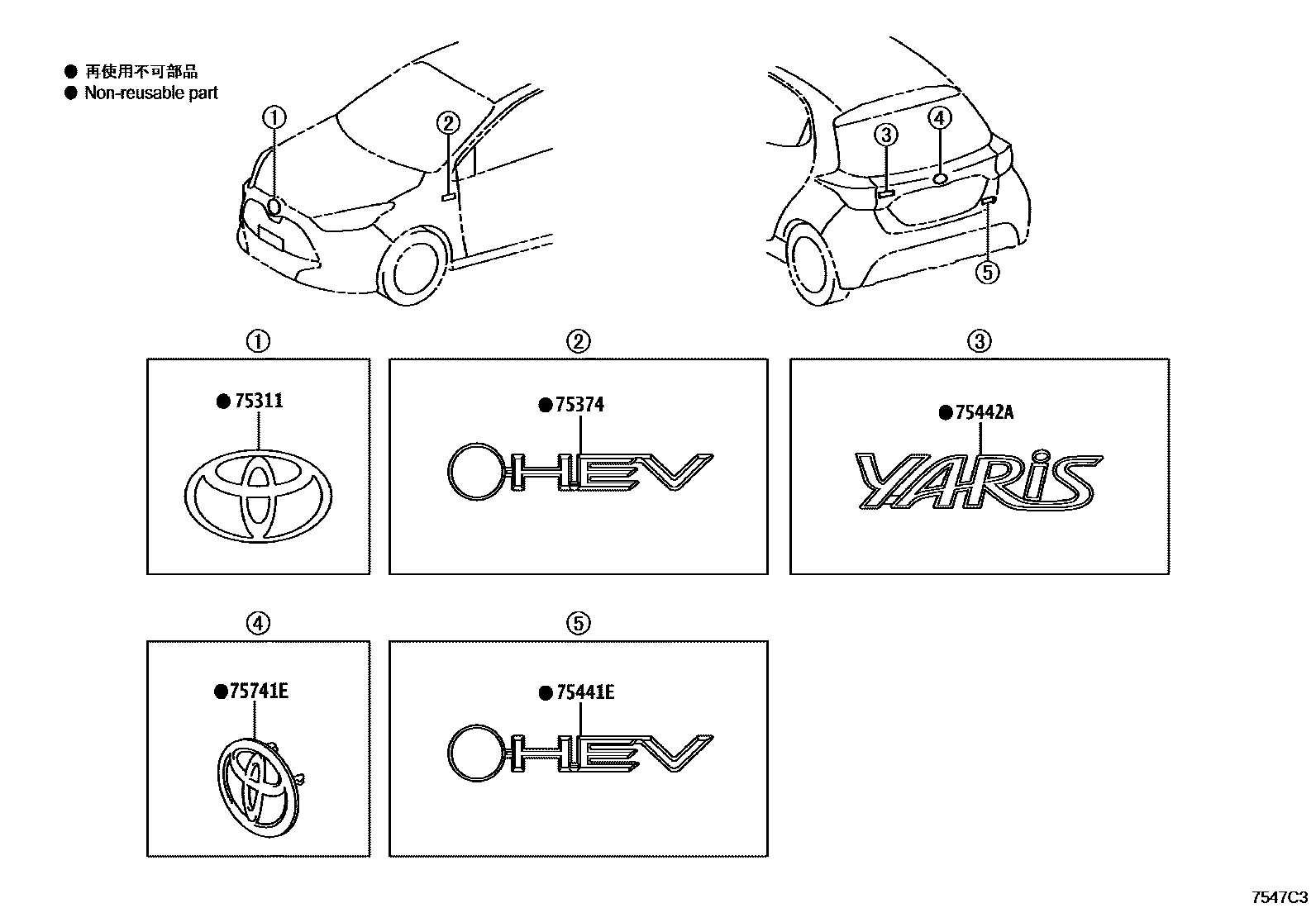

Toyota YARIS 丰田徽标和铭牌(车外和车内) EPC diagram — 7547C3
丰田徽标和铭牌(车外和车内) — 7547C3 (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75403-12040 · 90975-02072 · 90975-02236
75374side panel sign75374-K0010 · 75374-K0020 · 75440-30030
75435ARear door trim75435-K0010
75441EBack door No. 1 nameplate75440-52010 · 75441-33190
75442ANo. 2 nameplate on back door75442-K0010
75741Elogo90975-02166 · 90975-02214
