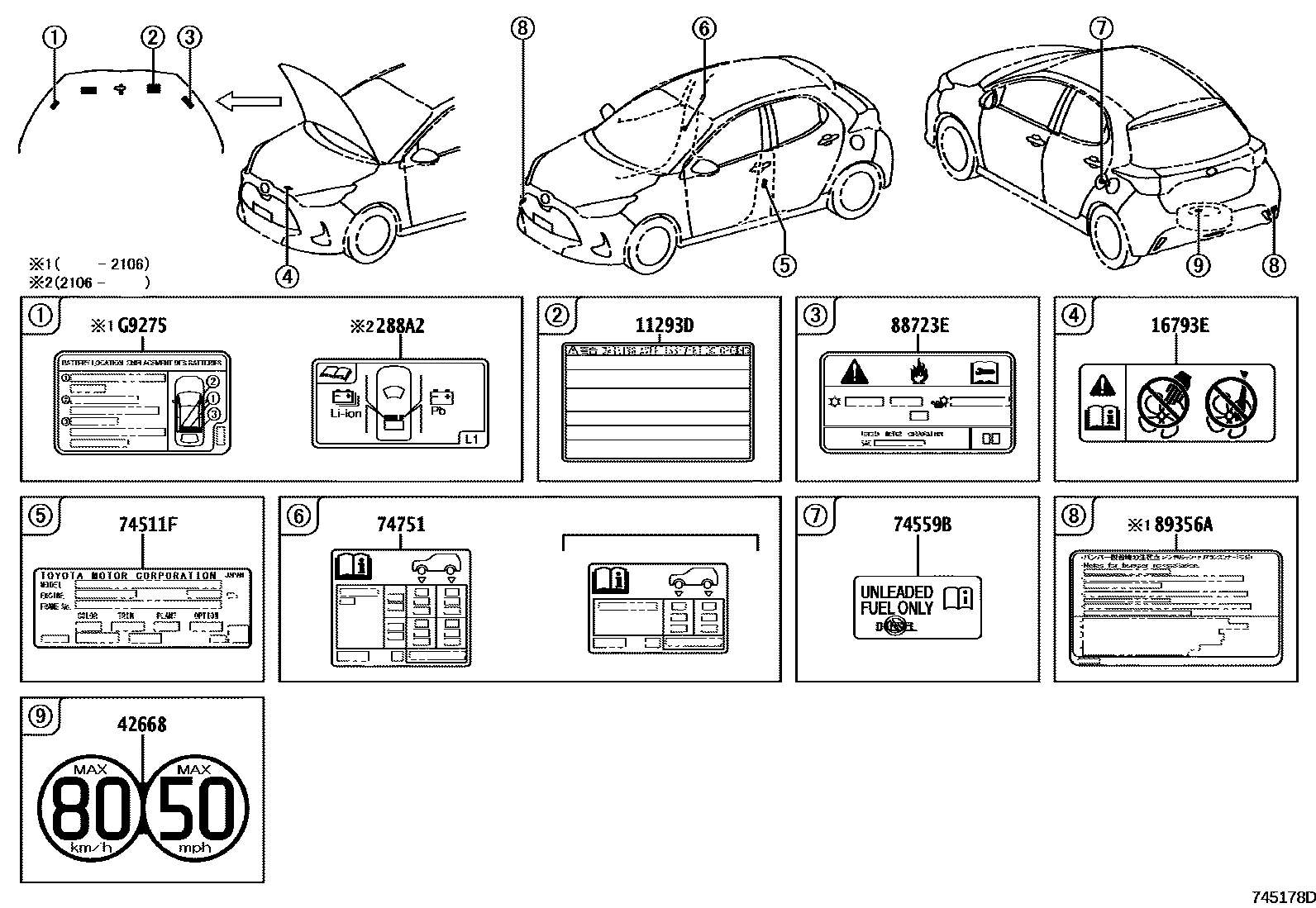

Toyota YARIS 警示铭牌(车外和车内) — Figure 7403
Toyota YARIS EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11293D | engine warning label | 11293-36070 |
| 16793E | Cooling fan warning label | 16793-36030 |
| 288A2 | Battery location label | 288A2-15020 |
| 42668 | Small spare tire warning label | 42668-42010 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 · 74511-30A80 · 74511-48030 |
| 74559B | fuel information label | 74559-20140 |
| 74751 | tire pressure information label | 42661-K0070 · 42661-K0090 · 42661-K0111 |
| 88723E | Cooler maintenance warning label | 7454B-52010 · 88723-K0120 · 88723-K0130 |
| 89356A | distance warning information label | 89356-47020 |
| G9275 | No. 1 battery warning label | G9275-K0030 |
