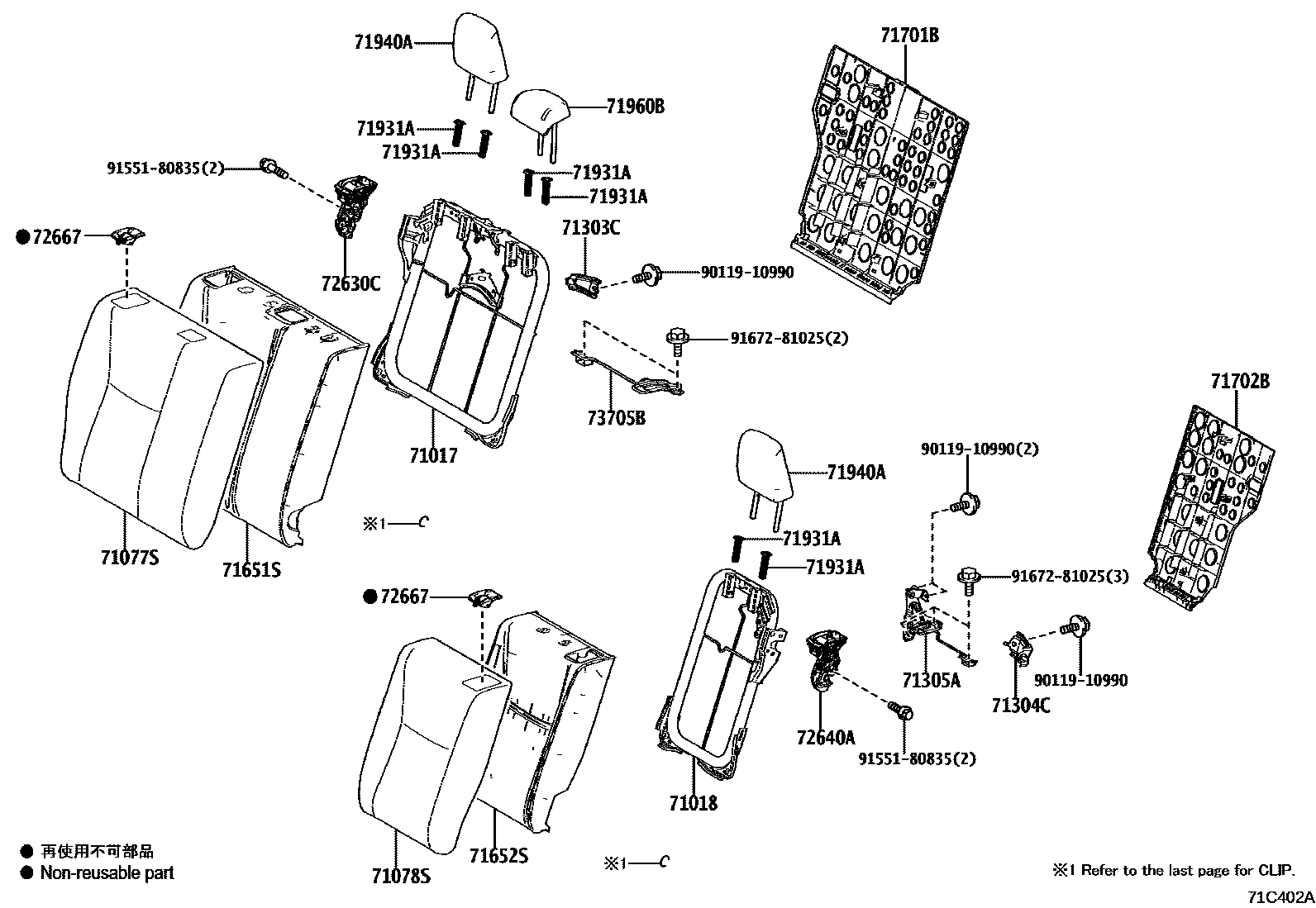

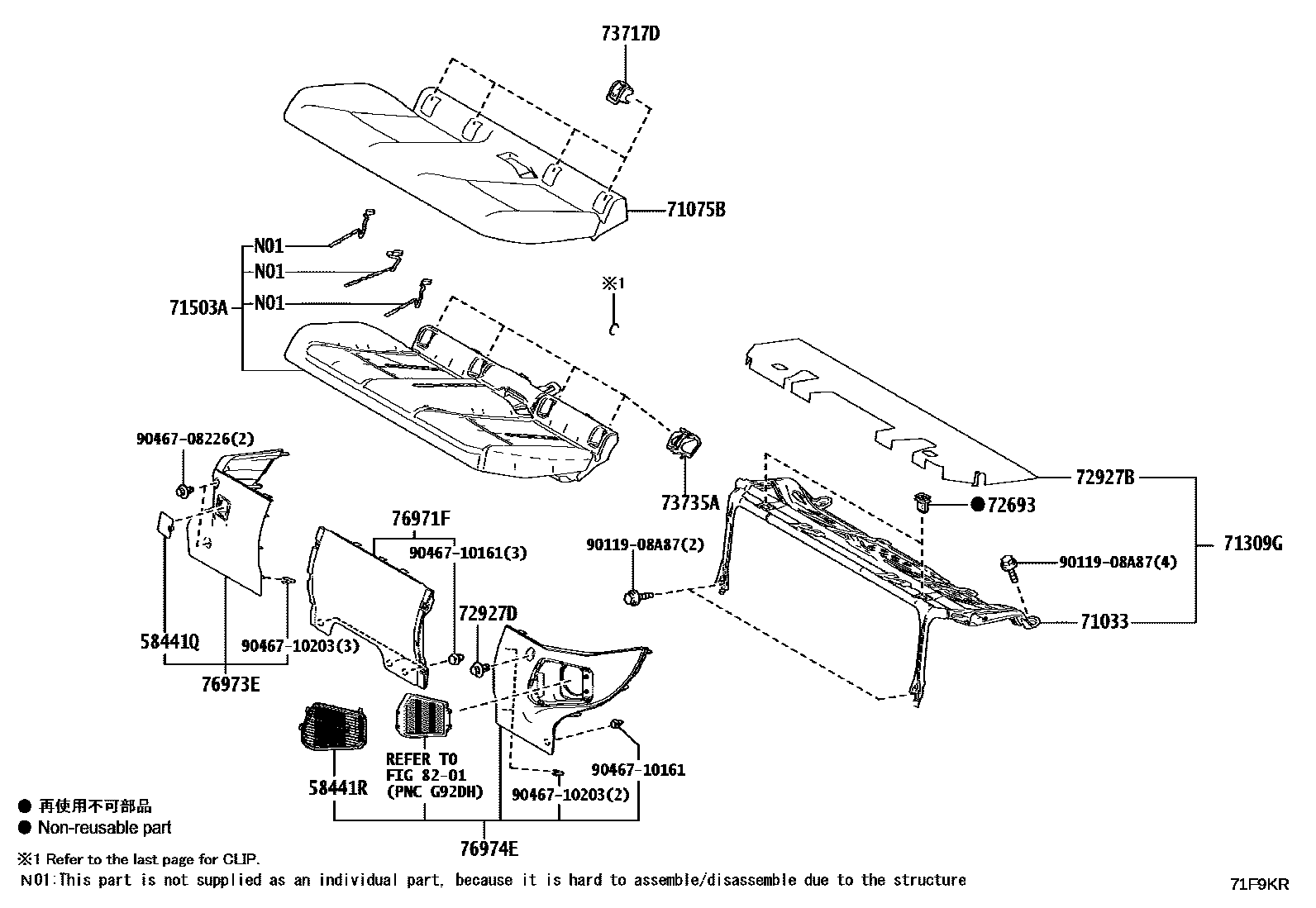

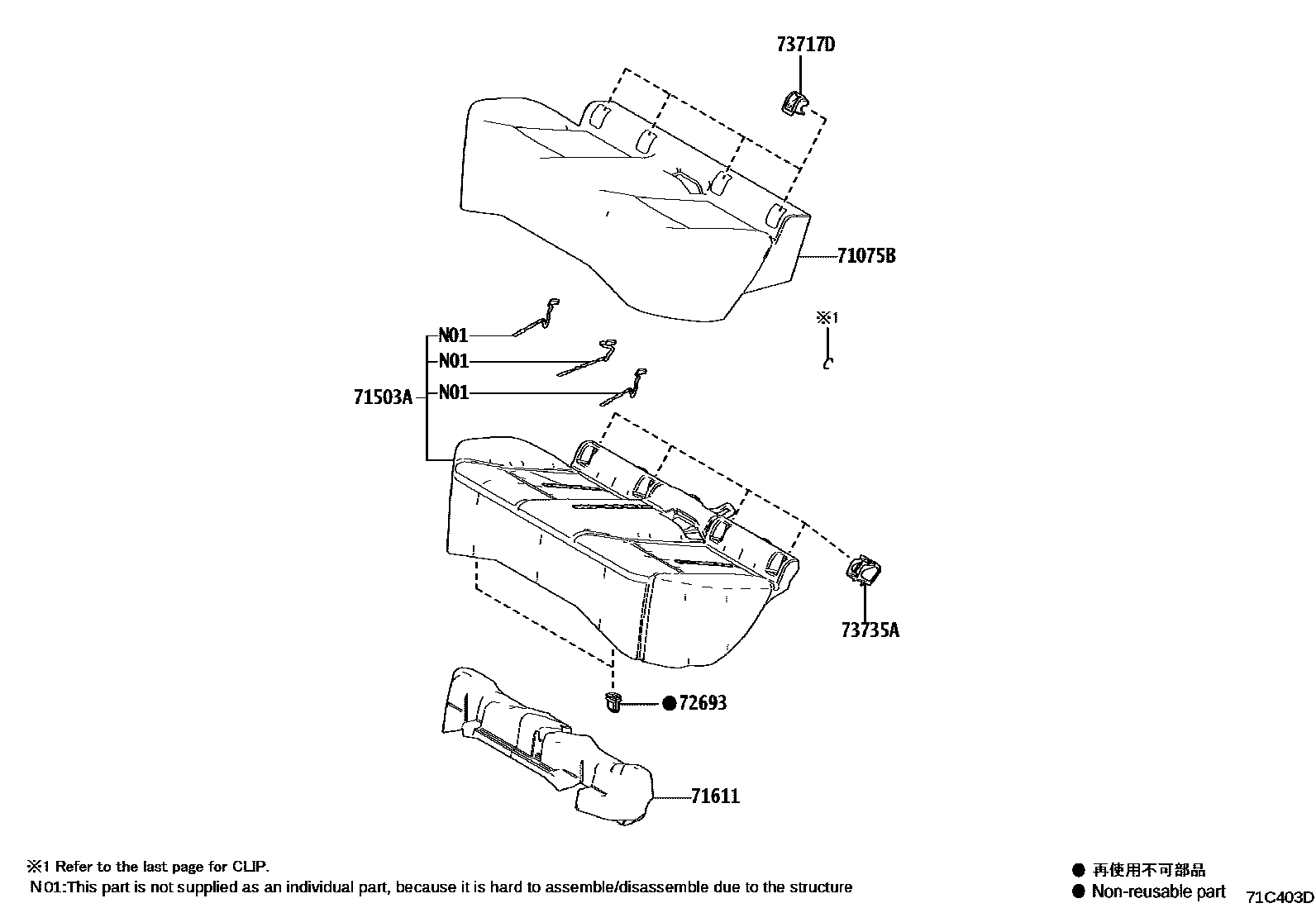

Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102
Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-K0040 |
| 71018 | Rear left seat back frame sub-assembly | 71018-K0020 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-K0030 |
| 71077S | Right rear seat back cover (for split seats) | 71077-K0150 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-K0030 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-K0030 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-K0040 |
| 71309G | Rear seat support sub-assembly | 71309-K0010 |
| 71503A | Rear seat cushion sub-assembly | 71503-K0080 · 71503-K0110 |
| 71611 | Rear seat cushion cushion | 71611-K0020 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-K0050 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-K0040 |
| 71701B | Rear right seat back panel sub-assembly | 71701-K0030 |
| 71702B | Rear left seat back panel sub-assembly | 71702-K0020 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72927B | Rear seat cushion lower cover | 72927-K0010 |
| 73705B | Cross anchor bracket sub-assembly | 73705-K0030 |
| 73735A | Child restraint seat belt guide cover | 73735-K0020 |
