Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

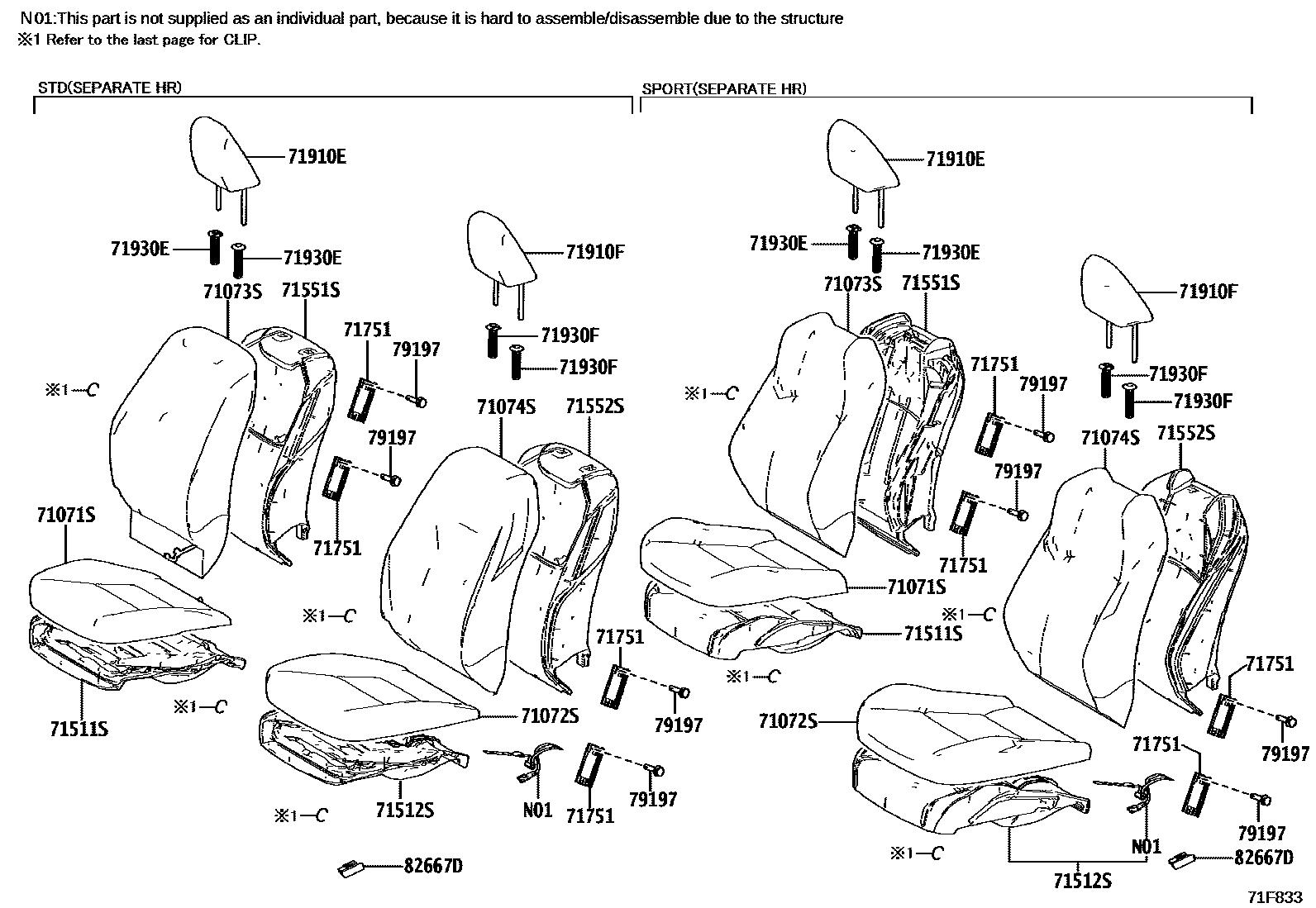

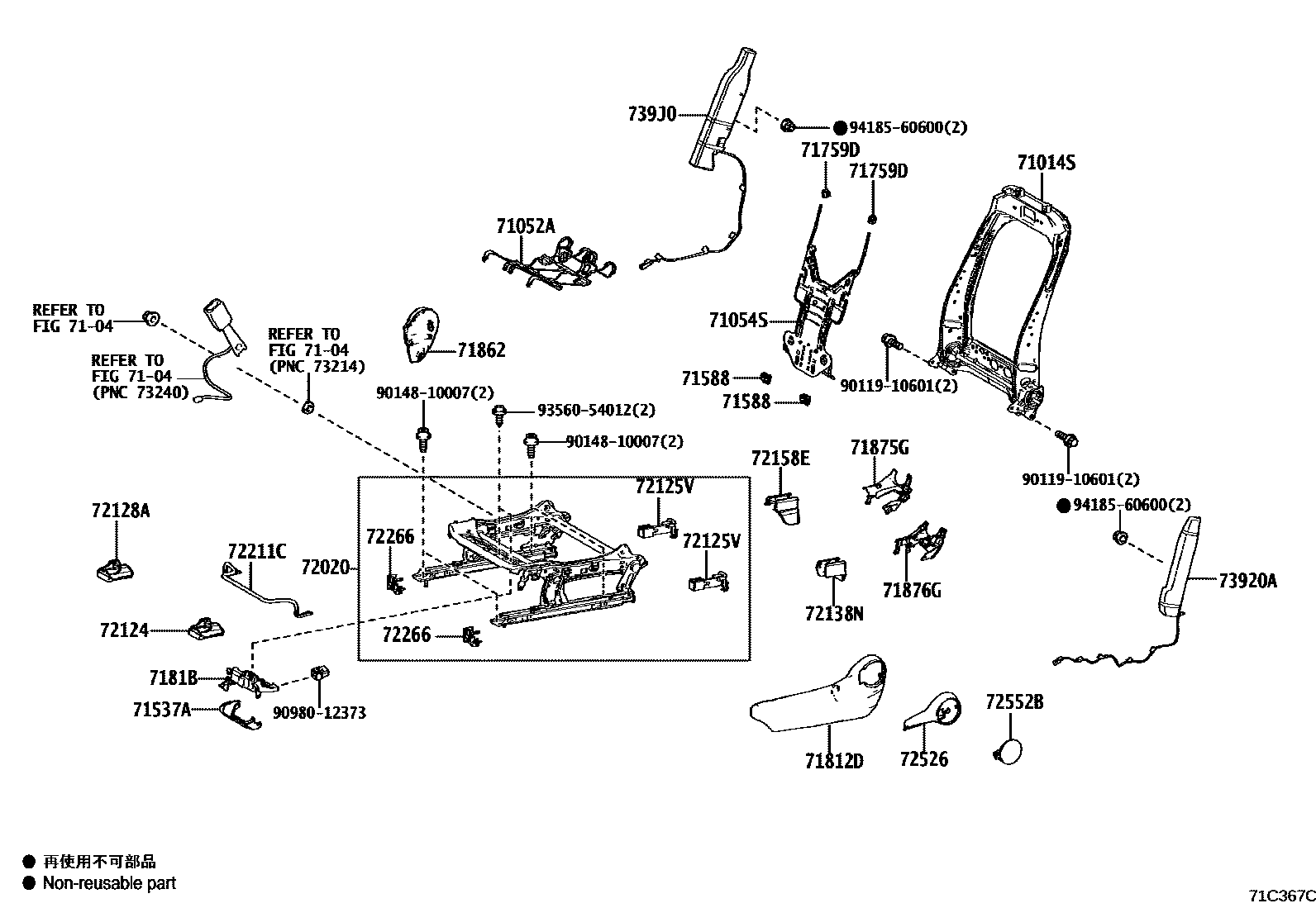

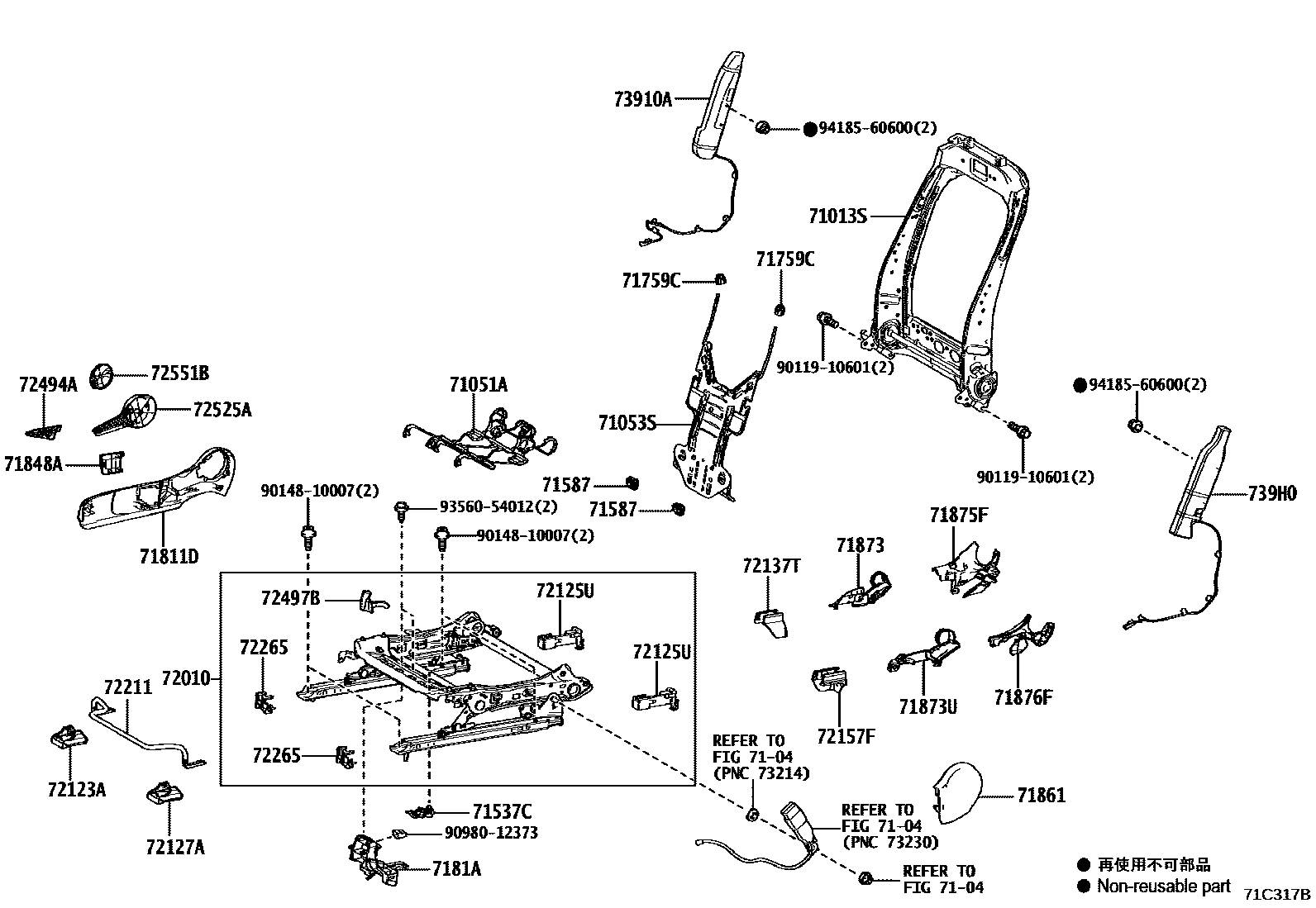

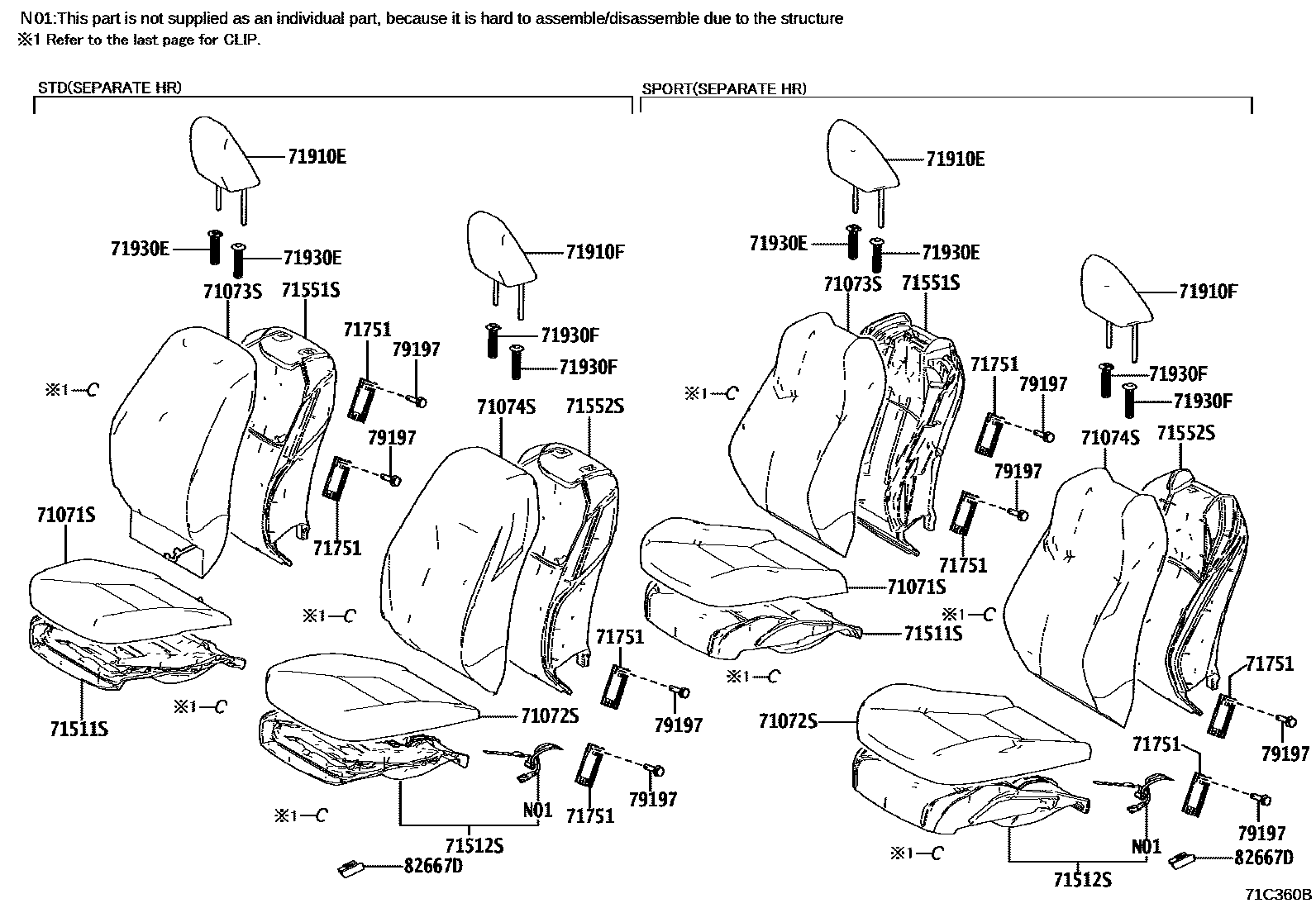

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 5 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71013S | Front right seat back frame sub-assembly | 71013-K0070 · 71013-K0071 |
| 71014S | Front left seat back frame sub-assembly | 71014-K0070 · 71014-K0071 |
| 71051A | Front right seat cushion spring sub-assembly | 71051-47090 |
| 71052A | Front left seat cushion spring sub-assembly | 71051-47090 |
| 71053S | Front right seat back spring sub-assembly | 71053-47050 |
| 71054S | Front left seat back spring sub-assembly | 71053-47050 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-K0090 · 71511-K0091 · 71511-K0100 · 71511-K0101 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-K0140 · 71502-K0141 · 71502-K0150 · 71502-K0151 |
| 71537A | Front seat cushion protective cover | 71537-52160 |
| 71537C | Front right seat cushion edge protective cover | 71537-K0020 |
| 71551S | Front right seat back cushion (for split seats) | 71551-K0050 · 71551-K0080 |
| 71552S | Front left seat back cushion (for split seats) | 71552-K0050 · 71552-K0080 |
| 71587 | Front seat back edge protective cover | 71587-47010 |
| 71588 | Front seat back edge protective cover No. 2 | 71587-47010 |
| 71751 | Seat cover hanger | 71751-47050 |
| 71759C | Front seat back hook No. 1 | 71759-50040 |
| 71759D | Front seat back hook 2 | 71759-50040 |
| 7181A | Front right seat cushion harness holder | 7181A-K0080 |
| 7181B | Front left seat cushion harness holder | 7181B-K0030 |
| 71873 | Front right seat cushion lower guard panel | 71873-47070 |
| 71873U | Front right seat cushion lower guard panel | 71873-K0010 |
| 72010 | Front right seat adjuster assembly | 72010-K0050 · 72010-K0051 |
| 72020 | Front left seat adjuster assembly | 72020-K0030 · 72020-K0031 |
| 72125U | Slide rail cover on right rear seat | 72125-47010 |
| 72125V | Slide rail cover on left rear seat | 72125-47010 |
| 72211 | Seat slide adjustment handle | 72211-47050 |
| 72211C | Seat slide adjustment handle | 72211-47050 |
| 72265 | Right seat rail upper rail cover | 72265-47010 |
| 72266 | Left seat rail upper rail cover | 72265-47010 |
| 72497B | Right height adjuster bracket cover | 72498-47010 |
| 73910A | Front right seat airbag assembly | 73910-K0020 |
| 73920A | Front left seat airbag assembly | 73920-K0020 |
| 739H0 | Front right seat center airbag assembly | 739H0-16020 · 739H0-52010 |
| 739J0 | Front left seat center airbag assembly | 739J0-52020 · 739J0-K0020 |
| 79197 | Seat back cover hook | 79197-47010 |
| 82667D | Connector holder | 82666-47630 |
