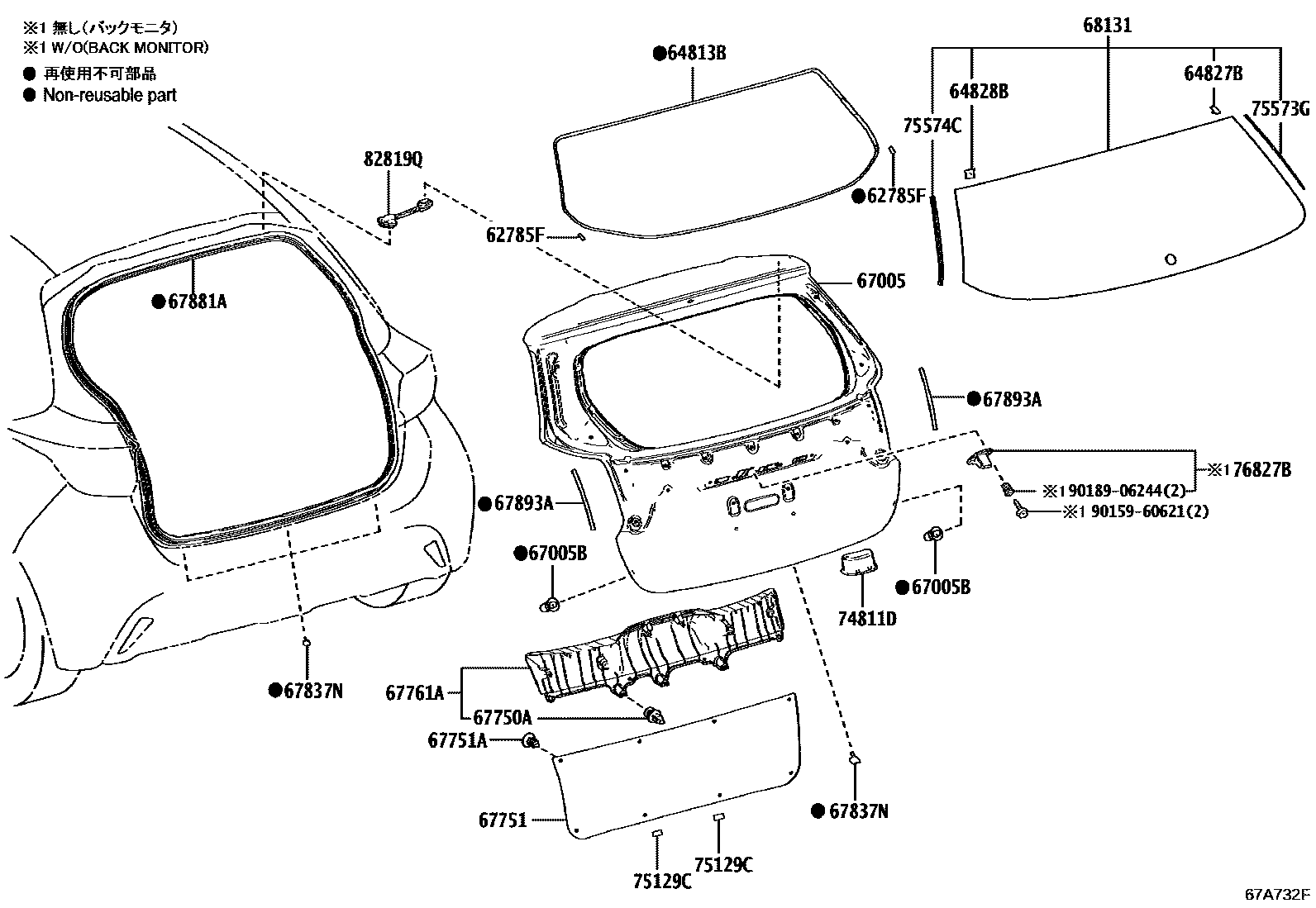

Toyota YARIS 背门板和背门玻璃 — Figure 6708
Toyota YARIS EPC diagram 6708, 背门板和背门玻璃, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-12050 |
| 64813B | Back window glass adhesive seal | 56117-50140 |
| 64827B | Catch on the right side of the back window glass | 64827-K0010 |
| 64828B | Catch on the left side of the back window glass | 64828-K0010 |
| 67005 | Rear door panel sub-assembly | 67005-52J10 · 67005-52J11 · 67005-52J12 · 67005-52J20 · 67005-52J21 · 67005-52J22 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67750A | Clip (for rear door trim panel) | 90467-10161 |
| 67837N | Back door dust seal retainer | 67837-K0040 |
| 67881A | Back door seal | 67881-52310 · 67881-K0030 |
| 67893A | Back door panel No. 1 protective piece | 67893-52110 |
| 68131 | back door glass | 68105-K0030 · 68105-K0031 · 68105-K0190 · 68105-K0191 |
| 75129C | rear license plate cushion | 75129-30010 |
| 75573G | No. 1 protective strip on the right outer side of the back window | 75573-K0010 |
| 75574C | No. 1 protective strip on the left outer side of the back window | 75574-K0010 |
| 76827B | No. 2 rear door trim strip fixings | 76827-K0010 |
| 82819Q | Wire harness seal | 82819-K0060 |
