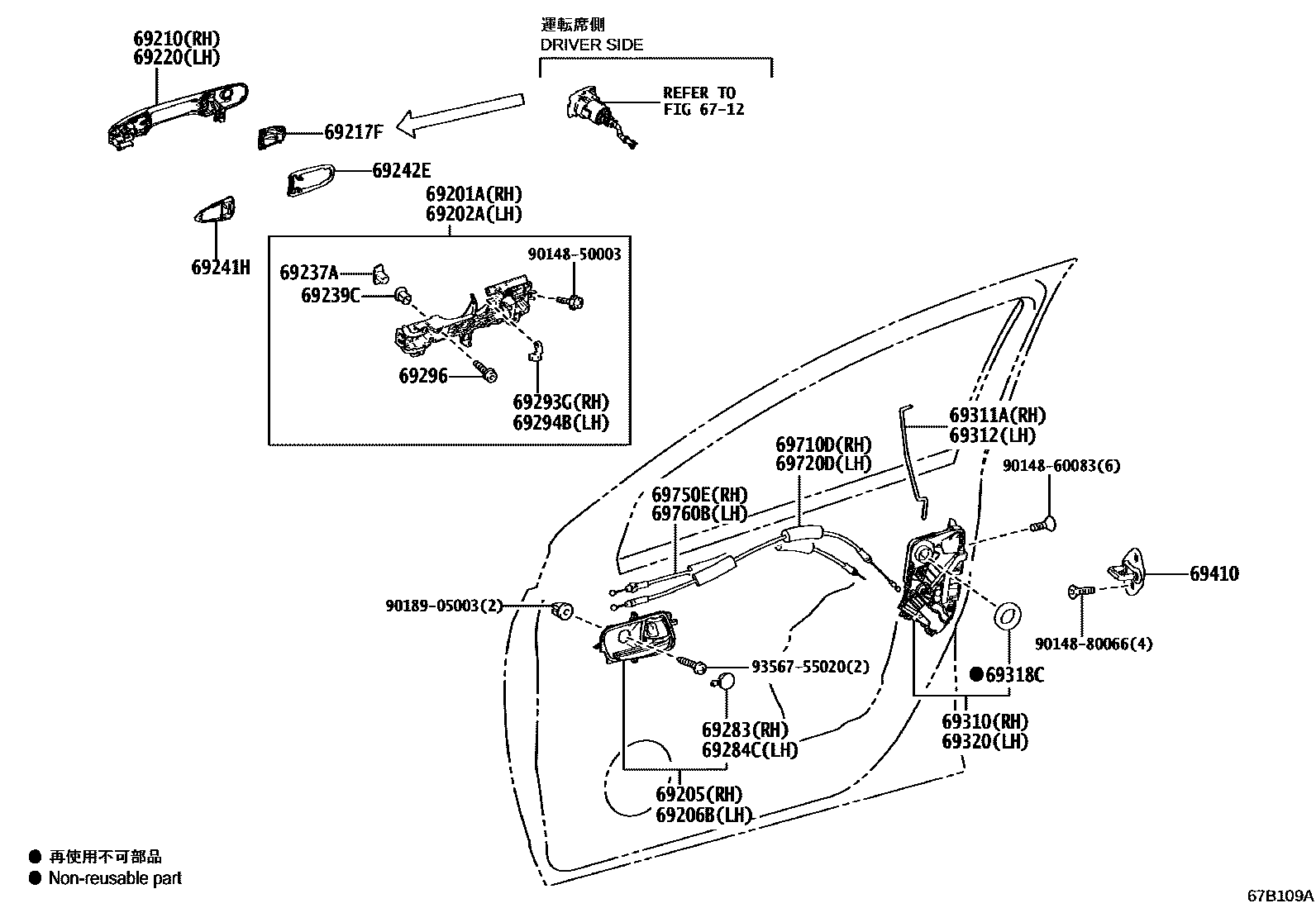

Toyota YARIS 前门锁和车门把手 — Figure 6703
Toyota YARIS EPC diagram 6703, 前门锁和车门把手, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201A | Right front door outer handle frame sub-assembly | 69201-47070 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-47040 |
| 69217F | Left front door outer handle cover | 69217-47020 |
| 69237A | Front door handle nut | 69237-62010 |
| 69239C | Front door handle bushing | 69239-47010 |
| 69241H | Front door exterior handle pad | 69241-47020 |
| 69242E | Front door rear outer handle pad | 69242-47030 |
| 69293G | Right front door outer handle buckle | 69293-12030 |
| 69294B | Left front door outer handle buckle | 69293-12040 |
| 69296 | Car door inner handle screws | 69296-30010 · 90148-50006 |
| 69310 | Right front door lock assembly | 69030-K0010 · 69030-K0011 |
| 69311A | Right front door lock opening lever | 69311-K0010 |
| 69312 | Left front door lock opening lever | 69312-K0010 |
| 69318C | door lock harness seal | 69318-47010 |
| 69320 | Left front door lock assembly | 69040-K0010 · 69040-K0011 · 69040-K0020 · 69040-K0021 |
| 69410 | Front door lock plate assembly | 69410-47010 |
| 69710D | Right front door lock remote control cable (for opening lever) | 69710-K0010 · 69710-K0011 |
| 69720D | Left front door lock remote control cable (for opening lever) | 69710-K0010 · 69710-K0011 |
| 69750E | Right front door inner locking cable (for locking/unlocking handle) | 69750-K0010 · 69750-K0011 |
| 69760B | Left front door inner locking cable (for locking/unlocking handle) | 69750-K0010 · 69750-K0011 |
