Toyota YARIS 前门板和前门玻璃 — Figure 6701
Toyota YARIS EPC diagram 6701, 前门板和前门玻璃, with 3 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-K0050 |
| 67002 | Left front door panel sub-assembly | 67002-K0050 |
| 67111 | Outer right front door panel | 67111-K0040 |
| 67112 | Outer left front door panel | 67112-K0040 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-K0010 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-K0010 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-K0010 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-K0010 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-K0020 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-K0020 |

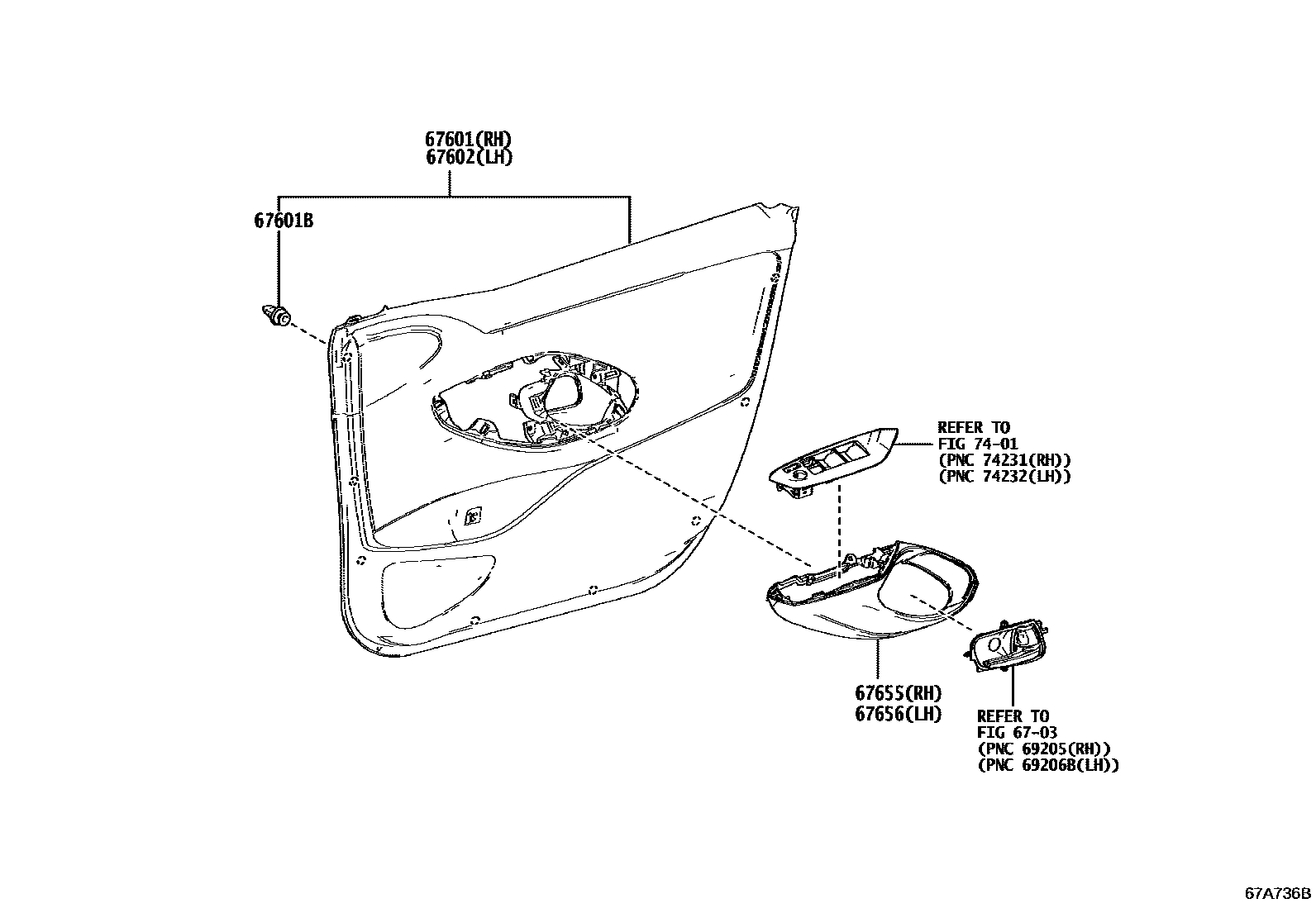

| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67831 | Right front door access hole cover | 67831-K0010 |
| 67831D | Catch (for front door access hole cover) | 90467-09206 |
| 67832 | Left front door access hole cover | 67832-K0010 |
| 67837A | Right front door ventilator seal | 67837-K0010 |
| 67837B | Front door dust seal retainer | 67837-47060 · 67837-48050 |
| 67838A | Left front door ventilator seal | 67838-K0010 |
| 67855B | Right front door panel protector | 67855-K0010 |
| 67856B | Left front door panel protector | 67856-K0010 |

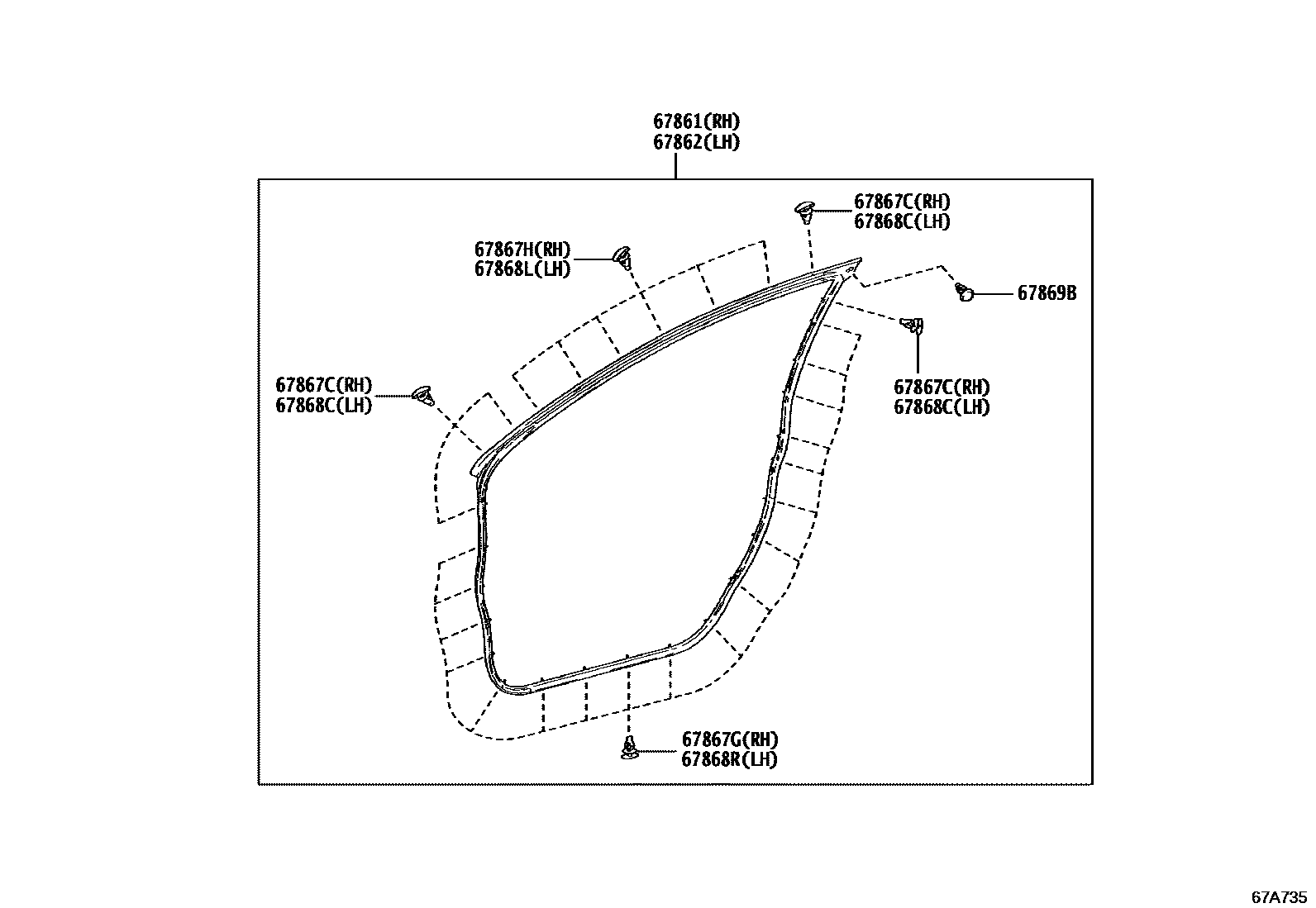

| 67861 | Right front door seal | 67861-K0010 |
| 67862 | Left front door seal | 67862-K0010 |
| 67867C | Right front door seal strip fixing | 67867-30080 |
| 67867G | Right door sealing strip fixing | 67867-12150 |
| 67867H | Right door sealing strip fixing | 67867-52020 |
| 67868C | Left front door seal strip fixing | 67867-30080 |
| 67868L | Left door seal strip fixing | 67867-52030 |
| 67868R | Left front door seal strip fixing | 67867-12150 |
| 67869B | Front door seal strip clip | 90467-06084 |
| 67869E | Front door seal strip clip | 67869-47010 |

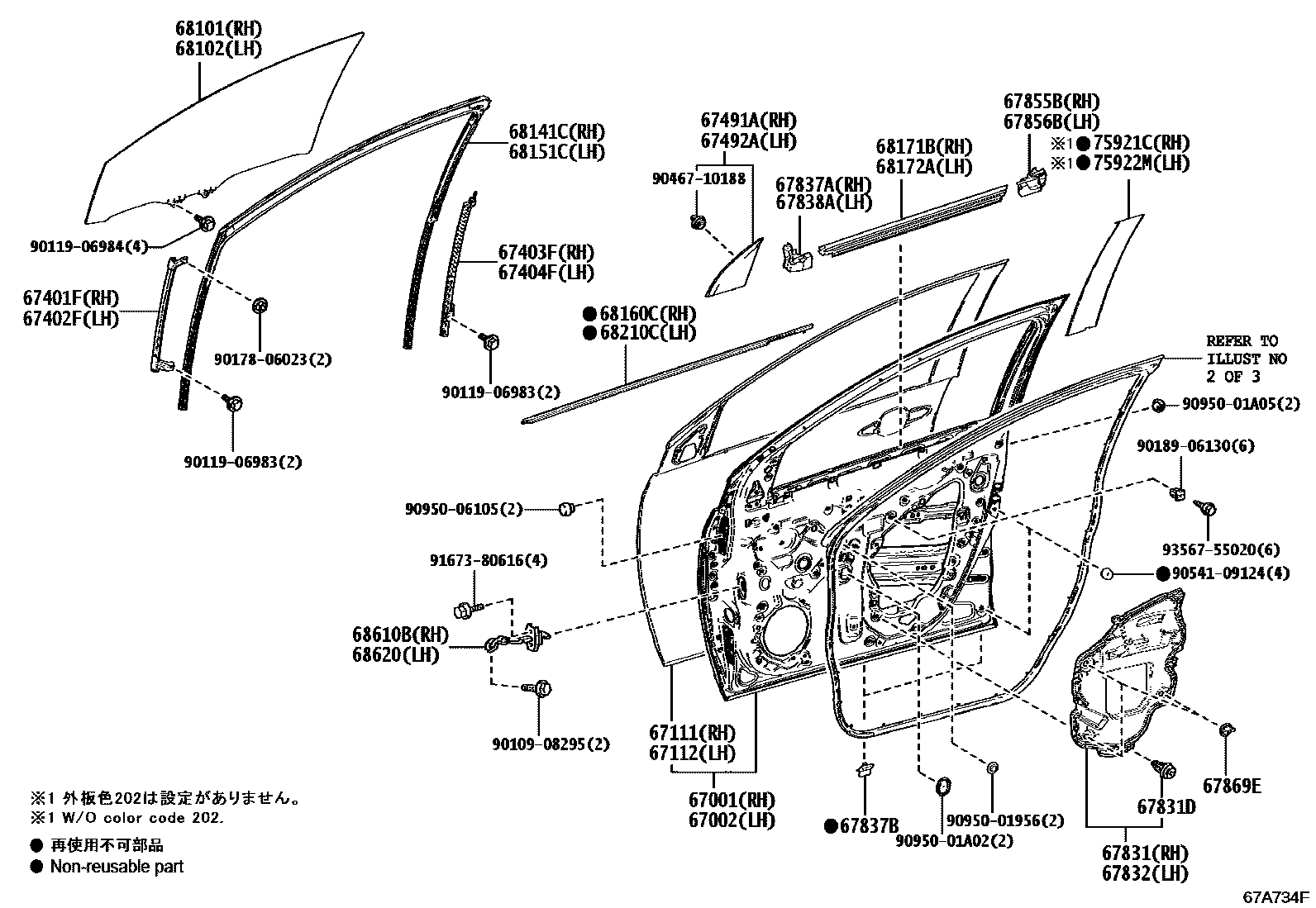

| 68101 | Right front door glass sub-assembly | 68101-52350 · 68101-K0040 |
| 68102 | Left front door glass sub-assembly | 68102-52280 · 68102-K0040 |
| 68141C | Right front door glass lift channel | 68141-K0010 |
| 68151C | Left front door glass lift channel | 68151-K0010 |
| 68160C | Right front door glass outer sealing strip assembly | 68160-52260 · 68160-K0020 · 68160-K0021 |
| 68171B | Right front door glass inner sealing strip | 68171-K0010 · 68171-K0011 |
| 68172A | Left front door glass inner sealing strip | 68172-K0010 · 68172-K0011 |
| 68210C | Left front door glass outer sealing strip assembly | 68210-52260 · 68210-K0020 · 68210-K0021 |
| 68610B | Right front door opening limiter assembly | 68610-K0010 |
| 68620 | Left front door opening limiter assembly | 68610-K0010 |
| 75921C | No. 1 right side light-shielding film | 75921-K0010 |
| 75922M | No. 1 left shading film | 75922-K0010 |
