Toyota YARIS 前翼子板挡泥板和前围板 — Figure 5304

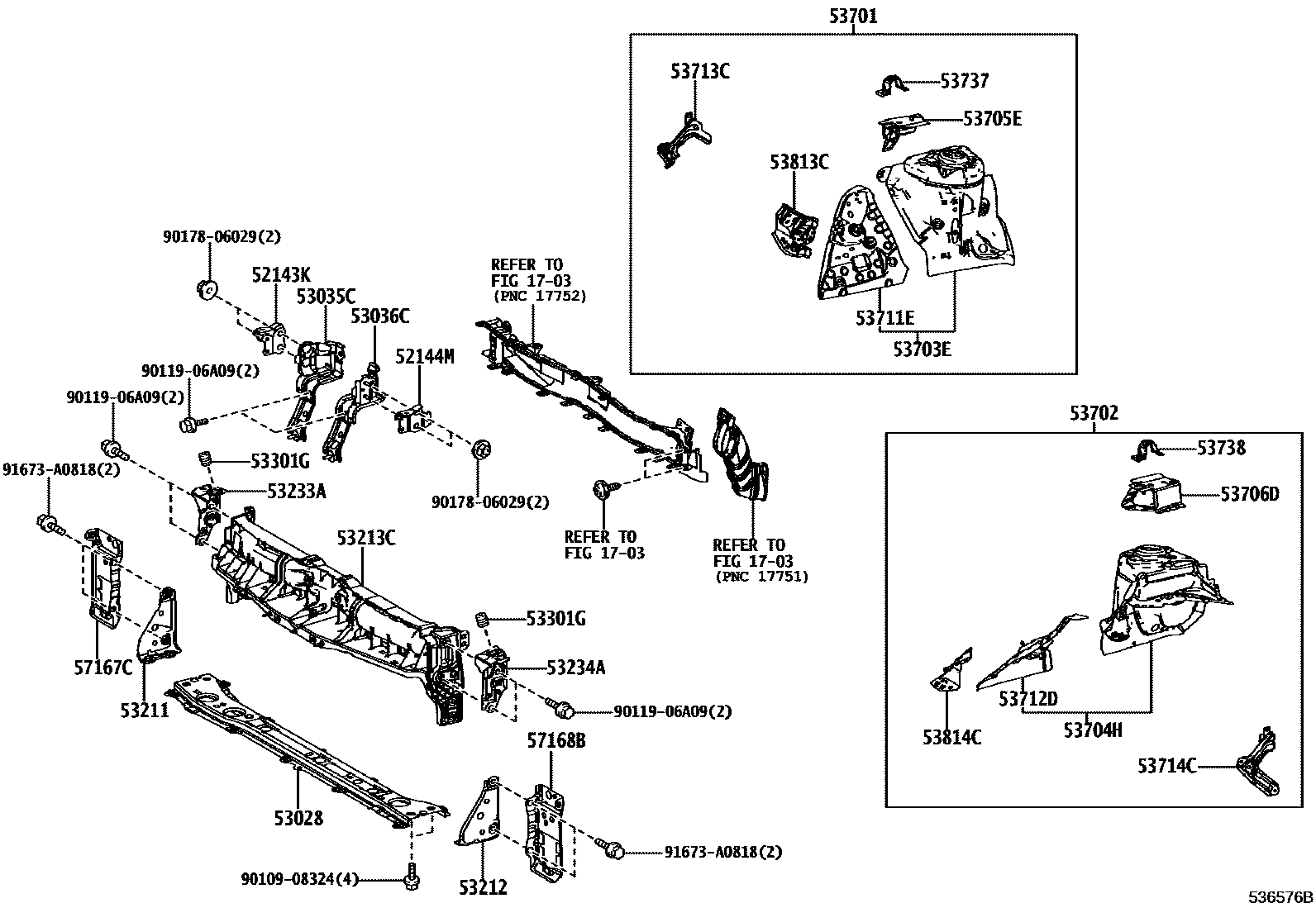

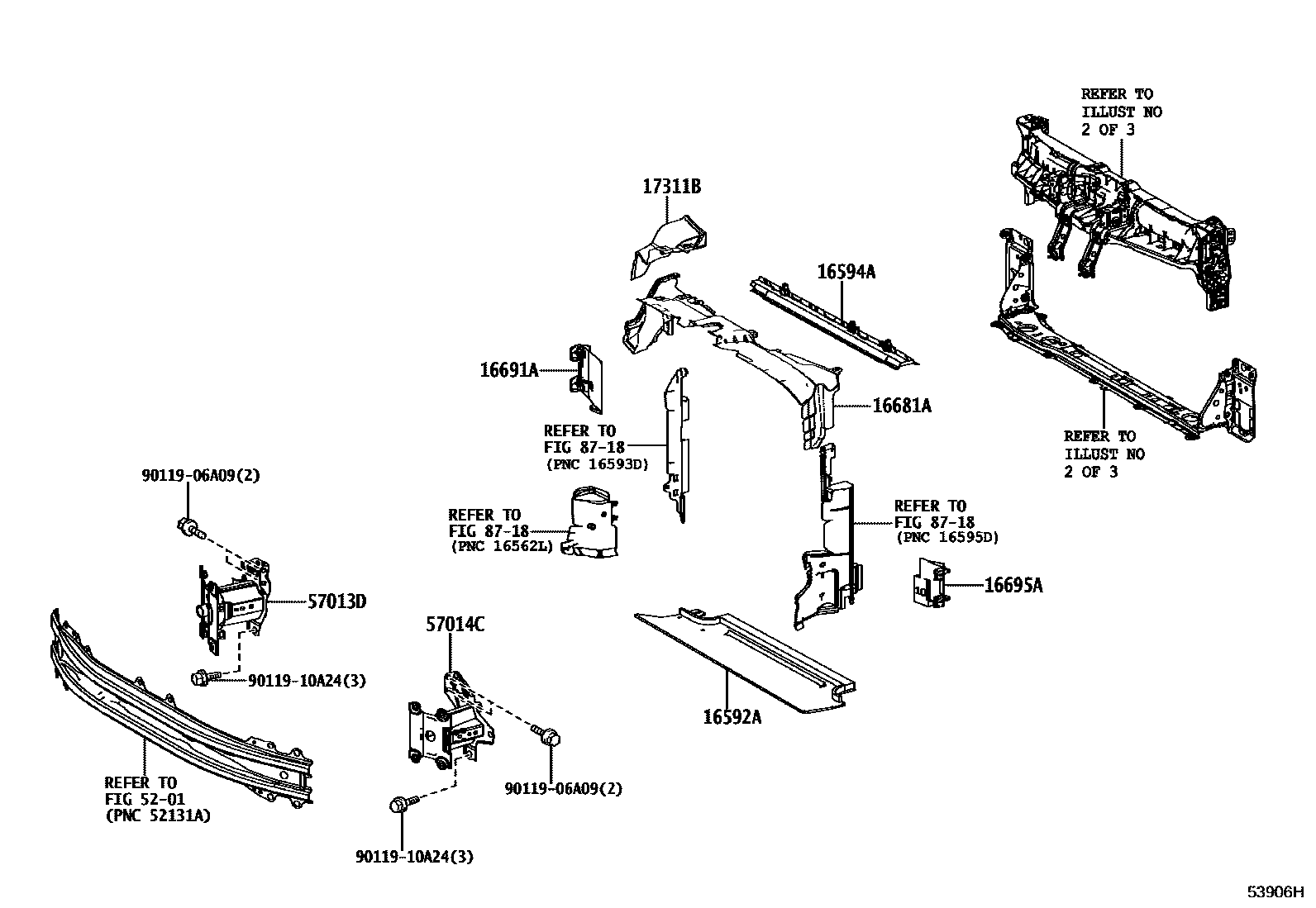

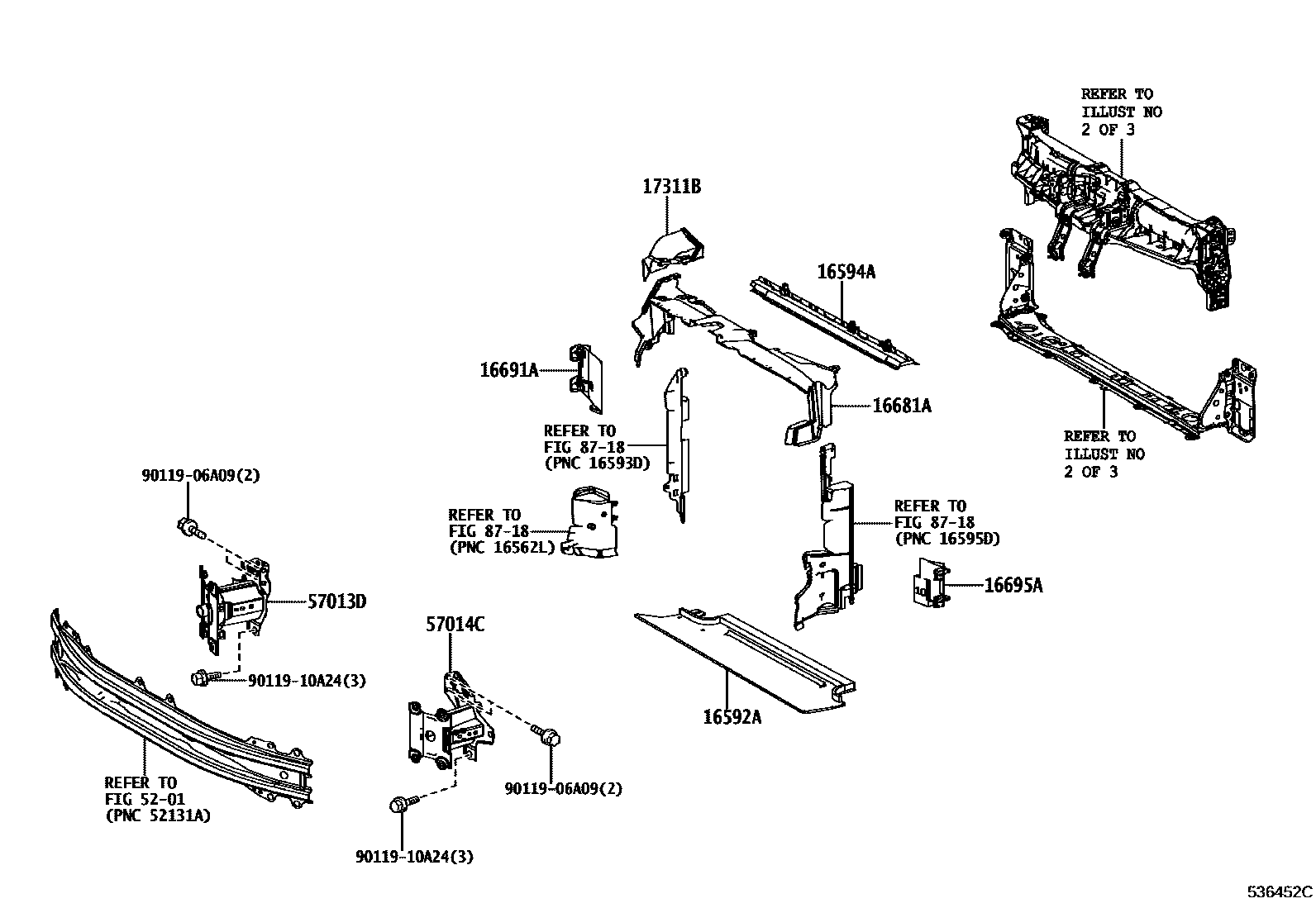

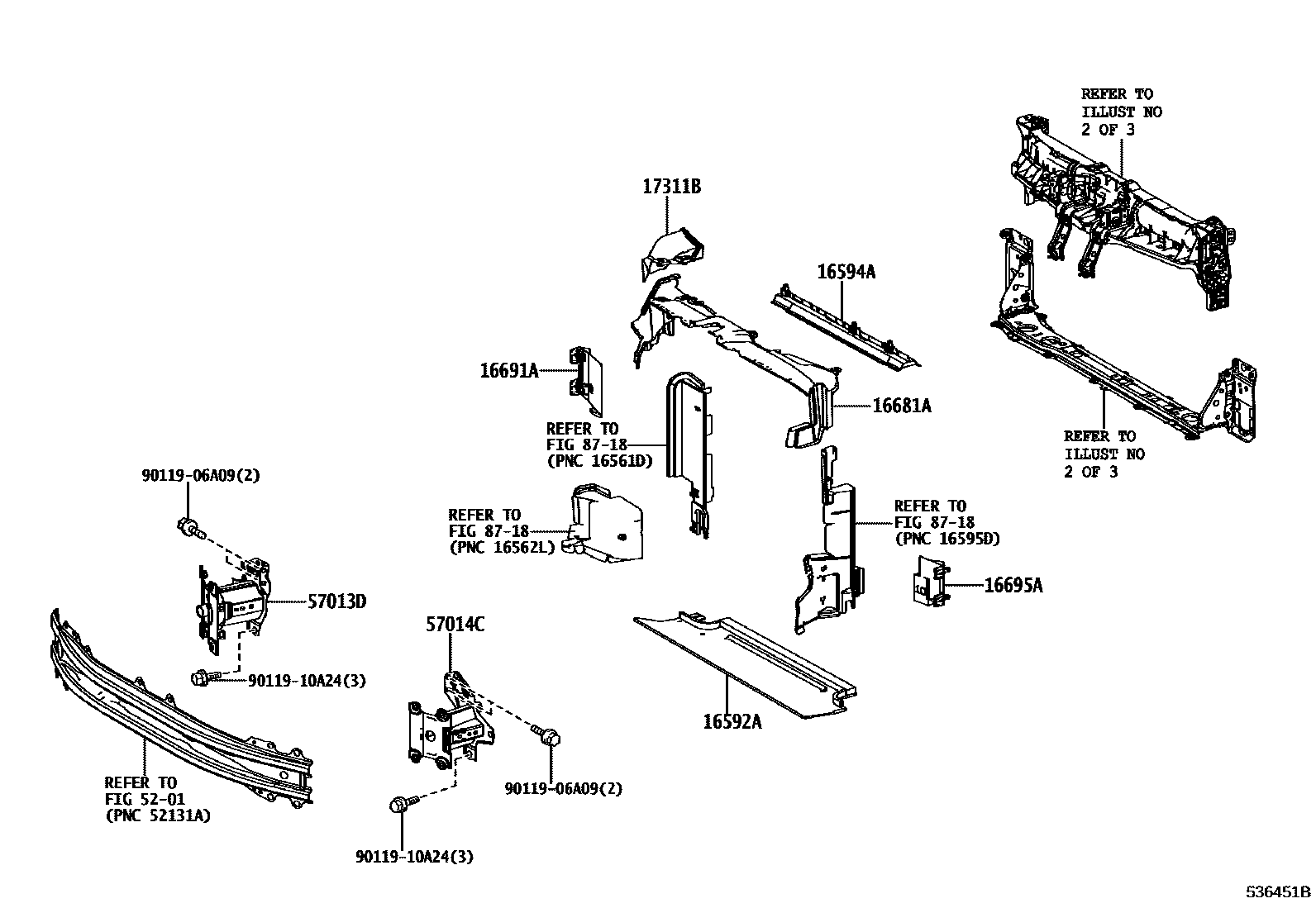

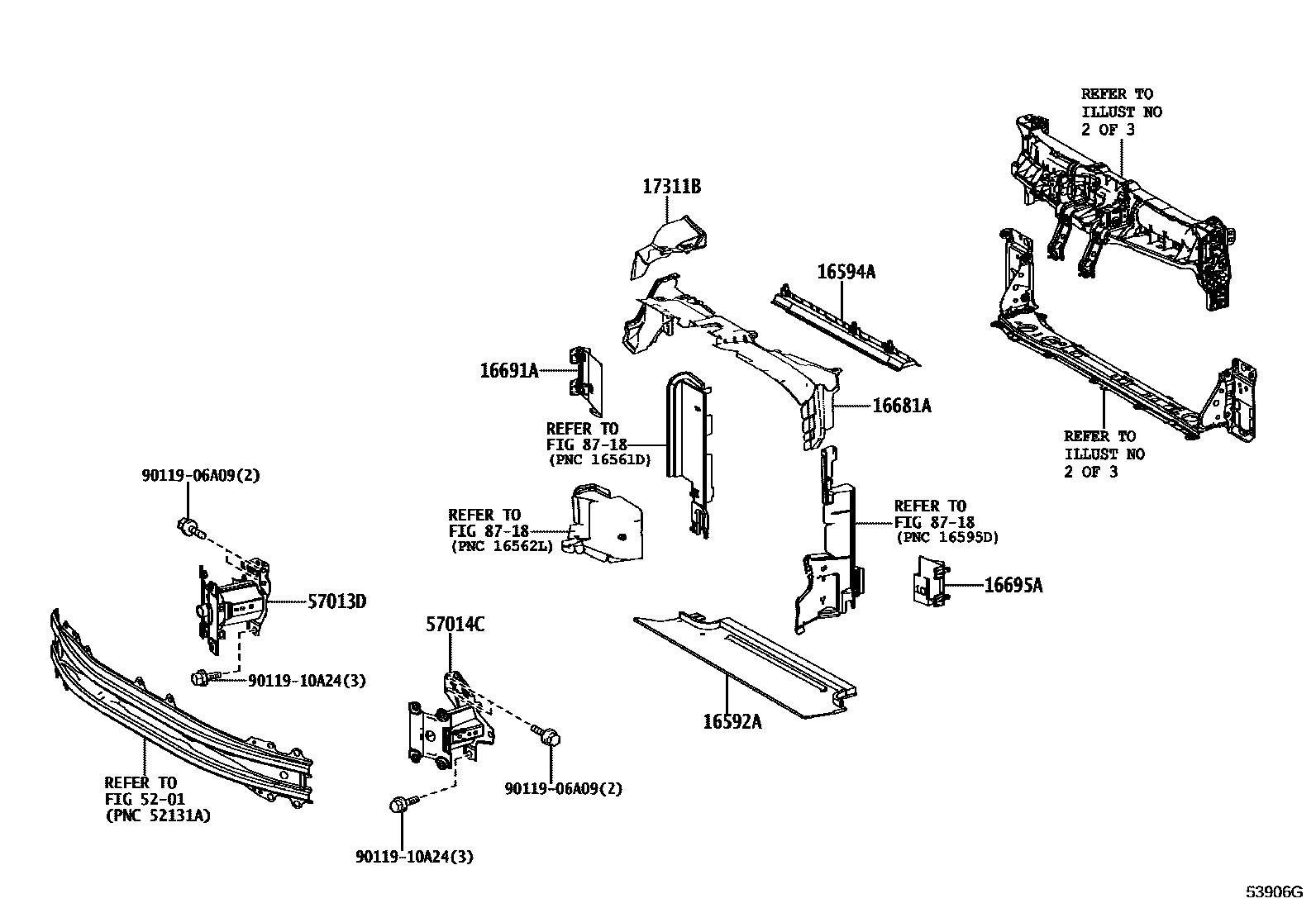

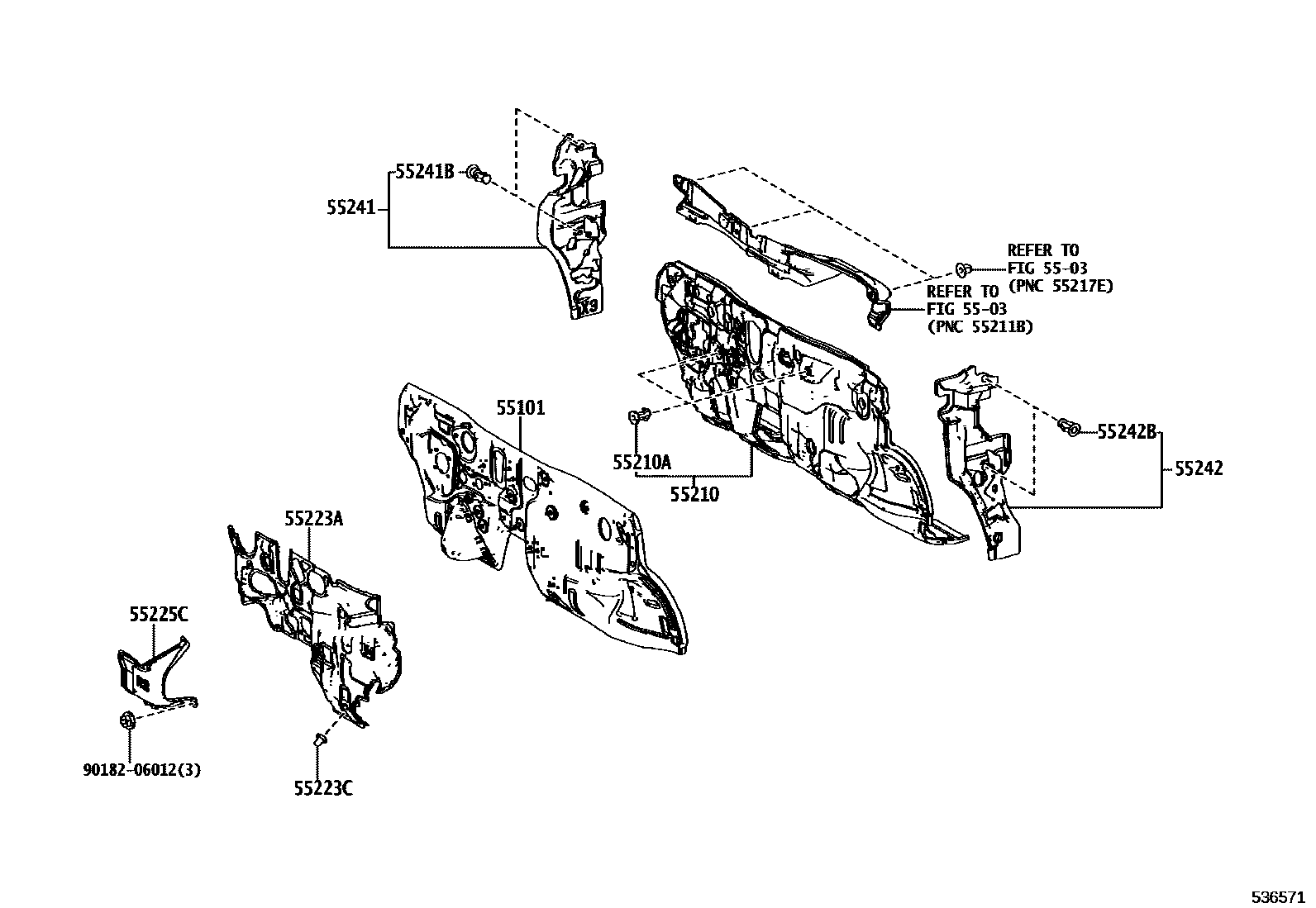

Toyota YARIS EPC diagram 5304, 前翼子板挡泥板和前围板, with 7 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | Radiator deflector No. 3 | 16592-15020 |
| 16594A | Radiator deflector No. 2 | 16594-15010 · 16594-15020 |
| 16681A | Radiator upper deflector | 16681-15021 · 16681-15070 |
| 16691A | Radiator right front side deflector | 16691-15020 |
| 16695A | Radiator left front deflector | 16695-15010 |
| 17311B | No. 1 air inlet duct | 17311-15010 · 17311-15060 |
| 52143K | Front bumper right lower arm | 52143-K0030 |
| 52144M | Front bumper left lower arm | 52144-K0030 |
| 53028 | Radiator lower bracket sub-assembly | 53028-K0010 |
| 53035C | Front end plate right side mounting bracket sub-assembly | 53035-K0020 |
| 53036C | Front end plate left side mounting bracket sub-assembly | 53036-K0020 |
| 53211 | Radiator right side support | 53211-K0010 |
| 53212 | Radiator left support | 53212-K0010 |
| 53213C | Radiator front upper bracket | 53213-52180 · 53213-K0010 |
| 53233A | No. 1 right headlight bracket | 53233-52170 · 53233-K0010 |
| 53234A | No. 1 left headlight bracket | 53234-52180 · 53234-K0010 |
| 53301G | engine cover cushion | 90541-15040 |
| 53701 | Right front fender fender sub-assembly | 53701-K0010 |
| 53702 | Left front fender fender sub-assembly | 53702-K0010 |
| 53703E | Right front fender, rear fender sub-assembly | 53703-52050 |
| 53704H | Left front fender rear fender sub-assembly | 53704-52090 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-K0010 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-K0010 |
| 53711E | Right front fender fender | 53711-K0010 |
| 53712D | Left front fender fender | 53712-K0010 |
| 53713C | Right front fender fender front extension | 53713-K0010 |
| 53714C | Left front fender fender front extension | 53714-K0010 |
| 53737 | Right front fender to front wall side sill | 53737-K0010 |
| 53738 | Left front fender to front wall side sill | 53738-K0010 |
| 53813C | Right front fender extension | 53813-K0010 |
| 53814C | Left front fender extension | 53814-K0010 |
| 55101 | Front apron sub-assembly | 55101-52740 · 55101-52750 |
| 55210 | Front wall insulation pad assembly | 55210-K0050 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-52140 |
| 55223C | clip | 90467-06197 |
| 55225C | Front wall insulation pad | 55225-K0030 |
| 55241 | Front panel No. 1 right side silencer | 55241-K0030 |
| 55241B | Front panel side muffler clip | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-52050 · 55242-K0030 |
| 55242B | Front panel side muffler clip | 90467-13079 |
| 57013D | Right front longitudinal beam bracket sub-assembly | 57013-K0010 |
| 57014C | Left front longitudinal beam bracket sub-assembly | 57014-K0010 |
| 57167C | Front cross member right corner panel | 57167-K0010 |
| 57168B | Front cross member left corner panel | 57168-52030 · 57168-K0010 |
