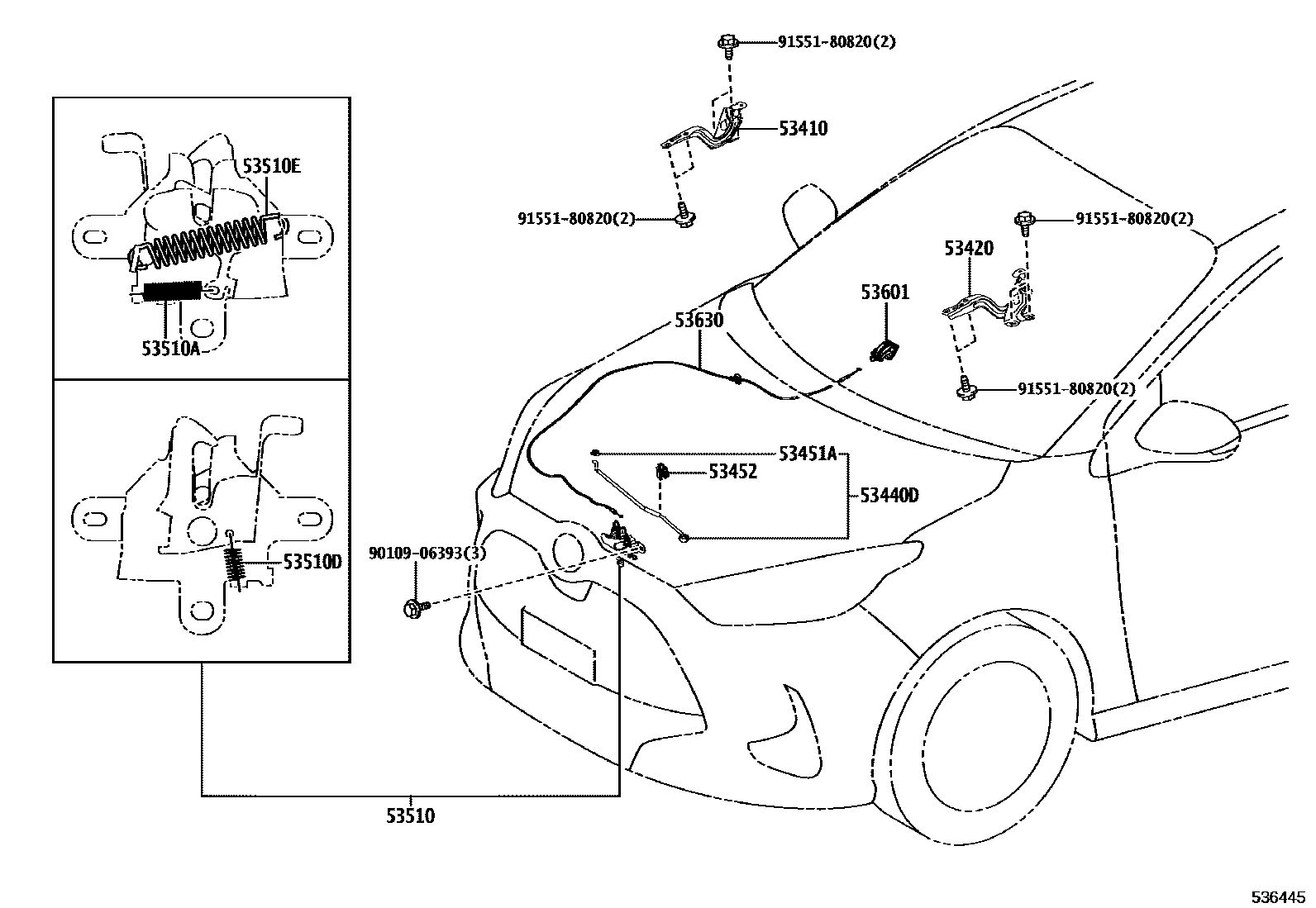

Toyota YARIS 发动机盖锁和铰链 — Figure 5303
Toyota YARIS EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-K0040 |
| 53420 | Engine cover left hinge assembly | 53420-K0040 |
| 53440D | Engine cover support rod assembly | 53440-K0010 |
| 53451A | Gasket (for engine cover support rod) | 90480-15025 |
| 53452 | Engine cover stay rod fixing | 53452-15020 |
| 53510 | Engine cover lock assembly | 53510-K0060 |
| 53510A | Tension spring (for hood lock) | 90506-09055 |
| 53510D | Tension spring (for hood lock) | 90506-12063 |
| 53510E | Tension spring (for hood lock) | 90506-16077 |
| 53630 | Engine hood lock control cable assembly | 53630-K0030 |
