Toyota YARIS radiator grille — Figure 5301

Toyota YARIS EPC diagram 5301, radiator grille, with 2 images and 4 PNC and OE references.

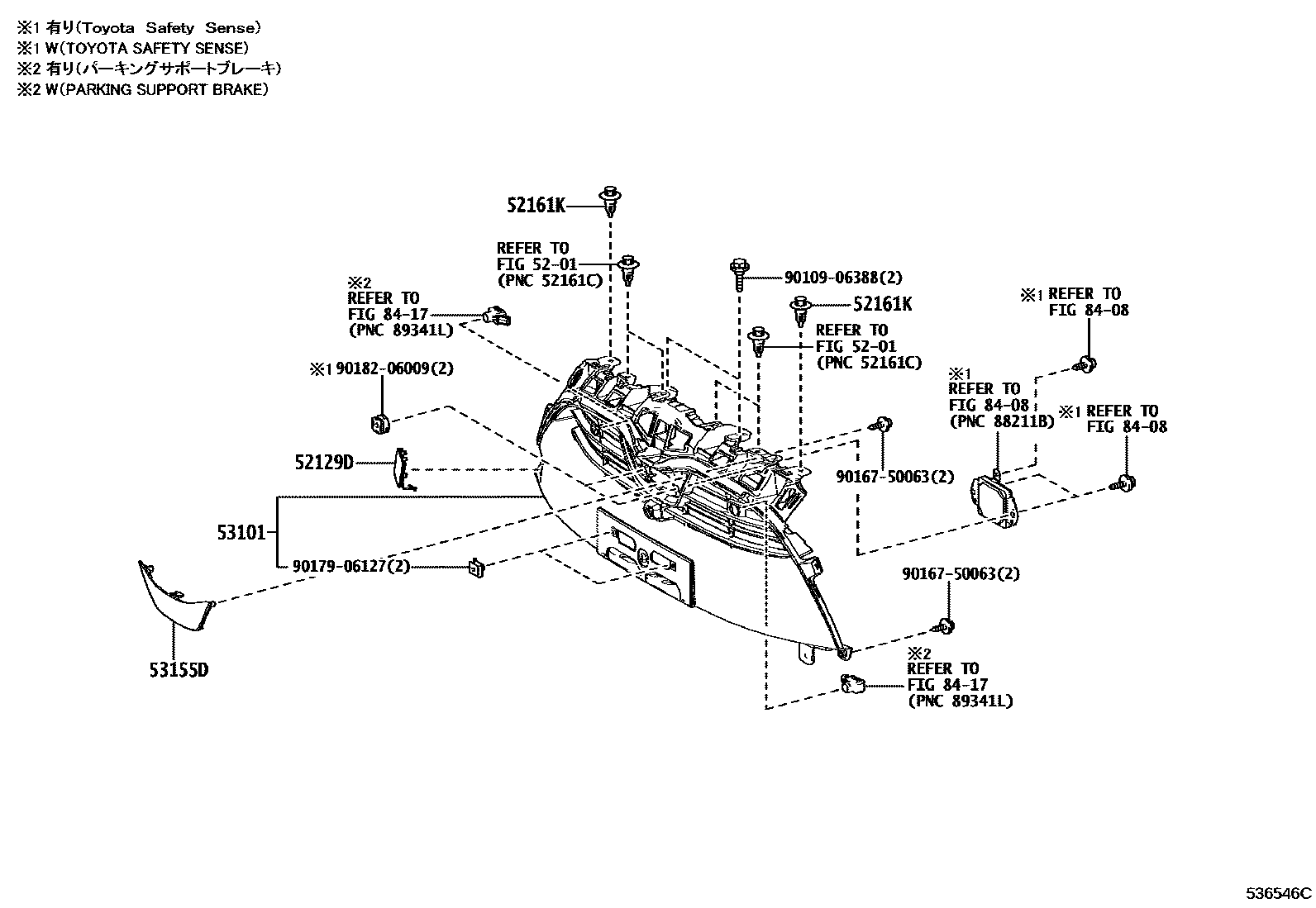

Toyota YARIS radiator grille EPC diagram — 536546C
radiator grille — 536546C (202005 – 202401)

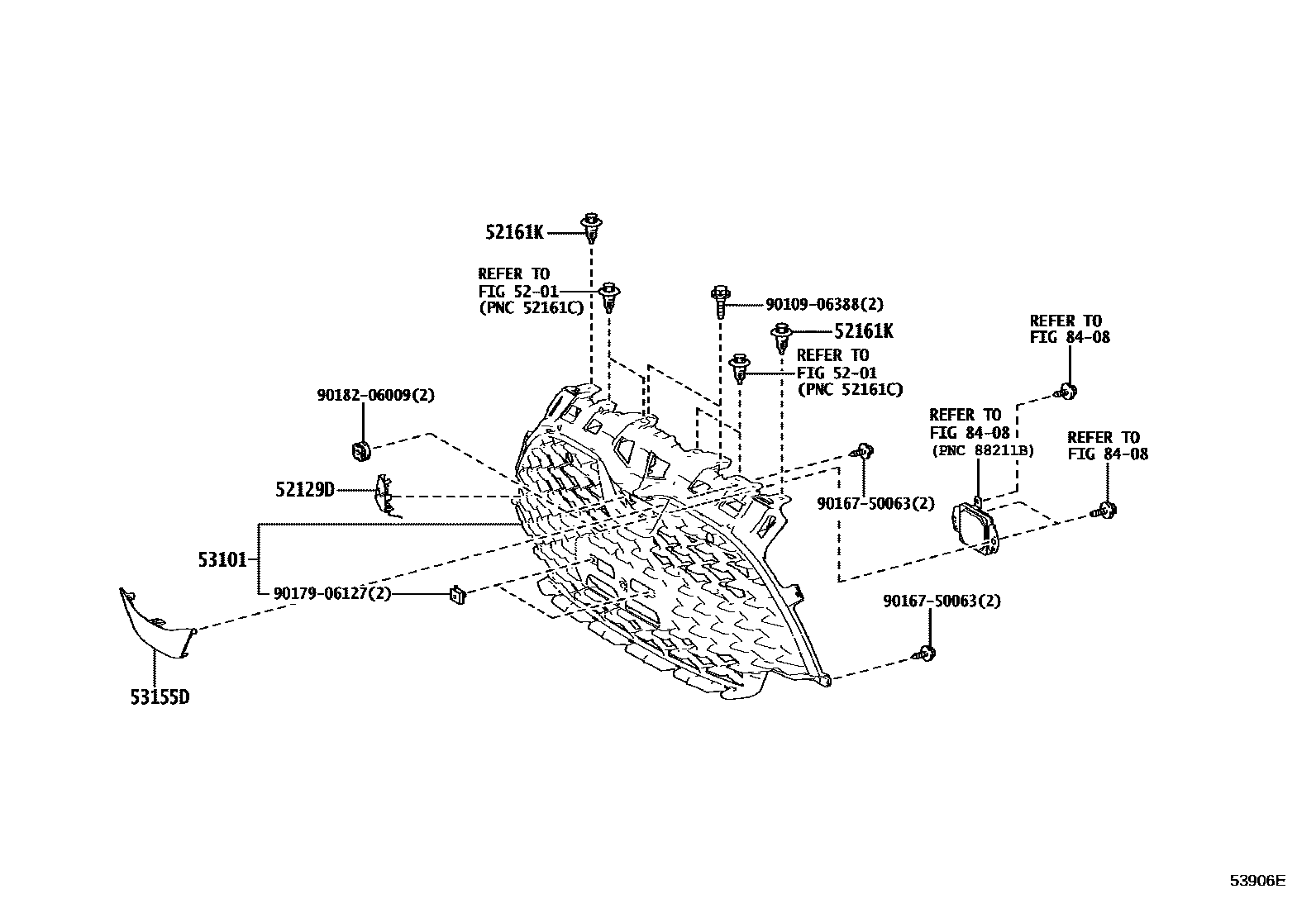

Toyota YARIS radiator grille EPC diagram — 53906E
radiator grille — 53906E (202401 – 999999)

PNC and OE references

PNCPart nameOE numbers
52129DFront bumper lower cover52129-52370 · 52129-52380 · 52129-K0070 · 52129-K0080
52161Kfront bumper insert52161-16010
53101Radiator grille sub-assembly53101-52760 · 53101-52770 · 53101-52E40 · 53101-K0090 · 53101-K0110 · 53101-K0120 · 53101-K0140
53155DRadiator grille seal No. 153155-52310 · 53155-K0070
