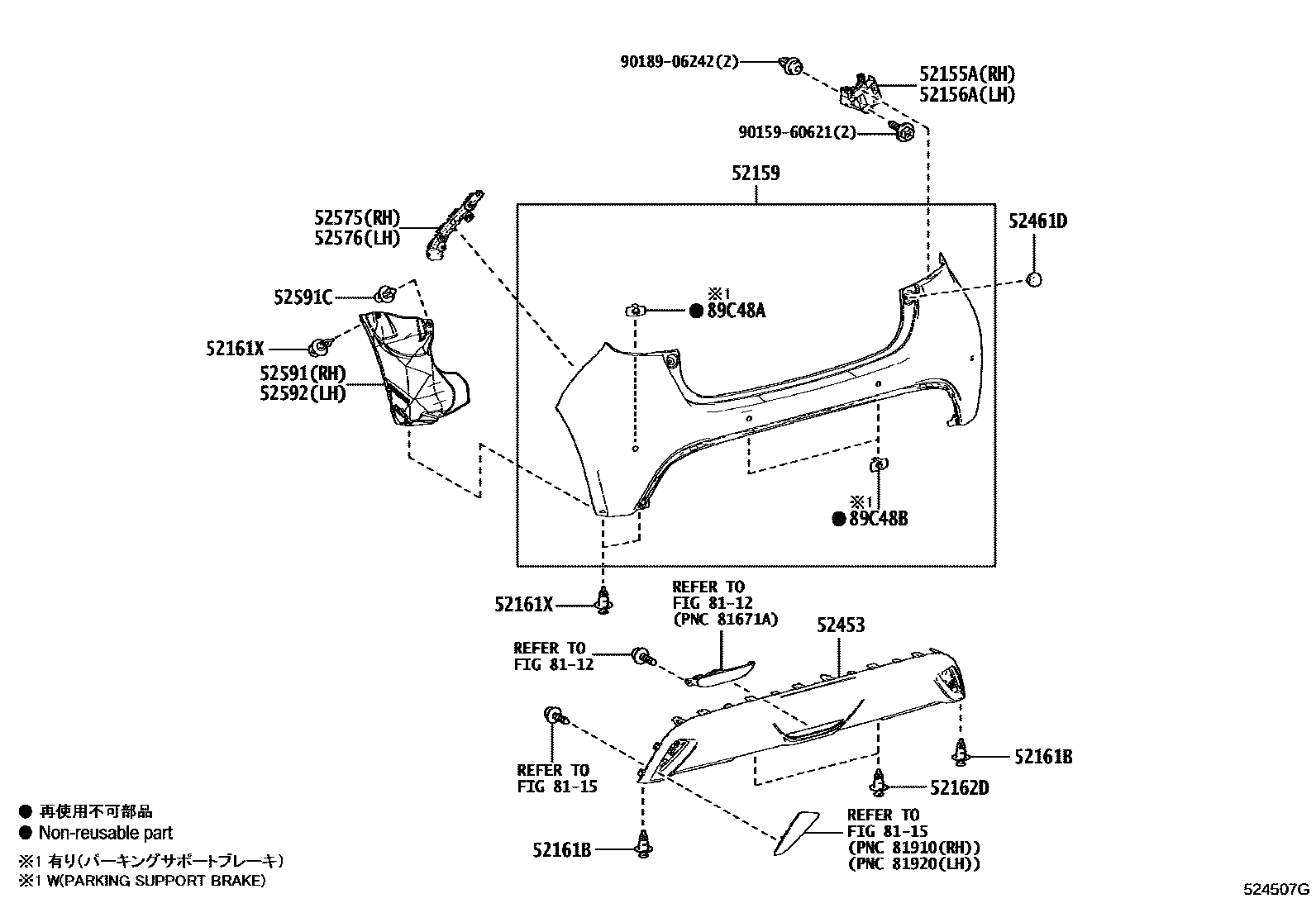

Toyota YARIS 后保险杠及附件 — Figure 5202
Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52155A | Rear bumper right side bracket | 52155-K0010 |
| 52156A | Rear bumper left bracket | 52156-K0010 |
| 52159 | rear bumper cover | 52159-K0900 · 52159-K0904 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52161X | Rear bumper insert | 52161-16010 |
| 52162D | Rear bumper insert | 52161-16010 |
| 52453 | Rear bumper center anti-collision bar | 52453-K0010 |
| 52461D | rear bumper cushion | 52461-52020 |
| 52575 | Rear bumper right side fixing bracket | 52575-K0010 |
| 52576 | Rear bumper left side fixing bracket | 52576-K0010 |
| 52591 | Rear bumper right seal | 52591-52450 |
| 52591C | Rear bumper side seal clip | 90467-06121 |
| 52592 | Rear bumper left seal | 52592-52450 |
| 89C48A | Ultrasonic sensor rear corner fixing bracket | 89348-K0230 · 89348-K0231 |
| 89C48B | Ultrasonic sensor rear central fixing bracket | 89348-K0230 · 89348-K0231 |
