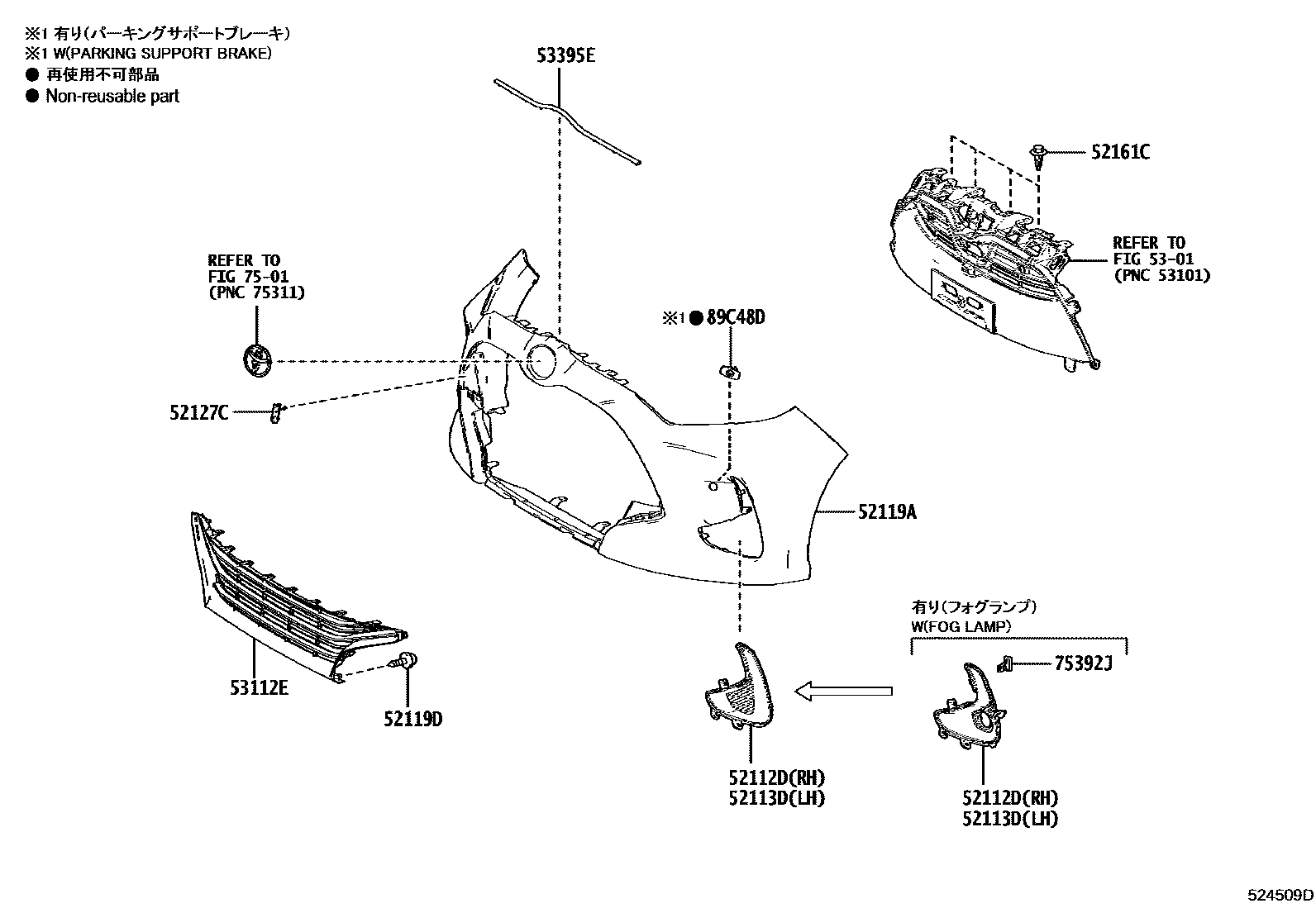

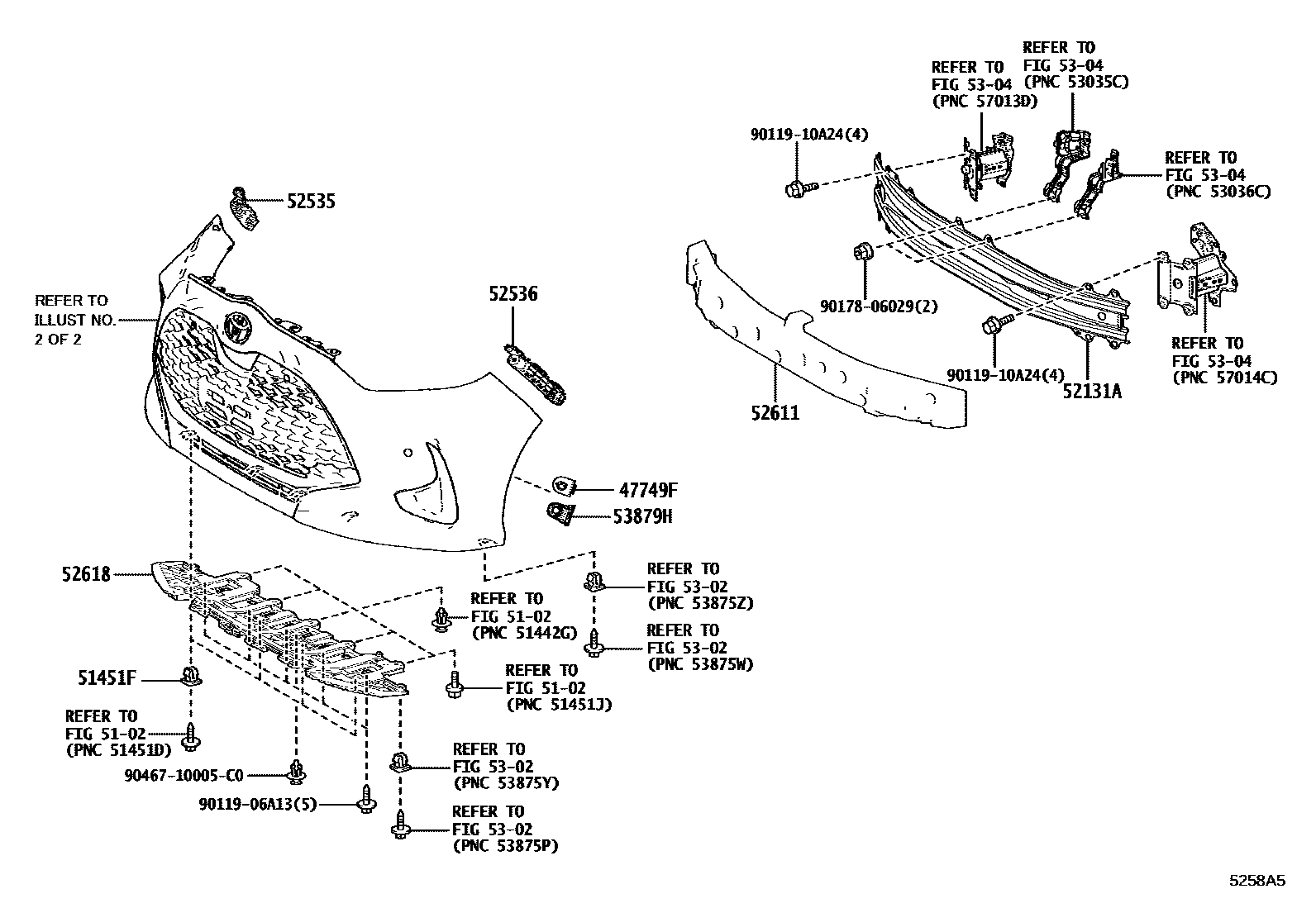

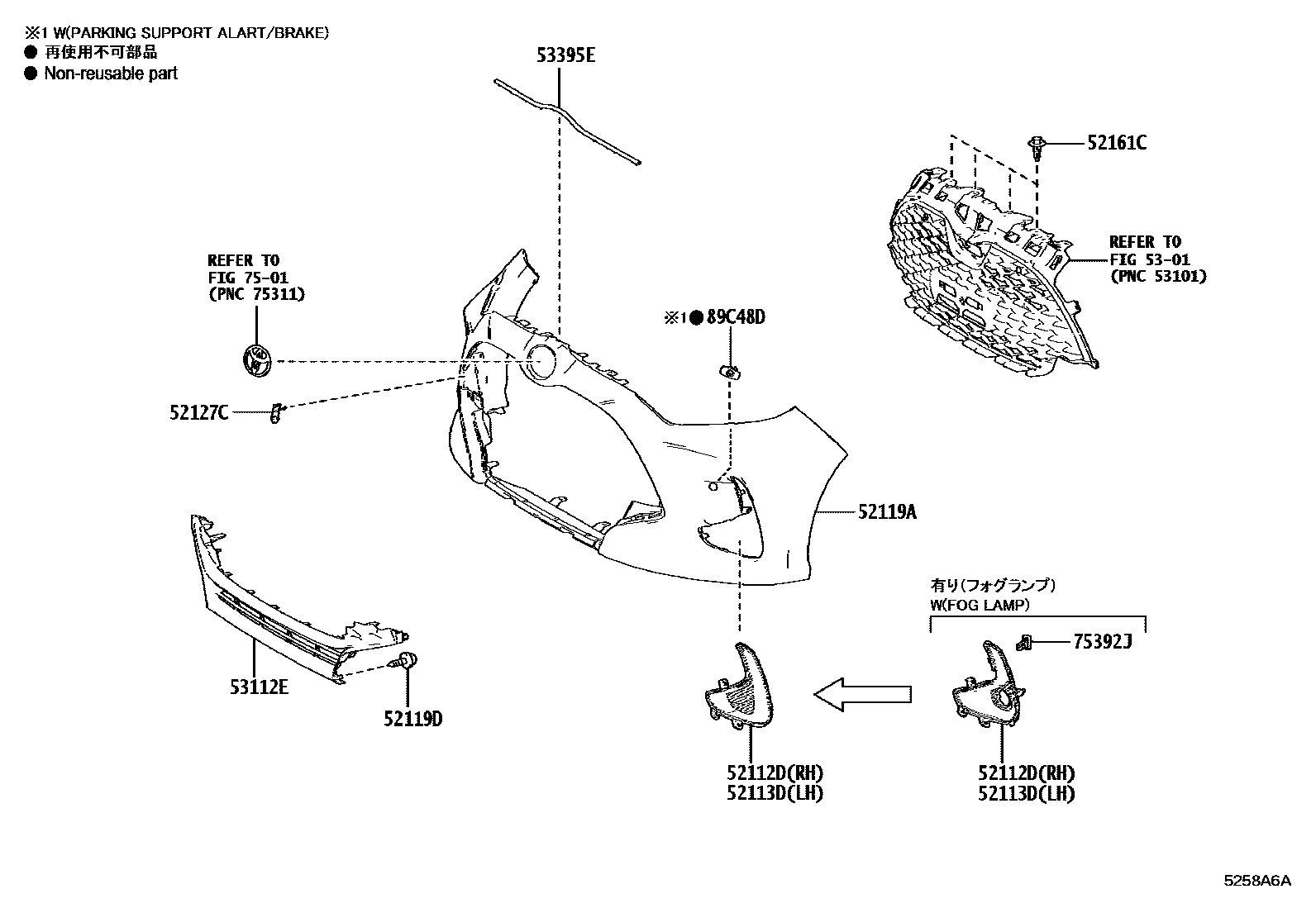

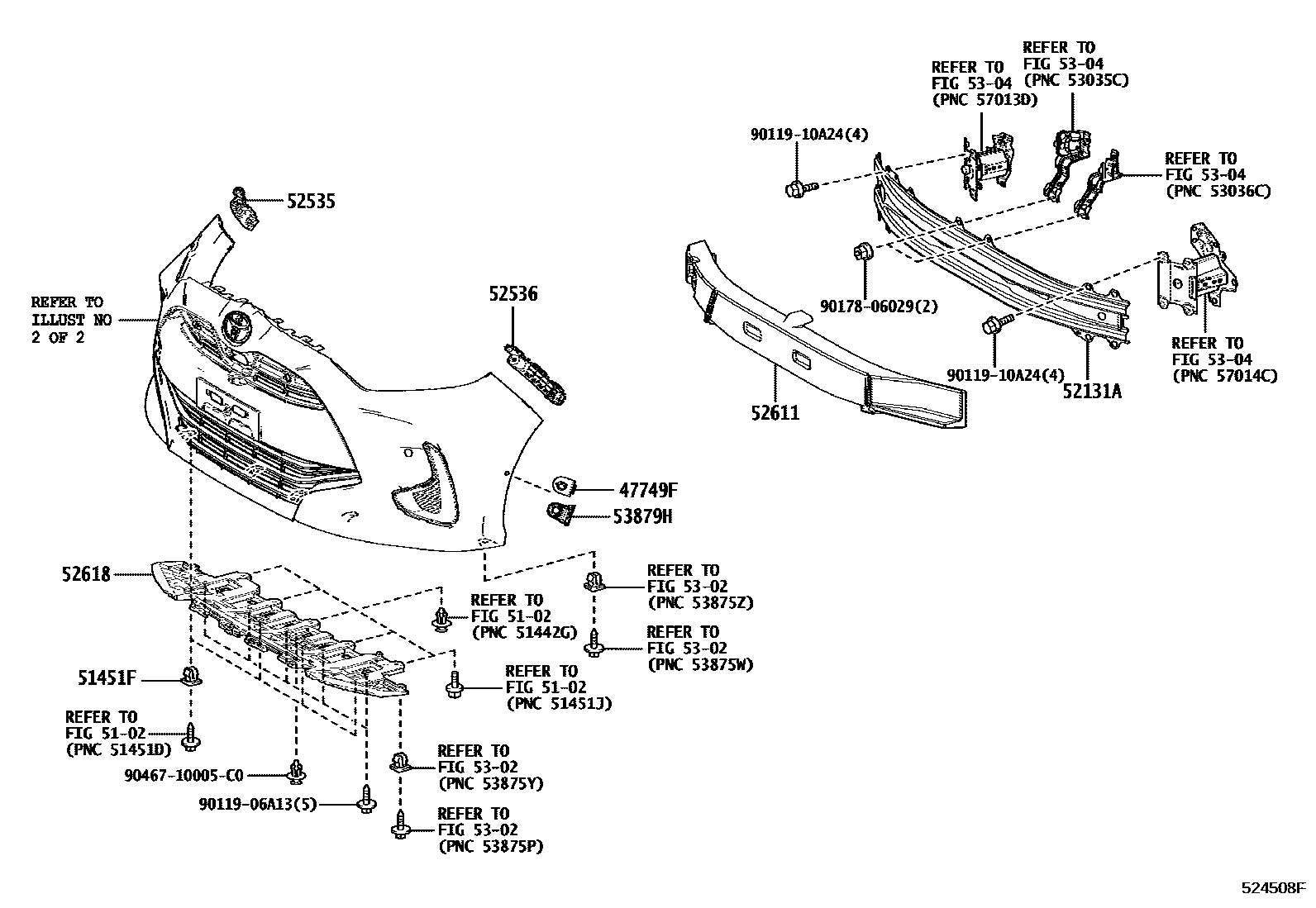

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47749F | pin fixing clip | 47749-33030 |
| 51451F | Gasket No. 1 | 90189-06237 |
| 52112D | Front bumper right extension | 52112-K0020 · 52112-K0041 |
| 52113D | Front bumper left extension | 52113-K0020 · 52113-K0041 |
| 52119A | front bumper cover | 52119-5C952 · 52119-5C953 · 52119-K0900 · 52119-K0901 |
| 52119D | Screw No. 1 | 90167-50063 |
| 52127C | Front bumper hole cover | 52127-K0901 |
| 52131A | Front bumper reinforcement | 52131-52300 |
| 52161C | front bumper insert | 52161-16010 |
| 52535 | Front bumper right side fixing bracket | 52535-K0030 |
| 52536 | Front bumper left fixed bracket | 52536-K0030 |
| 52611 | front bumper energy absorber | 52611-52430 · 52611-K0010 |
| 52618 | Front bumper lower shock absorber | 52618-52170 |
| 53112E | No. 1 radiator lower grille | 53112-52880 · 53112-K0040 |
| 53395E | Engine cover to front end plate seal | 53395-K0010 |
| 53879H | Front fender lining fixing parts | 53879-33030 |
| 75392J | External protective strip fixings | 75392-35220 |
