Toyota YARIS 悬架横梁和发动机底罩 — Figure 5102
Toyota YARIS EPC diagram 5102, 悬架横梁和发动机底罩, with 3 images and 13 PNC and OE references.
PNC and OE references

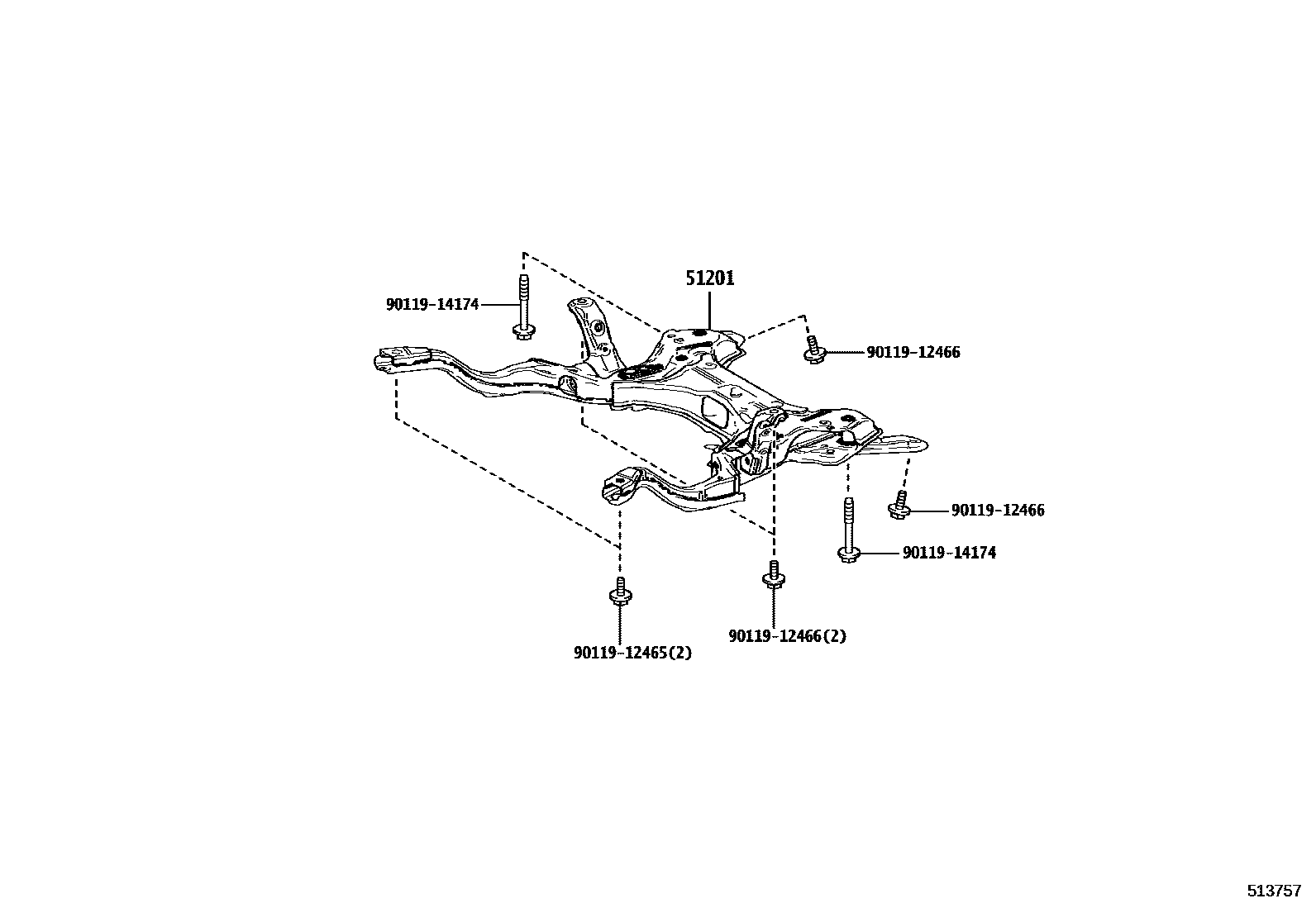

| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-52120 · 51201-52121 |

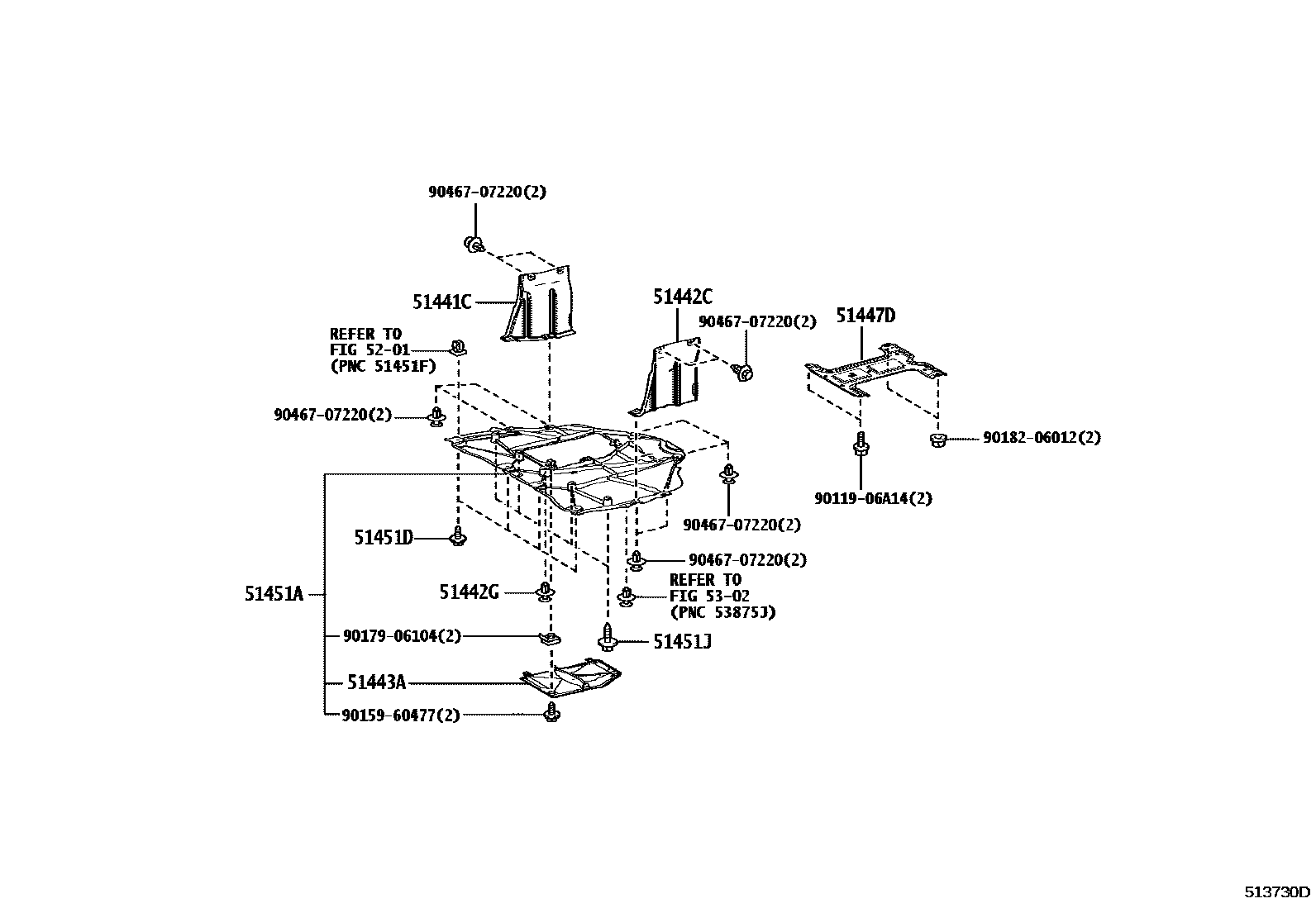

| 51441C | Engine right bottom cover | 51441-K0010 |
| 51442C | Engine left bottom cover | 51442-K0010 |
| 51442G | No. 1 engine bottom cover clip | 90467-07220 |
| 51443A | Engine rear bottom cover | 51443-K0010 · 51443-K0011 |
| 51447D | No. 4 engine center bottom cover | 51447-K0030 |
| 51451A | Engine center cover | 51410-K0010 · 51410-K0011 |
| 51451D | Screw No. 1 | 90159-60477 |
| 51451J | Bolt No. 1 | 90119-06A13 |
| 53259B | Clip (for engine cover) | 53259-52010 |

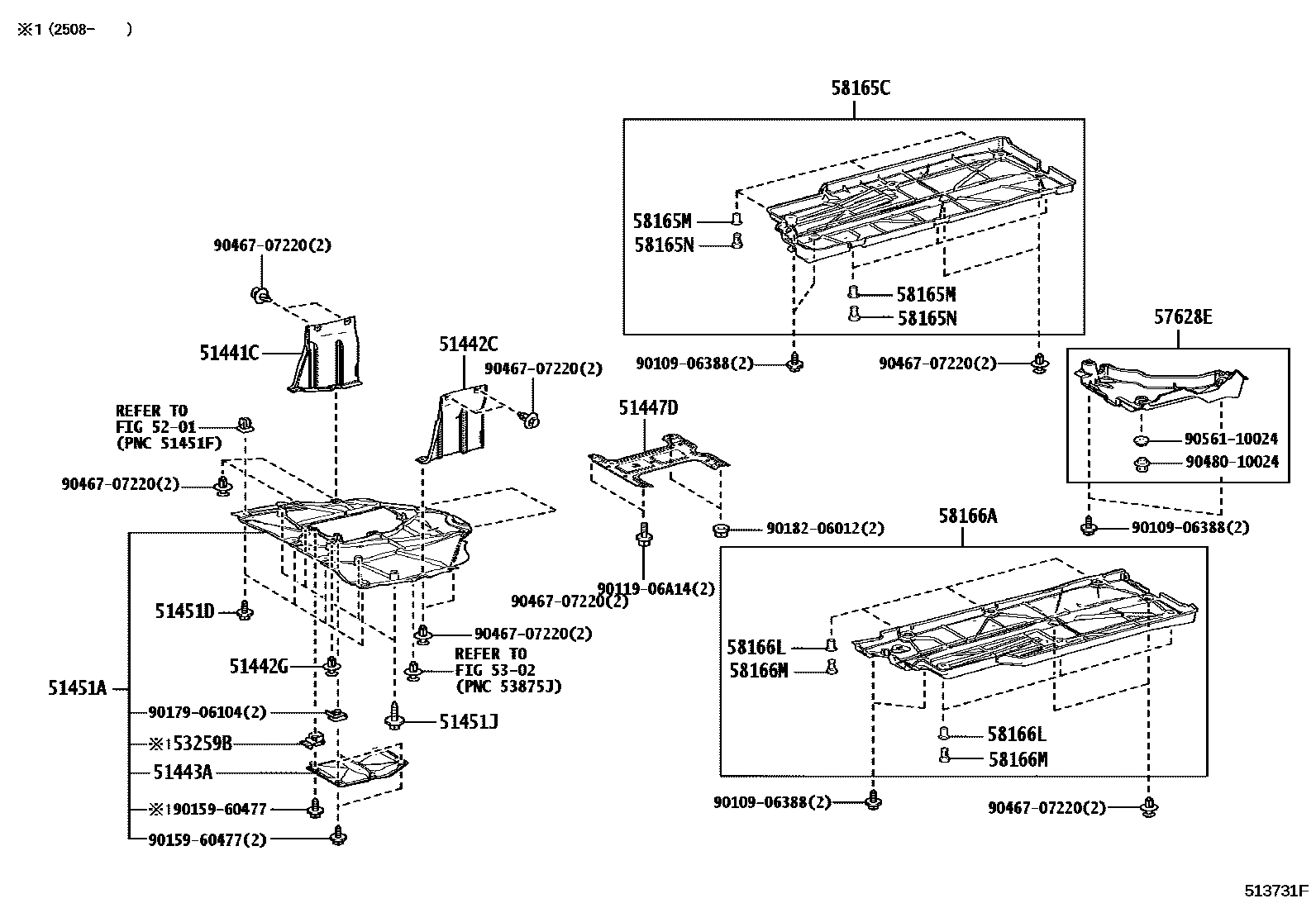

| 57628E | Rear floor left longitudinal member cover | 57628-K0030 |
| 58165C | Front floor right cover | 58165-K0020 |
| 58166A | Front floor left cover | 58166-K0020 |
