Toyota YARIS Rear Spring & Shock Absorber — Figure 4804

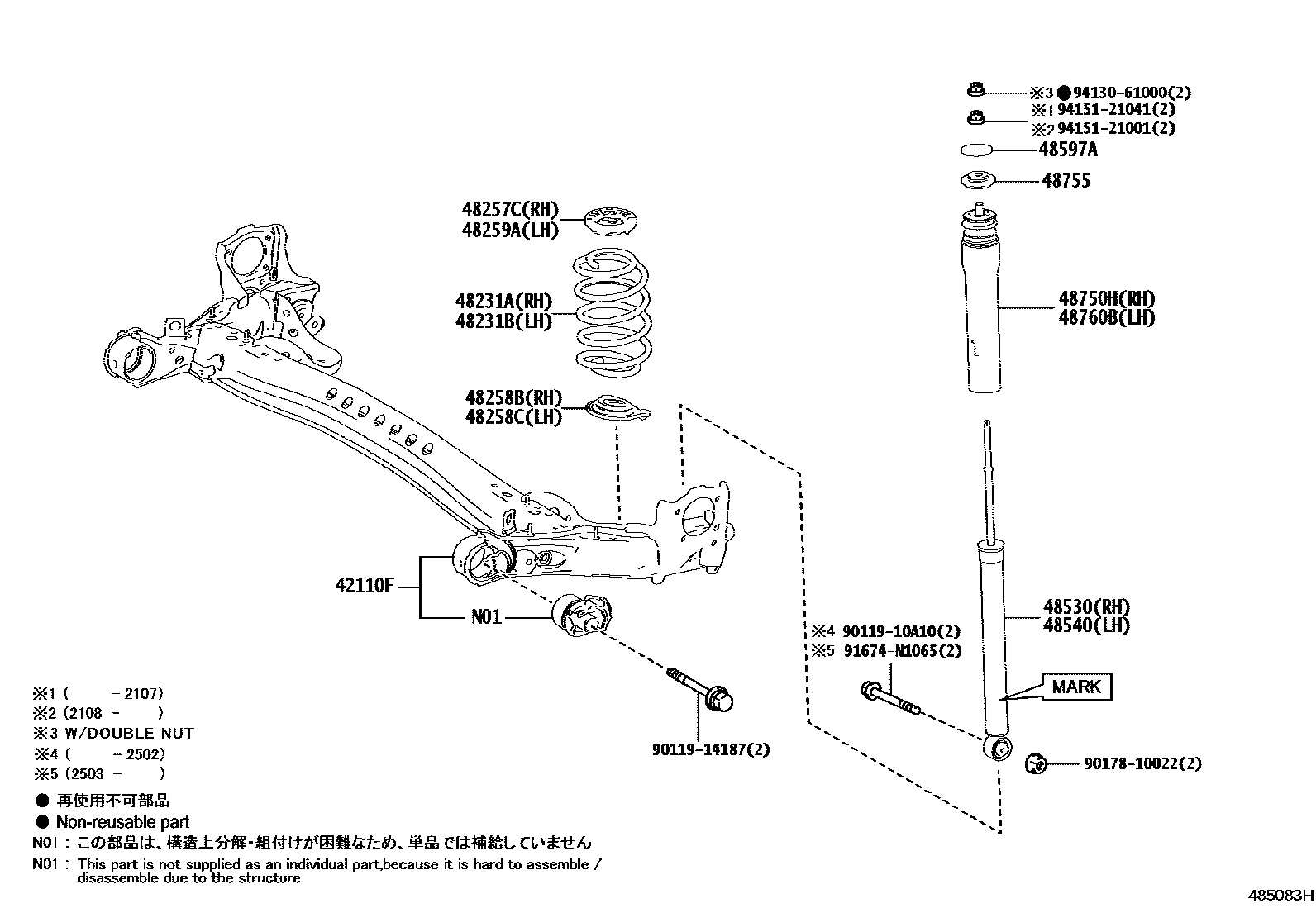

Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-K0010 |
| 48231A | Right rear coil spring | 48231-K0020 · 48231-K0030 |
| 48231B | Left rear coil spring | 48231-K0020 · 48231-K0030 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-52010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-K0010 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-K0010 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-52010 |
| 48530 | Right rear shock absorber assembly | 48530-52V30 · 48530-52V40 · 48530-K0020 · 48530-K0030 |
| 48540 | Left rear shock absorber assembly | 48530-52V30 · 48530-52V40 · 48530-K0020 · 48530-K0030 |
| 48597A | Rear shock absorber buffer pad | 90201-10138 |
| 48750H | Right rear suspension support assembly | 48750-K0010 |
| 48755 | rear suspension mount | 48755-K0010 · 48755-K0011 |
| 48760B | Left rear suspension support assembly | 48750-K0010 |
