Toyota YARIS 前桥控制臂和转向节 — Figure 4802

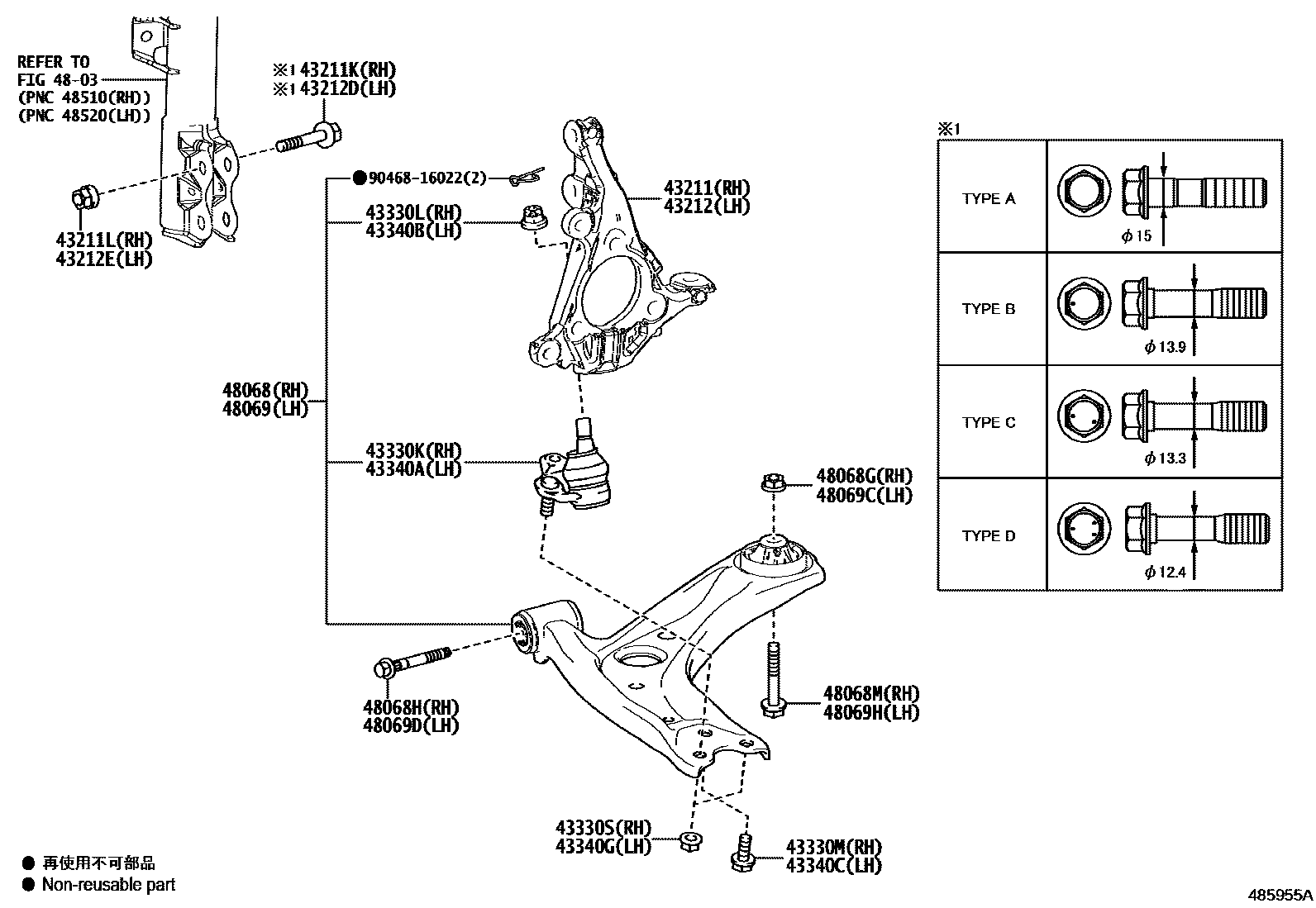

Toyota YARIS EPC diagram 4802, 前桥控制臂和转向节, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-K0010 |
| 43211K | Bolt (for right steering knuckle) | 90109-15001 · 90109-15002 · 90109-15003 · 90109-15004 |
| 43211L | Nut (for right steering knuckle) | 90179-15004 |
| 43212 | left steering knuckle | 43212-K0010 |
| 43212D | Bolt (for left steering knuckle) | 90109-15001 · 90109-15002 · 90109-15003 · 90109-15004 |
| 43212E | Nut (for left steering knuckle) | 90179-15004 |
| 43330K | Right front lower ball joint assembly | 43330-59185 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-12007 |
| 43330M | Bolt (for right front lower ball joint) | 91552-L1225 |
| 43330S | Nut (for right front lower ball joint) | 90178-12019 |
| 43340A | Left front lower ball joint assembly | 43330-59185 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-12007 |
| 43340C | Bolt (for left front lower ball joint) | 91552-L1225 |
| 43340G | Nut (for left front lower ball joint) | 90178-12019 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-52230 · 48068-K9000 |
| 48068G | Nut (for right front suspension No. 1 lower arm) | 90179-14068 |
| 48068H | Bolt (for right front suspension No. 1 lower arm) | 90119-14193 |
| 48068M | Bolt (for right front suspension No. 2 lower arm) | 90119-14180 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-52230 · 48069-K9000 |
| 48069C | Nut (for left front suspension No. 1 lower arm) | 90179-14068 |
| 48069D | Bolt (for left front suspension No. 1 lower arm) | 90119-14193 |
| 48069H | Bolt (for left front suspension No. 2 lower arm) | 90119-14180 |
