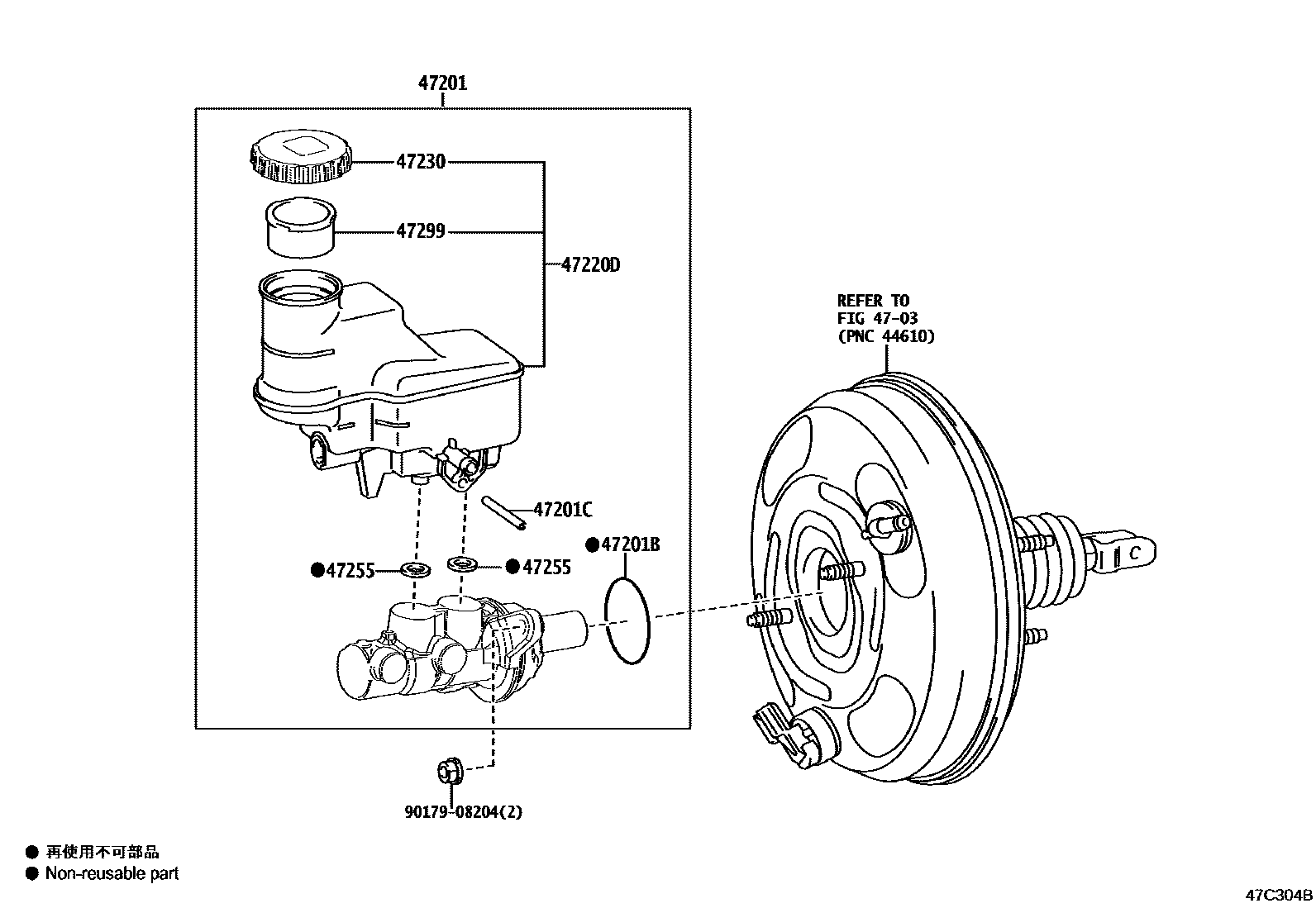

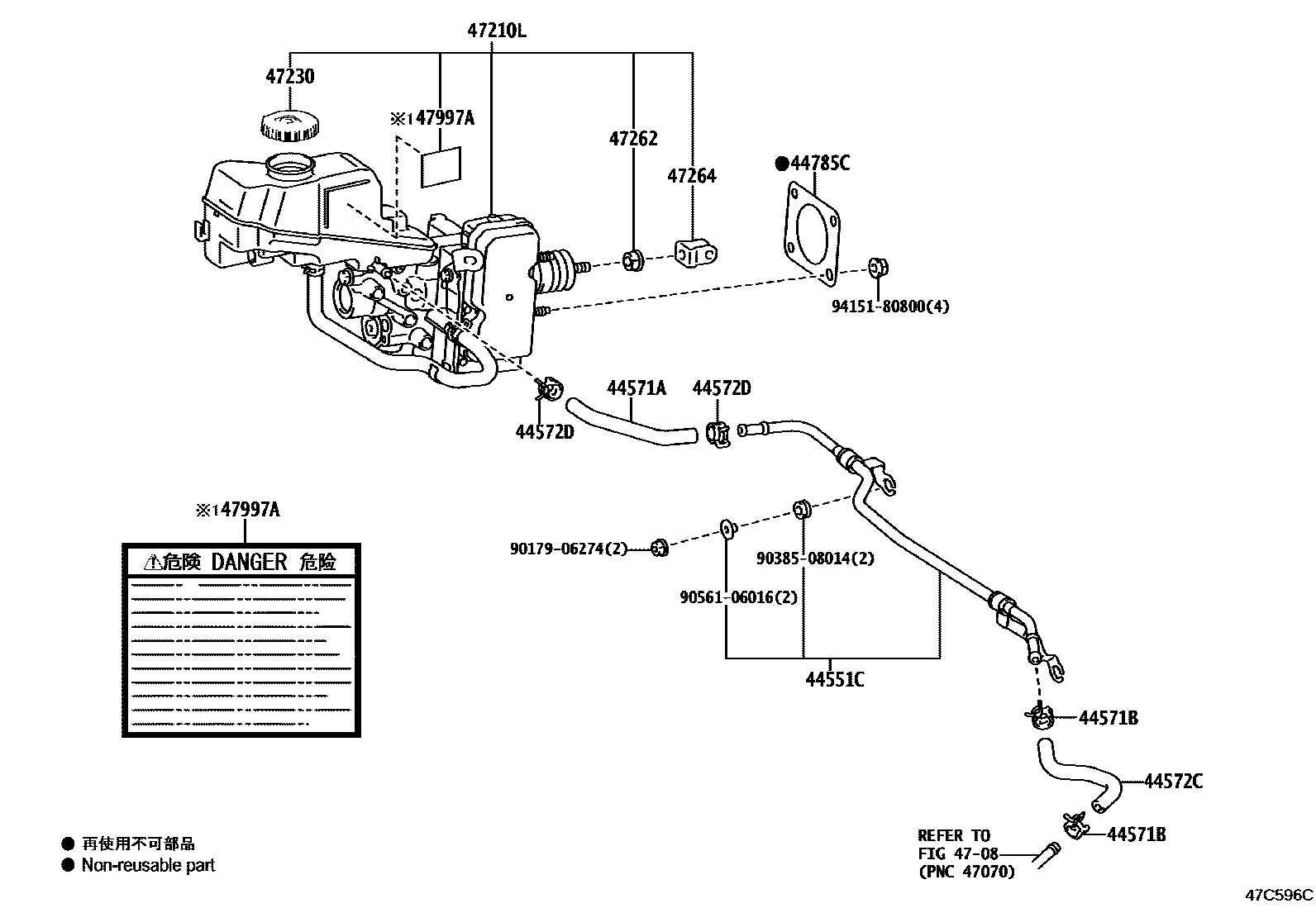

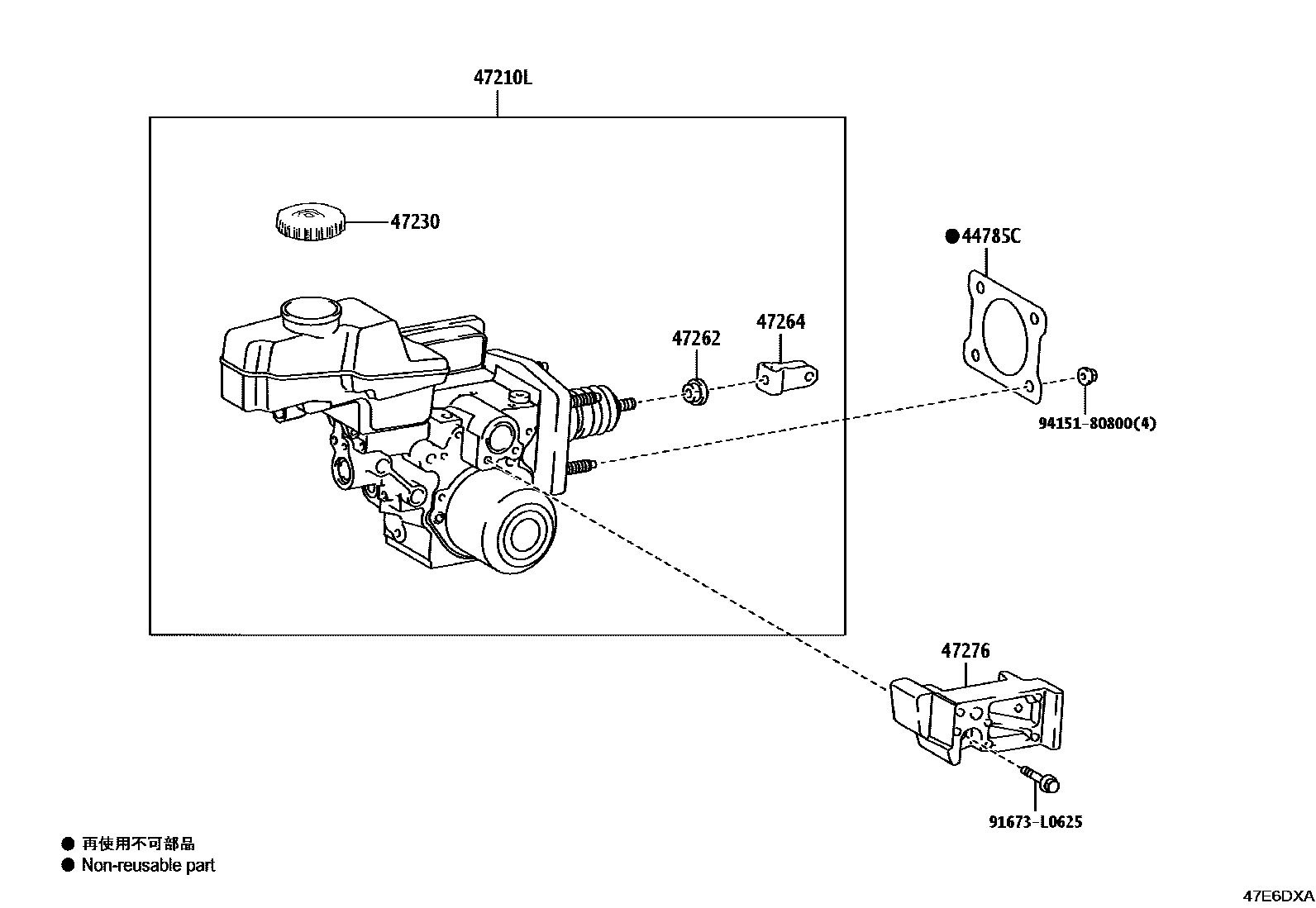

Toyota YARIS 制动总泵 — Figure 4702
Toyota YARIS EPC diagram 4702, 制动总泵, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44551C | No. 1 brake actuator pipe | 44551-K0010 |
| 44571A | No. 1 brake actuator hose | 44571-K0010 |
| 44571B | Hose clip (for brake actuator hose No. 1) | 96137-41501 |
| 44572C | No. 2 brake actuator hose | 44572-K0010 |
| 44572D | Hose clip (for brake actuator hose No. 2) | 96137-41501 |
| 44785C | brake booster pad | 44785-16020 |
| 47201 | Brake master cylinder sub-assembly | 47201-K0050 · 47201-K0060 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47210L | Brake booster assembly with master cylinder | 47050-52750 · 47050-52751 · 47050-52810 · 47050-K0010 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-K0060 · 47220-K0070 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-47090 |
| 47255 | Master pump reservoir seal | 90029-48001 |
| 47262 | master cylinder push rod nut | 90179-10065 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-12060 |
| 47276 | brake master cylinder bracket | 47276-52030 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 |
| 47997A | Accumulator No. 1 Warning Label | 47997-76010 |
