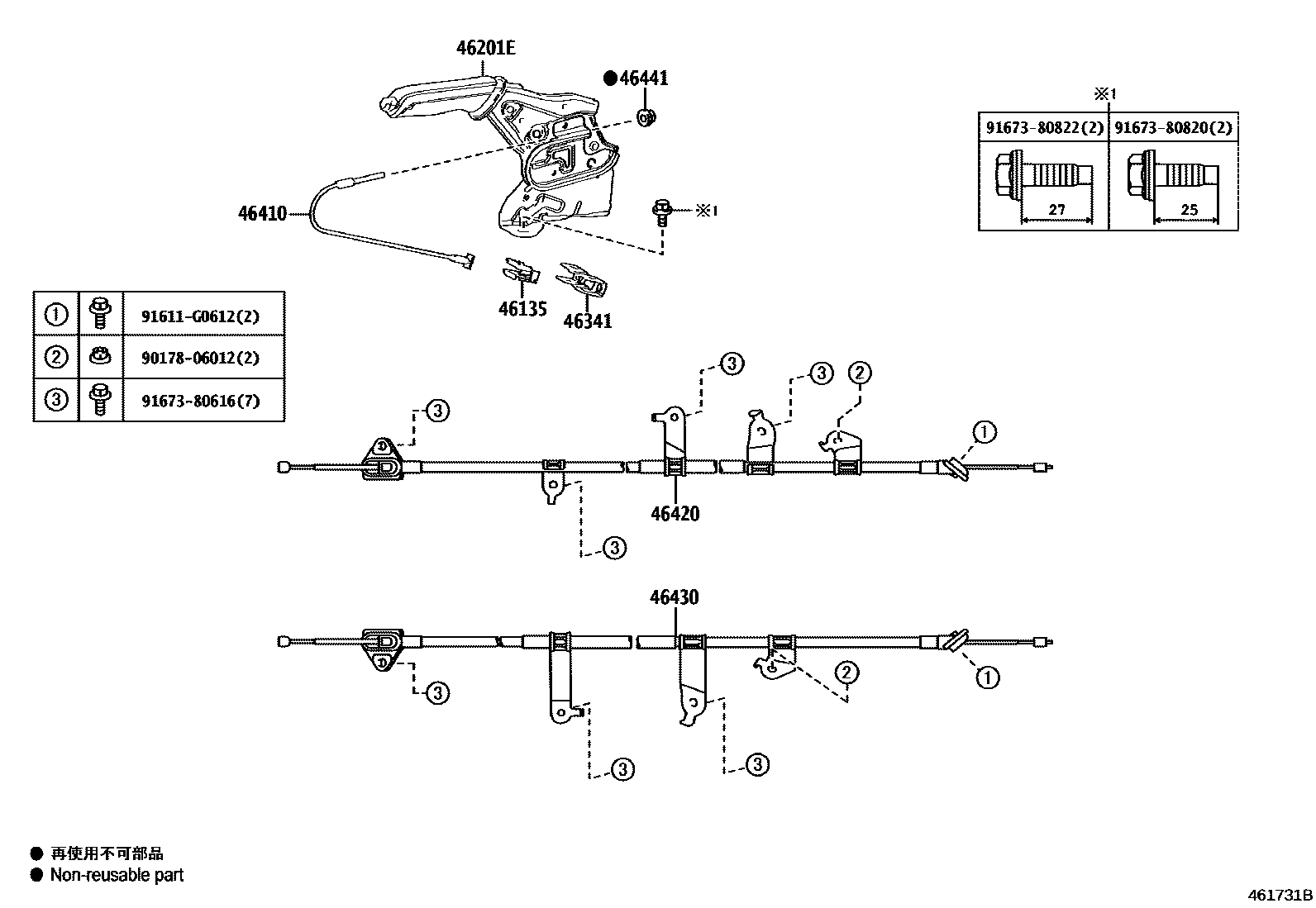

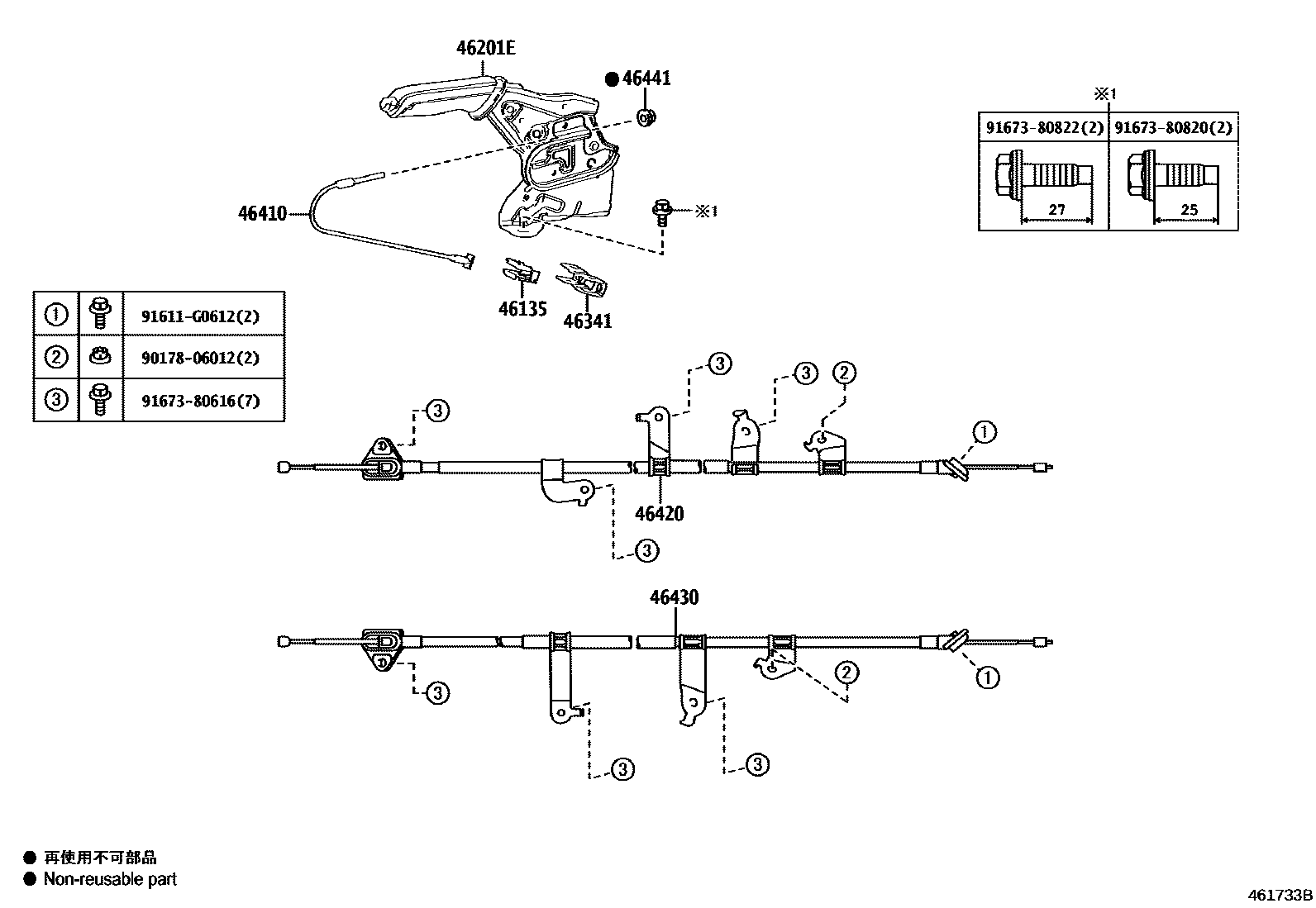

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46135 | Parking brake cable end stop | 46135-K0010 |
| 46341 | Parking brake balancer | 46341-K0010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-K0010 |
| 46420 | Parking brake No. 2 cable assembly | 46420-52480 · 46420-K0010 · 46420-K0020 |
| 46430 | Parking brake No. 3 cable assembly | 46430-K0010 |
| 46441 | No. 1 cable adjustment nut | 90177-06003 |
