Toyota YARIS 传动桥总成(HEV 或 BEV 或 FCEV) — Figure 3901

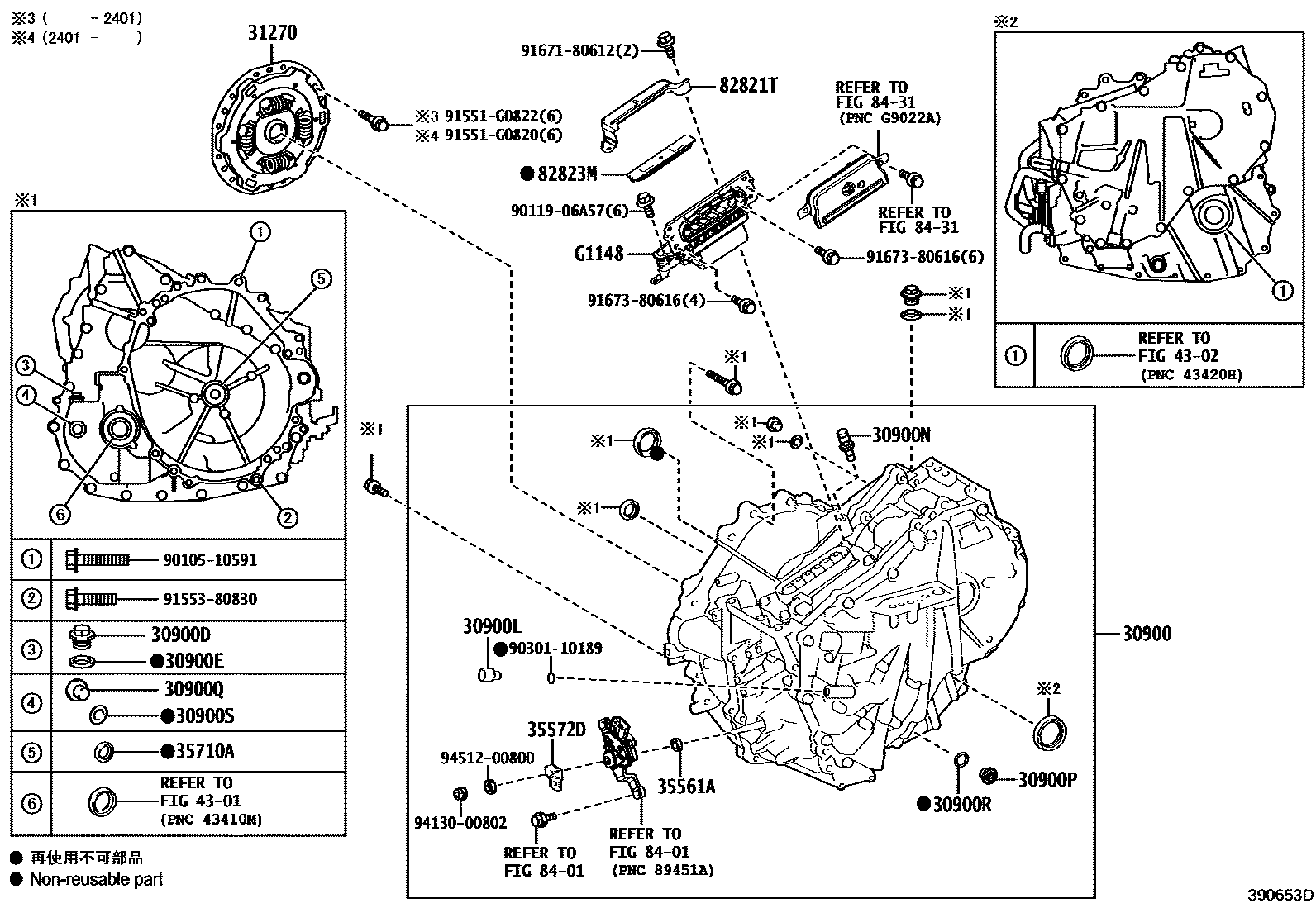

Toyota YARIS EPC diagram 3901, 传动桥总成(HEV 或 BEV 或 FCEV), with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-K0010 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900L | Connector (for transaxle housing) | 90404-16031 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Drain plug (HEV) | 90341-18016 |
| 30900Q | Oil filling plug (HEV) | 90341-18016 |
| 30900R | Drain plug gasket (HEV) | 90430-18008 |
| 30900S | Oil filling plug gasket (HEV) | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-K0011 · 31270-K0012 · 31270-K0013 |
| 35561A | T-type oil seal (for parking lock axle) | 90311-12016 |
| 35572D | transmission control lever | 35572-K0010 |
| 35710A | T-type oil seal (for input shaft) | 90311-25025 |
| 82821T | Connector cover | 82821-52350 |
| 82823M | Terminal cover | 82823-47040 |
| G1148 | Motor cable | G1148-K0010 |
