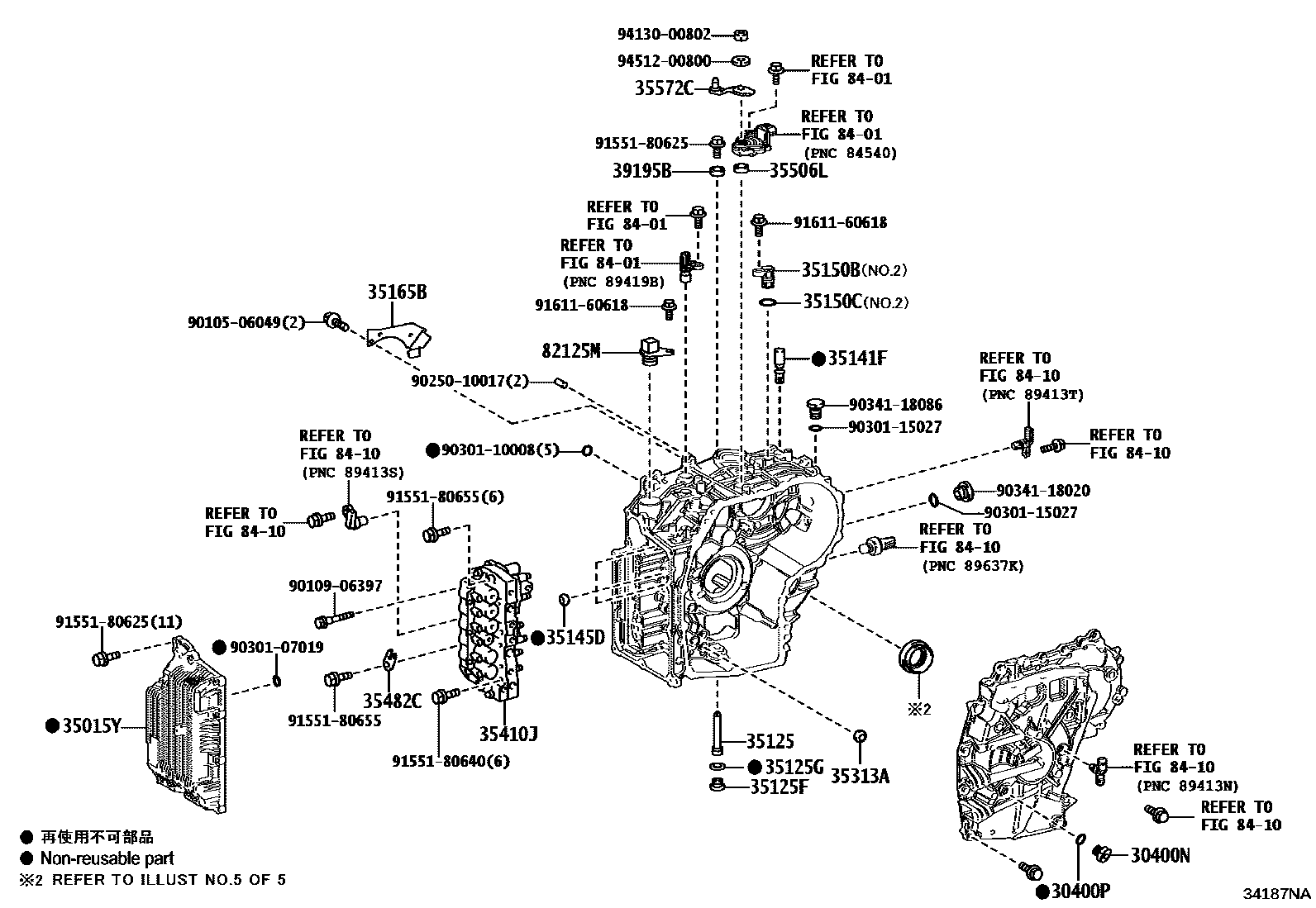

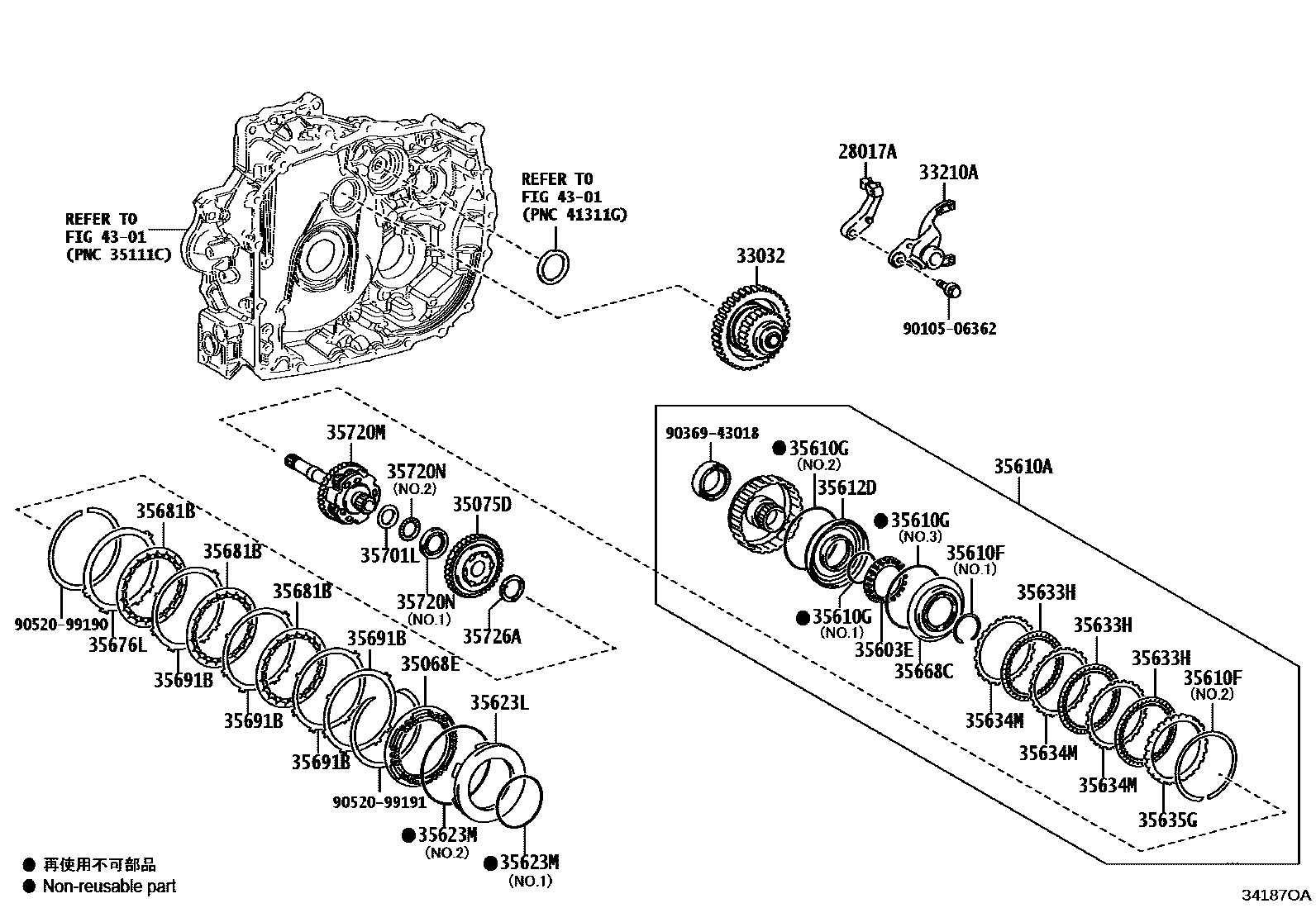

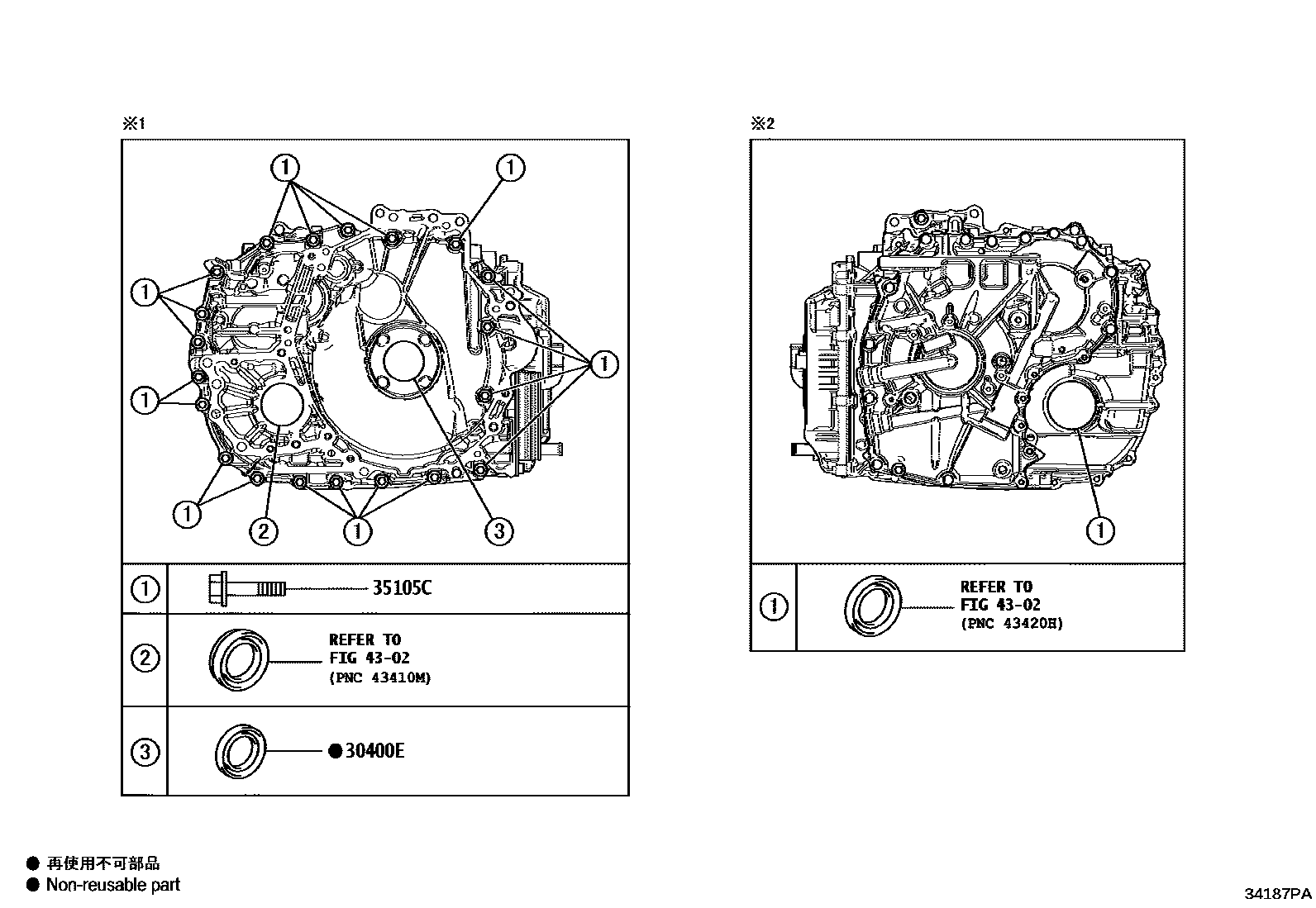

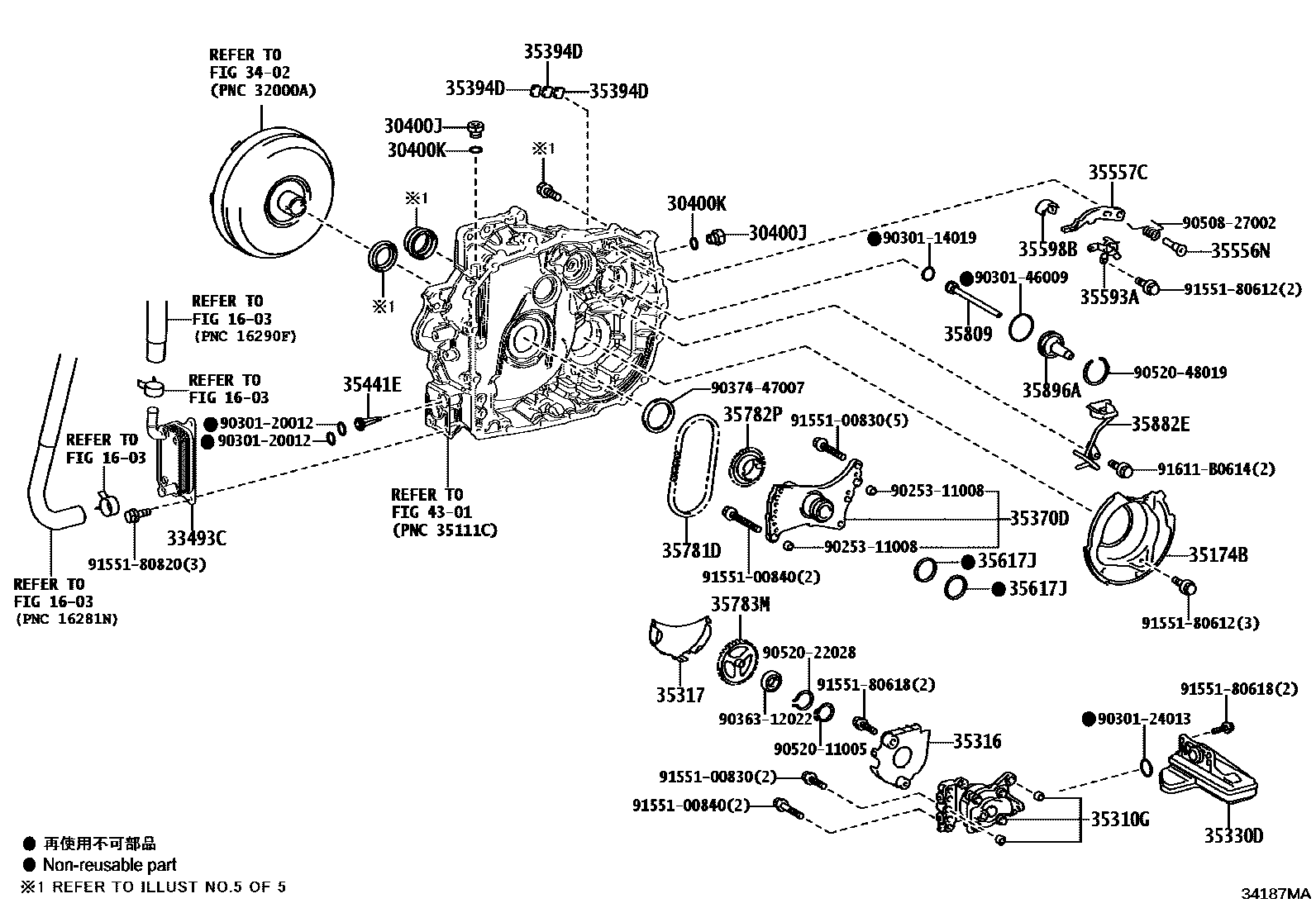

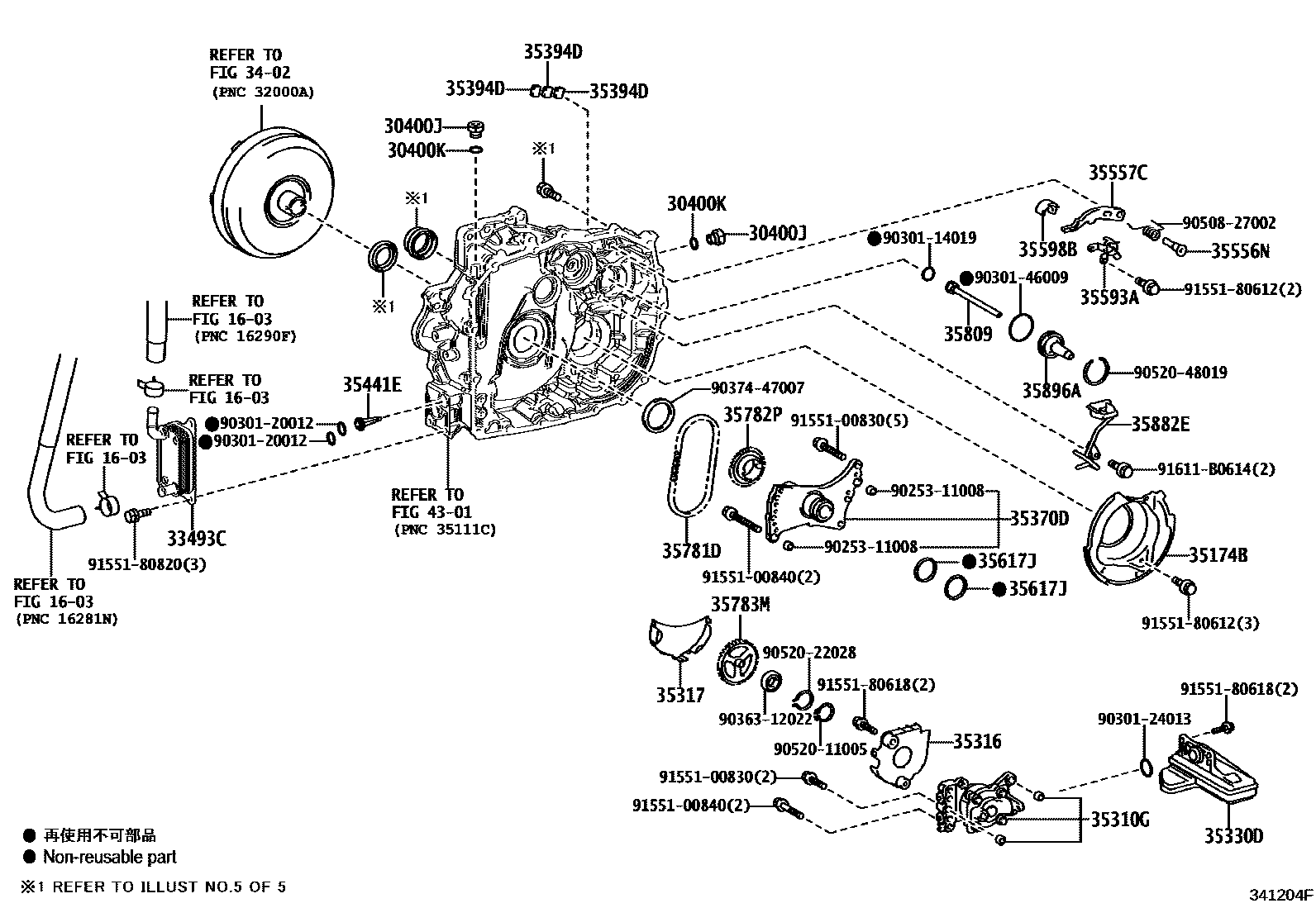

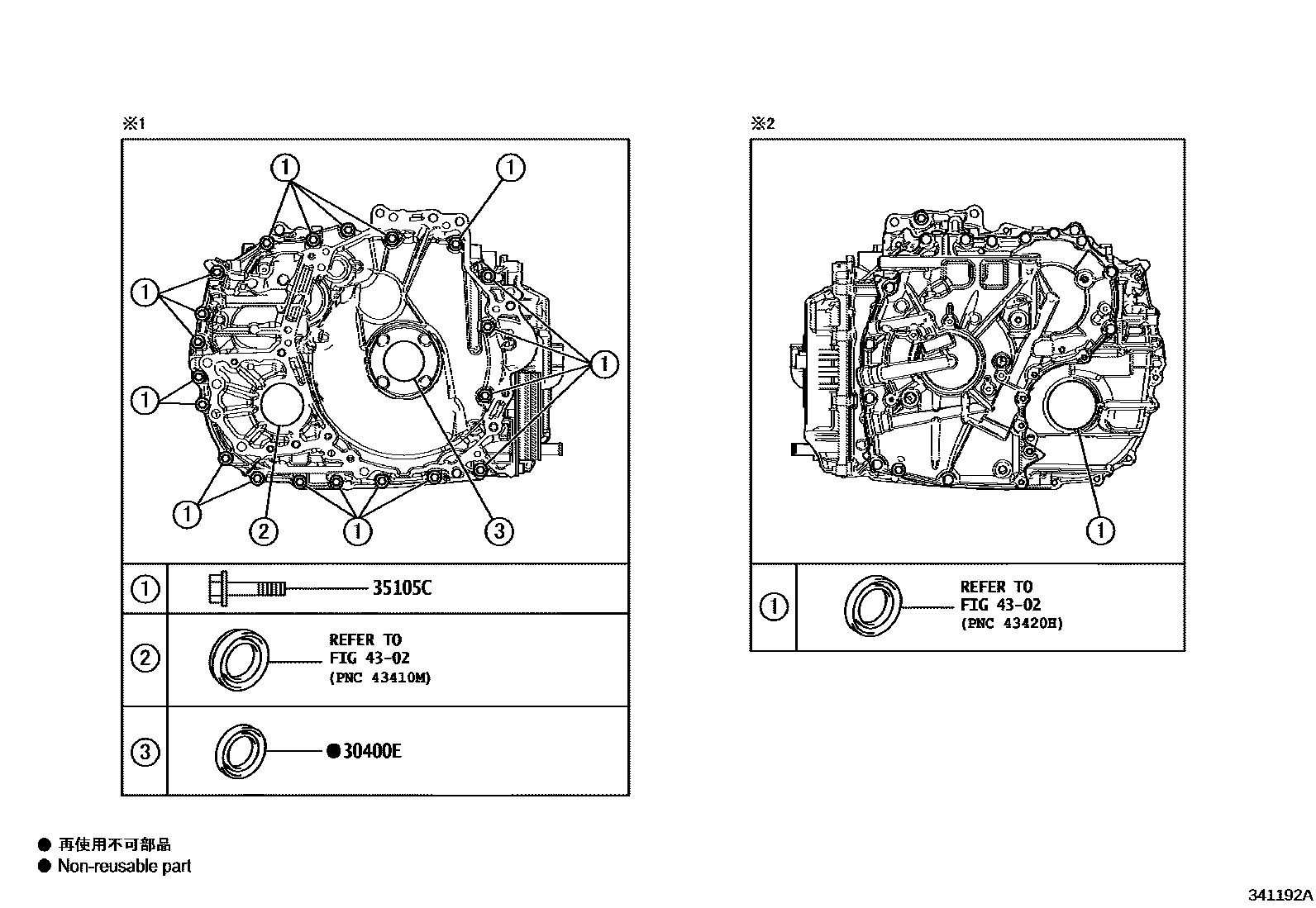

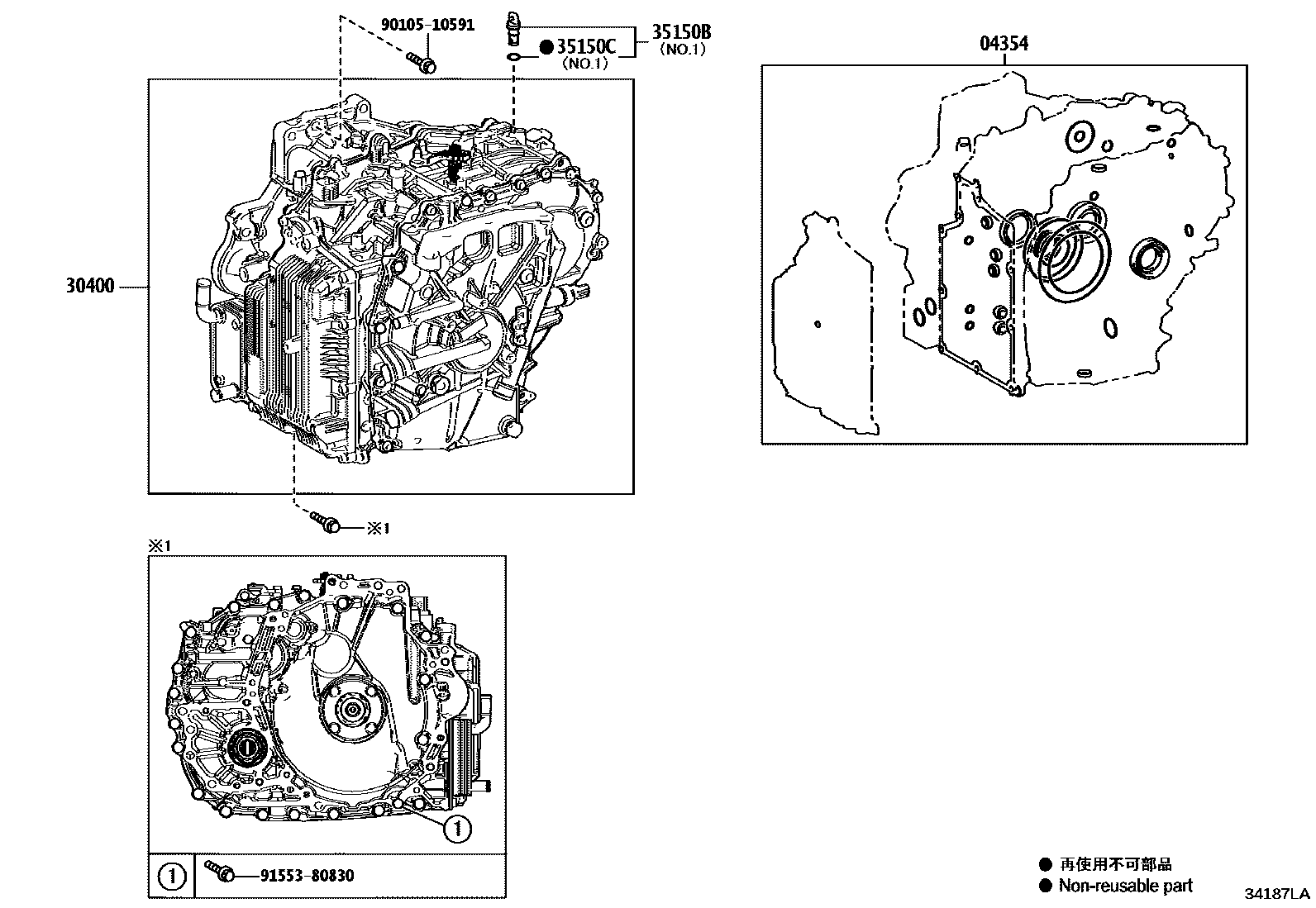

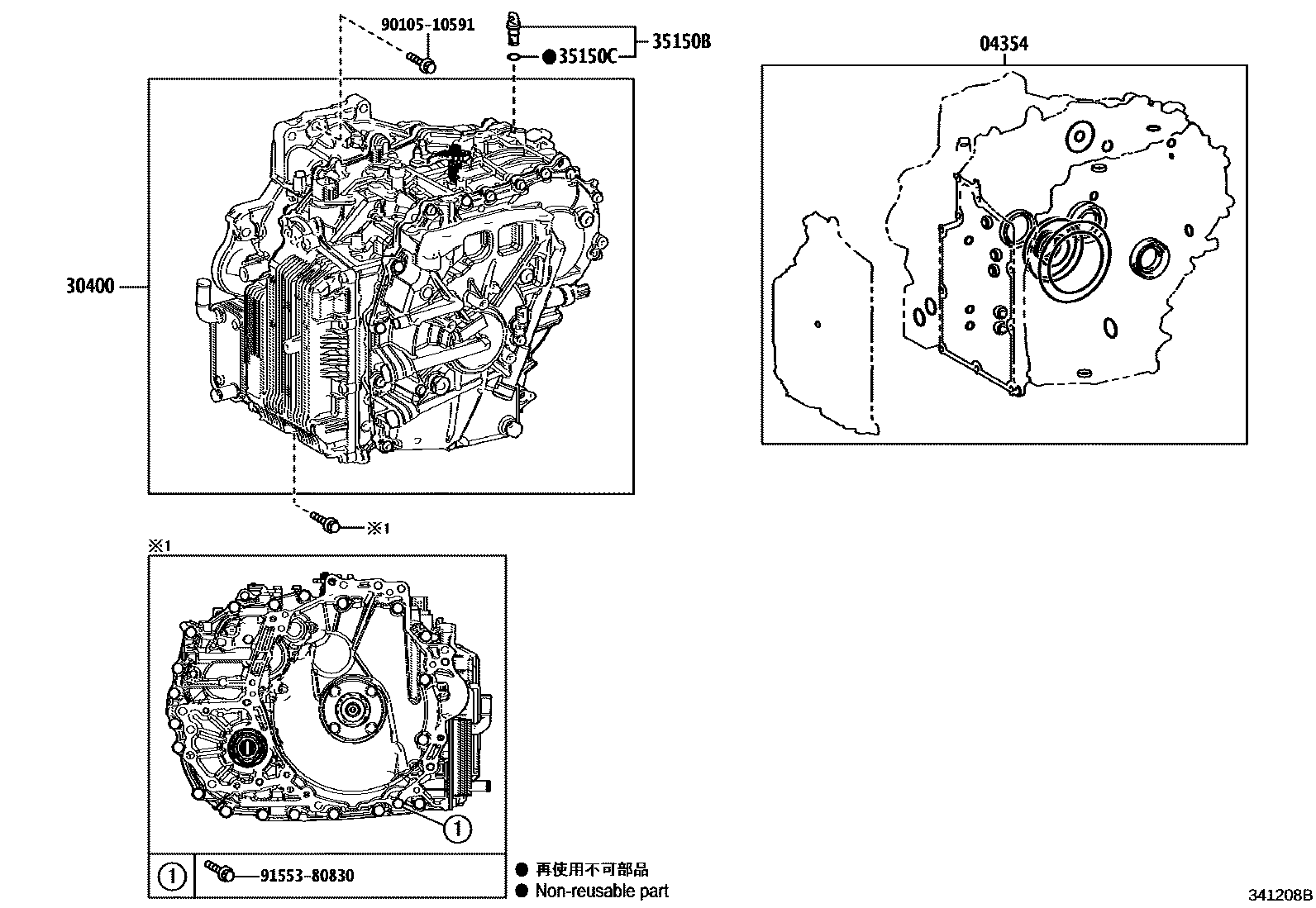

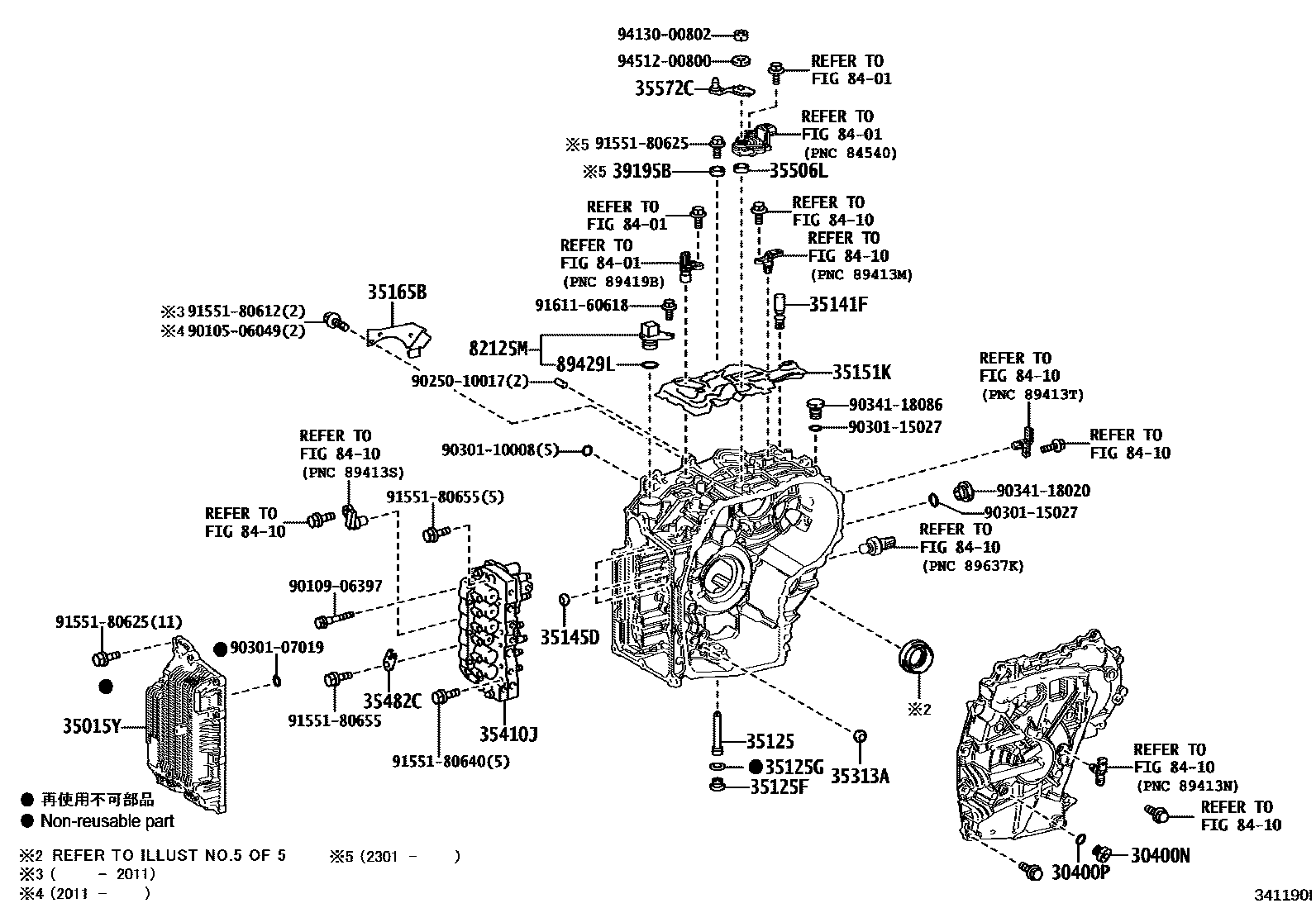

Toyota YARIS 传动桥总成(CVT) — Figure 3401
Toyota YARIS EPC diagram 3401, 传动桥总成(CVT), with 10 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04354 | CVT Transaxle Overhaul Kit | 04354-K0010 |
| 28017A | Bracket (for shift fork) | 28017-K2010 |
| 30400 | Continuously variable transmission axle assembly | 30400-52660 · 30400-K0030 |
| 30400E | T-type oil seal (for CVT oil pump) | 90311-41019 |
| 30400J | Transmission axle hole plug | 90341-08001 |
| 30400K | Transaxle hole plug gasket | 90301-06196 |
| 30400N | Oil filling plug (CVT) | 90341-18077 |
| 30400P | Oil filling plug gasket (CVT) | 90430-18008 |
| 33032 | First gear gear sub-assembly | 33032-K0010 |
| 33210A | No. 1 shift fork assembly | 33210-12010 · 33210-K0010 |
| 33493C | Transmission oil cooler | 33493-12100 |
| 35015Y | Transmission axle half shaft cover sub-assembly | 35015-12020 · 35015-52010 |
| 35068E | First and reverse brake return spring sub-assembly | 35068-12061 · 35068-K0010 |
| 35075D | Front planetary ring gear sub-assembly | 35075-K0010 |
| 35105C | Bolts (for transaxle housing and transaxle housing) | 91551-00830 |
| 35125 | No. 1 transmission oil pipe | 35125-12490 · 35125-K0010 |
| 35125F | Overflow plug (CVT) | 90341-18016 |
| 35125G | Overflow plug gasket (CVT) | 90430-18008 |
| 35141F | No. 1 vent plug (CVT) | 90930-03233 |
| 35145D | Transmission axle housing gasket | 35145-33010 |
| 35150B | gearbox plug assembly | 35150-12040 · 35150-48010 |
| 35150C | O-ring (for gearbox plug) | 90301-09173 · 90301-11008 |
| 35151K | automatic transmission cover | 35151-52020 |
| 35165B | No. 1 gearbox block | 35165-12100 · 35165-52080 · 35165-K0020 |
| 35174B | Oil storage tank locking plate | 35174-K0020 |
| 35310G | Front oil pump assembly | 35300-12020 · 35300-52050 |
| 35313A | Front oil pump cover gasket | 35313-48020 |
| 35316 | Transmission No. 1 oil pump separator plate | 35316-12020 |
| 35317 | Transmission No. 2 oil pump separator plate | 35317-12020 |
| 35330D | Oil filter assembly | 35330-12070 · 35330-K0020 |
| 35370D | Stator shaft assembly (CVT) | 35370-K0010 · 35370-K0011 |
| 35394D | Oil filter magnet (CVT) | 35394-48010 |
| 35410J | Transmission valve body assembly | 35410-12A70 · 35410-52290 |
| 35441E | Solenoid valve oil filter | 35441-12130 · 35441-52040 |
| 35482C | temperature sensor clip | 35482-73010 |
| 35506L | Oil seal (for manual valve stem shaft) | 90311-12002 |
| 35556N | Parking lock pawl shaft | 35556-12050 |
| 35557C | Parking pawl | 35557-12080 · 35557-K0020 |
| 35572C | transmission control lever | 35572-12190 |
| 35593A | Cam guide bushing | 35593-12050 |
| 35598B | Parking lock cover | 35598-12060 · 35598-K0010 |
| 35603E | Forward gear clutch return spring sub-assembly | 35603-12070 · 35603-12071 · 35603-K0010 |
| 35610A | Forward gear multi-plate clutch assembly | 35610-K0010 |
| 35610F | Snap ring (for forward multi-plate clutch) | 90520-44041 · 90520-99192 |
| 35610G | O-ring (for forward multi-plate clutch) | 90301-48007 · 90302-89002 · 90302-92001 |
| 35612D | forward clutch piston | 35612-12110 · 35612-K0010 |
| 35617J | Clutch drum oil ring | 35617-12080 · 35617-K0010 |
| 35623L | Reverse brake piston | 35623-12120 · 35623-12140 · 35623-K0010 |
| 35623M | O-ring (for reverse brake piston) | 90301-93002 · 90301-99208 |
| 35633H | Clutch disc (for forward multi-plate clutch) | 35633-12170 · 35633-K0010 |
| 35634M | No. 1 clutch plate (for forward multi-plate clutch) | 35634-12120 · 35634-K0010 |
| 35635G | forward clutch flange | 35635-12410 · 35635-12480 · 35635-12490 · 35635-12500 · 35635-12510 · 35635-12520 · 35635-12530 · 35635-12540 · 35635-12550 · 35635-12560 · 35635-12570 · 35635-12580 · 35635-12590 · 35635-52270 · 35635-52280 · 35635-52290 · 35635-52300 · 35635-52310 · 35635-52320 · 35635-52330 · 35635-52340 · 35635-52350 · 35635-52360 · 35635-52370 · 35635-52380 · 35635-K0010 · 35635-K0020 · 35635-K0030 · 35635-K0040 · 35635-K0050 · 35635-K0060 · 35635-K0070 |
| 35668C | No. 1 clutch balancer | 35668-12070 · 35668-12071 · 35668-K0010 |
| 35671D | brake cushion | 35671-12070 · 35671-K0010 |
| 35676L | brake flange | 35676-12140 · 35676-K0010 |
| 35681B | No. 1 brake disc | 35681-12080 · 35681-K0010 |
| 35691B | No. 1 brake pad | 35691-12070 · 35691-K0010 |
| 35701L | Thrust bearing race (for input shaft) | 35789-12120 |
| 35720M | Planetary gear assembly | 35720-K0010 |
| 35720N | Thrust needle roller bearings (for planetary gears) | 90374-24008 · 90374-29012 |
| 35726A | Planetary ring gear thrust washer | 35726-12020 |
| 35781D | Transmission drive chain | 35781-12010 |
| 35782P | drive sprocket | 35782-12070 |
| 35783M | Driven sprocket | 35783-12060 |
| 35809 | C-2 clutch pressure oil supply pipe sub-assembly | 35809-12030 · 35809-K0010 |
| 35882E | Differential gear lubricant oil supply pipe | 35882-12080 · 35882-K0010 |
| 35896A | Countershaft lubricating oil supply pipe | 35896-12030 · 35896-K0010 |
| 39195B | Transaxle mass damper | 39195-52010 |
| 82125M | Transmission wiring harness | 82125-12670 · 82125-42030 |
| 89429L | O-ring (for oil temperature sensor) | 90301-06004 |
