Toyota YARIS Air Cleaner — Figure 1703

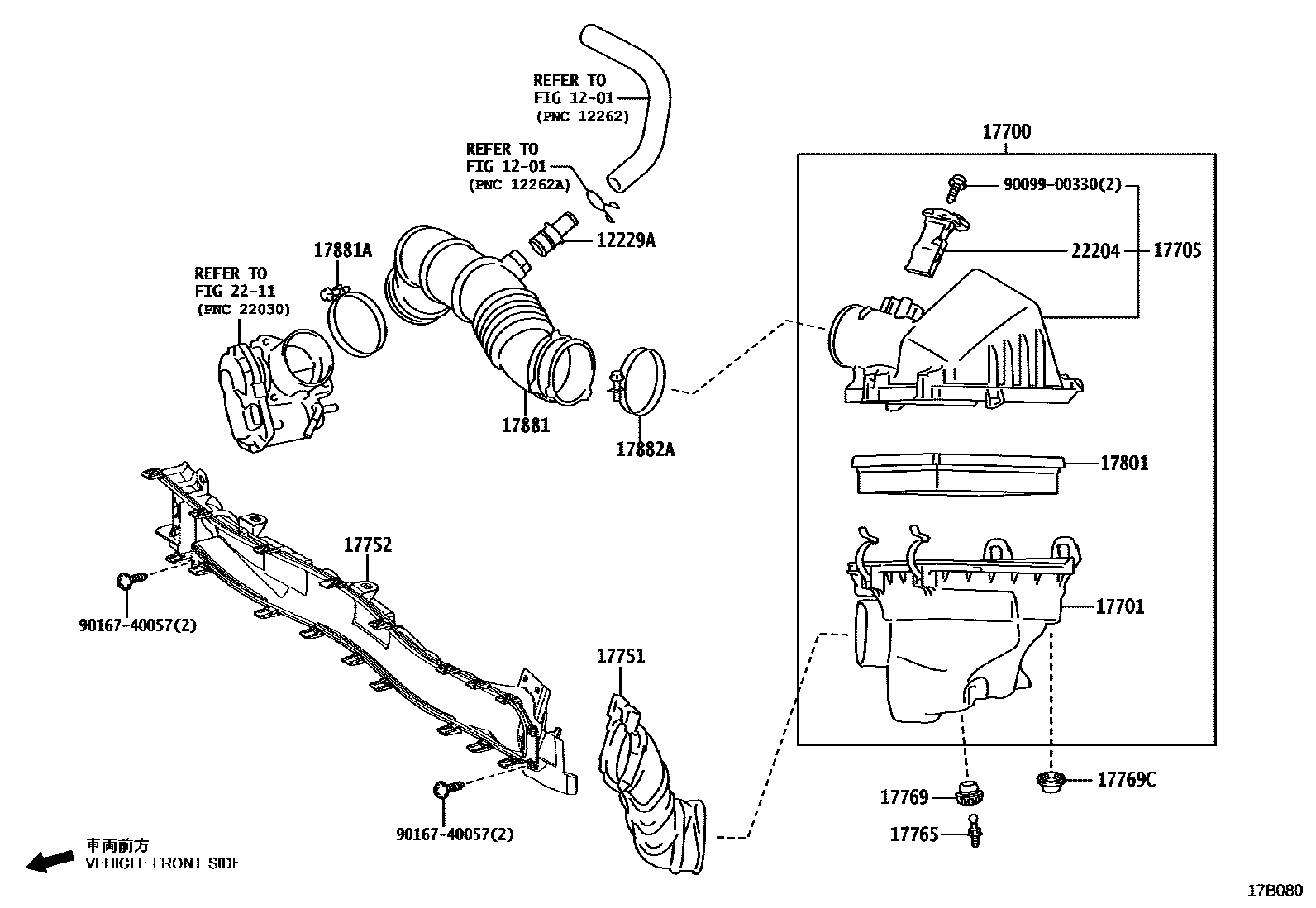

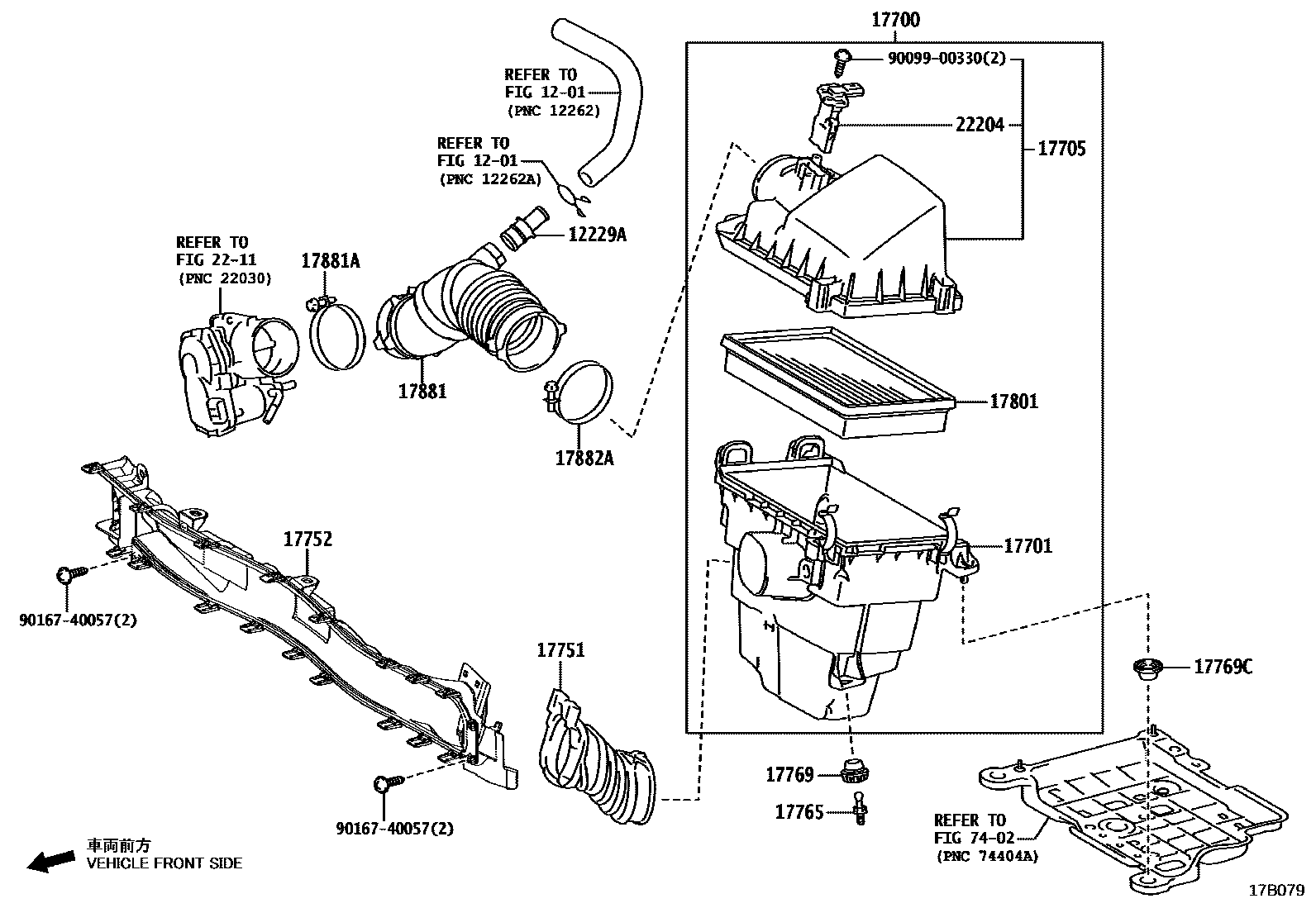

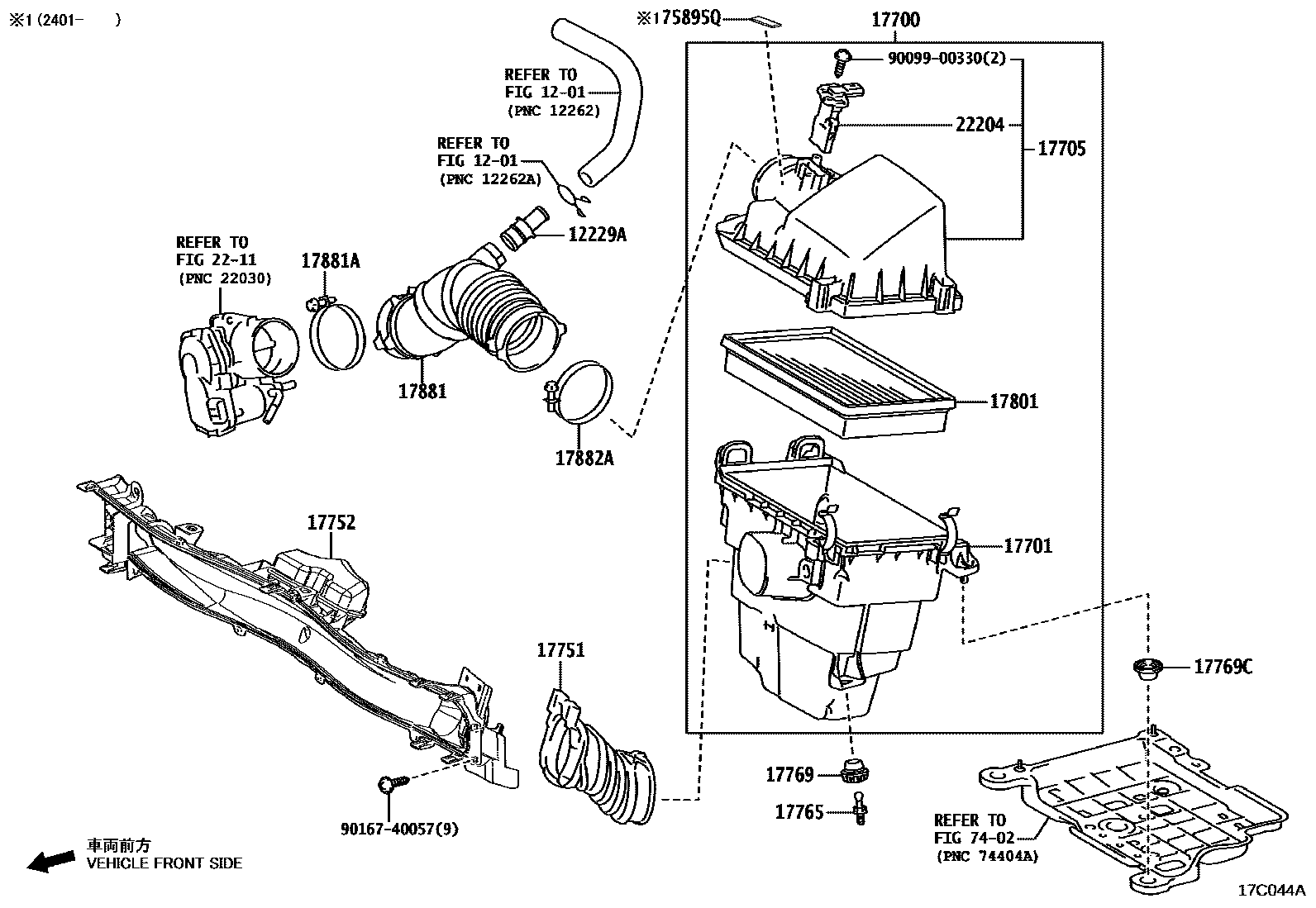

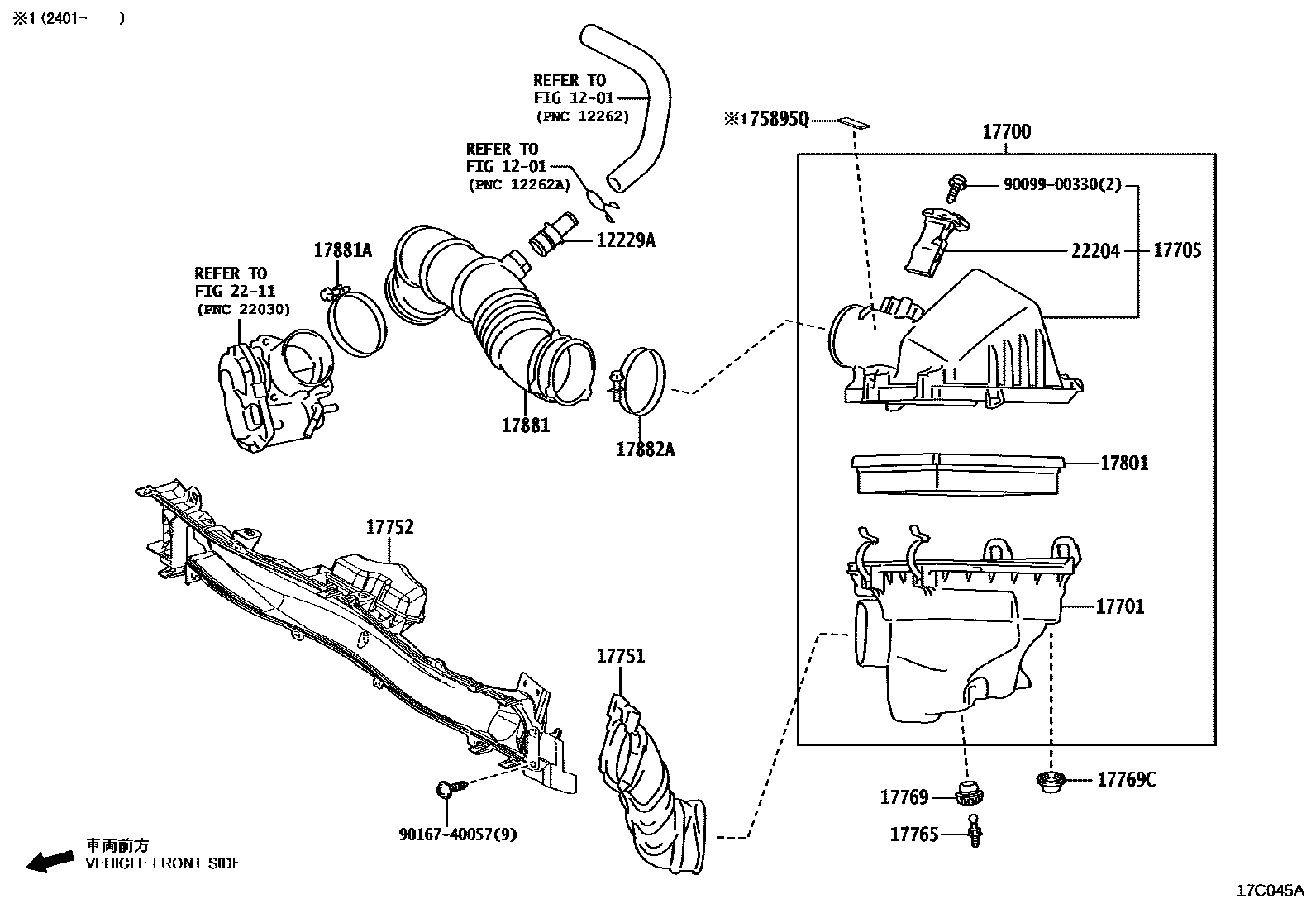

Toyota YARIS EPC diagram 1703, Air Cleaner, with 4 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-21010 |
| 17700 | air filter assembly | 17700-15390 · 17700-15400 · 17700-15410 |
| 17701 | Air filter housing sub-assembly | 17701-15290 · 17701-15300 · 17701-15310 |
| 17705 | Air filter cover sub-assembly | 17705-15200 · 17705-15210 |
| 17751 | No. 1 air filter air inlet | 17751-15090 · 17751-15100 |
| 17752 | No. 2 air filter air inlet | 17752-15060 · 17752-15070 |
| 17765 | No. 1 air filter stay | 17765-25010 |
| 17769 | air filter bracket | 17769-25030 |
| 17769C | No. 1 air filter bracket | 17769-25020 |
| 17801 | Air filter element sub-assembly | 17801-15090 · 17801-24040 |
| 17881 | No. 1 air cleaner hose | 17881-15210 · 17881-15211 · 17881-15220 · 17881-15221 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10690 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10710 |
| 22204 | Intake air flow meter assembly | 22204-24010 |
| 75895Q | No. 1 protective strip tape | 75895-52080 |
