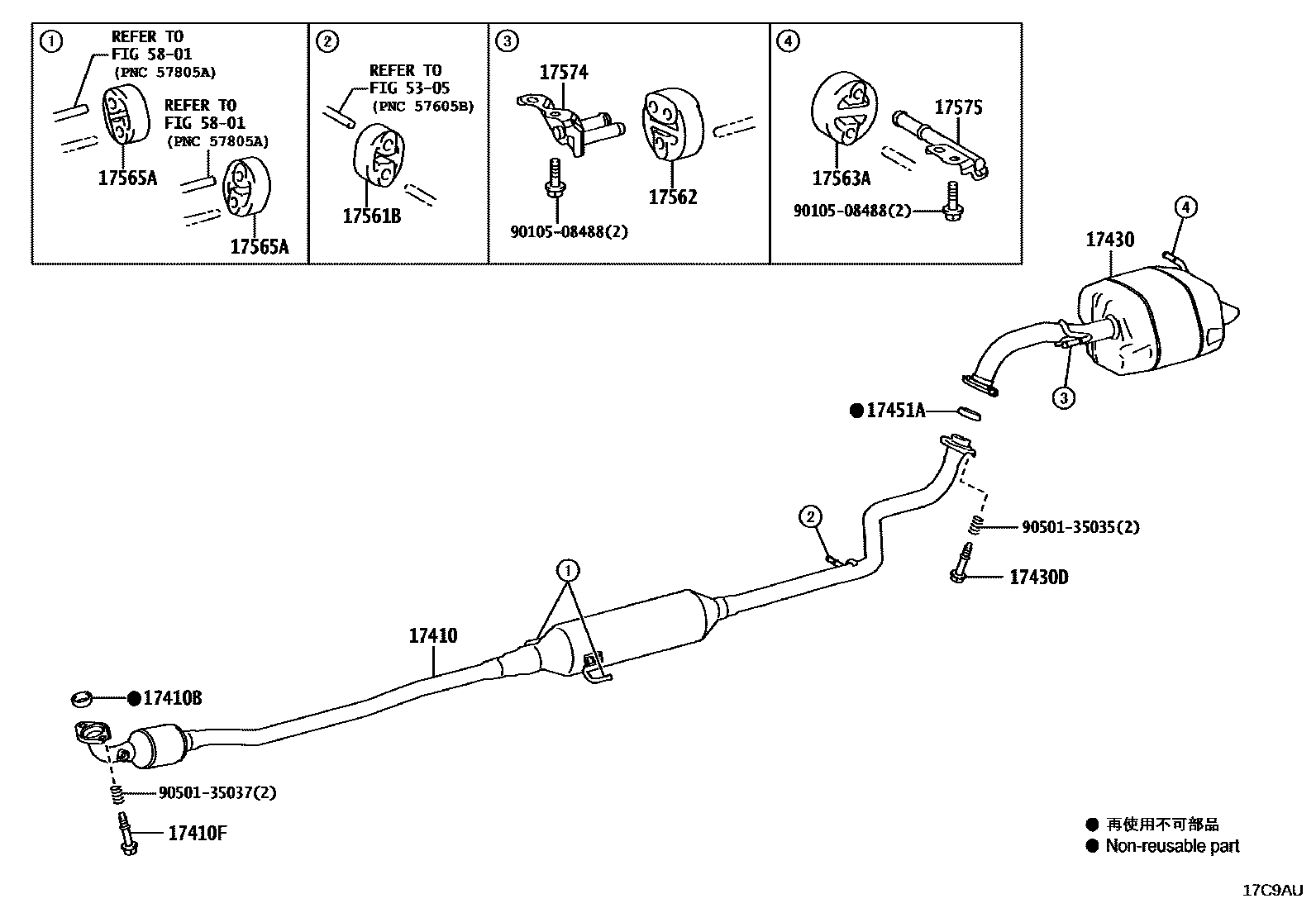

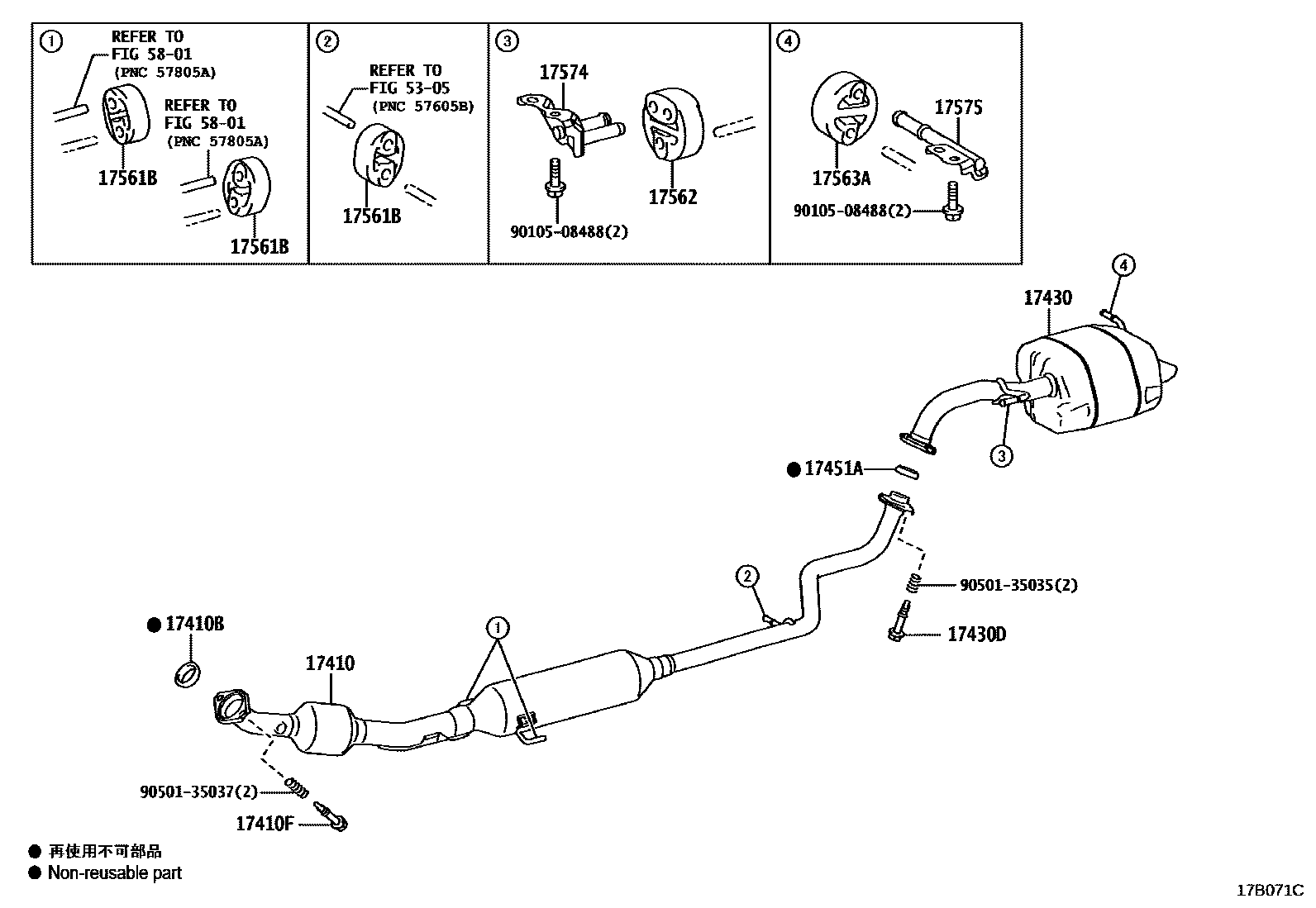

Toyota YARIS Exhaust Pipe — Figure 1702
Toyota YARIS EPC diagram 1702, Exhaust Pipe, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-15300 · 17410-15330 · 17410-15500 · 17410-15510 |
| 17410B | Exhaust pipe gasket | 17451-21070 |
| 17410F | Front exhaust pipe bolt or ring (for front) | 90109-10182 · 90901-05020 |
| 17430 | Exhaust tailpipe assembly | 17430-15710 · 17430-15720 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 90109-10183 · 90901-05026 |
| 17451A | No. 2 exhaust pipe gasket | 17451-23042 · 17451-23043 |
| 17561B | No. 1 exhaust pipe lifting lug | 17565-47010 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-74320 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-28010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-15150 |
| 17574 | No. 4 exhaust pipe bracket | 17574-15060 |
| 17575 | No. 5 exhaust pipe bracket | 17575-15040 |
