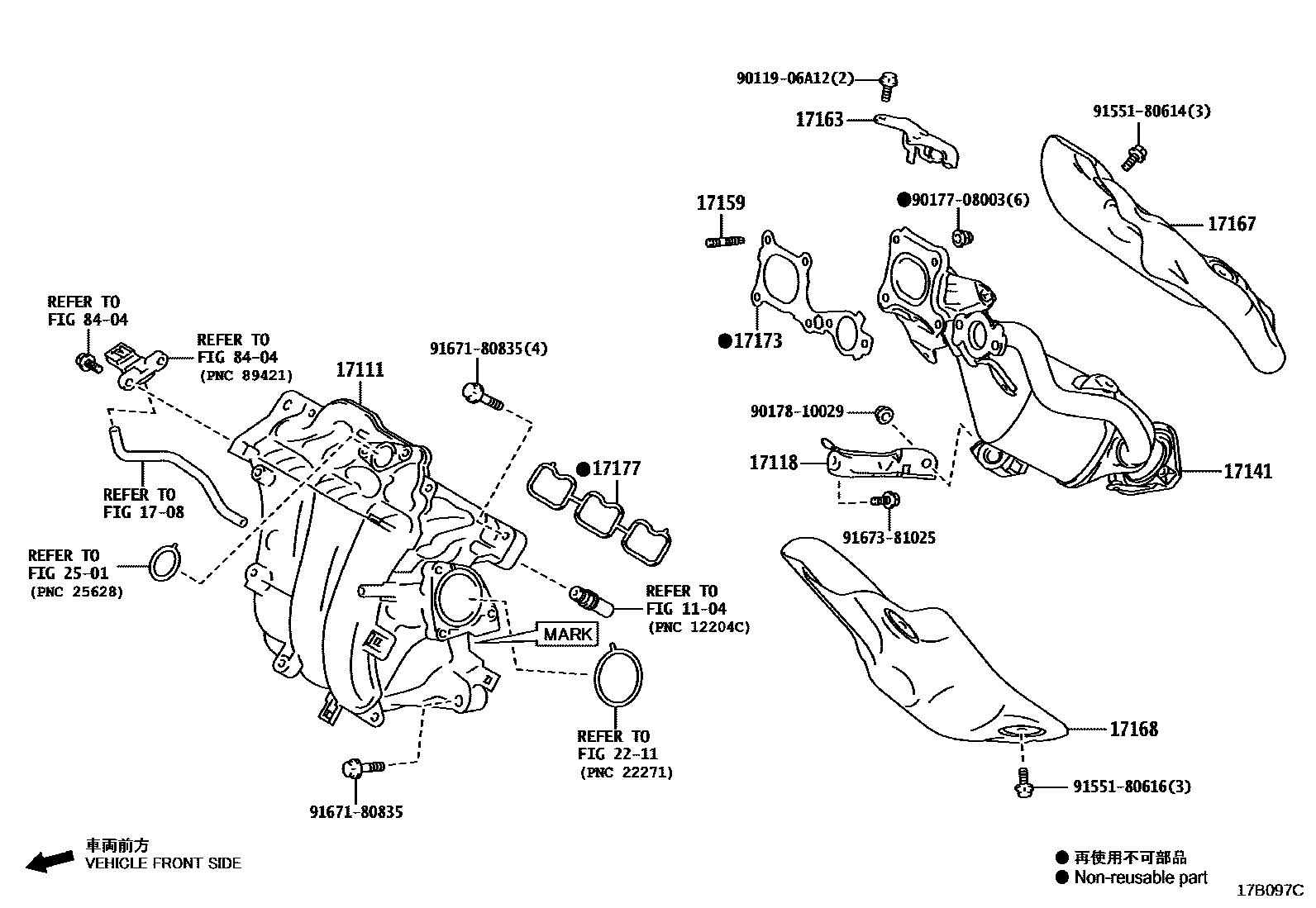

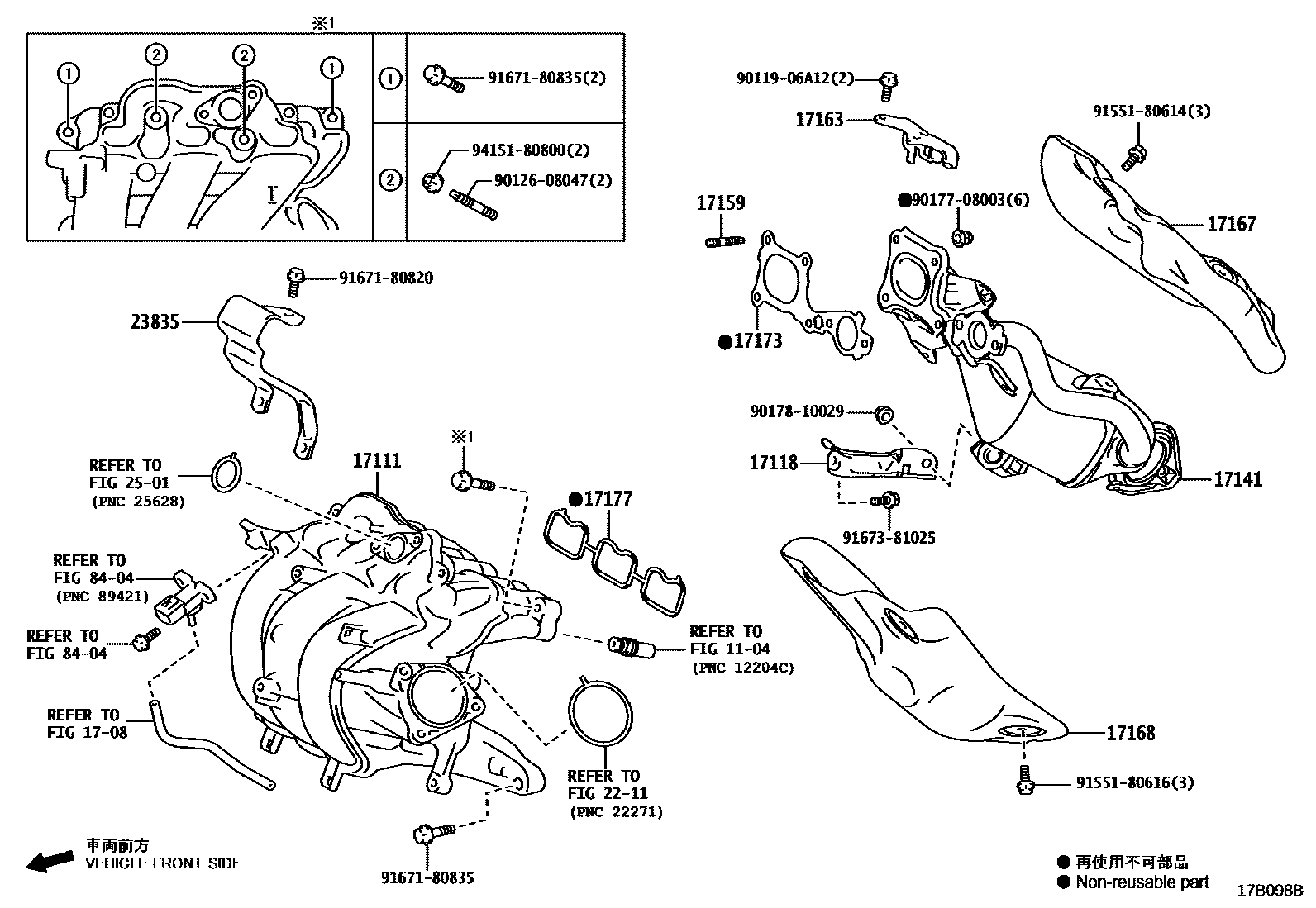

Toyota YARIS Manifold — Figure 1701
Toyota YARIS EPC diagram 1701, Manifold, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17101-15120 · 17101-15130 · 17101-F3010 · 17101-F3020 |
| 17118 | Manifold stays | 17118-15090 |
| 17141 | exhaust manifold | 17141-15190 · 17141-15270 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08052 |
| 17163 | No. 1 insulation pad bracket | 17163-15010 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-15100 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-15040 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-15050 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-15040 |
| 23835 | No. 2 oil pipeline anti-collision parts | 23835-15010 |
