Toyota YARIS Crankshaft & Piston — Figure 1301

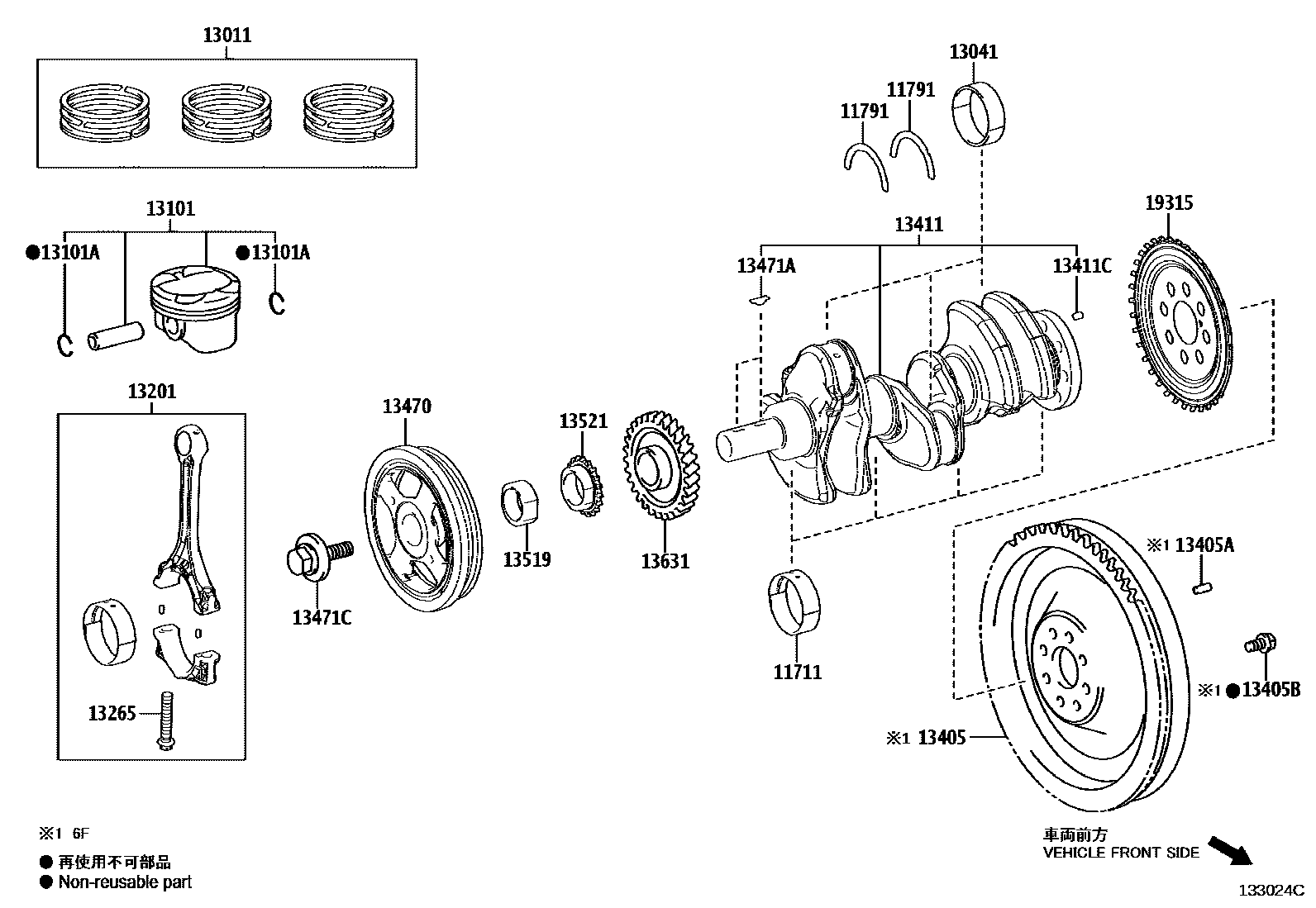

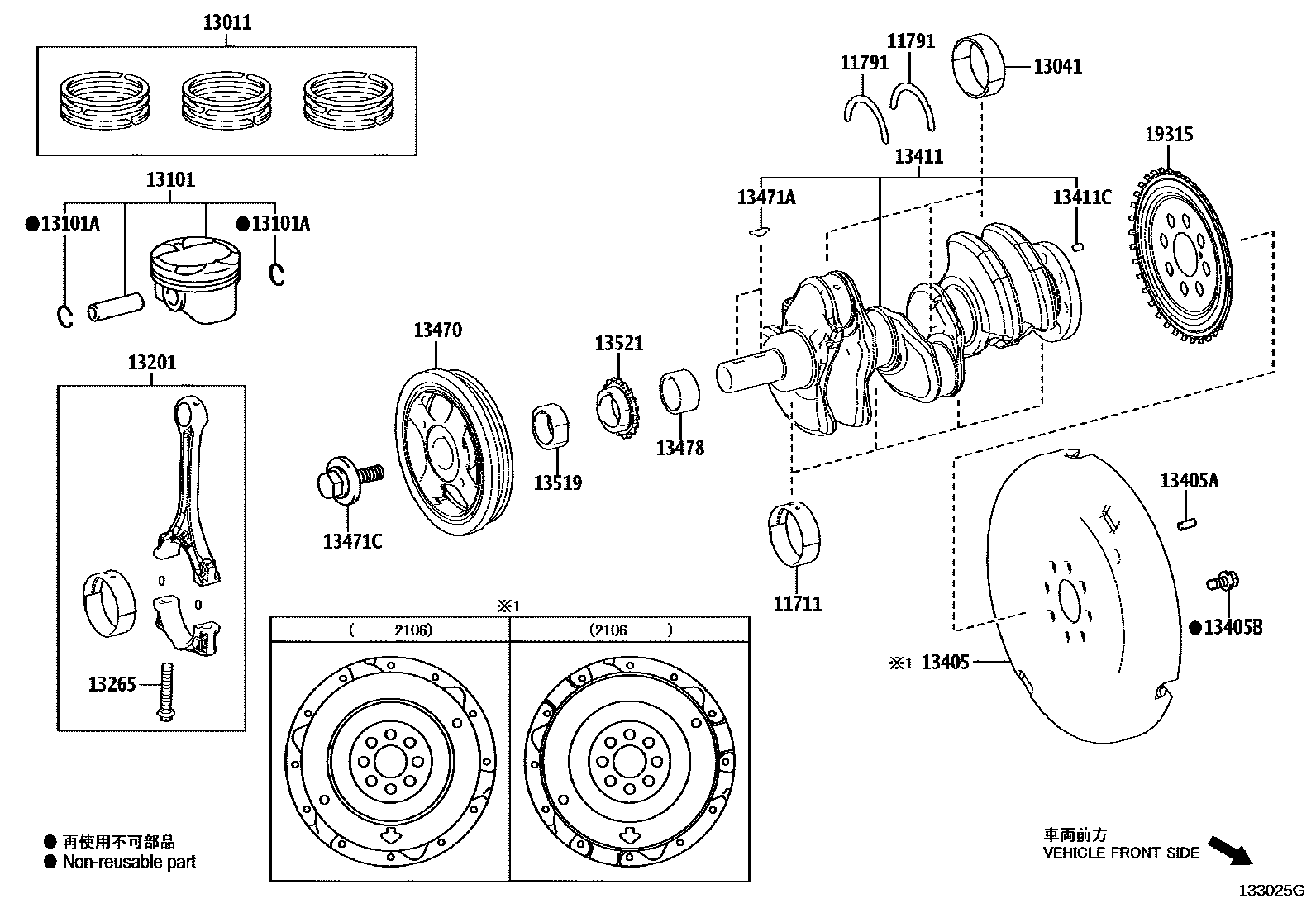

Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-15030 |
| 13011 | Piston ring assembly | 13011-15150 |
| 13101 | Piston sub-assembly with pin | 13101-15060 · 13101-F2040 |
| 13101A | Bore snap ring (for piston pin) | 90520-19019 |
| 13265 | Connecting rod bolts | 13265-25020 |
| 13405 | Flywheel sub-assembly | 13405-15100 · 13451-15110 · 13451-15111 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90105-12322 · 90105-12404 |
| 13411 | crankshaft | 13401-15010 · 13401-F3030 |
| 13411C | Direct sales (for crankshaft) | 90250-06035 · 90250-C0025 |
| 13470 | Crankshaft wheel assembly | 13470-15140 · 13470-15150 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-04001 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-16020 |
| 13478 | Crankshaft pulley spacer ring | 13478-15010 |
| 13519 | Oil pump driving gear | 13519-15010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-15030 |
| 13631 | Balance shaft drive gear | 13631-15010 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-24010 |
