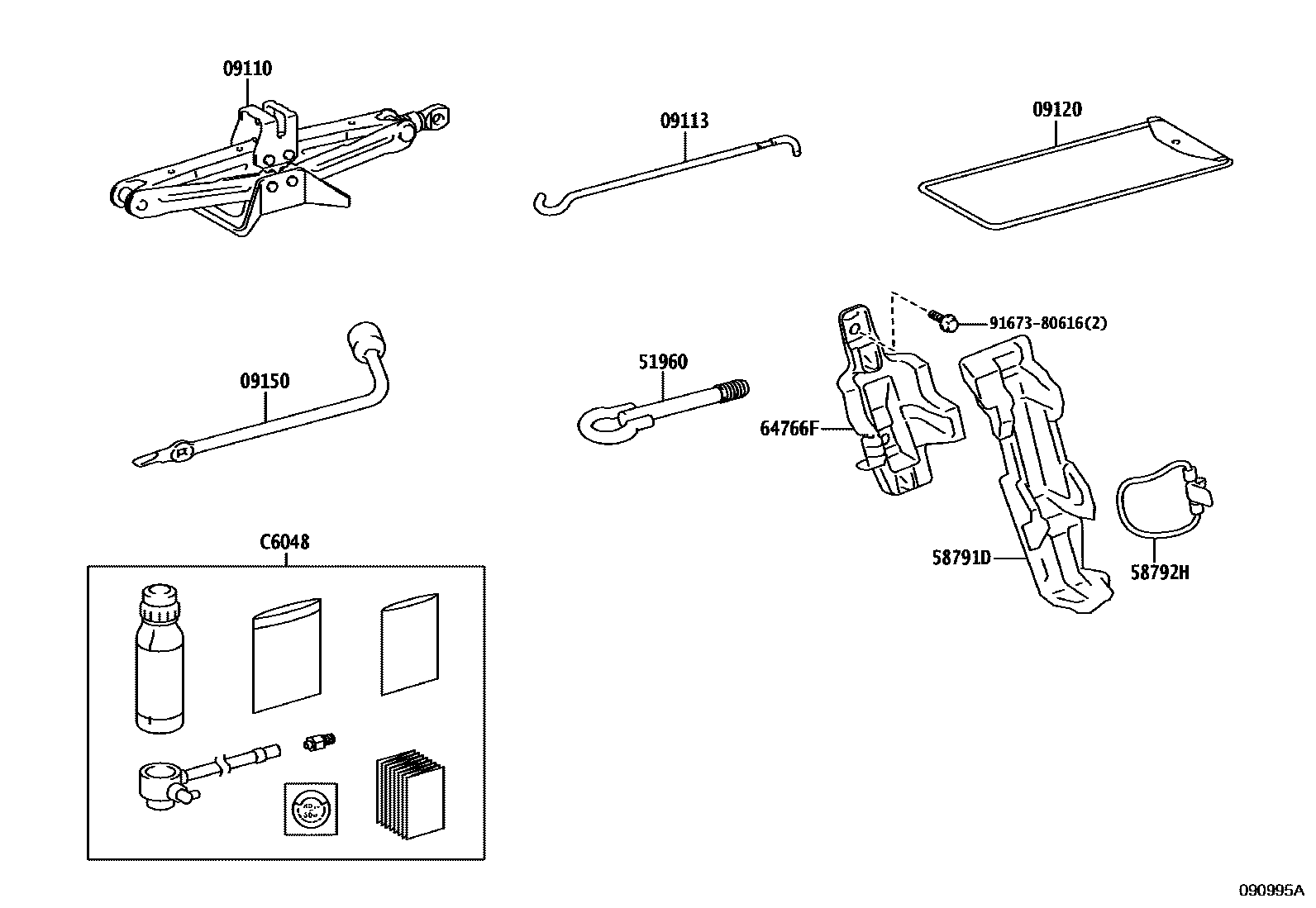

Toyota YARIS Standard Tools — Figure 0901
Toyota YARIS EPC diagram 0901, Standard Tools, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09110-K0010 |
| 09113 | Jack Handle | 09113-42030 |
| 09120 | Tool Bag | 09120-37030 |
| 09150 | Wheel Nut Wrench Case | 09150-42010 |
| 51960 | Front Towing Hook Assembly | 51960-10010 |
| 58791D | jack bracket | 58791-K0040 |
| 58792H | Jack Bracket Bracket | 58792-K0010 |
| 64766F | Lower jack cover frame | 64766-K0040 |
| C6048 | Tire Repair Kit | 42683-K0010 |
