Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 8 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

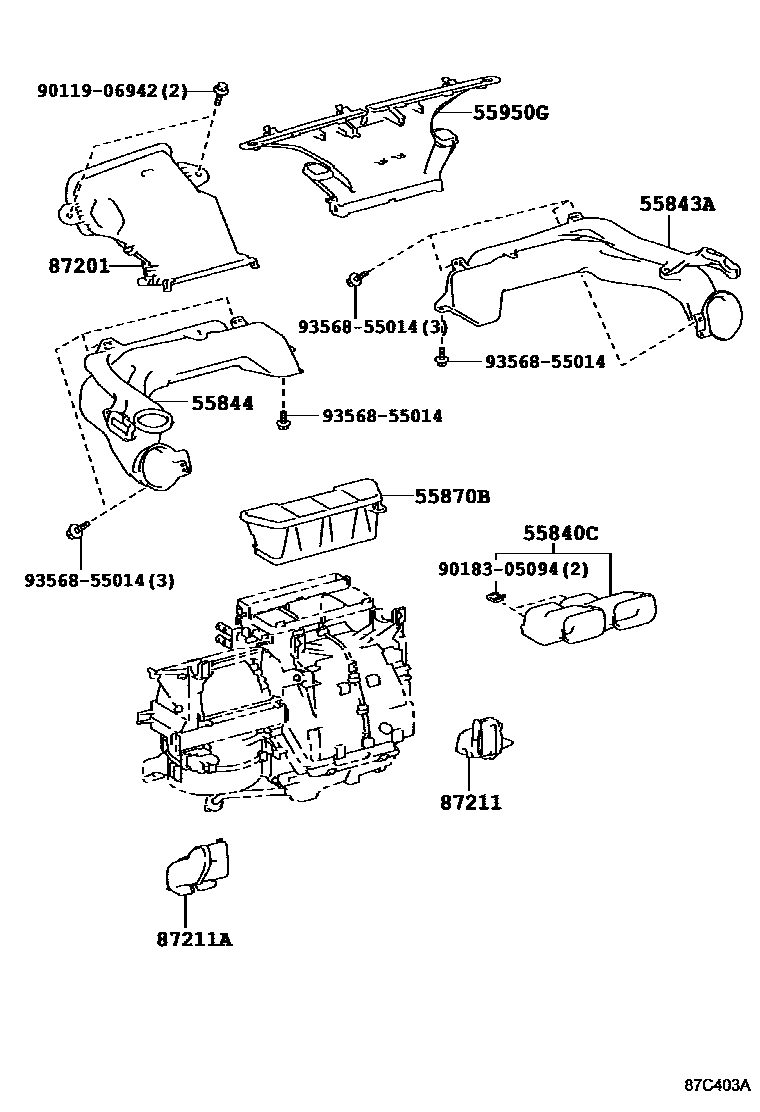

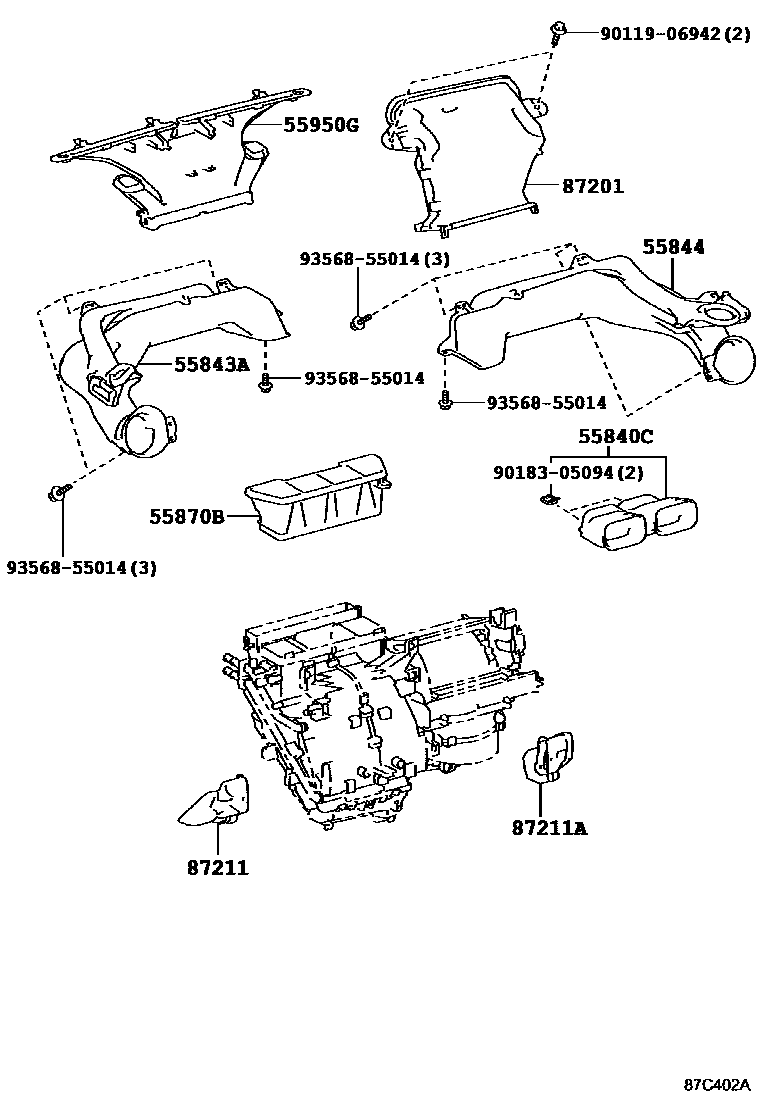

| 55840C | Air duct assembly from heater to air regulator No. 6 | 55840-52090 · 55840-52101 |
| 55843A | Air duct No. 1 from heater to air register | 55084-52110 · 55843-52340 · 55843-52350 |
| 55844 | Air duct No. 2 from heater to air regulator | 55085-52050 · 55844-52250 · 55844-52260 |
| 55870B | Heater to air regulator air duct assembly | 55870-52040 |
| 55900 | Air conditioning control assembly | 55900-52570 · 55900-52710 |

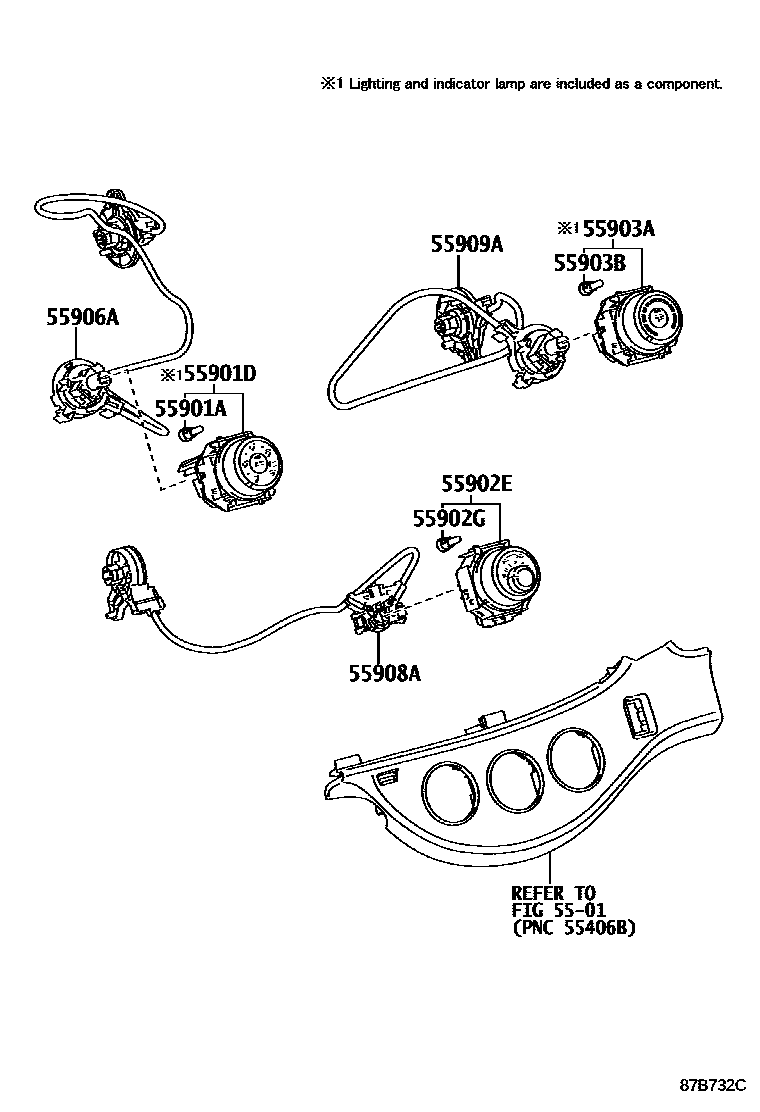

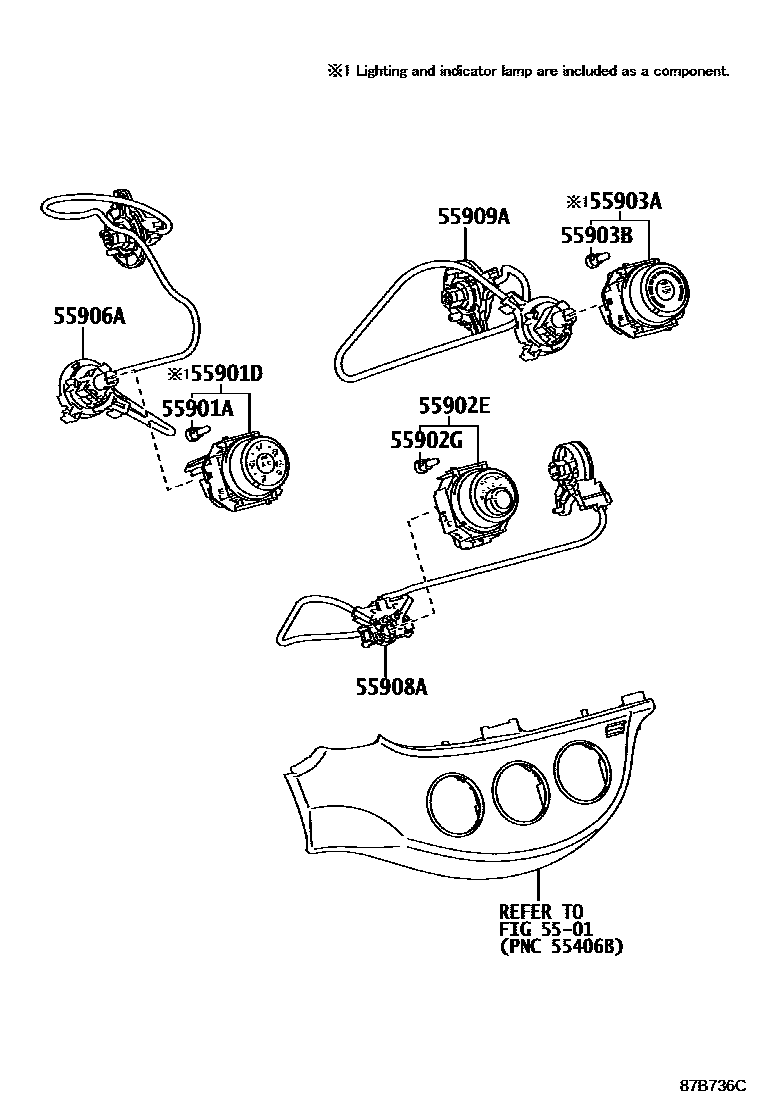

| 55901A | No. 1 heater control bulb sub-assembly | 90010-01142 |
| 55901D | No. 1 heater control sub-assembly | 55901-52230 · 55901-52310 · 55901-52370 · 55901-52390 · 55901-52470 |
| 55902E | No. 2 heater control sub-assembly | 55902-52180 |
| 55902G | No. 2 heater control bulb sub-assembly | 90010-01142 |
| 55903A | No. 3 heater control sub-assembly | 55903-52550 · 55903-52570 · 55903-52580 · 55903-52670 |
| 55903B | No. 3 heater control bulb sub-assembly | 90010-01142 |
| 55906A | Defroster damper control cable sub-assembly | 55906-52132 |
| 55908A | Intake air valve control cable sub-assembly | 55908-52120 · 55908-52130 |
| 55909A | Air mix damper control cable sub-assembly | 55909-52120 |
| 55950G | Defroster nozzle assembly | 55950-52170 |
| 87201 | No. 1 air duct sub-assembly | 87201-52140 · 87201-52150 |
| 87211 | No. 1 air duct | 87211-52060 · 87211-52080 |
| 87211A | Duct No. 2 | 87211-52050 · 87211-52070 |

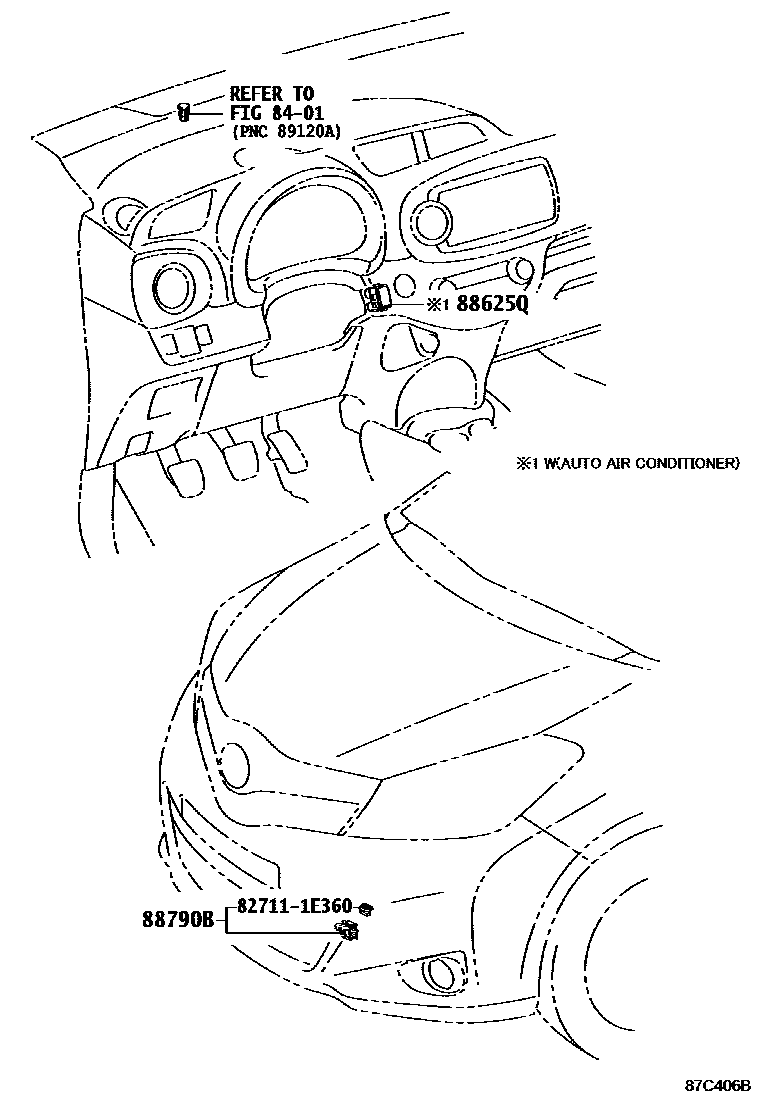

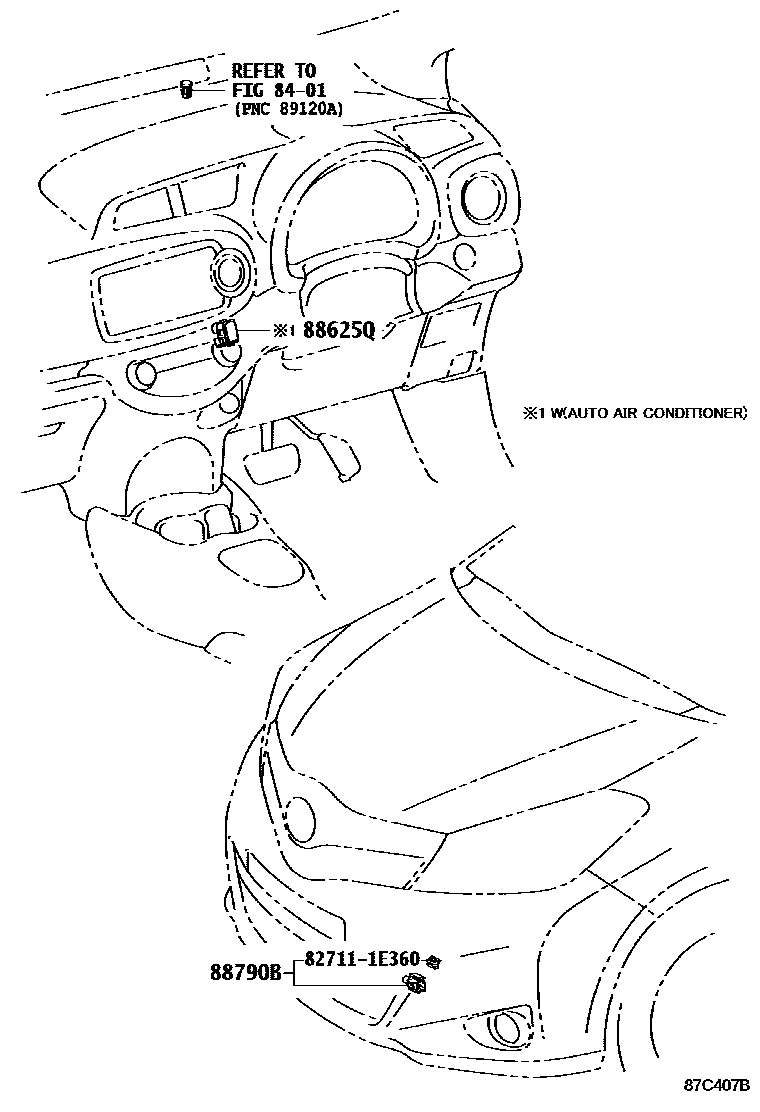

| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88790B | Thermistor assembly | 88790-22131 · 88790-28100 |
