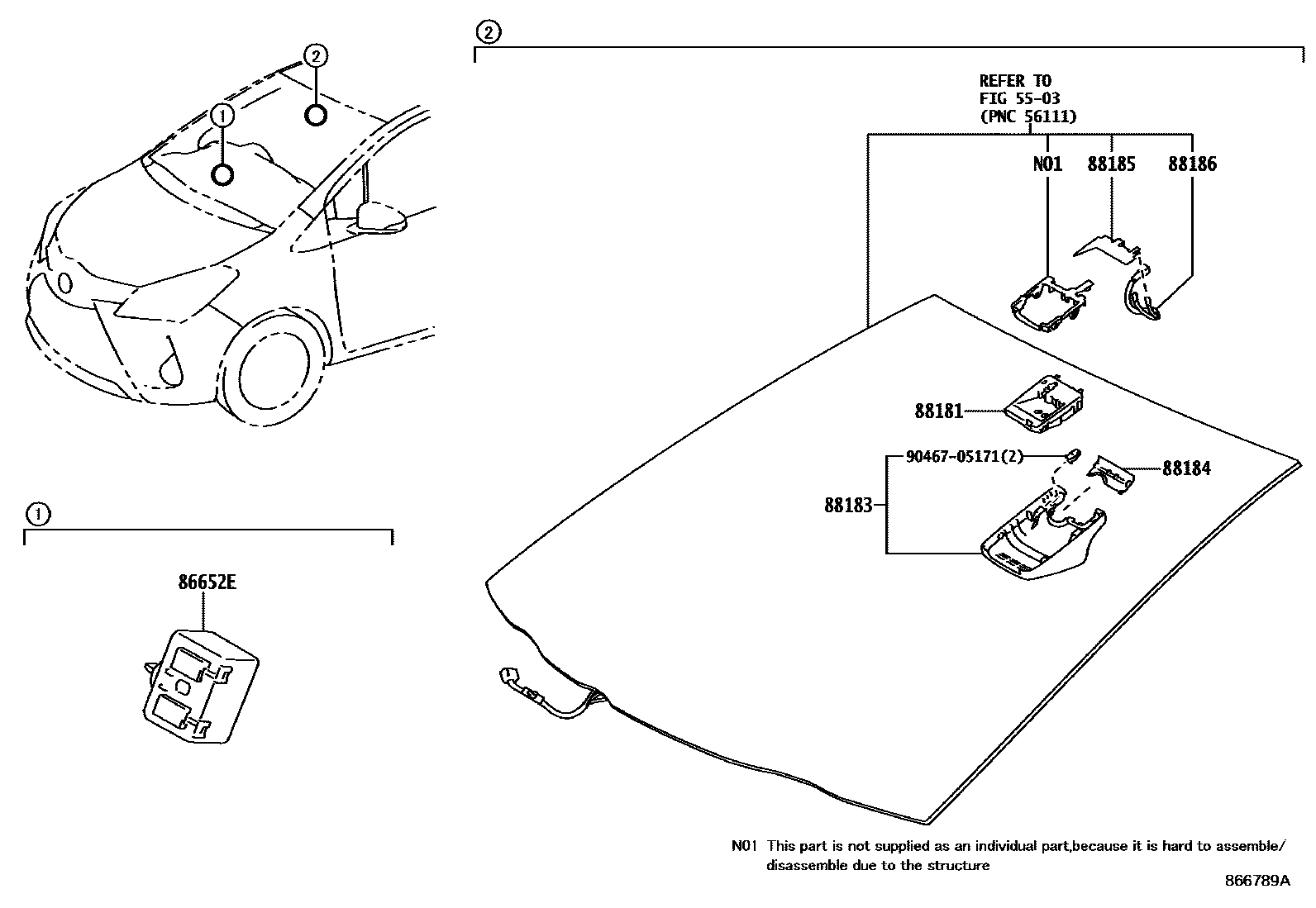

Toyota YARIS 预碰撞安全系统 — Figure 8617
Toyota YARIS EPC diagram 8617, 预碰撞安全系统, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86652E | Pre-collision safety system buzzer | 86652-50010 |
| 88181 | Pre-collision safety system sensor | 88181-0D020 · 88181-52040 · 88181-52130 |
| 88183 | Pre-crash safety system cover | 88183-52020 · 88183-52060 |
| 88184 | Pre-collision safety system cover 2 | 88184-52020 · 88184-52060 |
| 88185 | Pre-collision safety system heater | 88185-52040 |
| 88186 | Pre-collision safety system heater wiring harness | 88186-52040 |
